Manual d'usuari de l'aspiradora sense fil NaceCare Henry Quick

1. Introducció

The Henry Quick is a powerful, high-capacity, and dust-free cordless stick vacuum cleaner designed for convenient and efficient cleaning across various surfaces. Its innovative pod technology ensures hygienic, mess-free emptying and powerful suction.

Característiques principals:

• 1-hour run time for extended cleaning sessions.
• Powerful suction for effective dirt and dust removal.
• Large 1-quart pod capacity, with 26 pods included for ampl'ús.
• Lightweight, slim, and ergonomic design for comfortable handling.
• Hygienic, dust-free emptying: simply pop out one pod and add a new one.
• Power on/off light and full pod indicator light for ease of use.
• Battery life/charge status indicator.
• Includes crevice tools for detailed and high-level cleaning.
• Stores neatly on a wall dock with on-board accessories.
• Detachable brush head design for effortless stair cleaning.

Figure 1: The NaceCare Henry Quick Cordless Stick Vacuum in red.

2. Què hi ha a la caixa

Your NaceCare Henry Quick Cordless Stick Vacuum package includes the following components:

• Henry Quick Main Unit
• Capçal de raspall motoritzat
• Extended-use Handle
• 2-in-1 Combi Tool
• Eina per esquerdes
• Wall Dock, Charger & Battery
• 26 Filter Pods

Figure 2: All components included with the Henry Quick Cordless Stick Vacuum.

3. Configuració

1. Carregueu la bateria: Before first use, fully charge the 25.2V Lithium-Ion battery. The battery can be charged while attached to the main unit or separately. A full charge takes approximately 2.5 hours. The battery life/charge status is indicated by lights on the main unit.
2. Muntar l'aspiradora:
   • Attach the Extended-use Handle to the main unit until it clicks securely into place.
   • Connect the Motorized Brush Head to the bottom of the Extended-use Handle. Ensure it clicks firmly.
   • Insert a Filter Pod into the main unit. Refer to the "Maintenance" section for detailed instructions on pod insertion.
3. Install Wall Dock (Optional): The included wall dock allows for neat storage and convenient charging. Choose a suitable location near a power outlet. Secure the wall dock to the wall using appropriate fasteners (not included). The vacuum unit, with the battery, can then be placed on the dock for storage and charging.

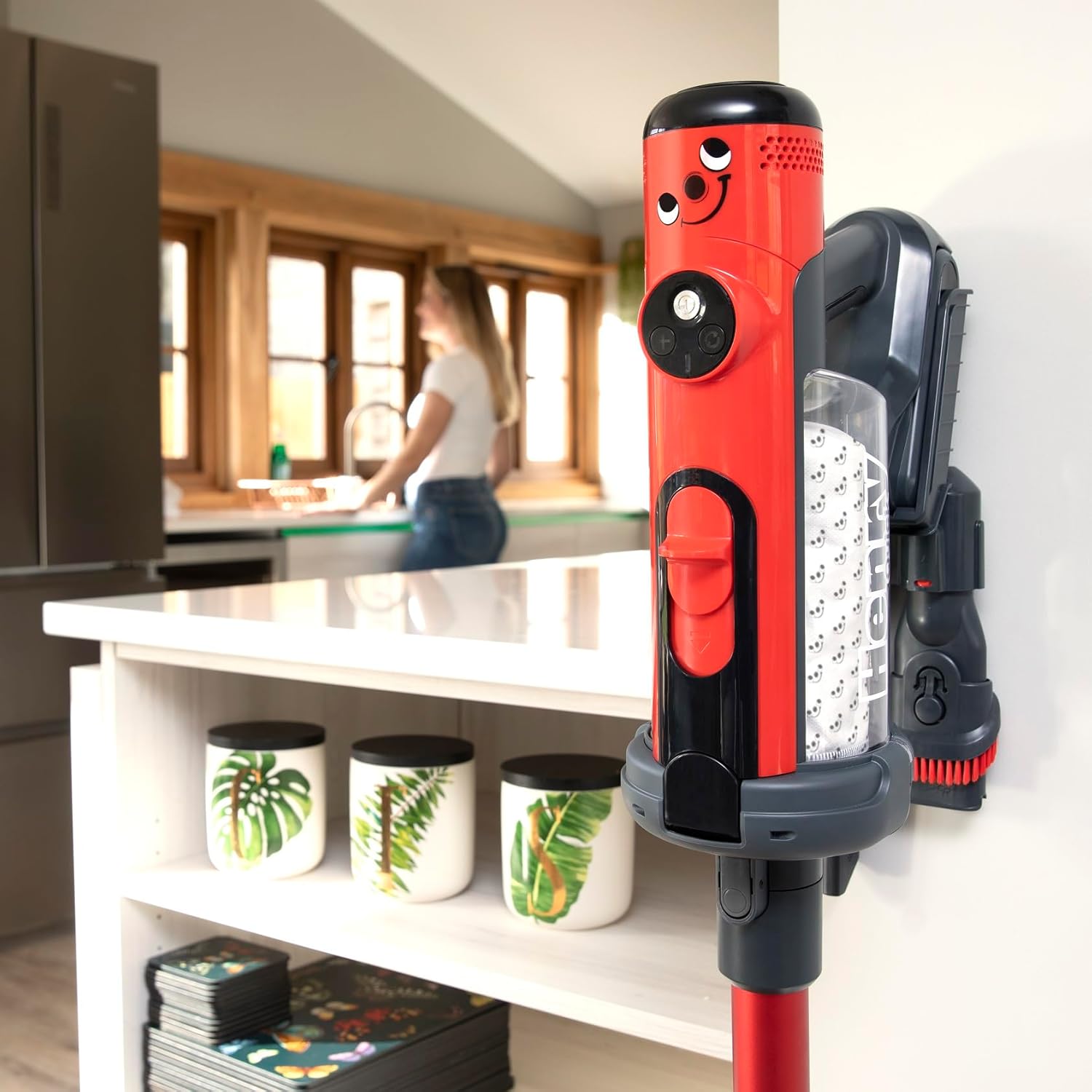

   Figure 3: Henry Quick stored neatly on its wall dock with accessories.

4. Instruccions de funcionament

The Henry Quick is designed for versatile cleaning across various surfaces. Follow these steps for optimal performance:

1. Encès/apagat: Press the power button on the main unit to turn the vacuum on or off. The power on/off light will illuminate.
2. Seleccioneu el mode de neteja: The Henry Quick offers different power modes. Press the mode selection button to switch between standard and boost modes. Boost mode provides powerful suction for stubborn dirt and debris.


   Figure 4: Using the Henry Quick for powerful cleaning of spills.
3. Neteja de diferents superfícies:
   • Floors and Carpets: Use the Motorized Brush Head for effective cleaning of both hard floors and carpets. The brush head is designed to agitate and lift dirt from various floor types.
   • Escales: The detachable brush head allows for effortless cleaning of stairs. Simply detach the main handle and use the motorized head directly for precise cleaning.


     Figure 5: Detachable brush head makes stair cleaning effortless.

   • Detail and High-Level Cleaning: Utilize the included 2-in-1 Combi Tool and Crevice Tool for reaching tight spaces, corners, and high areas like ceilings or shelves.


     Figure 6: Handy accessories like the crevice tool make hard-to-reach cleaning easy.

5. Manteniment

Regular maintenance ensures your Henry Quick vacuum operates at its best. The unique pod system simplifies dust disposal.

1. Emptying the Filter Pod:
   • When the full pod indicator light illuminates, it's time to replace the pod.
   • Position the main unit directly over a waste bin.
   • Press the release button to eject the used pod directly into the bin. This ensures hygienic, dust-free disposal without direct contact with dirt.
   • Insert a new filter pod into the main unit until it clicks into place.


   Figure 7: The hygienic, dust-free method for emptying the filter pod.



   Figure 8: Replacement filter pods for the Henry Quick vacuum.
2. Neteja del capçal del raspall: Periodically inspect the Motorized Brush Head for tangled hair or debris. Detach the brush head from the handle and carefully remove any obstructions. The brush bar can be removed for thorough cleaning if necessary.

6. Solució De Problemes

If you encounter any issues with your Henry Quick vacuum, please refer to the following common solutions:

• Sense energia: Ensure the battery is fully charged and properly inserted. Check the battery indicator lights.
• Succió reduïda: Check if the filter pod is full and needs replacement. Inspect the brush head and hose for any blockages. Ensure all parts are securely assembled.
• Brush Head Not Spinning: Verify that the brush head is clean and free of obstructions. Ensure it is correctly attached to the handle.
• Sorolls inusuals: Turn off the vacuum immediately and check for any foreign objects lodged in the brush head or main unit.

For persistent issues not covered here, please contact NaceCare customer support.

7. Especificacions

8. Garantia i Suport

The NaceCare Henry Quick Cordless Stick Vacuum comes with a 2 anys de garantia de peces i mà d'obra, assegurant la tranquil·litat de la teva compra.

For any support needs, including troubleshooting, parts replacement, or warranty claims, please contact NaceCare customer service through their official weblloc web o el venedor on vau comprar el producte.

Política de devolució: This product has a 30-day return policy for refund or replacement, as per the retailer's terms.
