ODK L-Shaped Gaming and Office Desk User Manual

Introducció

Gràcies per la compraasing the ODK L-Shaped Gaming and Office Desk. This versatile and sturdy desk is designed to enhance your productivity and gaming experience, offering ample workspace, integrated power solutions, and customizable lighting. Please read this manual carefully before assembly and use to ensure proper setup and operation.

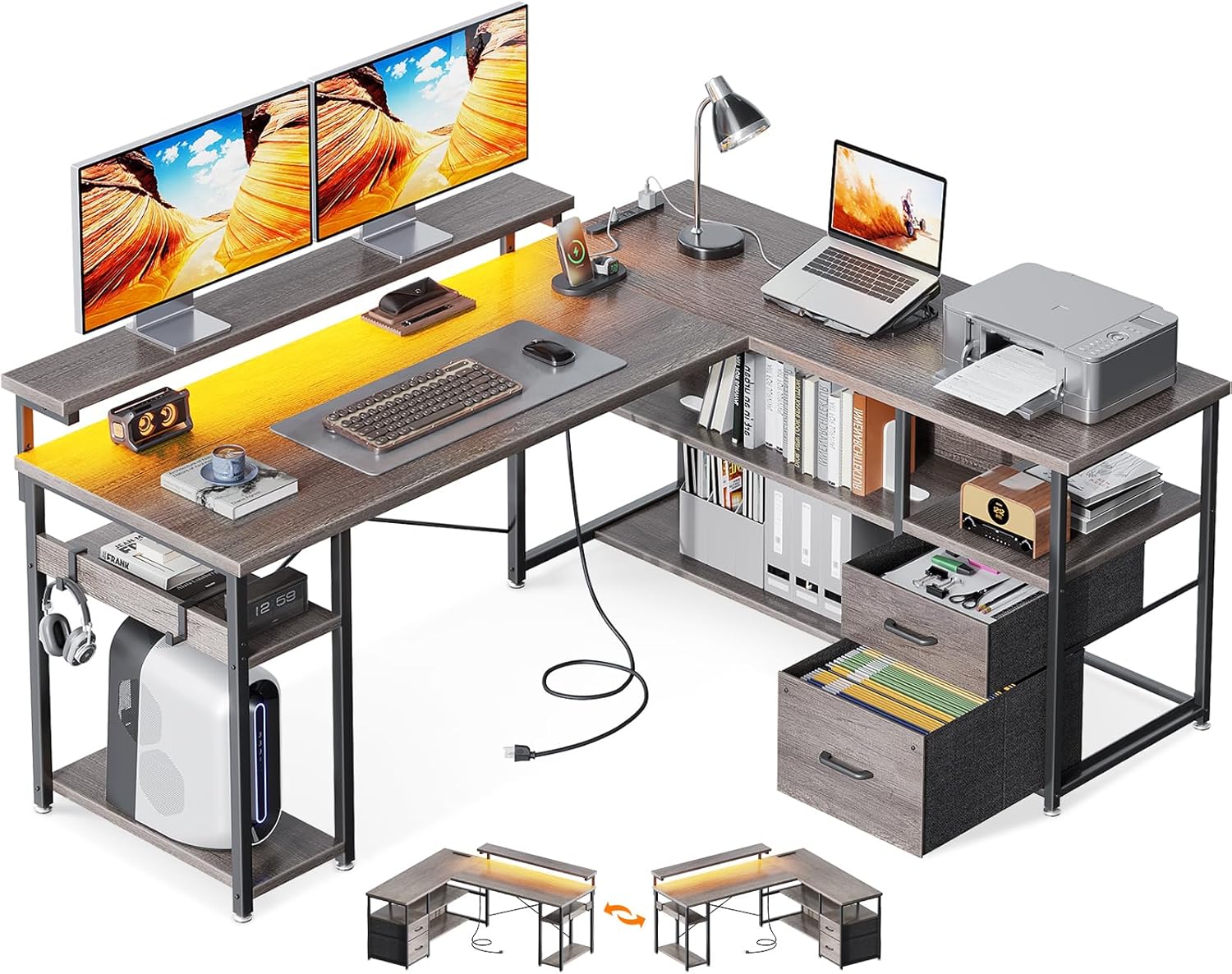

Figura 1: Mésview of the ODK L-Shaped Gaming and Office Desk with multiple monitors and accessories.

Informació de seguretat

• Mantingueu totes les peces petites i els materials d'embalatge fora de l'abast dels nens.
• Ensure all screws and connections are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not overload the desk. The desktop has a maximum load capacity of 50kg (110 lbs).
• Avoid placing hot items directly on the desktop surface.
• No us poseu drets ni asseguts a l'escriptori.
• Use only the provided power adapter for the LED lighting and power outlets.
• Si falta alguna peça o està danyada, no procediu amb el muntatge. Poseu-vos en contacte amb el servei d'atenció al client immediatament.

Contingut del paquet

Please verify that all components listed below are present before beginning assembly. If anything is missing, please contact customer support.

Muntatge i muntatge

Assembly is required for this product. Please follow the steps below carefully. It is recommended to have a second person assist with assembly for easier handling of larger components.

Figura 2: Explotat view showing desk dimensions and component layout for assembly.

1. Desempaquetar i identificar les peces: Carefully remove all components from the packaging. Lay them out on a clean, soft surface to prevent scratches. Refer to the "Package Contents" section and the included assembly diagram to identify each part.
2. Muntar el marc d'acer: Begin by connecting the main steel frame components using the provided screws and the included wrench. Ensure all connections are finger-tight before fully tightening.
3. Adjunta els panells d'escriptori: Secure the main L-shaped desktop panels to the assembled steel frame. Pay attention to the orientation of the panels.
4. Instal·leu calaixos i prestatges: Insert the fabric drawers into their designated slots. Attach any fixed wooden shelves to the frame as indicated in the assembly instructions.
5. Mount the Monitor Stand: Attach the monitor stand to the designated area on the desktop. Ensure it is securely fastened.
6. Install Power Strip and LED Lighting: Secure the integrated power strip to the underside of the desktop. Attach the RGB LED strip along the designated channel. Connect the LED strip to its controller and then to the power strip.
7. Ajustar els peus de nivellació: The desk is equipped with adjustable feet. Once the desk is in its desired location, rotate the feet at the bottom of the legs to level the desk and prevent wobbling on uneven floors.
8. Ajustament final: Once all components are in place, go back and fully tighten all screws and bolts to ensure maximum stability.

Figure 3: The L-shaped design can be configured for left or right-hand orientation during assembly.

Figure 4: Adjustable feet allow for stable placement on uneven surfaces.

Instruccions de funcionament

Preses de corrent i ports USB

The desk features an integrated power strip with two AC outlets and two USB ports (5V-2A) for convenient charging of your devices. Simply plug the desk's power cord into a wall outlet.

Figure 5: Integrated power strip for convenient device charging.

Suport de monitor ajustable

The monitor stand can be adjusted to three different heights to optimize your viewing angle and posture. The available heights are 9cm, 12cm, and 15cm. To adjust, carefully detach the monitor stand from its current position and re-attach it to the desired height setting using the designated screw holes.

Figure 6: Monitor stand with three adjustable height options (9cm, 12cm, 15cm).

Il·luminació LED RGB

The desk features built-in RGB LED lighting to enhance your gaming or work ambiance. The lighting strip is controlled via an attached controller.

• Botó d'encesa: Premeu per encendre/apagar els llums.
• Botó de mode (M): Cycle through 10 different lighting modes (e.g., static colors, dynamic effects).
• Color Adjustment Buttons (+/-): Adjust the color within certain modes or cycle through static colors.
• Brightness Adjustment Buttons (B+/B-): Increase or decrease the brightness of the LEDs.
• Funció de memòria: The lighting system remembers the last selected mode and color when turned off and will resume that setting when powered on again.

Figure 7: RGB LED lighting controller for customizing desk ambiance.

Característiques d'emmagatzematge

The desk is designed with ample storage to keep your workspace organized. It includes integrated drawers and open shelves for books, documents, and other office supplies. The drawers are ideal for keeping items neatly out of sight, while the open shelves provide easy access and display space.

Figure 8: Dedicated storage areas including drawers and open shelves.

Manteniment

• Neteja: Netegeu la superfície de l'escriptori amb un damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the melamine finish.
• Vessaments: Netegeu immediatament qualsevol vessament per evitar danys o taques causats per l'aigua.
• Apretament: Reviseu periòdicament tots els cargols i perns per assegurar-vos que romanen ajustats. Torneu a estrènyer-los si cal per mantenir l'estabilitat.
• Protecció de calor: Use coasters or heat-resistant pads under hot beverages or dishes to protect the desktop surface.

Resolució de problemes

Especificacions

Garantia i Suport

ODK is committed to providing high-quality products. If you encounter any issues or have questions regarding your ODK L-Shaped Gaming and Office Desk, please do not hesitate to contact our customer support team. We are here to assist you.

Informació de contacte: Please refer to your purchase platform or the ODK official weblloc web per obtenir les dades de contacte d'atenció al client més actualitzades.

Nota: Keep your purchase receipt or order number handy when contacting support, as it will help us process your request more efficiently.
