TOPBULL MPPT Solar Charge Controller 40A 12V 24V User Manual

1. Introducció

This manual provides essential information for the safe and efficient operation of your TOPBULL MPPT Solar Charge Controller 40A. This device is designed to maximize energy harvest from solar panels and manage battery charging for 12V and 24V systems. It is suitable for various applications, including RVs, boats, and off-grid power systems.

Figure 1.1: Application scenarios for the TOPBULL MPPT Solar Charge Controller.

2. Característiques del producte

• Innovative MPPT Technology: High tracking efficiency up to 99% and peak conversion efficiency of 98% for optimal solar energy utilization.
• Automatic System Voltage Reconeixement: Detecta automàticament el volum del sistema de 12 V o 24 V CCtage.
• Àmplia compatibilitat de bateries: Compatible with AGM, Sealed, Gel, Flooded, and Lithium batteries. Supports 0V charging for lithium battery activation.
• Comprehensive Electronic Protection: Includes safeguards against reverse polarity, battery overcharging, over-discharging, overload, short-circuiting, TVS lightning, overpower, overtemperature, and reverse current.
• Pantalla LCD: Provides real-time information on solar charging, battery operation, customized parameters, and error codes.
• Dissipació de calor eficient: Features a metal shell and dual high-speed smart fans for effective cooling.
• Compensació de temperatura: Automatically adjusts charging and discharging parameters based on temperature to extend battery life.
• Ports USB dobles: Equipped with two USB ports for charging electronic devices.

Figure 2.1: Innovative MPPT technology and 4-stagprocés de càrrega electrònica.

Figure 2.2: Key performance indicators and benefits of the MPPT controller.

Figure 2.3: Temperature compensation for optimized battery charging.

Figure 2.4: Internal components and quality features for proven performance.

Figure 2.5: Fast heat dissipation mechanism.

3. Instruccions de seguretat

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in damage to the unit, personal injury, or property damage.

• Ensure correct polarity when connecting the solar panel, battery, and load to prevent damage.
• Instal·leu el controlador en una zona ben ventilada, allunyada de materials inflamables.
• No intenteu desmuntar ni reparar el controlador vosaltres mateixos. Poseu-vos en contacte amb personal qualificat per al servei tècnic.
• Protect the controller from direct sunlight, rain, and moisture.
• Assegureu-vos que totes les connexions estiguin ben ajustades i segures per evitar contactes solts i sobreescalfament.
• The controller is designed for 12V/24V battery systems. Do not connect to other voltagsistemes electrònics.

Figure 3.1: Certified protection features of the controller.

Figure 3.2: Nine built-in charging protections for reliable operation.

4. Contingut del paquet

En obrir el paquet, comproveu que tots els elements hi siguin presents i que estiguin en bon estat:

• TOPBULL MPPT Solar Charge Controller 40A
• Manual d'usuari
• Cargols de muntatge

Figure 4.1: Items included in the package.

5. Producte acabatview

The TOPBULL MPPT Solar Charge Controller features a robust design with an intuitive LCD display and control buttons for easy operation.

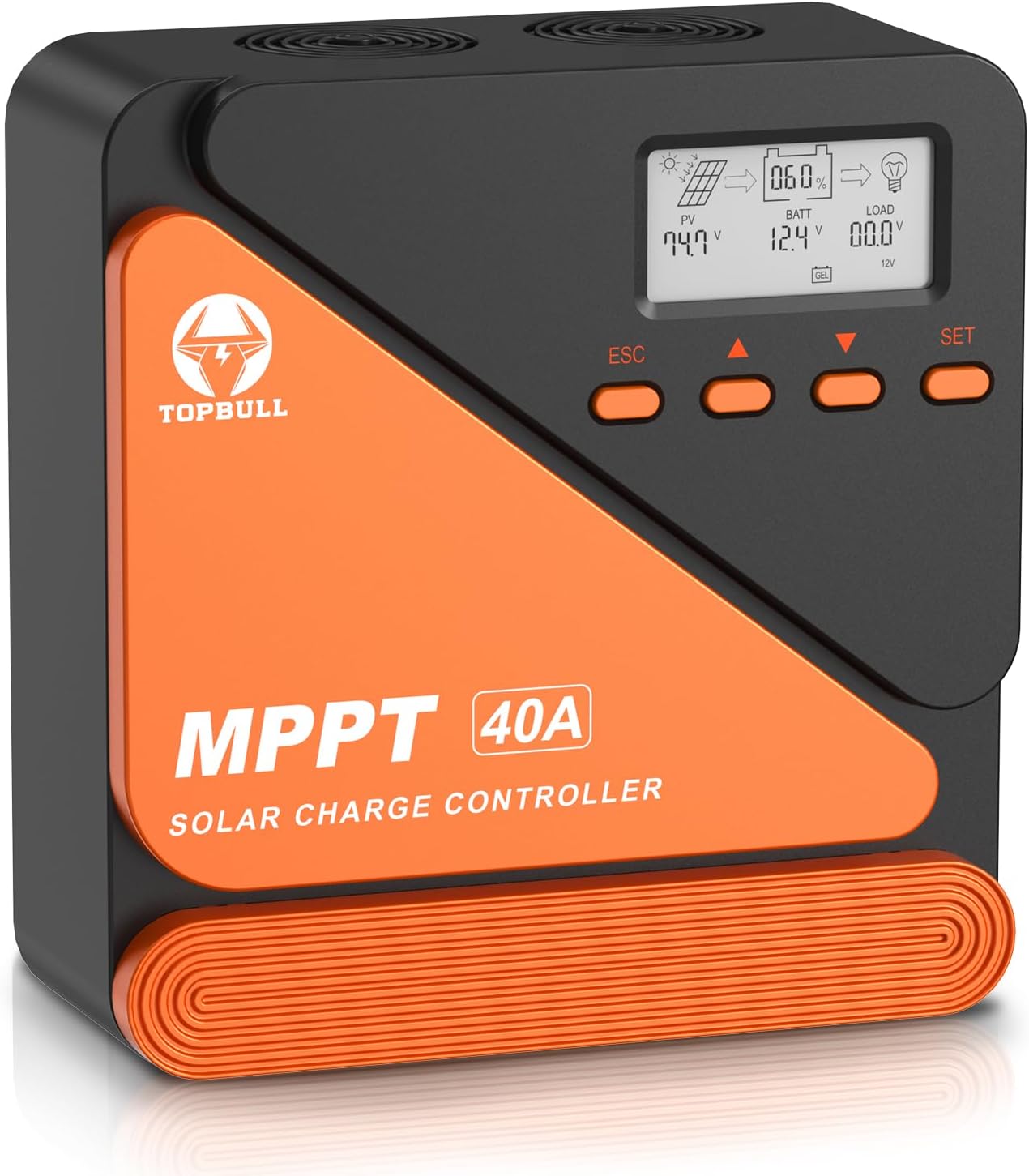

Figura 5.1: Frontal view of the TOPBULL MPPT Solar Charge Controller.

Figure 5.2: LCD display and control button functions.

6. Configuració i instal·lació

Follow these steps for proper installation. Ensure all power sources are disconnected before making any connections.

1. Connecteu la bateria: Connect the battery to the charge controller first. Ensure correct polarity (positive to positive, negative to negative). The controller will automatically recognize the system voltage (12V o 24V).
2. Connecteu el panell solar: Connect the solar panel to the charge controller. Ensure correct polarity. The controller will begin charging the battery.
3. Connecteu la càrrega de CC (opcional): Connect your DC load to the charge controller. Ensure correct polarity.
4. Connecteu l'inversor (opcional): If using an inverter for AC loads, connect it to the battery bank, not directly to the charge controller's load terminals.

Figure 6.1: General wiring diagram for the solar charge controller system.

Figure 6.2: Detailed connection diagram for the solar power system.

7. Instruccions de funcionament

The controller's LCD display provides real-time system status and allows for parameter adjustments.

7.1. Main Interface Display

The controller automatically cycles through detection parameters every 5 seconds on the main page. You can manually switch between system settings and battery parameters using the Up and Down keys.

7.2. Configuració de paràmetres

To enter the setting page, long press the SET key on the main page. The setting mode will be displayed in the lower left corner of the screen. Use the SET key to select the parameter type, then use the Up and Down keys to adjust values when they blink. If there is no operation for 10 seconds, the controller will automatically exit and save the parameters.

Figure 7.1: Steps for parameter setting on the LCD display.

7.3. Load Working Modes

The controller offers three load working modes:

• Light Control Mode (1H-23H): The controller automatically turns the load on or off according to the intensity of sunlight and the set time.
• Normally Closed Mode (0H): The load is always kept off, regardless of day or night. This mode is suitable for special occasions or debugging.
• Normally Open Mode (24H): The load is always kept on, providing 24-hour power supply.

The above three modes can be turned on or off by pressing the switch button. The next day, the controller will automatically resume operation in the mode it has been set to.

Figure 7.2: Three innovative load working modes.

7.4. Vídeo oficial del producte

8. Battery Type Settings

The controller supports various battery types. For FLD, GEL, and SLD battery types, charging parameters cannot be manually set as they are pre-configured. For USE (User-defined) and LI (Lithium) battery types, you can customize charging parameters.

Figure 8.1: Compatibility with multiple 12V/24V battery types.

Figure 8.2: Support for various battery chemistries, including lithium battery activation.

9. Manteniment

Regular maintenance ensures optimal performance and longevity of your solar charge controller:

• Comproveu periòdicament totes les connexions del cablejat per verificar si estan ben ajustades i si hi ha corrosió.
• Clean the controller's exterior with a dry cloth. Do not use liquids or solvents.
• Ensure the ventilation openings are clear of dust and debris to maintain proper heat dissipation.
• Monitor the LCD display for any error codes or abnormal readings.

10. Solució De Problemes

Si teniu problemes, consulteu els següents problemes i solucions habituals:

• Sense pantalla/Sense alimentació: Comproveu les connexions de la bateria i assegureu-vos que el volum de la bateriatage es troba dins del rang de funcionament.
• Sense càrrega: Verify solar panel connections and ensure sufficient sunlight. Check for any shading on the solar panels.
• La càrrega no funciona: Check load connections, ensure the load is not overloaded, and verify the load working mode settings.
• Codis d'error: Refer to the specific error code displayed on the LCD for detailed troubleshooting steps in the full manual.
• Battery Overcharging/Undercharging: Verify battery type settings and charging parameters.

11. Especificacions

12. Garantia i Suport

For warranty information, technical support, or any questions regarding your TOPBULL MPPT Solar Charge Controller, please contact TOPBULL customer service through the retailer where the product was purchased or refer to the official TOPBULL weblloc per obtenir dades de contacte.
