VIVOHOME Airbrush Paint Spray Booth Kit VH1384CA User Manual

Introducció

This manual provides instructions for the safe and efficient use of your VIVOHOME Airbrush Paint Spray Booth Kit, model VH1384CA. Please read this manual thoroughly before initial use and retain it for future reference.

Figure 1: VIVOHOME Airbrush Paint Spray Booth Kit (VH1384CA) in use.

Informació de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions personals.

• Assegureu-vos que el producte estigui col·locat sobre una superfície estable i plana.
• Do not operate the spray booth in wet conditions or near water.
• Always use the exhaust hose to vent fumes outdoors.
• Wear appropriate personal protective equipment (PPE) such as masks and gloves when painting.
• Mantingueu els nens i les mascotes allunyats de la unitat de funcionament.
• Desendolleu l'aparell de la presa de corrent quan no l'utilitzeu o abans de netejar-lo.

Instruccions de configuració

1. Unpack and Assemble the Booth: Carefully remove all components from the packaging. Unfold the spray booth from its compact, suitcase-like form. Ensure all panels are securely locked into place.


   Figure 2: Assembled spray booth with accessories.

2. Instal·leu el filtre: The high-density two-layer ABS filter is pre-installed. Verify it is correctly seated in the designated slot at the rear of the booth.


   Figure 3: Filter installation diagram.
3. Connecteu la mànega d'escapament: Attach the flexible exhaust hose to the exhaust port on the side of the booth. Extend the hose (up to 5.6 feet / 170.7 cm) and place the exhaust head outside a window or door gap (minimum 2.5 cm gap required) to ensure proper ventilation of fumes.

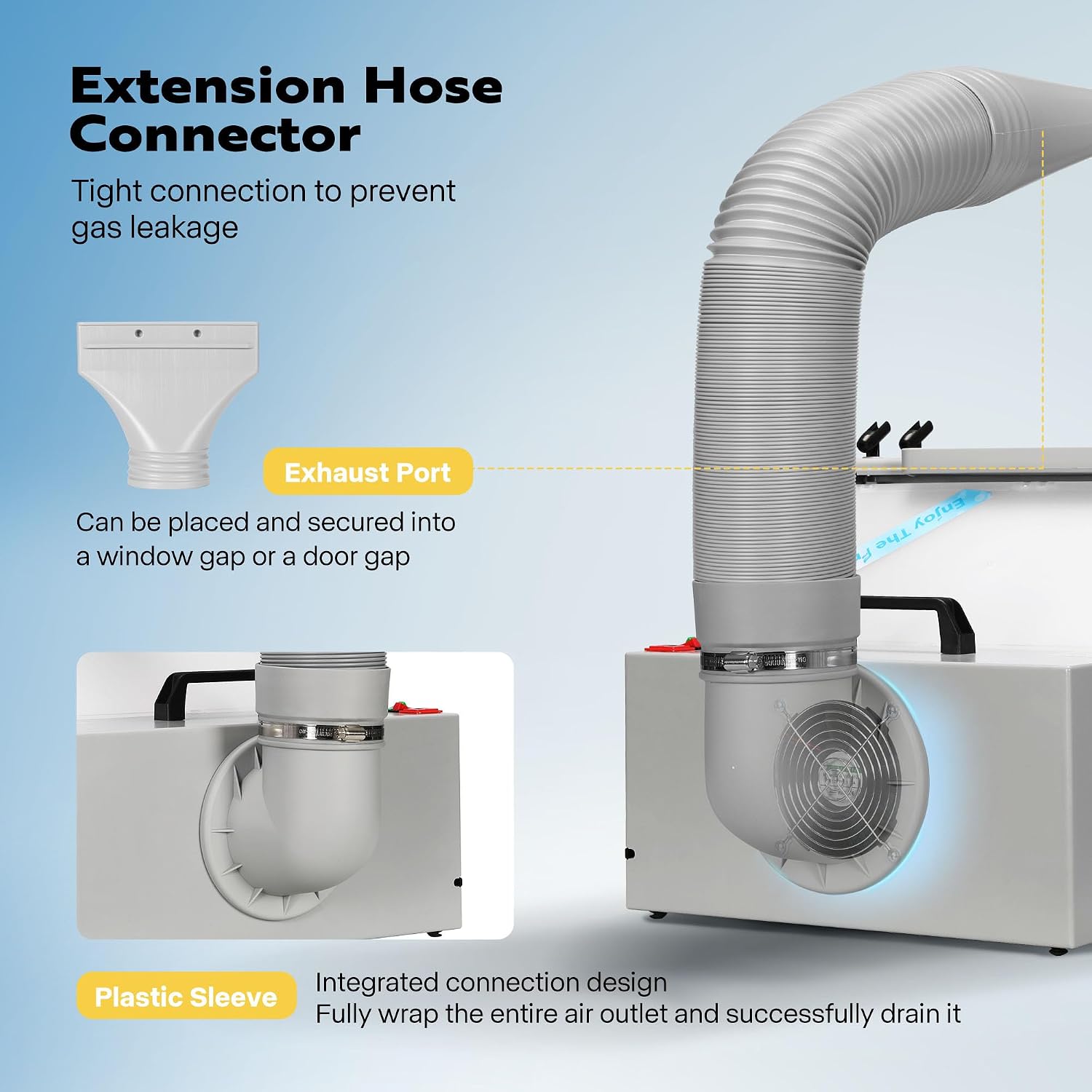

   Figure 4: Exhaust hose setup for outdoor ventilation.



   Figure 5: Detail of the exhaust hose connection.

4. Accessoris de posició: Place the removable turntable inside the booth. Utilize the paint and spray gun racks on top of the booth to organize your tools. If included, use the 6 alligator clips to hold small models on the turntable.
5. Optional: Combine Units: For larger projects, two VIVOHOME spray booth units can be joined together to create a wider spraying area and enhance airflow.
6. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent estàndard.

Instruccions de funcionament

1. Encès: Turn on the main power switch located on the side of the unit. The 25W fan will activate, drawing fumes and overspray through the filter at a speed of 4 m/s.
2. Activa els llums LED: Press the light switch to turn on the three integrated LED strips, providing 1200 lumens of bright, uniform illumination for your workspace.


   Figure 6: LED lights and rotating table in operation.

3. Position Your Workpiece: Place your model or item on the rotating turntable. Use the alligator clips to secure smaller items if needed. The turntable allows for easy access to all sides of your workpiece without direct handling during painting.
4. Begin Painting: Perform your airbrushing or spray painting tasks within the booth. The fan and filter system will work to capture paint particles and fumes, maintaining a cleaner and healthier environment.
5. Apagar: Once painting is complete, turn off the LED lights and the main power switch. Allow the fan to run for a few minutes after painting to clear any remaining fumes.

Manteniment

• Substitució del filtre: The high-density filter cotton requires replacement after long-term use to maintain optimal filtration performance. Refer to the filter installation diagram (Figure 3) for replacement.
• Cleaning the Booth: The ABS construction allows for easy cleaning. Wipe down the interior and exterior surfaces with a damp cloth. For stubborn paint residue, use a mild cleaning solution. Ensure the unit is unplugged before cleaning.
• Cleaning LED Lights: To protect the LED strips from paint accumulation and facilitate cleaning, they can be covered with a transparent plastic film. Replace this film as needed.
• Neteja del plat giratori: The rotating turntable is removable and can be easily cleaned separately with soap and water or a suitable cleaning agent for paint.

Resolució de problemes

Especificacions

Figure 7: Product dimensions and package details.

Garantia i Suport

For warranty information or technical support, please refer to the documentation provided with your purchase or contact the seller directly. Keep your purchase receipt as proof of purchase.

Seller: VIVO-HOME
