Informació important de seguretat
Please read and understand all instructions before assembling, installing, or operating this product. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
- Always unplug the electric fireplace from the power outlet before cleaning, performing maintenance, or moving the unit.
- Do not block air vents. Ensure proper clearance around the fireplace for adequate ventilation.
- Keep combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 meters) from the front of the fireplace.
- No feu funcionar cap llar de foc amb el cable o l'endoll danyats, o si l'escalfador ha funcionat malament, s'ha caigut o s'ha fet malbé de qualsevol manera.
- Avoid placing the TV stand in direct sunlight or near heat sources to prevent material degradation.
- Ensure the TV stand is placed on a flat, stable surface to prevent tipping.
- Do not overload the shelves. Refer to the specifications for weight limits.
Producte acabatview
The JUMMICO Fireplace TV Stand (Model D-SD-0261) is designed to accommodate TVs up to 65 inches and features a built-in 23-inch electric fireplace. It includes four shelves for storage and organization of media devices and other items.
Image: The JUMMICO Fireplace TV Stand with a television placed on top, showcasing the integrated electric fireplace and side storage shelves.
Image: Diagram illustrating the recommended TV sizes for the stand, indicating compatibility with TVs up to 65 inches.
Image: The JUMMICO TV stand with fireplace integrated into a modern living room, demonstrating its aesthetic appeal and functionality.
Muntatge i muntatge
Assembly of the JUMMICO Fireplace TV Stand requires careful attention to detail. It is recommended to have two people for assembly. Ensure all parts are present before beginning.
1. Desembalatge i identificació de peces
- Desembaleu amb cura tots els components de l'embalatge.
- Verify all parts and hardware are included against the provided parts list (not included in this manual, refer to product packaging).
- Col·loqueu els components sobre una superfície suau i neta per evitar ratllades.
2. Assembling the TV Stand Structure
- Follow the step-by-step instructions provided with your product for assembling the wooden frame and shelves.
- Assegureu-vos que tots els cargols i elements de fixació estiguin ben ajustats, però no els estrenyeu massa.
3. Electric Fireplace Installation
- Once the TV stand structure is complete, carefully insert the 23-inch electric fireplace into the designated central opening.
- Ensure the fireplace is seated correctly and securely within the stand.
- Connect the fireplace power cord to a standard 120V AC grounded outlet. Do not use extension cords or power strips.

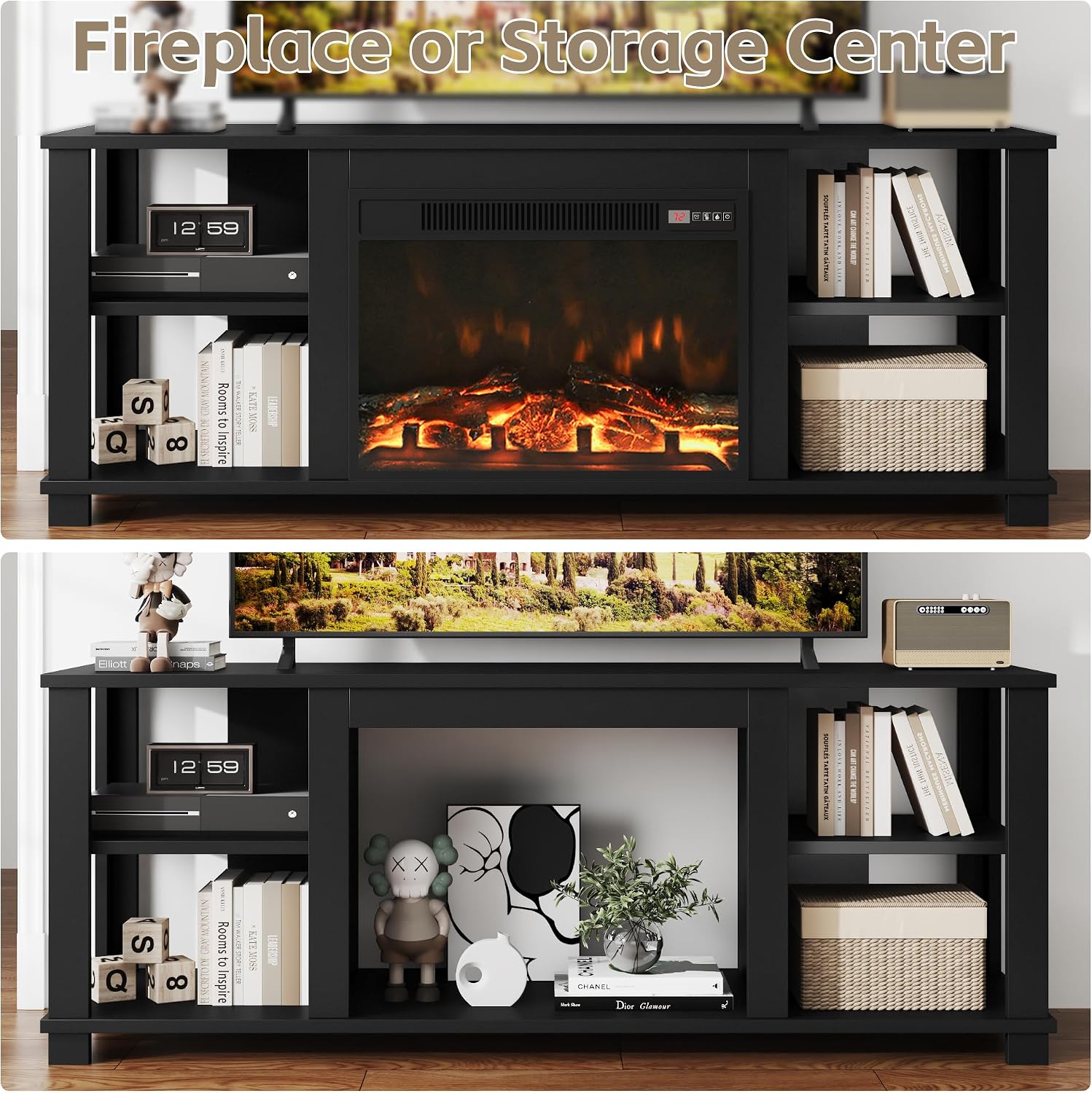

Image: Comparison showing the TV stand with the electric fireplace installed and an alternative configuration where the fireplace space is used for additional storage.
4. Shelf Configuration
The side shelves are designed for flexible configuration.
Image: Close-up showing the adjustable nature of the shelves, indicated by arrows, allowing for customized storage space.
Image: Detail of the shelves with items, highlighting the pre-drilled holes for shelf pins to adjust shelf height.
Funcionament de la xemeneia elèctrica
The electric fireplace features several controls for a customizable experience.
Image: Close-up of the electric fireplace control panel, showing buttons for Flame Control, Power On/Off, Timer Control, and Heater Control.
- Botó d'engegada (encesa/apagada): Premeu per encendre o apagar la xemeneia.
- Control de flama (L1-L4): Adjust the flame brightness or effect. Multiple levels (L1 to L4) are available.
- Timer Control (0.5-6H): Set a timer for the fireplace to operate, ranging from 30 minutes to 6 hours.
- Heater Control (62°F-82°F): Adjust the desired temperature setting for the heater. The heater will cycle on and off to maintain the set temperature.
The fireplace can operate with or without the heater function, allowing you to enjoy the flame effect year-round.
Manteniment
TV Stand Care
- Netegeu les superfícies amb un suau, damp drap. Eviteu productes químics agressius o netejadors abrasius.
- Reviseu periòdicament tots els elements de fixació i estrenyeu-los si cal per garantir l'estabilitat.
- Protect the surface from spills and excessive heat.
Electric Fireplace Care
- Ensure the fireplace is unplugged and cool before cleaning.
- Utilitzeu un suau, damp drap per netejar les superfícies exteriors.
- Do not spray water directly onto the fireplace.
- Periodically check the air intake and exhaust vents for dust or obstructions and clean as needed with a vacuum cleaner.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llar de foc no s'encén. | Not plugged in; power outlet issue; power switch off; internal fuse. |
|
| Sense sortida de calor. | Heater function not activated; temperature setting too low; thermal cut-off activated. |
|
| L'efecte de flama no funciona. | Flame control setting too low; internal component issue. |
|
| Squeaky noise from fireplace. | Fan motor issue; debris in fan. |
|
| El suport sembla inestable després del muntatge. | Fixacions fluixes; terra irregular. |
|
Especificacions
| Característica | Detall |
|---|---|
| Marca | JUMMICO |
| Nom del model | JUMMICO Fireplace TV Stand |
| Número de model | D-SD-0261 |
| Dimensions del producte (P x A x A) | 15.7 "P x 59" W x 22.8" H |
| Material | Fusta |
| Tipus d'acabat | Lacat |
| Color | Negre |
| Pes de l'article | 72.77 lliures |
| Mida màxima de televisor compatible | 65 polzades |
| Font d'alimentació | Elèctric amb cable |
| Element calefactor | Ceràmica |
| Tipus de ventilació | Sense ventilació |
| Components inclosos | Llar de foc |
Image: Detailed diagram showing the overall dimensions of the TV stand (59" W x 22.8" H x 15.7" D) and weight capacities for the top surface (150 lbs) and shelves (30 lbs).
Informació de la garantia
This JUMMICO product comes with a Garantia limitada. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration of coverage. The warranty typically covers manufacturing defects under normal use.
Conserva el comprovant de compra per a qualsevol reclamació de garantia.
Atenció al client
For any questions, missing parts, or assistance with assembly or operation, please contact JUMMICO customer support. Refer to your product packaging or the JUMMICO official weblloc per obtenir dades de contacte.
També podeu visitar el JUMMICO Store on Amazon per a més informació i recursos del producte.
