Conentool 21V Cordless Hedge Trimmer LLZ003 User Manual

1. Instruccions de seguretat importants

Read all safety warnings and instructions before operating this hedge trimmer. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.

Seguretat general de les eines elèctriques

• Seguretat de l'àrea de treball: Mantingueu la zona de treball neta i ben il·luminada. Les zones desordenades o fosques conviden als accidents. No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Seguretat elèctrica: Eviteu el contacte corporal amb superfícies connectades a terra com ara canonades, radiadors, estufes i refrigeradors. Hi ha un major risc de descàrrega elèctrica si el vostre cos està connectat a terra o a terra.
• Seguretat personal: Always wear eye protection and hearing protection. Use personal protective equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection for appropriate conditions. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts.

Seguretat específica del tallabardisses

• Mantingueu totes les parts del cos allunyades de la fulla de tall. No traieu el material tallat ni subjecteu el material per tallar quan les fulles es mouen. Assegureu-vos que l’interruptor està apagat quan esborra el material encallat.
• Carry the hedge trimmer by the handle with the cutter blade stopped and taking care not to operate any power switch.
• Agafeu l'eina elèctrica només per superfícies d'agafada aïllades, perquè la fulla de tall pot entrar en contacte amb cables ocults o amb el seu propi cable.
• Before use, inspect the hedge for foreign objects such as wires or other hidden obstacles.
• Always use both hands to operate the hedge trimmer.

Ús i cura de les eines de la bateria

• Recarregueu només amb el carregador especificat pel fabricant.
• Utilitzeu eines elèctriques només amb paquets de bateries específicament designats.
• When the battery pack is not in use, keep it away from other metal objects.
• En condicions abusives, es pot expulsar líquid de la bateria; evitar el contacte. Si es produeix un contacte accidental, esbandiu amb aigua. Si el líquid entra en contacte amb els ulls, també busqueu ajuda mèdica.

2. Producte acabatview

The Conentool 21V Cordless Hedge Trimmer is designed for efficient and convenient hedge maintenance. It features a powerful motor and a durable blade for effective cutting.

Imatge: Product diagram showing key components. This image illustrates the main parts of the hedge trimmer, including the rear handle, front handle, on/off switch, hand guard, safety switch, battery pack, and laser-cut blade made from SK5 steel.

Components clau:

• Mànec posterior: Zona d'agafada principal per al control.
• Mànec davanter: Proporciona un adherència i un control addicionals durant el funcionament.
• Interruptor d'encesa/apagada: Activates and deactivates the trimmer.
• Protector de mà: Protegeix la mà de l'usuari de les restes i de la fulla.
• Interruptor de seguretat: A dual-action switch mechanism that prevents accidental starting. Both the main trigger and the safety switch must be engaged to operate the trimmer.
• Bateria de la bateria: Removable 21V 4.0Ah Lithium Battery, providing up to 100 minutes of working time.
• Laser-Cut Blade: 22-inch (56cm) blade made from SK5 steel for precise and efficient cutting.

Imatge: The hedge trimmer in action, highlighting its 56cm (22-inch) cutting length for efficient trimming.

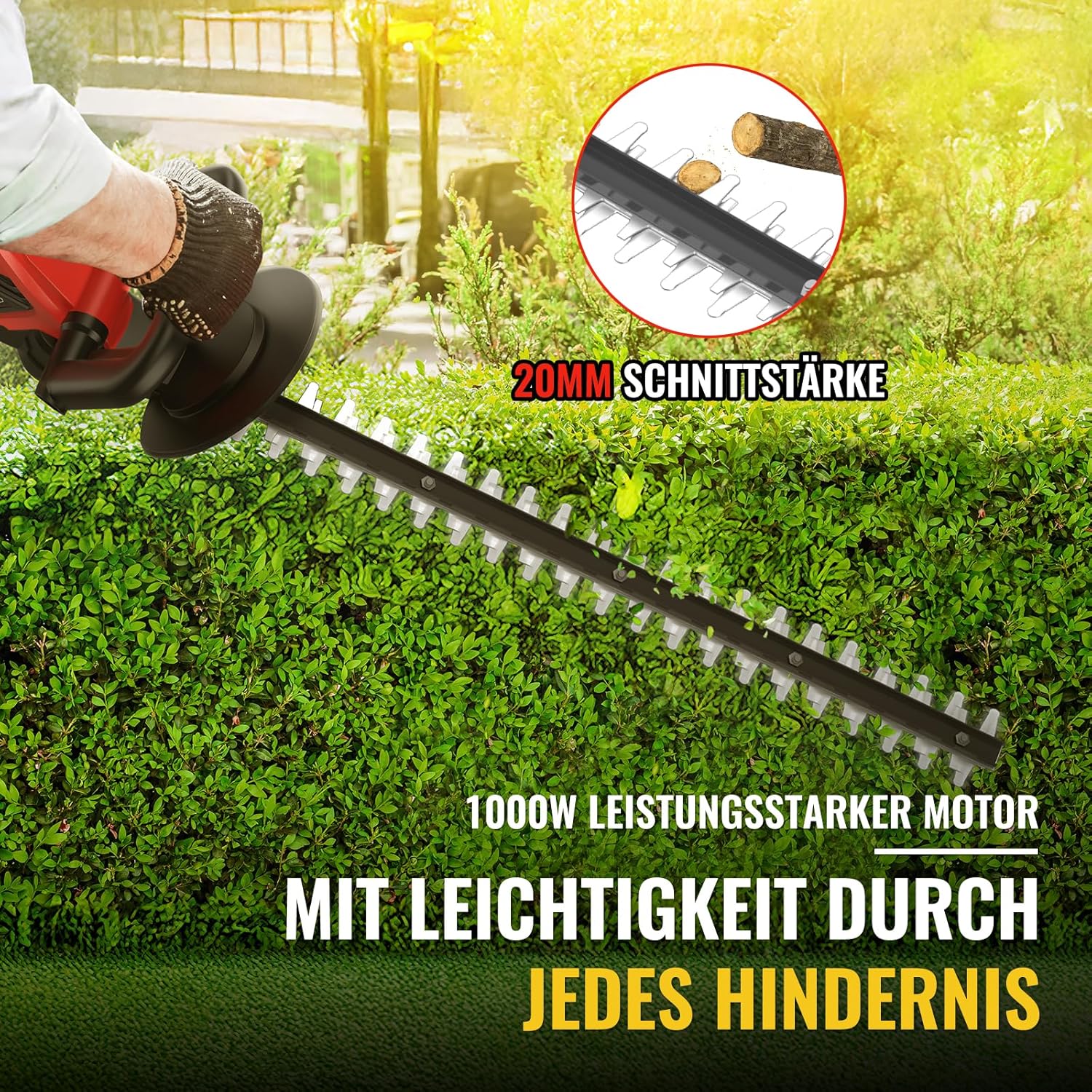

Imatge: Close-up of the blade demonstrating a 20mm cutting thickness capacity, powered by a 1000W motor for cutting through various branches.

Imatge: An illustration of the hedge trimmer's internal motor, indicating an 850W power output and 1500 RPM high speed for effective performance.

Imatge: Details of the 21V 4.0Ah Lithium battery, highlighting its capacity and approximately 100 minutes of working time on a full charge.

3. Configuració

Carregant la bateria

1. Ensure the battery charger is connected to a standard power outlet.
2. Insert the battery pack into the charger. The indicator light on the charger will show the charging status.
3. Allow the battery to fully charge before first use. A full charge typically takes [X hours - *information not provided, user to consult charger manual*].
4. Un cop carregada, traieu la bateria del carregador.

Instal·lació de la bateria

1. Align the charged battery pack with the battery slot on the hedge trimmer.
2. Feu lliscar la bateria fermament al seu lloc fins que faci clic, cosa que indica que està ben bloquejada.
3. Per treure la bateria, premeu el botó d'alliberament (si n'hi ha) i feu lliscar la bateria cap a fora.

Guàrdia de la fulla

The hedge trimmer comes with a blade guard for safe storage and transport. Always ensure the blade guard is in place when the tool is not in use.

• Per eliminar: Gently slide the blade guard off the blade before operation.
• Per instal·lar: Slide the blade guard over the blade when finished using the trimmer.

4. Instruccions de funcionament

Before operating, ensure you have read and understood all safety instructions. Wear appropriate personal protective equipment, including eye protection, gloves, and sturdy footwear.

Arrencada i aturada de la retalladora

Imatge: A user demonstrating the dual switch operation. Both the safety switch (on the handle) and the main on/off switch must be engaged simultaneously to start the trimmer, ensuring effortless safety.

1. Començar: Hold the hedge trimmer firmly with both hands. Press and hold the safety switch (usually located on the front handle). Simultaneously, squeeze the main on/off switch (trigger) on the rear handle. The blades will begin to move.
2. Parar: Release the main on/off switch. The blades will stop. Always ensure the blades have come to a complete stop before setting the trimmer down.

Tècniques de tall

For best results and safety, use the following techniques:

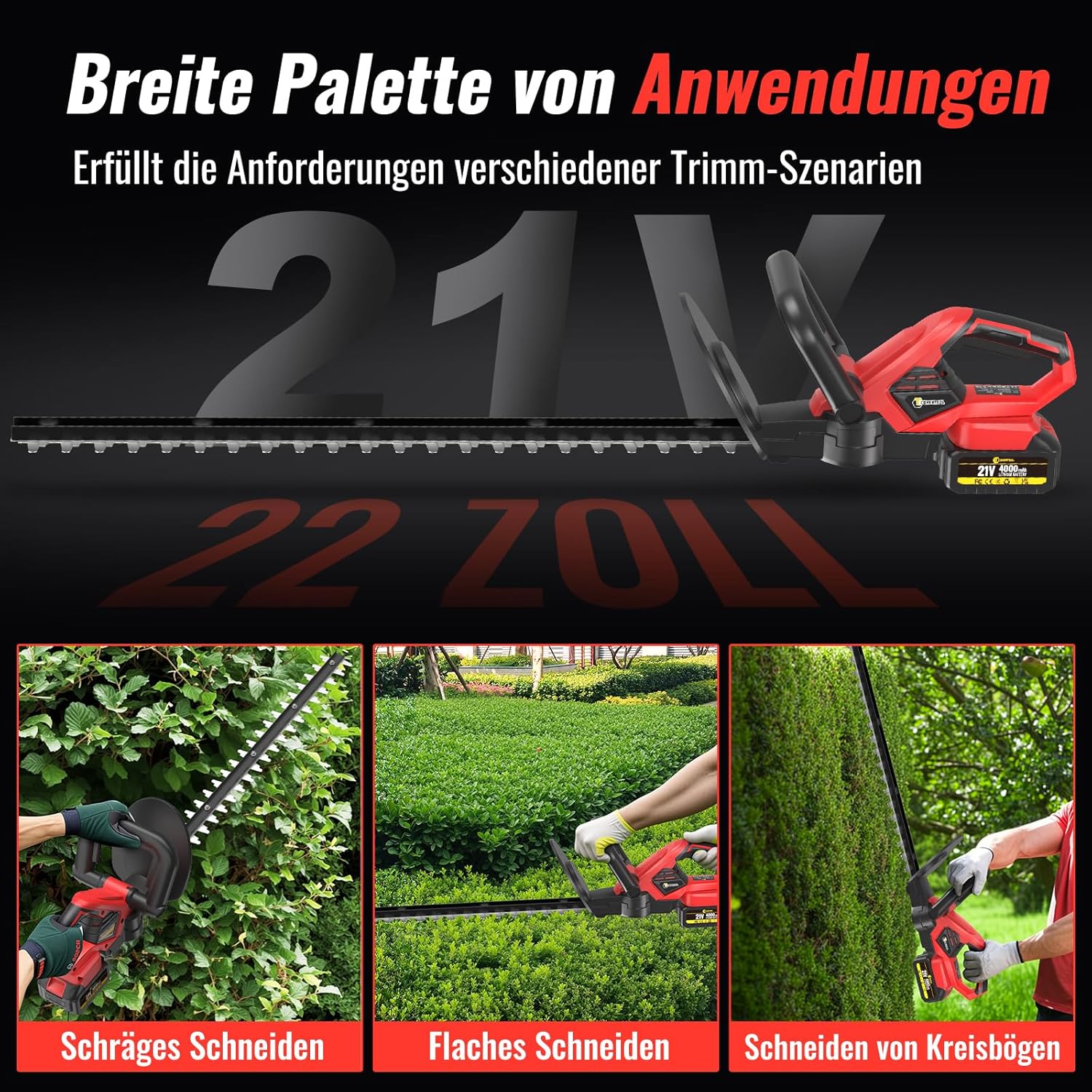

Imatge: This image displays various trimming applications, including slanted cutting for shaping, flat cutting for even surfaces, and curved cutting for decorative hedges, demonstrating the versatility of the tool.

• Retall general: Use a sweeping motion, moving the trimmer along the hedge. Cut small amounts at a time, especially when shaping.
• Horizontal Cuts: Hold the trimmer slightly tilted (5-10 degrees) to ensure a clean, even cut.
• Vertical Cuts: Move the trimmer in an arc, starting from the bottom and working upwards.
• Thick Branches: The trimmer can cut branches up to 20mm in thickness. For thicker branches, use pruning shears or a saw. Do not force the trimmer through thick material.
• Temps de treball: A fully charged 4.0Ah battery provides approximately 100 minutes of continuous operation, depending on the cutting load.

5. Manteniment

Regular maintenance ensures the longevity and optimal performance of your hedge trimmer. Always disconnect the battery pack before performing any maintenance.

Cura de la fulla

• Neteja: After each use, remove any sap, leaves, or debris from the blades using a stiff brush or cloth.
• Lubricació: Apliqueu un oli lleuger per a màquines o lubricant per a fulles al llarg de la vora de tall de les fulles després de netejar-les per evitar l'oxidació i garantir un funcionament suau.
• Afilat: If the blades become dull, they can be sharpened by a qualified service technician. Do not attempt to sharpen them yourself unless you have the proper tools and expertise.

Neteja i emmagatzematge general

• Netegeu l'exterior de la retalladora amb un drap net.amp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
• Guardeu el tallabarders en un lloc sec i segur, fora de l'abast dels nens.
• Always install the blade guard before storing or transporting the trimmer.
• Store the battery pack separately from the trimmer, in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Solució De Problemes

If you encounter issues with your hedge trimmer, refer to the following common problems and solutions:

7. Especificacions

Technical specifications for the Conentool 21V Cordless Hedge Trimmer LLZ003:

8. Garantia i Suport

Conentool products are manufactured to high-quality standards and are warranted against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.

Informació de la garantia

This product typically comes with a standard manufacturer's warranty. The duration and terms of the warranty may vary by region and retailer. Please refer to the warranty card included with your product or contact your point of purchase for specific details.

Atenció al client

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Conentool customer support:

• Weblloc: www.conentool.com (placeholder)
• Correu electrònic: support@conentool.com (placeholder)
• Telèfon: [Customer Service Phone Number] (placeholder)

When contacting support, please have your product model number (LLZ003) and purchase date available.
