ulafbwur BS-10

ulafbwur Mini Bluetooth Speaker BS-10 User Manual

Model: BS-10

1. Introducció

Thank you for choosing the ulafbwur Mini Bluetooth Speaker BS-10. This portable soundbar is designed to deliver high-quality audio for your home theater experience, featuring Bluetooth 5.0 connectivity, FM radio, and multiple input options. Please read this manual carefully before using the product to ensure proper operation and to maximize its lifespan.

ulafbwur Mini Bluetooth Speaker BS-10

Figure 1: ulafbwur Mini Bluetooth Speaker BS-10, showcasing its sleek black design and control panel on the side.

2. Contingut del paquet

Si us plau, comproveu el contingut del paquet en desembalar-lo. Si falta algun article o hi ha algun malmès, poseu-vos en contacte amb el servei d'atenció al client.

  • 1 x ulafbwur Mini Bluetooth Speaker BS-10 Sound Bar
  • 1 x cable de càrrega
  • 1 x cable RCA
  • 1 x Manual d'usuari (aquest document)

3. Característiques del producte

  • Connectivitat Bluetooth 5.0: Ensures faster and more stable wireless audio transmission.
  • Múltiples entrades d'àudio: Supports Bluetooth, FM radio, TF card, 3.5mm AUX, U Disk, and RCA connections.
  • So d'alta qualitat: Equipped with 4 internal magnetic speakers (5W*4) and 2 bass diaphragms for rich audio.
  • Ràdio FM integrada: Enjoy your favorite radio stations with a frequency range of 87.5-108 MHz.
  • Bateria recarregable: Integrated 2000mAh battery provides extended playback time.
  • Disseny portàtil: Compact and lightweight, ideal for various indoor settings.

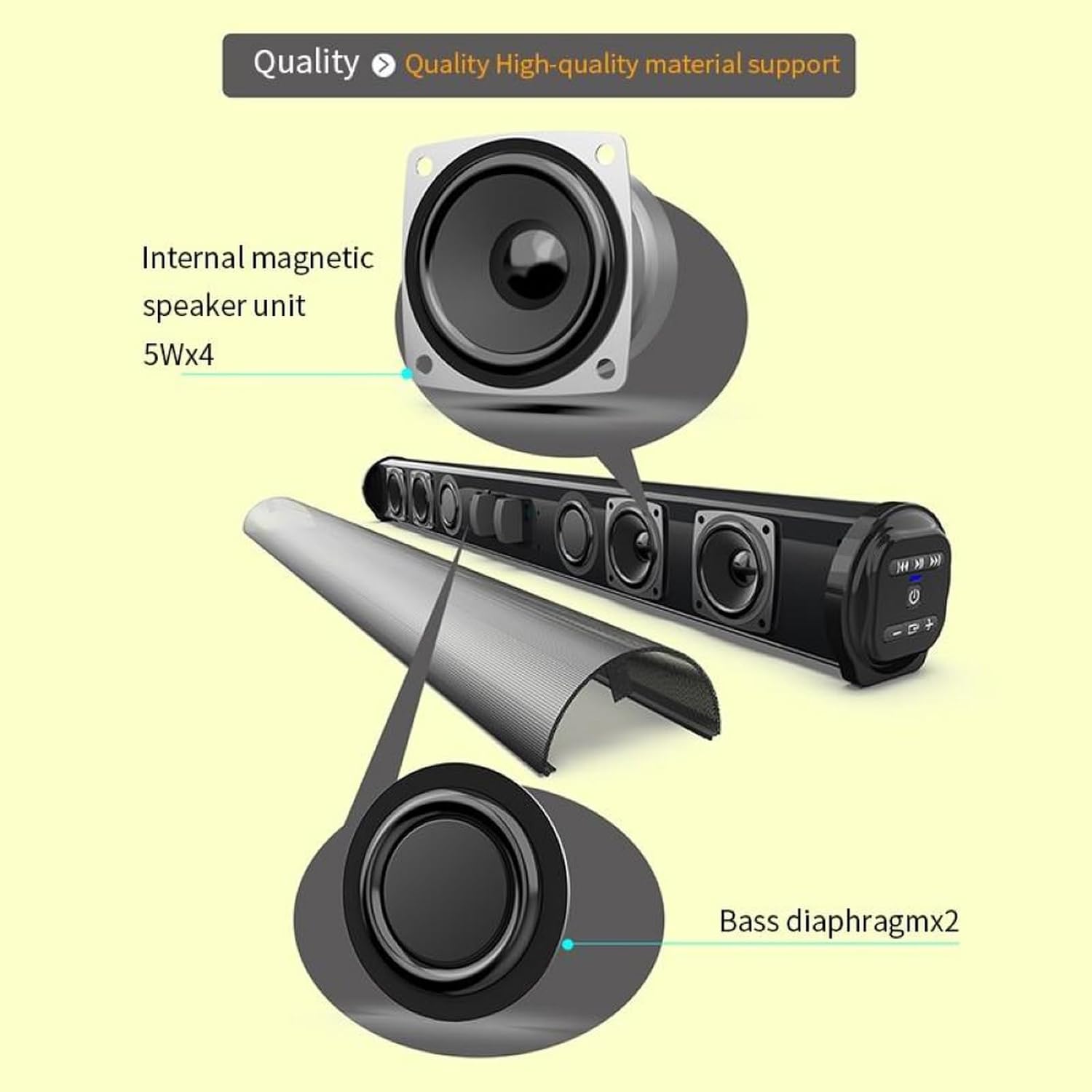

Internal components of ulafbwur Mini Bluetooth Speaker BS-10

Figure 2: Diagram showing the internal magnetic speaker units (5W x 4) and bass diaphragms (x 2) for enhanced sound quality.

4. Configuració

4.1 Càrrega de l'altaveu

Before first use, fully charge the speaker. Connect the provided charging cable to the speaker's charging port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator light will show the charging status.

Internal rechargeable battery of ulafbwur Mini Bluetooth Speaker BS-10

Figure 3: Illustration of the built-in 2000mAh rechargeable battery, providing extended standby time.

4.2 Engegada/apagada

Manteniu premut el botó Botó d'encesa (usually marked with a circle and vertical line) located on the side panel to turn the speaker on or off. A voice prompt or indicator light will confirm the status.

4.3 Vinculació Bluetooth

  1. Ensure the speaker is powered on and in Bluetooth mode. If not, press the Mode button to switch to Bluetooth. The Bluetooth indicator light will flash, indicating it's ready for pairing.
  2. Al dispositiu mòbil (telèfon intel·ligent, tauleta, ordinador), activeu el Bluetooth i cerqueu els dispositius disponibles.
  3. Select "BS-10" or "ulafbwur Speaker" from the list of found devices.
  4. Once connected, the speaker will emit a confirmation sound, and the Bluetooth indicator light will become solid.
Bluetooth connection process for ulafbwur Mini Bluetooth Speaker BS-10

Figure 4: Demonstrating the easy Bluetooth 5.0 connection process with a mobile device.

4.4 Connecting via Other Inputs

  • TF Card/U Disk: Insert a TF card or U Disk (USB flash drive) into the respective slot. The speaker will automatically switch to the corresponding mode and begin playing audio files (MP3, WMA, WAV, FLAC, APE formats supported).
  • 3.5 mm AUX: Connect one end of a 3.5mm audio cable (not included) to the speaker's AUX input and the other end to your audio source's headphone jack. The speaker will automatically switch to AUX mode.
  • RCA: Use the provided RCA cable to connect the speaker to devices with RCA audio outputs.

5. Instruccions de funcionament

5.1 Controls bàsics

  • Botó d'encesa: Manteniu premut per activar/desactivar.
  • Botó de mode (M): Short press to switch between Bluetooth, FM, TF, AUX, and U Disk modes.
  • Play/Pause Button (▶‖): Short press to play or pause audio. In FM mode, short press to auto-scan and save stations.
  • Previous Track/Volume Down (-): Short press for previous track (in Bluetooth/TF/U Disk mode) or previous station (in FM mode). Press and hold to decrease volume.
  • Next Track/Volume Up (+): Short press for next track (in Bluetooth/TF/U Disk mode) or next station (in FM mode). Press and hold to increase volume.

5.2 Funcionament de la ràdio FM

  1. Switch the speaker to FM mode using the Mode button.
  2. Short press the Play/Pause button to initiate an automatic scan for available radio stations. The speaker will save the found stations.
  3. Use the Previous Track (-) and Next Track (+) buttons to navigate between saved stations.
  4. Adjust volume using the Volume Up (+) and Volume Down (-) buttons (press and hold).
FM Radio functionality of ulafbwur Mini Bluetooth Speaker BS-10

Figure 5: The speaker's FM radio feature allows users to enjoy local broadcasts within the 87.5-108 MHz range.

6. Manteniment

  • Mantingueu l'altaveu allunyat de l'aigua, la humitat i les temperatures extremes.
  • Netegeu l'altaveu amb un drap suau i sec. No utilitzeu productes de neteja abrasius ni dissolvents.
  • Eviteu deixar caure o sotmetre l'altaveu a forts impactes.
  • Quan no l'utilitzeu durant períodes prolongats, guardeu l'altaveu en un lloc fresc i sec i carregueu-lo periòdicament per mantenir la bateria en bon estat.

7. Solució De Problemes

ProblemaCausa possibleSolució
L'altaveu no s'encén.Bateria baixa; botó d'engegada no premut correctament.Carrega l'altaveu completament. Prem i mantén premut el botó d'engegada durant uns segons.
Sense so.Volume too low; Incorrect input mode; Device not connected properly.Increase volume on both speaker and connected device. Ensure correct mode is selected. Reconnect the device.
La connexió Bluetooth falla.Altaveu no en mode d'emparellament; Dispositiu massa lluny; Interferències.Ensure speaker is in Bluetooth pairing mode. Move device closer to speaker. Clear previous Bluetooth connections on your device and try again.
La recepció de ràdio FM és deficient.Senyal feble; Interferències ambientals.Relocate the speaker to an area with better signal. Extend any external antenna if available.

8. Especificacions

CaracterísticaDetall
Nom del modelBS-10
Versió BluetoothV5.0
Distància de transmissió10 m
Capacitat de la bateria2000 mAh
Potència de sortida5 W * 4
Dispositiu d'àudioInternal Magnetic x 4 + Diaphragm Device x 2
Freqüència de ràdio FM87.5-108 MHz
Modes d'entradaBluetooth, FM, TF, 3.5mm AUX, U Disk, RCA
Formats d'àudio compatiblesMP3, WMA, WAV, FLAC, APE
Distorsió harmònica total1%
Impedància nominal
Resposta de freqüència20Hz - 20KHz
SNR-80 dB
Dimensions del producte56.9 x 10.9 x 8.92 cm
MaterialMetall + ABS

9. Garantia i Suport

Specific warranty information for the ulafbwur Mini Bluetooth Speaker BS-10 is not provided in this manual. Please refer to the product packaging or the retailer's weblloc per obtenir els detalls de la garantia.

For technical support or inquiries, please contact the manufacturer or your point of purchase. Keep your purchase receipt as proof of purchase for any warranty claims.

© 2024 ulafbwur. All rights reserved.
