1. Introducció

Thank you for choosing the Einhell GE-DP 7935 N-A LL ECO 3-in-1 Dirty Water Pump. This powerful and versatile submersible pump is designed for efficient drainage of dirty and clear water, featuring an Aqua-Sensor for automatic operation and robust construction for long-lasting performance. Please read this manual carefully before operating the pump to ensure safe and optimal use.

2. Instruccions de seguretat

Seguretat general: Always disconnect the power supply before performing any work on the pump. Ensure the power outlet is properly grounded and protected by a residual current device (RCD) with a tripping current of no more than 30 mA. Do not operate the pump if the power cable or plug is damaged. Keep children and unauthorized persons away from the operating area.

Seguretat elèctrica: The pump is designed for use with alternating current (AC) only. The voltage must match the specifications on the rating plate. Do not use the pump in swimming pools or ponds while people are in the water. Avoid running the pump dry, as this can cause damage. The Aqua-Sensor provides dry-run protection, but regular checks are recommended.

Seguretat personal: Wear appropriate personal protective equipment (PPE) such as gloves and safety footwear when handling the pump. Do not lift the pump by its power cable or discharge hose. Use the integrated carrying handle for transport.

3. Producte acabatview

The Einhell GE-DP 7935 N-A LL ECO is a robust submersible pump designed for various water drainage tasks. Key features include:

• Rendiment potent: Equipped with a 790 W motor, delivering a maximum flow rate of 19,500 liters per hour and a maximum delivery head of 9 meters.
• Funcionalitat 3 en 1: Capable of handling dirty water with particle sizes up to Ø35 mm, and clear water with a residual water level as low as 1 mm.
• Aqua-Sensor Technology: Allows for quick and easy adjustment of the pump's start level. Includes dry-run protection to prevent damage.
• Construcció duradora: Features a robust stainless steel housing and a high-quality mechanical seal for extended service life.
• Connexions versàtils: Includes a quick coupling for fast hose changes and a universal adapter suitable for 25/38 mm hoses and 33.3 mm (G 1”) external threads.
• Nivell d'aspiració ajustable: The suction level can be adjusted in 4 steps, allowing for flat suction down to 1 mm in clear water mode.

Figura 3.1: The Einhell GE-DP 7935 N-A LL ECO 3-in-1 Dirty Water Pump, showcasing its compact design and robust build.

Figura 3.2: The pump features an integrated carrying handle for easy transport and portability.

Figura 3.3: Detallada view of the pump's control panel, including the Aqua-Sensor adjustment dial.

4. Configuració

4.1 Desembalatge i inspecció

Carefully remove the pump and all accessories from the packaging. Inspect all components for any signs of damage. Do not use damaged parts. Ensure all listed components are present: 1x Dirty Water Pump, 1x Universal Adapter, 1x Quick Coupling.

4.2 Connecting the Discharge Hose

The pump is supplied with a quick coupling and a universal adapter for various hose sizes. Choose the appropriate connection for your discharge hose.

• Quick Coupling: For fast attachment and detachment of hoses with a 47.8 mm connection.
• Adaptador universal: Suitable for 25 mm (1 inch) and 38 mm (1 ½ inch) hoses, as well as 33.3 mm (G 1”) external threads. Secure the hose with a hose clamp (not included) to prevent leaks.

Figura 4.1: The quick coupling (left) and universal adapter (right) for hose connections.

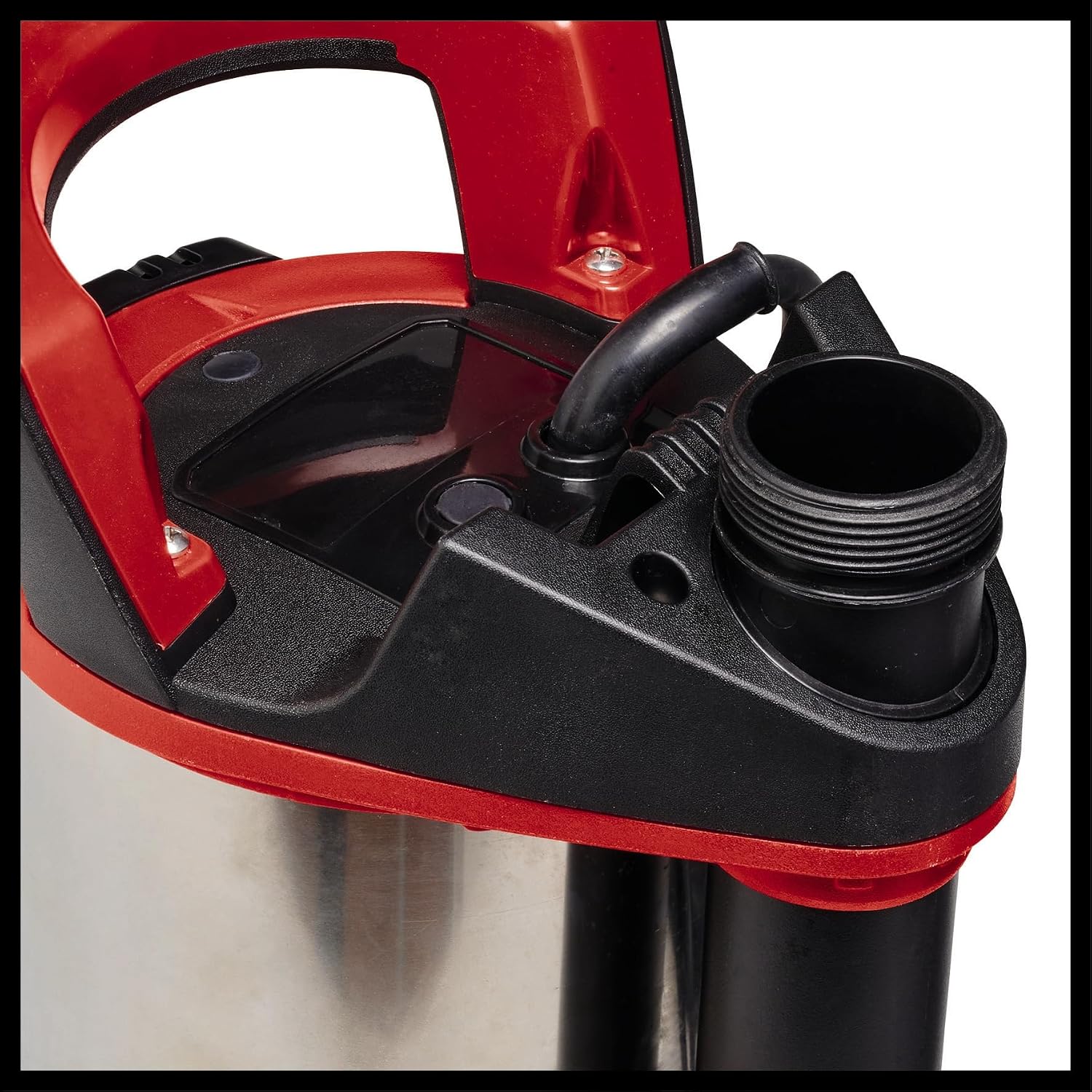

Figura 4.2: The discharge outlet on top of the pump where the hose adapter connects.

4.3 Positioning the Pump

Place the pump on a stable, level surface in the water. Ensure the suction openings at the bottom are not obstructed by mud, sand, or debris. For dirty water applications, ensure the pump is positioned to allow maximum particle intake without clogging.

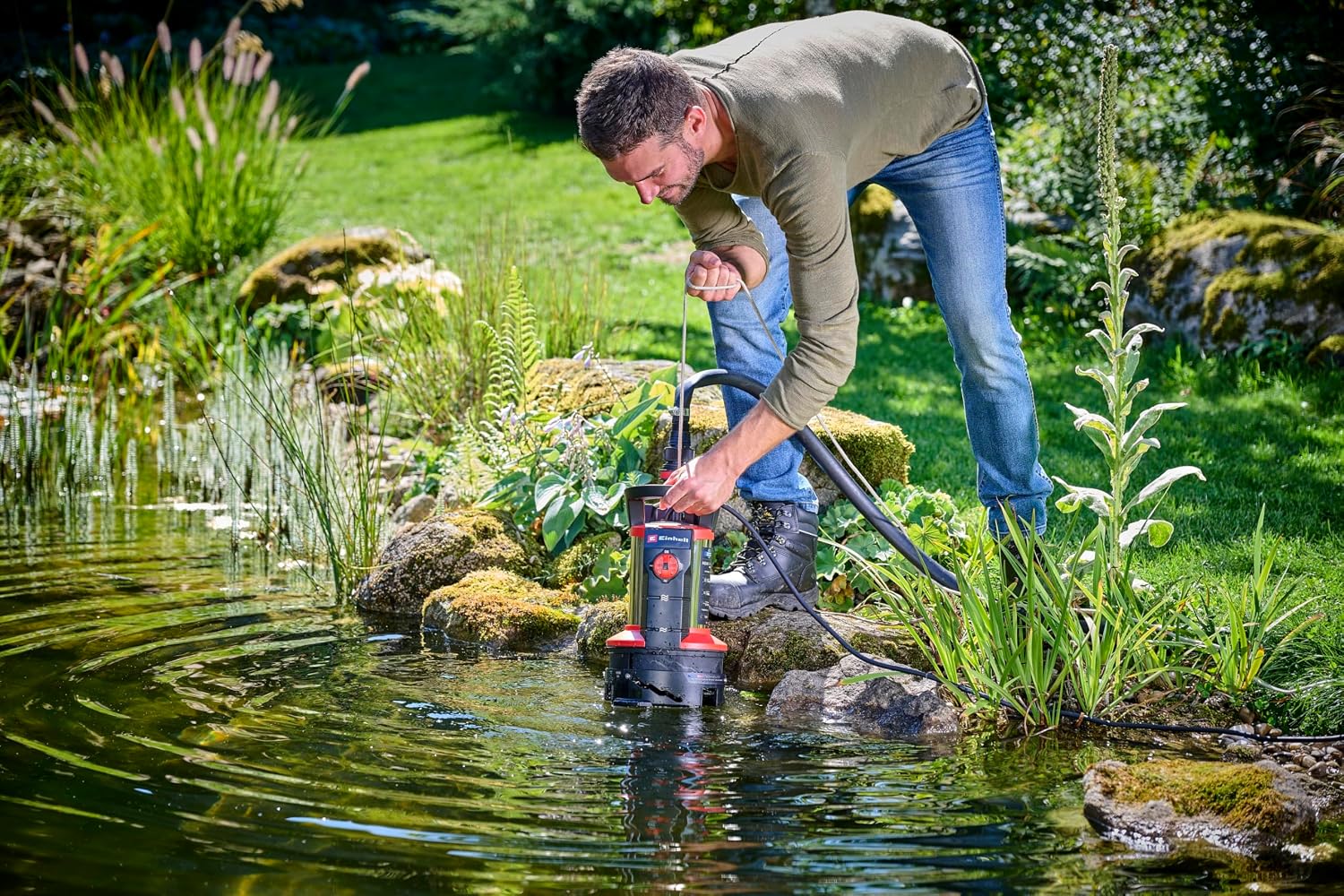

Figura 4.3: Proper placement of the pump in a pond for water removal.

Figura 4.4: The pump being positioned in a pool for drainage.

5. Instruccions de funcionament

5.1 Aqua-Sensor Function

The Aqua-Sensor allows for automatic operation based on the water level. You can adjust the desired start level using the dial on the side of the pump. The pump will automatically switch on when the water reaches the set level and switch off when the water drops below a certain threshold, preventing dry running.

• Setting the Start Level: Rotate the Aqua-Sensor dial to select the desired water level at which the pump should activate.
• Protecció contra funcionament en sec: The Aqua-Sensor automatically protects the pump from damage by shutting it off if the water level becomes too low.

Figura 5.1: The Aqua-Sensor dial for adjusting the pump's automatic start level.

5.2 Switching Between Dirty and Clear Water Modes

The pump's base can be adjusted to optimize for either dirty water (up to 35 mm particle size) or clear water (down to 1 mm residual level). Refer to the markings on the pump base for adjustment.

• Mode d'aigua bruta: Set the base to allow for larger particle intake. This mode is ideal for draining ponds, construction pits, or flooded basements with suspended solids.
• Clear Water Mode: Adjust the base for flat suction, enabling the pump to remove water down to a 1 mm residual level. This is suitable for draining pools or other areas where minimal water residue is desired. The suction level can be adjusted in 4 steps.

Figura 5.2: Visual representation of the pump's ability to handle dirty water with 35mm particles and clear water down to 1mm residual level.

Figura 5.3: Illustrates the difference between standard and flat suction capabilities, showing 15mm vs 1mm residual water levels.

Figura 5.4: Diagram showing the 4-step adjustable suction levels (1mm, 15mm, 25mm, 35mm) on the pump base.

5.3 Engegada/apagada

Once the pump is positioned and the hose is connected, plug the power cable into a suitable, grounded electrical outlet. The pump will activate according to the Aqua-Sensor settings. To manually stop the pump, unplug it from the power source.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your pump. Always disconnect the power supply before any maintenance work.

6.1 Neteja de la bomba

After each use, especially when pumping dirty water, rinse the pump thoroughly with clean water. This prevents sediment buildup and clogging. Check the suction openings for any debris and remove them carefully.

6.2 Checking Seals and Impeller

Periodically inspect the mechanical seal for wear or damage. Check the impeller for any obstructions or damage. If necessary, consult a qualified technician for repairs or replacement parts.

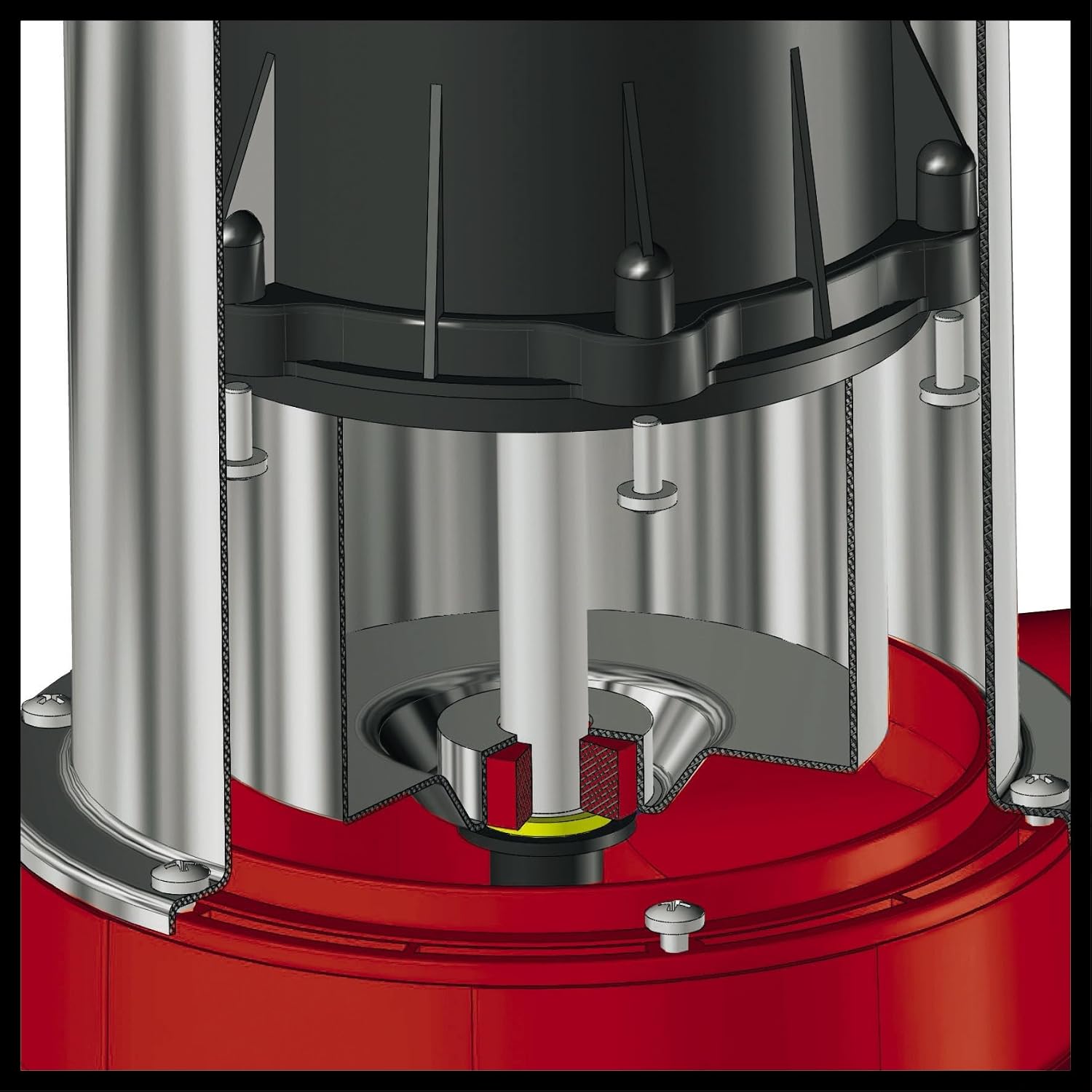

Figura 6.1: Interna view of the pump, showing the impeller and sealing components. Regular inspection of these parts is crucial for performance.

6.3 Emmagatzematge

Before storing the pump for extended periods, especially during winter, ensure it is thoroughly cleaned and completely drained of water. Store the pump in a dry, frost-free location.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

Einhell products are manufactured to high-quality standards and undergo strict quality controls. This product comes with a manufacturer's warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Einhell website. For technical support, spare parts, or service inquiries, please contact Einhell customer service or your authorized dealer. Keep your purchase receipt as proof of warranty.

Availability of Spare Parts in the EU: 1 any

You can find more information and contact details on the official Einhell weblloc: www.einhell.com
