ExBrite 36"x32" Lighted Medicine Cabinet User Manual

1. Introducció

This user manual provides detailed instructions for the installation, operation, and maintenance of your ExBrite 36"x32" Lighted Medicine Cabinet. Designed for optimal functionality and aesthetic appeal, this cabinet features advanced LED lighting, smart controls, and ample storage. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

2. Informació de seguretat

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, install this product according to these instructions.

• Ensure proper wall mounting to support the cabinet's weight (approximately 81.8 pounds) and its contents.
• Do not exceed the shelf weight limit of 11 pounds per shelf.
• All electrical connections must be performed by a qualified electrician in accordance with local codes and regulations.
• Avoid direct contact with water on electrical components.
• This product is ETL certified, ensuring compliance with safety standards.

3. Característiques del producte

3.1 Optimized Luminosity and Harmony

The cabinet features state-of-the-art LED strips providing dual-purpose lighting. Front illumination offers clear, precise light for grooming, while backlighting creates a soft, ambient glow for atmosphere. Separately adjustable switches for front and rear light allow for customized illumination.

Image: Front and Backlit LED illumination.

3.2 Double Mirrors and 10x Magnification

Dual mirrors allow for effortless access and makeup application. Both mirrors share lighting settings, ensuring consistent illumination. A movable 10x magnification mirror is included for detailed grooming tasks.

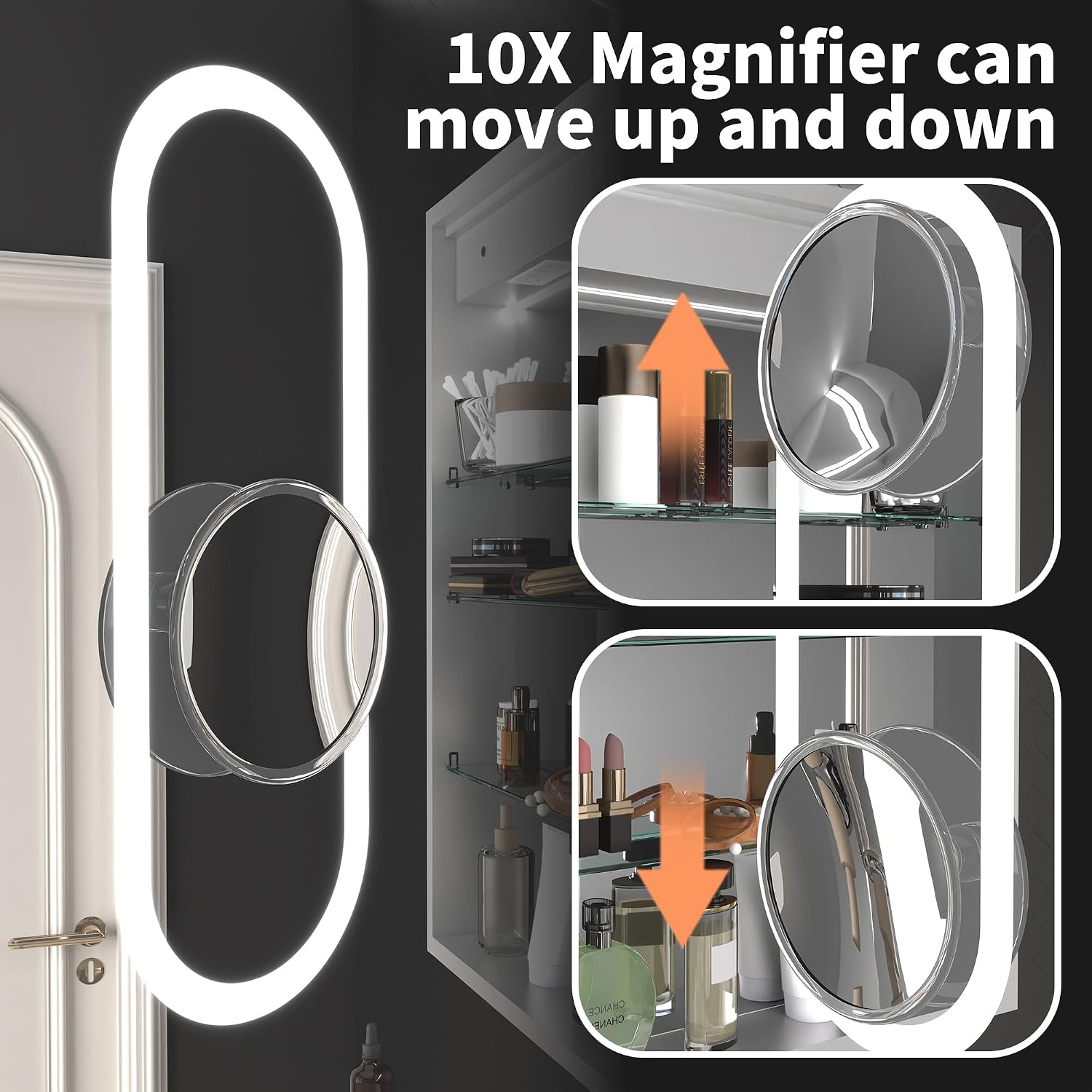

Image: 10x Magnifier can move up and down.

3.3 Seamless Brightness and Interior LED

Adjust brightness from 10% to 100% and color temperature from 3000K (warm) to 6400K (white). Interior LED lighting ensures easy visibility of items within the cabinet.

Image: Long press to adjust brightness with memory function.

3.4 Ample Storage Space & Power

Three adjustable glass shelves provide customizable organization. The cabinet includes double power sockets and two USB ports for charging electronic devices.

Imatge: Interior view showing adjustable shelves and power outlets.

3.5 Flexible Installation Options

Supports both recessed and surface mounting. Features premium 170° soft-close Blum hinges for smooth and quiet operation.

Image: Surface and Recessed Mounting options.

3.6 ETL Certified

The ExBrite lighted medicine cabinet is ETL certified, ensuring it meets rigorous electrical safety requirements for your home or professional environment.

4. Configuració i instal·lació

The ExBrite medicine cabinet can be installed via surface mount or recessed mount. Refer to the following steps and diagrams for proper installation.

4.1 Passos d'instal·lació

1. Verify Minimum Clearance: Ensure adequate space for the cabinet and door swing.
2. Marqueu els punts de muntatge: Use the provided template or measurements to mark drill points on the wall.
3. Drill Holes & Insert Anchors: Drill holes and insert wall anchors if needed for secure mounting.
4. Secure Support Bar: Attach the support bar to the wall using round-head screws.
5. Preparar l'armari: Remove side panels and shelves for easier handling during installation.
6. Connexió elèctrica: Connect the white wire to neutral, black wire to live, and green/yellow wire to ground. Ensure proper grounding.
7. Lift and Engage: Lift the cabinet onto the mounting bar, ensuring the hooks engage properly.
8. Armari segur: Place the support screw to fix the cabinet to the wall. Adjust for level and secure fit.
9. Torneu a instal·lar components: Reinstall shelves and side panels.

Image: Visual guide for wall installation steps.

4.2 Packaging for Protection

The cabinet is delivered with comprehensive packaging, including four foam corner guards, double styrofoam boards, and a sturdy carton box, to ensure excellent protection during transit.

Image: Diagram showing comprehensive packaging for mirror cabinet protection.

5. Instruccions de funcionament

5.1 Control de la llum

• Ajust de brillantor: Long press the power button on the mirror surface to steplessly adjust the brightness from 10% to 100%. The cabinet remembers your last brightness setting.
• Ajust de temperatura de color: Short press the power button to cycle through three color temperatures: 6000K (White), 4000K (Natural), and 3000K (Warm).

Image: Three color temperatures (6000K White, 4000K Natural, 3000K Warm) and short press instruction.

5.2 Funció antiboira

Activate the anti-fog function with a single touch on the dedicated button on the mirror surface. This feature quickly clears condensation. The anti-fog function automatically switches off after 1 hour.

Image: One touch activation for Anti-Fog function.

5.3 Clock and Temperature Display

The cabinet features an integrated clock and temperature display. To set the clock, hold the button for seconds to set the hour, then switch to minutes and touch to set.

5.4 Light-Sensitive Night Light

The cabinet includes a light-sensitive night light that automatically turns on when the ambient brightness decreases, providing subtle illumination.

Image: Light-Sensitive Night Light with rocker switch detail.

5.5 Internal Power Outlets and USB Ports

Utilize the double power sockets and two USB ports inside the cabinet to conveniently charge electric toothbrushes, razors, hairdryers, and smartphones.

Imatge: Interior view showing power outlets and USB ports.

5.6 Producte acabatview Vídeo

Vídeo: Un overview of the ExBrite Lighted Medicine Cabinet's features, including lighting, storage, and mounting options.

6. Manteniment

• Neteja: Clean the mirror surfaces and cabinet exterior with a soft, damp cloth. For stubborn marks, use a non-abrasive cleaner or alcohol. Avoid harsh chemicals that may damage the finish or electrical components.
• Cura de les prestatgeries: Els prestatges de vidre es poden treure per netejar-los. Manipuleu-los amb cura per evitar que es trenquin.
• Frontisses: The 170° soft-close Blum hinges are designed for durability. No regular lubrication is typically required.
• Components elèctrics: Ensure the power is off before cleaning near electrical outlets or LED strips. Do not attempt to repair or modify internal electrical components.

7. Resolució de problemes (FAQ)

Image: FAQ section with common issues and solutions.

1. Cabinet door won't close: Check if the hinges are correctly installed or if there's any obstruction. Additionally, adjust the screws on the hinges to achieve proper alignment for the door to close.
2. Internal lighting or other electronic features not working: Ensure the power plug is properly inserted and the power switch is turned on. If the clock, temperature display, or buttons aren't functioning, unplug the electrical connection between the door and the cabinet for one to two hours, then restart the mirror cabinet to see if it works.
3. Can the lighting for the clock and temperature display on the mirror cabinet be turned off? No, the lighting for the clock and temperature display cannot be turned off.
4. Rust or marks on the cabinet: Clean with non-abrasive or alcohol.

8. Especificacions

9. Garantia i atenció al client

ExBrite is committed to providing excellent customer service and support for your product.

9.1 Atenció al client

Our customer support team is available 24/7 to answer any questions and resolve any issues you may encounter. You can expect a reply by email within 24 hours.

Image: Customer Service contact information.

9.2 Returns and Replacements

We offer 30-day easy returns. If the mirror cabinet is delivered in a broken or damaged condition, or if there are quality issues, please contact us directly. You do not need to return the damaged item; simply provide pictures, and we will promptly arrange for a new mirror cabinet to be reissued from our warehouse.

9.3 Garantia

Free repair is available within 2 years of purchase for quality concerns or delivery damages.

Image: Information on returns, free repair, and customer service.
