T&G TG-516 Portable Bluetooth Speaker User Manual

1. Introducció

Gràcies per la compraasing the T&G TG-516 Portable Bluetooth Speaker. This device is designed for high-quality audio playback and portability, featuring Bluetooth 5.3 connectivity, TF card and USB drive support, FM radio, and a built-in microphone for hands-free calls. Its waterproof design makes it suitable for various environments. Please read this manual carefully to ensure proper use and to maximize your speaker's performance.

2. Característiques del producte

• Portàtil i lleuger: Dissenyat per facilitar el transport i l'ús en moviment.
• Connectivitat Bluetooth 5.3: Provides a stable and fast wireless connection up to 10 meters.
• Múltiples modes de reproducció: Supports TF (Micro SD) cards, USB drives, FM radio, and AUX input.
• Trucades mans lliures: Built-in microphone allows for answering calls directly through the speaker.
• Funció TWS: Connect two TG-516 speakers wirelessly for enhanced stereo sound.
• Disseny impermeable: IPX5 rating protects against splashes and light rain, making it suitable for outdoor activities.

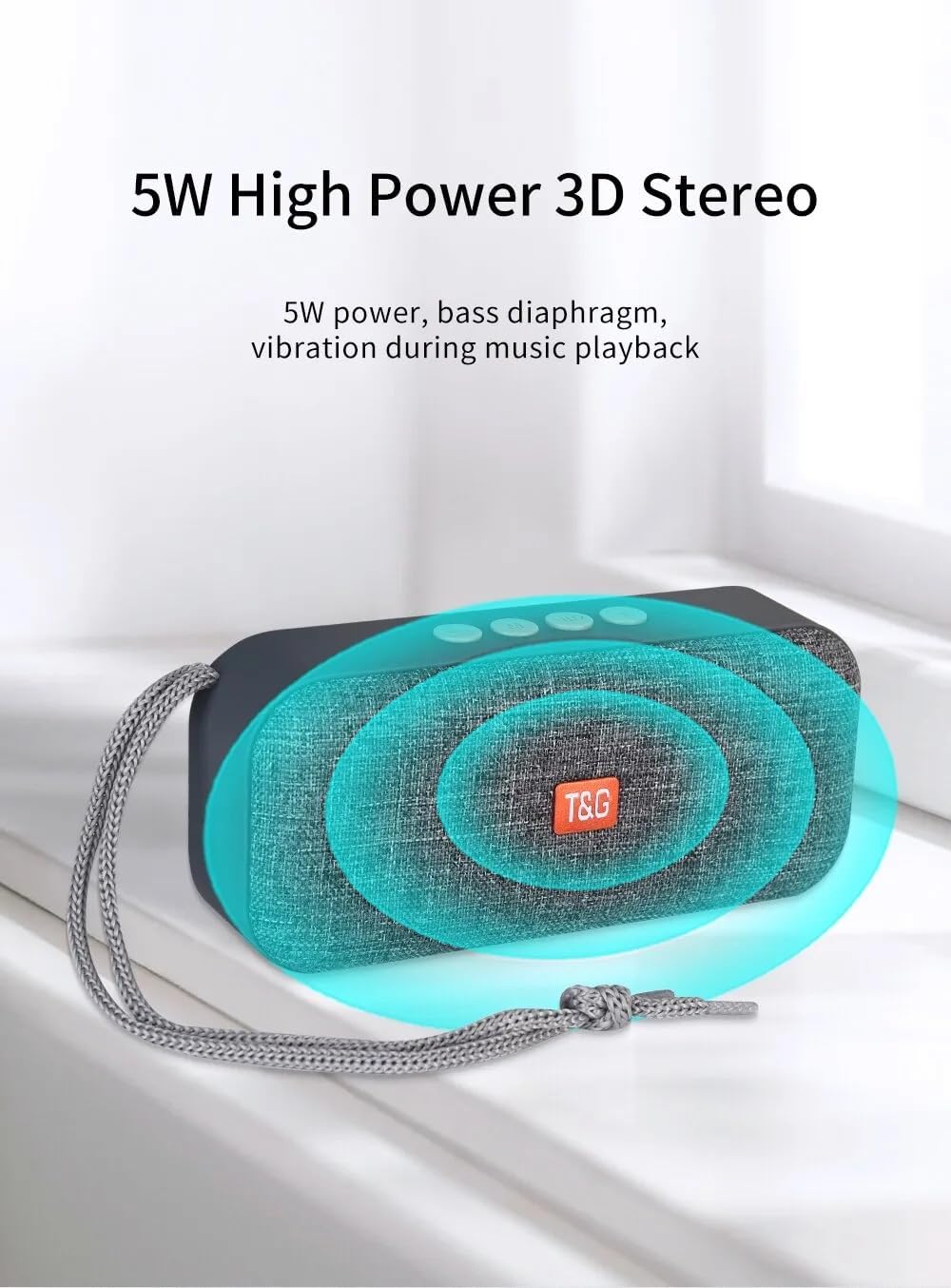

• 5W High Power 3D Stereo: Delivers clear audio with a bass diaphragm for enhanced sound.
• Bateria de llarga durada: Integrated 500mAh battery provides approximately 1 hour of playback at moderate volume.

3. Contingut del paquet

• 1 x T&G TG-516 Portable Bluetooth Speaker
• 1 x cable de càrrega USB

4. Disseny i controls del dispositiu

1. Baixada de volum / Pista anterior: Short press for previous track (in music mode), long press to decrease volume.
2. Interruptor de mode: Short press to switch between modes (USB drive, TF card, FM radio, Bluetooth, LINE IN). Long press for hard searching in FM mode.
3. Play/Pause / Call Control: Short press to play/pause music. In Bluetooth mode, short press to answer a call, long press to end a call. In FM mode, short press to automatically search for radio stations, and short press during search to cancel.
4. Puja el volum / Pista següent: Short press for next track (in music mode), long press to increase volume.
5. Interruptor ON / OFF: Botó d'encesa.
6. DC 5V Power Interface: Port de càrrega micro USB.
7. TF Card Input Interface: Decodes MP3 format audio playback when a TF card is inserted.
8. Interfície d'entrada AUX: 3.5mm audio jack for external audio input.
9. USB Drive Input Interface: Decodes MP3 format audio playback when a USB drive is inserted.

5. Configuració i ús inicial

5.1 Càrrega de l'altaveu

Before first use, fully charge the speaker. Connect the provided USB charging cable to the DC 5V power interface (6) on the speaker and the other end to a USB power source (e.g., computer, USB wall adapter). The charging indicator light will illuminate during charging and turn off when fully charged.

5.2 Engegada/apagada

To power on the speaker, slide the ON/OFF switch (5) to the "ON" position. To power off, slide it to the "OFF" position.

5.3 Vinculació Bluetooth

1. Ensure the speaker is powered on and in Bluetooth mode (indicated by a flashing blue light). If not, short press the Mode Switch button (2) until it enters Bluetooth mode.
2. Al dispositiu mòbil (telèfon intel·ligent, tauleta, etc.), activeu el Bluetooth i cerqueu els dispositius disponibles.
3. Select "TG-516" from the list of devices.
4. Once paired, the speaker will emit a confirmation sound, and the blue light will stop flashing.

5.4 TWS (True Wireless Stereo) Emparellament

To connect two TG-516 speakers for a stereo experience:

1. Ensure both TG-516 speakers are powered on and in Bluetooth mode, but not yet paired with any device.
2. On one of the speakers (this will be the primary speaker), long press the Play/Pause button (3) for a few seconds until you hear a pairing tone.
3. Els dos altaveus es connectaran automàticament entre si. Un cop connectats, sentireu un so de confirmació.
4. Now, pair your mobile device with the primary speaker as described in section 5.3. Audio will play through both speakers in stereo.

6. Instruccions de funcionament

6.1 Canvi de modes de reproducció

Short press the Mode Switch button (2) to cycle through available modes: Bluetooth, TF Card, USB Drive, FM Radio, and AUX Input. The speaker will announce the current mode.

6.2 Reproducció de música

• Reproduir/pausa: Premeu breument el botó Reproduir/Pausa (3).
• Pista següent: Short press the Volume Up / Next Track button (4).
• Pista anterior: Short press the Volume Down / Previous Track button (1).
• Ajust de volum: Long press the Volume Up / Next Track button (4) to increase volume. Long press the Volume Down / Previous Track button (1) to decrease volume.

6.3 Funcionament de la ràdio FM

1. Switch to FM Radio mode using the Mode Switch button (2).
2. For better reception, connect the USB charging cable to the speaker; it acts as an antenna.
3. Cerca automàtica d'estacions: Short press the Play/Pause button (3) to start an automatic search for radio stations. The speaker will scan and save available stations. Short press again during the search to cancel.
4. Navigate Stations: Short press the Volume Up / Next Track button (4) or Volume Down / Previous Track button (1) to switch between saved stations.

6.4 Trucades de mans lliures

Quan estigui connectat al telèfon mitjançant Bluetooth:

• Respon a la trucada: Short press the Play/Pause button (3) when an incoming call rings.
• Finalitzar la trucada: Long press the Play/Pause button (3) during a call to end it.
• Rebutja la trucada: Long press the Play/Pause button (3) when an incoming call rings to reject it.

7. Manteniment

• Neteja: Feu servir un drap suau i sec per netejar l'altaveu. No utilitzeu productes químics agressius ni netejadors abrasius.
• Resistència a l'aigua: The speaker is IPX5 waterproof, meaning it is protected against low-pressure water jets from any direction. Do not submerge the speaker in water or expose it to heavy rain for extended periods. Ensure all port covers are securely closed before exposure to water.
• Cura de la bateria: To prolong battery life, avoid fully discharging the speaker frequently. Charge it regularly, even if not in use for extended periods. Store in a cool, dry place.
• Emmagatzematge: Quan no l'utilitzeu, guardeu l'altaveu en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

The T&G TG-516 Portable Bluetooth Speaker comes with a manufacturer's warranty. Please refer to your purchase documentation or contact your retailer for specific warranty terms and conditions. For technical support or further assistance, please contact the vendor or manufacturer directly.
