1. Introducció
This document serves as an instruction manual for your new Generic replacement remote control. This remote is designed to function with specific Aiwa CD Compact Disc Stereo System models. Please review this manual carefully to ensure proper setup and operation.
Important Note: This is a replacement infrared remote control. It is crucial that your original remote control looks identical to this replacement for full compatibility and functionality. If your original remote differs, some functions may not operate as expected.
Models compatibles:
- Aiwa NSX-AV540
- Aiwa NSX-DP55
- Aiwa XH-DT7
- Aiwa XH-DT8
- Aiwa RC-TN400
- Aiwa RC-ZAS04
- Aiwa NSX-T7
- Aiwa CX-NHMT75
- Aiwa CX-NMA545
2. Configuració
Instal·lació de la bateria:
El comandament a distància requereix two (2) AAA batteries (not included). Follow these steps to install the batteries:
- Localitzeu el compartiment de la bateria a la part posterior del comandament a distància.
- Feu lliscar la tapa del compartiment de la bateria cap avall o premeu el pestell i aixequeu-lo per obrir-lo.
- Introduïu dues piles AAA, assegurant-vos que els terminals positiu (+) i negatiu (-) s'alineïn correctament amb les marques de l'interior del compartiment.
- Torneu a col·locar la tapa del compartiment de la bateria fent-la lliscar fins que faci clic de manera segura.
Imatge: Part posterior view of the remote control with the battery cover detached, revealing the two AAA battery slots.

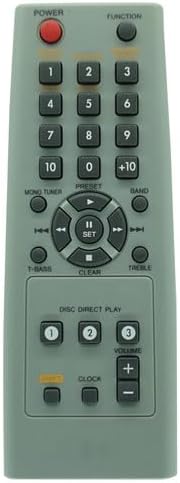

Imatge: Frontal view of the replacement remote control, displaying the layout of all buttons including power, function, numerical keys, volume, and navigation controls.
3. Instruccions de funcionament
Once batteries are installed, point the remote control directly at your Aiwa stereo system's infrared receiver. Press the desired button to control your device.
Funcions clau:
- POTÈNCIA: Turns the stereo system on or off.
- FUNCIÓ: Cycles through input sources (e.g., CD, Tuner, Tape, Aux).
- Numerical Buttons (0-9, +10): Used for direct track selection on CD or radio station tuning.
- VOLUM (+/-): Augmenta o disminueix el volum de l'àudio.
- Navigation Buttons (Up, Down, Left, Right, SET): Used for menu navigation or track/station skipping.
- PLAY/PAUSE (►/∥∥): Controls playback for CD or other media.
- ATURAR (■): Atura la reproducció.
- T-BASS: Activates or deactivates the bass boost function.
- AGUTS: Ajusta el nivell dels aguts.
- BANDA: Switches between AM/FM bands on the tuner.
- PRESET: Accesses preset radio stations.
- RELOJ: Used for setting the system clock.
- DISC DIRECT PLAY (1, 2, 3): Directly selects a specific disc in a multi-disc changer.
4. Manteniment
Substitució de la bateria:
Canvieu les piles quan la resposta del comandament a distància es torni lenta o deixi de funcionar. Canvieu sempre les dues piles alhora per piles AAA noves. No barregeu piles velles i noves, ni piles de diferents tipus.
Neteja:
To clean the remote control, wipe it with a soft, dry cloth. Do not use liquid cleaners, sprays, or abrasive materials, as these can damage the remote's surface or internal components.
5. Solució De Problemes
If your remote control is not functioning correctly, please try the following troubleshooting steps:
- Comproveu les bateries: Assegureu-vos que les piles estiguin inserides correctament amb la polaritat correcta (+/-) i que no estiguin esgotades. Substituïu-les per piles AAA noves si cal.
- Línia de visió: Make sure there are no obstructions between the remote control and the infrared receiver on your stereo system. The remote requires a clear line of sight to operate.
- Distància: Ensure you are within the effective operating range of the remote control (typically up to 20 feet or 6 meters).
- Compatibilitat: Double-check that your stereo system's model number is listed as compatible and that your original remote control was visually identical to this replacement. If not, full functionality cannot be guaranteed.
- Potència del sistema: Confirm that your Aiwa stereo system is powered on and not in standby mode.
6. Especificacions
| Característica | Detall |
|---|---|
| Tipus de producte | Infrared Replacement Remote Control |
| Font d'alimentació | 2 piles AAA (no incloses) |
| Color | Negre |
| Dispositius compatibles | Aiwa CD Compact Disc Stereo Systems (Home Theater) |
7. Garantia i Suport
This is a generic replacement remote control. Specific warranty information from the original manufacturer of your stereo system does not apply to this replacement remote. For any issues or questions regarding this replacement remote, please contact the seller directly through your purchase platform.
No official product videos are available for this specific replacement remote control based on the provided information.
