Acekool SC-760FA Commercial Beverage Display Refrigerator User Manual

1. Informació important de seguretat

Read all instructions before using this appliance to prevent personal injury or property damage. Keep this manual for future reference.

• Assegureu-vos que la nevera estigui col·locada sobre una superfície estable i anivellada.
• Connect to a grounded 115V, 60Hz electrical outlet. Do not use extension cords or adapters.
• No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
• Manteniu les obertures de ventilació de la carcassa de l'aparell o de l'estructura integrada lliures d'obstacles.
• No utilitzeu dispositius mecànics o altres mitjans per accelerar el procés de descongelació, diferents dels recomanats pel fabricant.
• No danyeu el circuit de refrigerant.
• No utilitzeu aparells elèctrics dins dels compartiments d'emmagatzematge d'aliments de l'aparell, tret que siguin del tipus recomanat pel fabricant.
• This appliance uses R-600a refrigerant, which is flammable. Handle with care.

2. Configuració i instal·lació

2.1 Desembalatge

Carefully remove all packaging materials, including foam and tape. Inspect the refrigerator for any shipping damage. Retain packaging materials for potential future transport.

2.2 Col·locació

Place the refrigerator on a strong, level floor capable of supporting its weight (approximately 237.6 lbs when empty, more when loaded). Ensure there is adequate air circulation around the unit. Maintain a minimum of 4 inches (10 cm) clearance from walls and other objects to allow for proper ventilation and heat dissipation. Avoid direct sunlight, heat sources, or areas with high humidity.

Image: The Acekool SC-760FA refrigerator with its dimensions (23.8"D x 43.7"W x 74.1"H) clearly indicated, illustrating the unit's size for proper placement planning.

2.3 Connexió elèctrica

Before plugging in the unit, ensure the voltage specified on the rating label matches your local power supply (115 Volts). Plug the refrigerator directly into a dedicated, grounded wall outlet. Do not use multi-outlet adapters or extension cords.

2.4 Operació inicial

After placement and electrical connection, allow the refrigerator to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, let the unit run empty for 24 hours to reach its stable operating temperature before loading products.

3. Instruccions de funcionament

3.1 Control de temperatura

The refrigerator features an electronic temperature control system. The adjustable temperature range is 32°F to 50°F (1°C to 10°C). Use the control panel to set your desired temperature. Refer to the control panel diagram for specific button functions (e.g., 'Set' button, up/down arrows).

Imatge: Una imatge detallada view of the refrigerator's control panel, showing the digital temperature display and buttons for setting temperature and controlling the light.

3.2 Il·luminació LED

The internal LED light bar can be manually turned on or off using the dedicated light switch on the control panel. This allows for clear visibility of stored beverages.

3.3 Prestatges ajustables

The refrigerator is equipped with adjustable shelves to accommodate various product sizes. To adjust a shelf, unload the items, lift the shelf slightly, and reposition the shelf supports to the desired height. Ensure shelves are securely seated before reloading.

Image: A close-up showing the adjustable shelf mechanism inside the refrigerator, with arrows indicating vertical adjustment.

3.4 Càrrega de productes

Load products evenly on the shelves. Do not block the internal air circulation fan or vents, as this can impair cooling performance. Avoid overloading the shelves beyond their weight capacity.

Image: A person opening one of the glass doors of the Acekool refrigerator, demonstrating access for loading and unloading beverages.

4. Manteniment

4.1 Neteja de l'interior

Disconnect the power before cleaning. Clean the interior regularly with a mild detergent and warm water. Rinse thoroughly and dry with a soft cloth. Do not use abrasive cleaners or solvents.

4.2 Cleaning the Exterior and Glass Doors

Netegeu les superfícies exteriors amb un damp cloth. For glass doors, use a glass cleaner. Avoid spraying cleaner directly onto the control panel or electrical components.

4.3 Neteja de la serpentina del condensador

The condenser coils, located at the bottom rear of the unit, should be cleaned periodically (every 3-6 months) to ensure efficient operation. Disconnect power, then use a brush or vacuum cleaner to remove dust and debris from the coils. This helps maintain cooling efficiency and prolongs the life of the compressor.

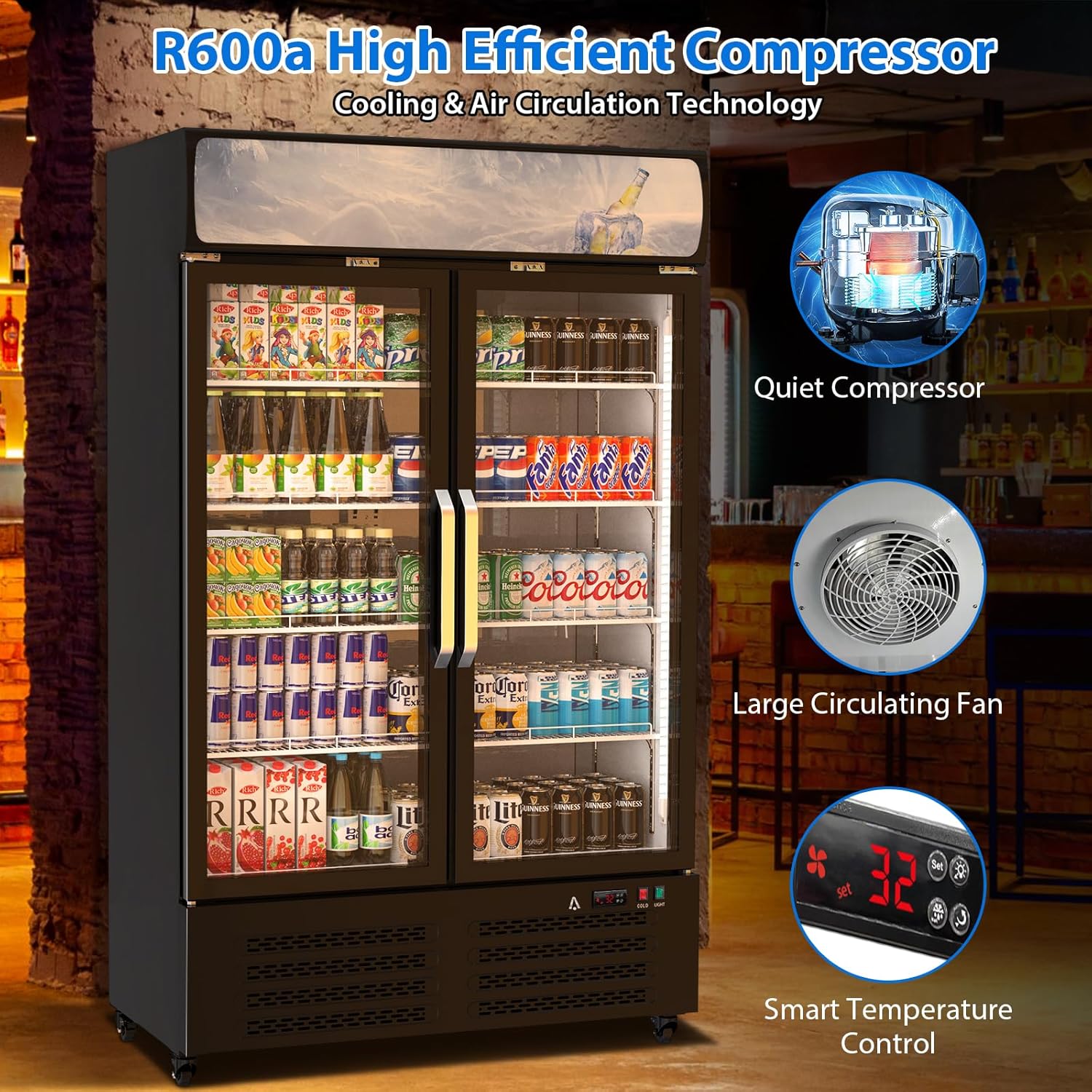

Image: An internal diagram highlighting the R600a high-efficiency compressor and large circulating fan, key components for cooling and air circulation.

4.4 Sistema de descongelació

This refrigerator features an automatic defrost system. During the defrost cycle, frost on the evaporator coils is melted and the water drains into an evaporation pan. Ensure the drain is not blocked.

4.5 Inspecció del segell de la porta

Regularly inspect the door gaskets for cracks or damage. A compromised door seal can lead to inefficient cooling and increased energy consumption. Replace damaged seals promptly.

5. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, review els següents problemes i solucions habituals:

• La nevera no refreda:
  • Comproveu si el cable d'alimentació està ben connectat.
  • Verifiqueu el disjuntor o el fusible.
  • Ensure the temperature setting is appropriate.
  • Check for obstructions around the condenser coils.
  • Confirmeu que les portes tanquin correctament i que els segells estiguin intactes.
• Soroll excessiu:
  • Assegureu-vos que la nevera estigui a nivell.
  • Check if any objects are vibrating against the unit.
  • Normal operating sounds include compressor hum, fan noise, and refrigerant gurgling.
• Internal Light Not Working:
  • Check the light switch on the control panel.
  • If the bulb is replaceable, ensure it is properly seated or replace it if burnt out.
• Water on Floor/Inside Unit:
  • Check if the drain pan is overflowing or if the drain line is blocked.
  • Ensure the door is not left open for extended periods, causing excessive condensation.

6. Especificacions

7. Garantia i Suport

For warranty information or technical support, please contact Acekool customer service. Refer to your purchase documentation for specific warranty terms and contact details. Do not attempt to repair the appliance yourself, as this may void the warranty and pose safety risks.
