AXIL XCOR NASCAR Wireless Earbuds User Manual

Introducció

Welcome to the user manual for your AXIL XCOR NASCAR Wireless Earbuds. These earbuds are designed to provide a powerful audio experience with advanced hearing protection and enhancement technology. Featuring a true wireless design, touch controls, and robust dust and water resistance, they are ideal for various activities requiring both audio and hearing safety.

Què hi ha a la caixa

Upon unboxing your AXIL XCOR NASCAR Wireless Earbuds, please ensure all components are present:

• AXIL XCOR NASCAR Wireless Earbuds (Left and Right)
• Estoig de càrrega
• Cable de càrrega USB-C
• Eartips (3 pairs of foam, 3 pairs of silicone for optimal fit)
• Maleta de transport

Image: All components included in the AXIL XCOR NASCAR Wireless Earbuds package.

Configuració

1. Càrrega dels auriculars i l'estoig

Before first use, fully charge the earbuds and the charging case. The charging case provides approximately 2 additional full recharges for the earbuds.

• Connect the provided USB-C charging cord to the charging port on the case and to a power source.
• The earbuds and case will fully charge in approximately 2 hours.
• Durada de la bateria:
  • 12 hours with Hear Control™ only.
  • 6 hours with Bluetooth audio only.
  • 4 hours with Hear Control™ and Bluetooth audio simultaneously.

2. Seleccionar les puntes d'orella adequades

A proper seal is crucial for both sound quality and effective hearing protection. Experiment with the included foam and silicone eartips to find the size that provides the best fit and seal for your ears.

• Foam tips are recommended for loud environments where maximum hearing protection is desired.
• Silicone tips are suitable for general listening and comfort.

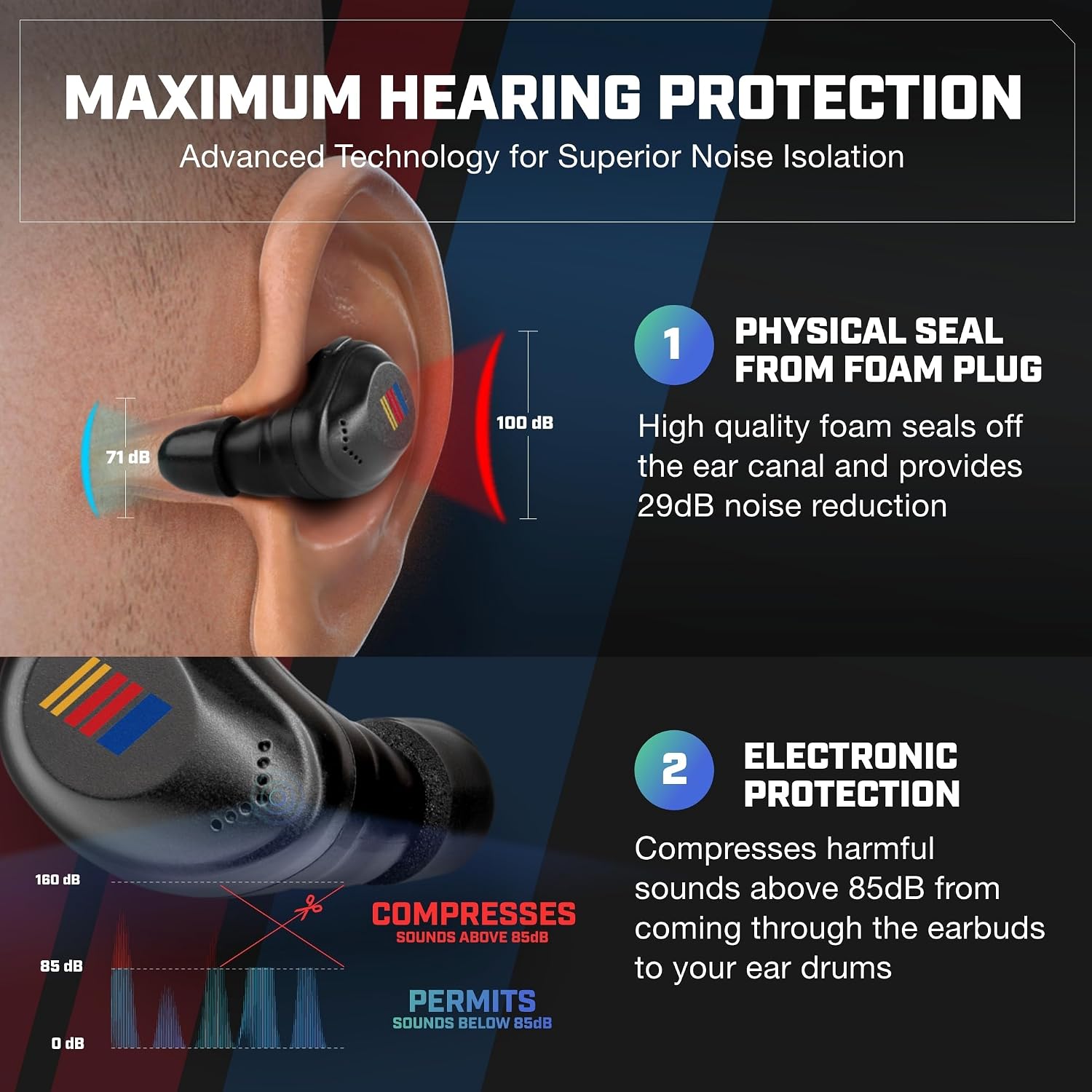

Image: Illustration of how the eartips create a physical seal for noise reduction and how the earbuds electronically compress loud sounds.

3. Emparellament Bluetooth

To connect your earbuds to a device via Bluetooth:

1. Assegura't que els auriculars estiguin carregats i trets de l'estoig de càrrega. Haurien d'entrar automàticament en mode d'emparellament.
2. Al dispositiu (telèfon intel·ligent, tauleta, etc.), aneu a la configuració de Bluetooth.
3. Select "AXIL XCOR" from the list of available devices.
4. Un cop connectat, sentireu una confirmació audible.

Image: The earbuds are shown connecting to a smartphone via Bluetooth, alongside examples of their use in tactical, hunting, fitness, and DIY/construction scenarios.

Funcionament dels auriculars

Controls tàctils

The AXIL XCOR NASCAR Earbuds feature intuitive touch controls on each earbud for managing audio, calls, and hearing modes.

Imatge: Detallada view of the earbud's touch control area and the dedicated volume button for Hear Control™ and protection modes.

Hearing Protection and Enhancement

These earbuds offer advanced hearing protection and enhancement:

• Digital Hearing Enhancement: The digital microphone provides up to 6X hearing enhancement, allowing you to hear ambient sounds clearly.
• Smart Compression: Sounds over 85 dB are automatically compressed, reducing harmful noise levels without completely blocking out your surroundings. This is ideal for environments with sudden loud noises.
• Cancel·lació activa del soroll (ANC): ANC technology helps reduce background noise during calls or media playback, providing a focused listening experience.

Imatge: Més deview of the earbuds' key benefits, including maximum hearing protection (up to 29 dB SNR), conversation boosting, Bluetooth connectivity, and touch controls.

Manteniment

Un manteniment adequat garanteix la longevitat i el rendiment òptim dels teus auriculars.

• Neteja: Regularly clean the earbuds and charging case with a soft, dry, lint-free cloth. For eartips, remove them and clean with mild soap and water, ensuring they are completely dry before reattaching. Do not use harsh chemicals or abrasive materials.
• Resistència a l'aigua: The earbuds are IPX5 water resistant, meaning they can withstand splashes and light rain. Do not submerge them in water. Ensure the charging port is dry before charging.
• Emmagatzematge: Quan no els utilitzeu, guardeu els auriculars a la funda de càrrega per protegir-los de la pols i els danys. Guardeu-los en un lloc fresc i sec, allunyat de temperatures extremes.

Resolució de problemes

If you encounter issues with your AXIL XCOR NASCAR Wireless Earbuds, try the following solutions:

Especificacions

Garantia i Suport

For warranty information, technical support, or service inquiries, please refer to the official AXIL weblloc web o contacteu directament amb el seu servei d'atenció al client. Conserveu el comprovant de compra per a reclamacions de garantia.

AXIL operates with a clear vision that innovation is the heart of its business, providing product designs and advancements to the sporting goods industry.
