Introducció
Thank you for choosing the ExBrite 72"x36" LED Bathroom Mirror. This manual provides essential information for the safe installation, operation, and maintenance of your new mirror. Please read these instructions thoroughly before installation and retain them for future reference.

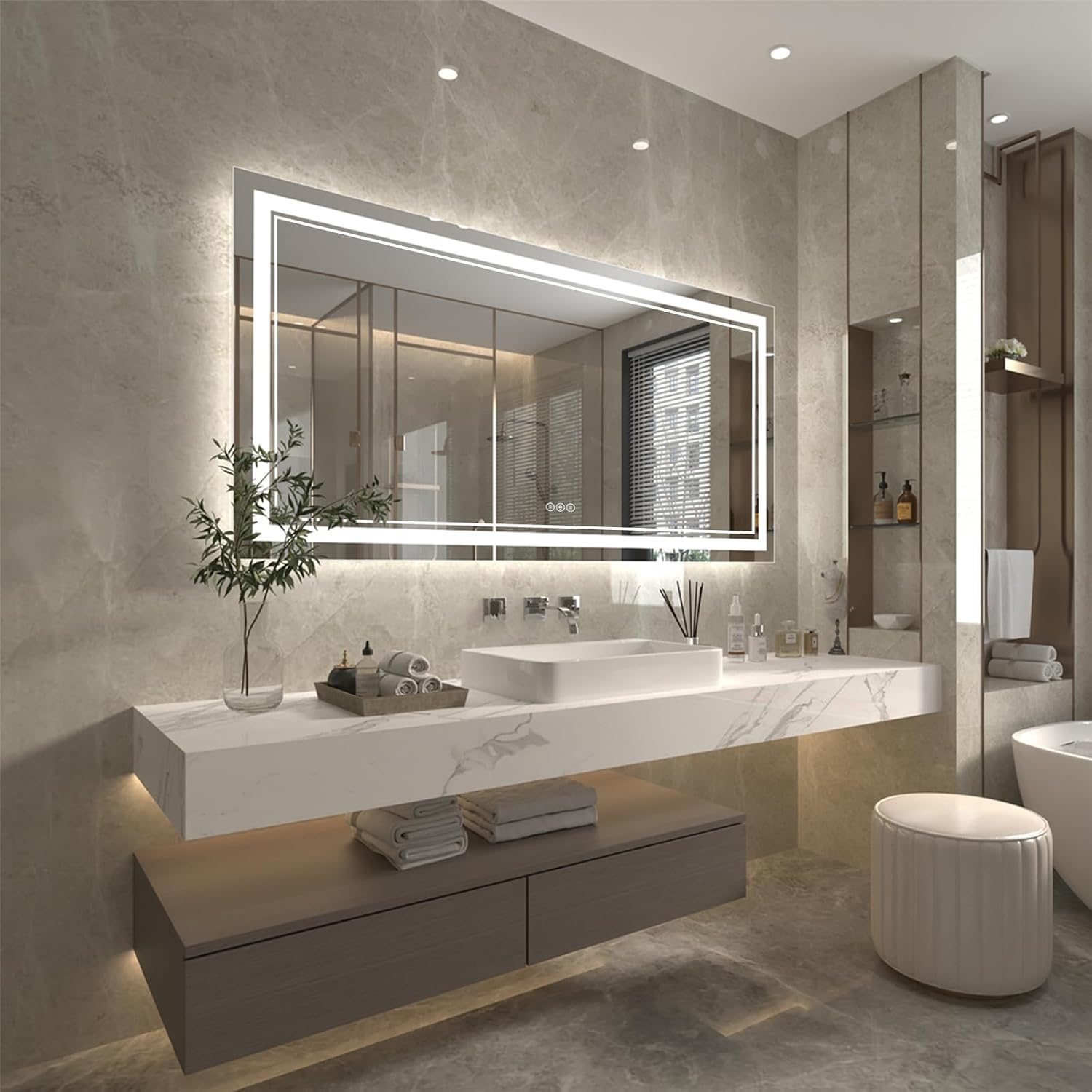

Image: The ExBrite 72"x36" LED Bathroom Mirror, showcasing its frontlit and backlit illumination above a modern double vanity.
Informació important de seguretat
Si us plau, observeu les següents precaucions de seguretat per evitar lesions o danys al producte:
- This mirror is heavy and has sharp edges. Always use two people for handling and installation.
- Mantingueu els components elèctrics secs i allunyats de fonts de calor.
- Do not install near water sources to prevent electrical shock.
- In case of breakage, clean up carefully to avoid injury from sharp edges.
- Assegureu-vos que el subministrament elèctric estigui desconnectat abans de qualsevol instal·lació o manteniment.
- Consult a qualified electrician if you are unsure about hardwiring procedures.
Característiques del producte
The ExBrite LED Bathroom Mirror is equipped with several advanced features for enhanced functionality and user experience:
- Frontlit & Backlit Illumination: Features two LED light strips for brighter, more comprehensive lighting.
- 3-Color Temperature Settings: Easily switch between warm light (3000K), natural light (4000K), and cool white light (6000K) using touch control.
- Brillantor regulable: Adjust light intensity from 10% to 100% with a long press on the touch control.
- Funció de memòria: The mirror retains the last used light color and brightness settings when powered off and on.
- Anti-Fog Feature: Quickly clears condensation from the mirror surface. Automatically shuts off after one hour to prevent overheating.
- Construcció duradora: Made with 5mm tempered glass, offering increased strength and shatter resistance compared to standard glass.
- Instal·lació flexible: Can be mounted horizontally or vertically and supports both plug-in and hardwired power connections.

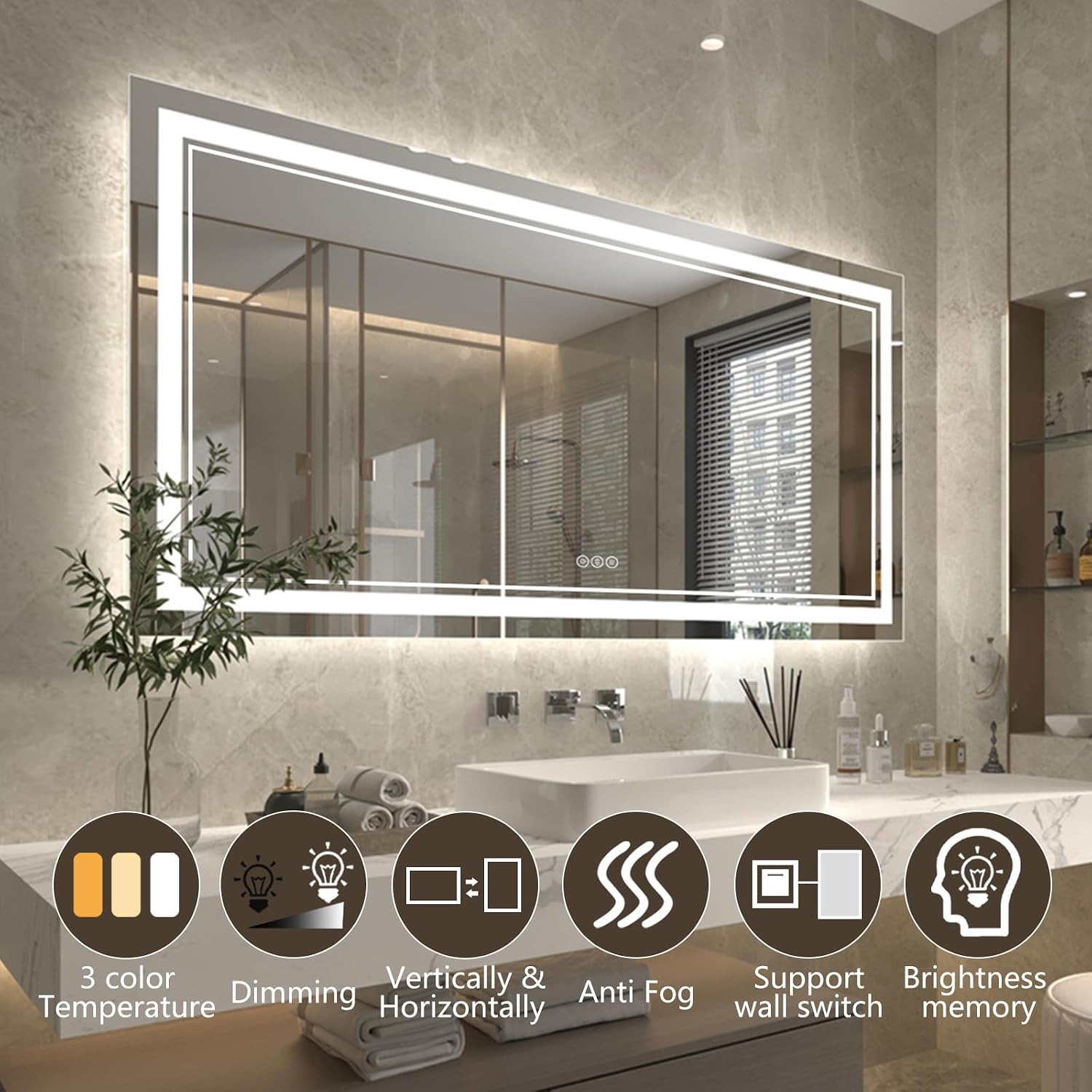

Image: Visual representation of the mirror's key features, including adjustable color temperature, dimming, anti-fog, and mounting options.
Configuració i instal·lació
The ExBrite LED mirror is designed for straightforward installation. It can be mounted horizontally or vertically and connected via a standard electrical outlet or hardwired to a wall switch.
Opcions de muntatge
Determine your preferred orientation (horizontal or vertical) before beginning installation. The mirror includes mounting accessories and detailed instructions.
Image: Illustration of the mirror mounted in both horizontal and vertical orientations.
Connexió d'alimentació
You have two options for connecting power:
- Connecteu-vos a una presa de corrent: Use the provided power cord to plug the mirror into a standard electrical outlet.
- Hardwire to a wall switch: For a seamless look, the mirror can be hardwired directly into your home's electrical system, controlled by a wall switch. This option requires professional installation or advanced electrical knowledge.
Image: Depiction of the two power connection methods: plugging into an outlet or hardwiring to a wall switch.
Passos d'instal·lació
Follow the detailed instructions included in the packaging for mounting the mirror. A general overview del procés inclou:
- Secure the mounting bracket to the wall using appropriate hardware.
- Connect the electrical wiring (if hardwiring) or prepare for plug-in.
- Carefully hang the mirror onto the installed bracket.
Image: Step-by-step visual guide for installing the mirror, from mounting the bracket to hanging the mirror.
Instruccions de funcionament
The mirror features intuitive touch controls located on the mirror surface.
Power On/Off and Color Temperature Adjustment
Tap the power button icon to turn the mirror lights on or off. Repeatedly tapping the power button will cycle through the three color temperature settings: warm (3000K), natural (4000K), and cool white (6000K).
Image: Touch control interface showing options for 3 color temperature settings.
Atenuació de la brillantor
To adjust the brightness, press and hold the brightness control icon. The light intensity will gradually change from 10% to 100%. Release the button when the desired brightness is achieved.
Image: Touch control interface demonstrating brightness adjustment from 10% to 100%.
Funció antiboira
Activate the anti-fog feature by tapping the defogger icon. This will quickly clear any condensation from the mirror surface. The anti-fog function automatically deactivates after one hour of continuous use.
Image: The anti-fog function in operation, showing a clear area on a previously fogged mirror.
Funció de memòria
The mirror's intelligent memory function automatically saves your last chosen brightness and color temperature settings. When the mirror is turned back on, it will resume these previous settings.
Manteniment
To ensure the longevity and optimal performance of your ExBrite LED mirror, follow these maintenance guidelines:
- Neteja: Utilitzeu un suau, damp cloth and a mild, non-abrasive glass cleaner to clean the mirror surface. Avoid harsh chemicals or abrasive materials that could damage the mirror or its frame.
- Components elèctrics: Ensure all electrical connections remain dry. Do not spray water directly onto the mirror's electrical components.
- Inspecció: Periodically inspect the mirror for any signs of damage or loose connections. If any issues are found, disconnect power and contact customer support.
Resolució de problemes
If you encounter any issues with your ExBrite LED mirror, refer to the following common solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Els llums del mirall no s'encenen. | Sense subministrament elèctric; connexió fluixa; interruptor defectuós. | Check if the mirror is properly plugged in or hardwired. Ensure the wall switch (if applicable) is on. Verify circuit breaker. |
| Les llums són tènues o parpellejant. | Incorrect brightness setting; unstable power supply. | Adjust brightness using the touch control. Ensure stable power supply. |
| La funció antiboira no funciona. | Function not activated; automatic shut-off. | Tap the anti-fog icon to activate. Note that it automatically turns off after one hour. |
| Buzzing noise from mirror. | Loose wiring; internal component issue. | Disconnect power immediately. Contact customer support for assistance. Do not attempt to repair yourself. |
| Difficulty with installation. | Unclear instructions; specific wall type. | Refer to the detailed installation guide provided with the product. Consider professional installation if needed. |
Especificacions
Detailed technical specifications for the ExBrite 72"x36" LED Bathroom Mirror:
| Atribut | Detall |
|---|---|
| Marca | ExBrite |
| Número de model | TFDBQ100011-3672-HSCA |
| Dimensions del producte | 72" de llargada x 36" d'amplada |
| Gruix | 1.57" (approximate, based on image) |
| Pes de l'article | 54.9 lliures |
| Material | Glass (5mm tempered glass) |
| Material del marc | PVC+Glass |
| Tipus de muntatge | Suport de paret (horitzontal o vertical) |
| Font de llum | LED (Frontlit & Backlit) |
| Temperatura de color | 3000K (càlid), 4000K (natural), 6000K (blanc fred) |
| Brillantor | Dimmable (10% to 100%) |
| Característiques especials | Color Changing, Dimmable, LED Lights, Shatterproof, Touch Sensor, Anti-Fog, Memory Function |
| Connexió d'alimentació | Endollable o cablejat |
| UPC | 658215386091 |
Image: Diagram illustrating the dimensions of the 72"L x 36"W mirror with a thickness of 1.57 inches.
Garantia i suport
ExBrite is committed to product quality and customer satisfaction.
- Garantia: This product comes with up to a 1-year warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
- Devolucions: A 30-day free return policy is available for this product.
- Atenció al client: For any questions, technical assistance, or warranty claims, please contact ExBrite customer service. We aim to reply to emails within 24 hours.
For further assistance, please visit the official ExBrite store or contact us directly through the platform where you purchased the product.
