Dorman 533-910 Rear Lower Outer Suspension Control Arm Bushing User Manual

1. Introducció

This manual provides essential information for the Dorman 533-910 Rear Lower Outer Suspension Control Arm Bushing. This component is designed as a direct replacement for the original equipment bushing in specific Dodge and Jeep vehicle models, ensuring proper fit and function for maintaining vehicle suspension integrity. Please read this manual thoroughly before installation or use.

2. Producte acabatview

The Dorman 533-910 bushing is a critical component of your vehicle's suspension system. It connects the control arm to the vehicle frame or knuckle, allowing for controlled movement while absorbing road shock and reducing noise and vibration. This specific bushing is engineered to meet or exceed original equipment specifications for durability and performance.

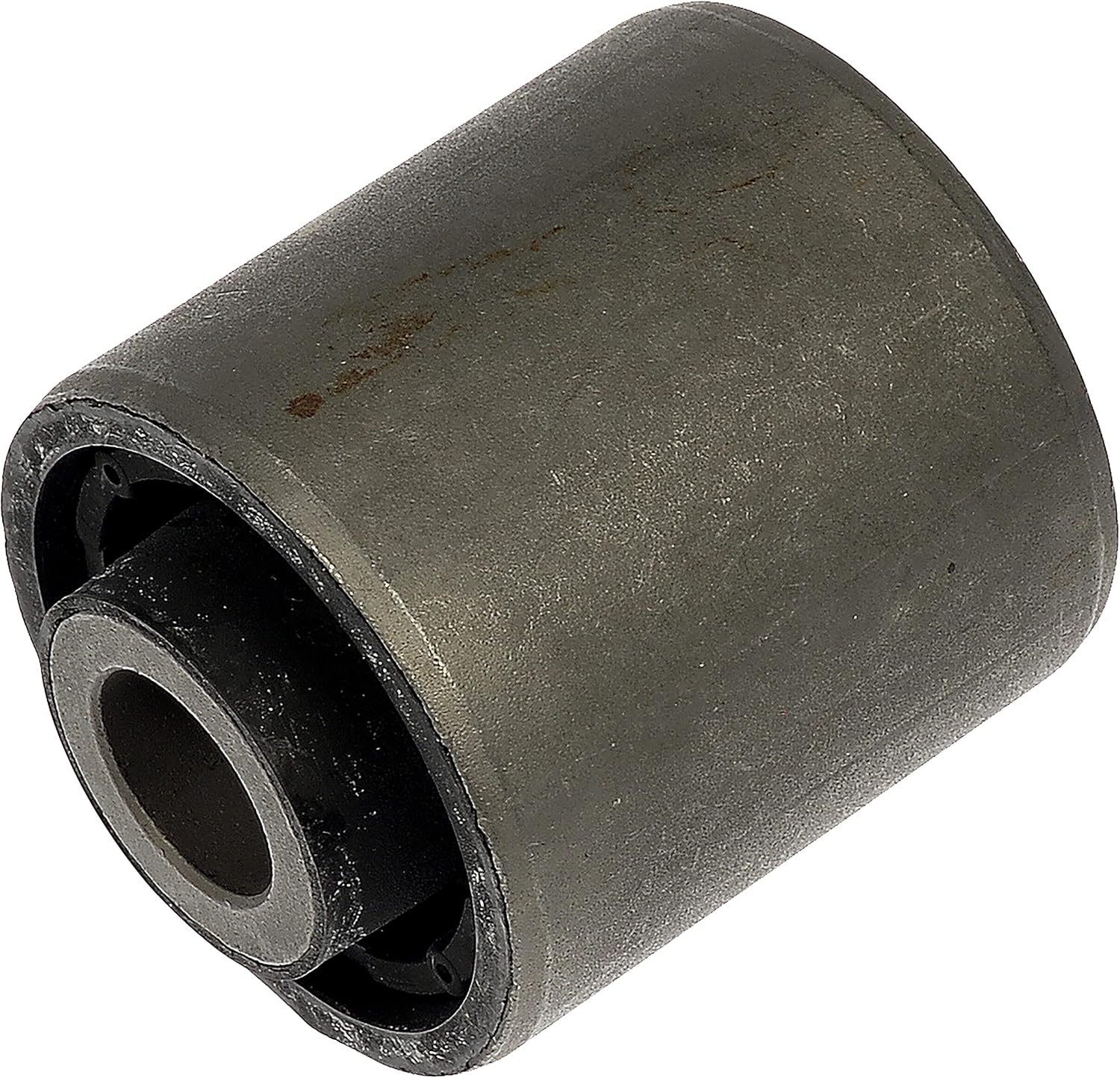

Figure 1: Dorman 533-910 Rear Lower Outer Suspension Control Arm Bushing, side view.

Figura 2: Final view of the Dorman 533-910 bushing, illustrating the inner and outer sleeves.

3. Compatibilitat

This Dorman 533-910 bushing is compatible with the rear lower outer suspension control arm of the following vehicles:

• Dodge Durango: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
• Jeep Grand Cherokee: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020

Always verify fitment using your vehicle's make, model, and trim level before purchase and installation.

4. Especificacions

5. Què hi ha a la caixa

The package for Dorman 533-910 includes:

• 1 x Rear Lower Outer Suspension Control Arm Bushing

6. Instal·lació i configuració

Installation of suspension components requires specialized tools and knowledge. It is strongly recommended that this Dorman 533-910 bushing be installed by a qualified automotive technician.

Passos generals d'instal·lació (consulteu el Manual de servei per obtenir més informació):

1. La seguretat primer: Ensure the vehicle is securely lifted and supported on jack stands. Disconnect the battery if necessary. Wear appropriate personal protective equipment (PPE).
2. Accés: Locate the rear lower outer control arm and the bushing to be replaced.
3. Removal of Old Bushing: Carefully remove the bolts securing the control arm. Use a suitable bushing press tool or specialized removal tools to extract the old bushing from the control arm. Avoid damaging the control arm itself.
4. Preparació: Clean the bushing bore in the control arm thoroughly, removing any rust or debris.
5. Installation of New Bushing: Using a bushing press tool, carefully press the new Dorman 533-910 bushing into the control arm. Ensure it is seated correctly and fully. Do not use a hammer, as this can damage the bushing.
6. Remuntatge: Reinstall the control arm and secure all bolts to the manufacturer's specified torque settings. It is crucial to torque suspension components at ride height to prevent premature bushing wear.
7. Comprovacions finals: Lower the vehicle and perform a visual inspection to ensure all components are correctly installed and secured.

Refer to your vehicle's specific service manual for detailed instructions, torque specifications, and any special procedures.

7. Manteniment

Suspension bushings are generally maintenance-free components. However, regular inspection of your vehicle's suspension system is recommended as part of routine vehicle maintenance. Look for signs of wear, cracking, or deterioration in all bushings. If excessive play or damage is observed, replacement may be necessary to maintain vehicle handling and safety.

8. Solució De Problemes

If you experience issues after replacing a suspension bushing, consider the following:

• Noise (Squeaking/Clunking): This could indicate improper installation, incorrect torque settings, or a faulty bushing. Recheck all fasteners and ensure the bushing is seated correctly.
• Poor Handling/Alignment Issues: Incorrect installation or failure to torque components at ride height can affect vehicle alignment and handling. An alignment check by a professional is recommended after suspension work.
• Desgast prematur: Using improper tools during installation (e.g., hammering) can damage the bushing, leading to early failure. Ensure proper installation techniques are followed.

If problems persist, consult a certified automotive technician.

9. Informació de seguretat

• Always use appropriate safety equipment, including eye protection and gloves, when working on vehicles.
• Ensure the vehicle is stable and properly supported before beginning any work. Never rely solely on a jack.
• Follow all vehicle manufacturer's safety guidelines and torque specifications.
• If you are unsure about any step of the installation process, seek professional assistance.

10. Garantia i Suport

Dorman Products are manufactured to high-quality standards. For specific warranty information or technical support regarding the Dorman 533-910 bushing, please refer to the official Dorman website or contact Dorman customer service directly. Keep your purchase receipt for warranty claims.

Dorman Weblloc: www.dormanproducts.com
