MOSEWORTH LFB-1210

MOSEWORTH 12V 10Ah LiFePO4 Lithium Iron Phosphate Battery User Manual

Model: LFB-1210

1. Introducció

This manual provides essential information for the safe and efficient operation of your MOSEWORTH 12V 10Ah LiFePO4 Lithium Iron Phosphate Battery. Please read this manual thoroughly before using the battery to ensure proper handling, installation, and maintenance. Retain this manual for future reference.

The MOSEWORTH LiFePO4 battery is designed for various applications, including kids' toys, fish finders, and other outdoor power needs, offering a lightweight design, built-in Battery Management System (BMS), and extended lifespan.

2. Instruccions de seguretat importants

Si no es segueixen aquestes instruccions de seguretat, es poden produir descàrregues elèctriques, incendis, lesions greus o la mort.

Do not heat the battery above 140°F (60°C).
No desmunteu la bateria.
No llenceu la bateria al foc ni a l'aigua.
No curtcircuiteu els terminals de la bateria.
Do not reverse connections from charger to battery.
Mantingueu la bateria lluny dels nens.
Use only chargers specifically designed for LiFePO4 batteries.
Eviteu deixar caure la bateria ni sotmetre-la a impactes forts.
Si la bateria emet una olor inusual, s'escalfa o canvia de forma, deixeu-ne d'utilitzar-la immediatament i poseu-vos en contacte amb el servei d'assistència.

3. Característiques del producte

The MOSEWORTH 12V 10Ah LiFePO4 battery offers several advanced features:

Sistema de gestió de la bateria (BMS) integrat: Provides protection against overcharge, over-discharge, overcurrent, short circuit, and low/high temperature.
Disseny lleuger i compacte: Easier to transport and install compared to traditional lead-acid batteries.
Vida útil més llarga: Offers over 4000 charge cycles, significantly outlasting lead-acid alternatives.
Alta densitat d'energia: Delivers consistent power output.
Series/Parallel Capability: Can be connected in series for higher voltage (24V, 36V, 48V, 60V) or in parallel for increased capacity.
High Efficiency in Winter: Maintains nearly 90% efficiency in cold temperatures, outperforming SLA batteries.

LiFePO4 Battery BMS Protections — Figure 2: BMS Protection Features. This graphic illustrates the various protections provided by the built-in BMS, including overcurrent, short circuit, low temperature, high temperature, over-discharge, and overcharge protection, surrounding an image of the MOSEWORTH LiFePO4 battery.

LiFePO4 vs Lead-Acid Battery Comparison — Figure 3: Comparison of LiFePO4 and Lead-Acid Batteries. This image highlights the advantages of LiFePO4 batteries (lightweight, safe material, BMS protection, 4000+ cycles) over traditional lead-acid batteries (heavy, non-safe, no protection, 300-500 cycles).

4. Especificacions

Paràmetre	Valor
Model	LFB-1210
Volum nominaltage	12 V
Capacitat nominal	10 Ah
Composició de les cèl·lules de la bateria	Fosfat de ferro de liti (LiFePO4)
BMS incorporat	Yes (Overcharge, Over-discharge, Overcurrent, Short Circuit, Low/High Temperature Protection)
Vol. De càrregatage	14.6 V - 15 V
Pes de l'article	3.05 lliures (aprox. 1.38 kg)
Dimensions del paquet	7.32 x 4.96 x 4.49 polzades (aprox. 18.6 x 12.6 x 11.4 cm)
Temperatura de funcionament	Refer to BMS specifications for exact ranges (typically -20°C to 60°C for discharge, 0°C to 45°C for charge)
Vida útil	Més de 4000 cicles

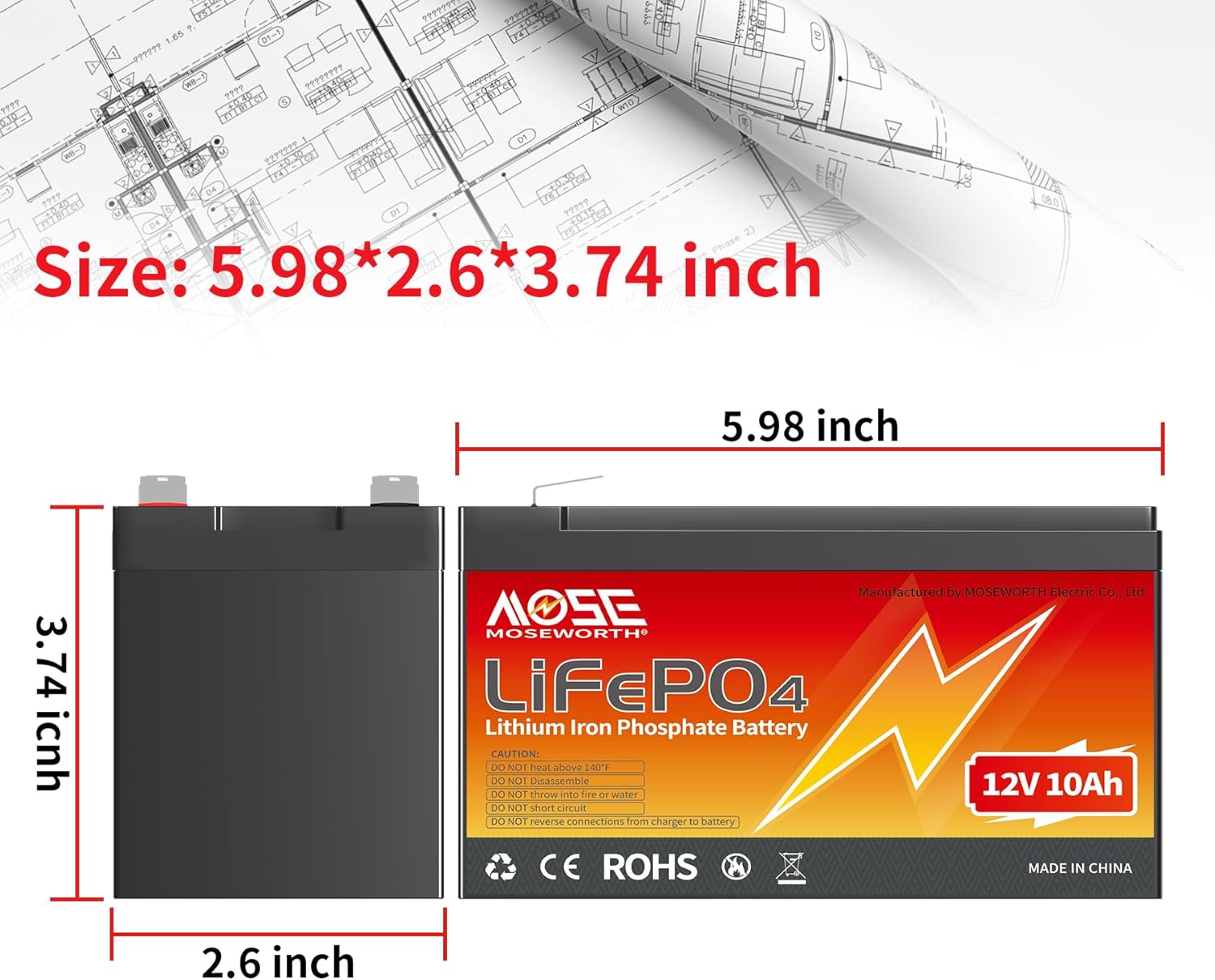

MOSEWORTH 12V 10Ah LiFePO4 Battery Dimensions — Figure 4: Battery Dimensions. This image displays the physical dimensions of the MOSEWORTH 12V 10Ah LiFePO4 battery, showing its length (5.98 inches), width (2.6 inches), and height (3.74 inches).

5. Configuració i instal·lació

5.1 Càrrec inicial

Upon receiving your MOSEWORTH LiFePO4 battery, it may not be fully charged. It is recommended to fully charge the battery before its first use.

Connect the battery to a compatible LiFePO4 charger (14.6V-15V).
Ensure correct polarity: positive (+) to positive, negative (-) to negative.
Deixeu que la bateria es carregui fins que el carregador indiqui una càrrega completa.

5.2 Connectar la bateria

When connecting the battery to your application, ensure all connections are secure and correct.

Identify the positive (+) and negative (-) terminals on the battery and your device.
Use appropriate gauge wiring for your application to prevent overheating.
Connect the positive terminal of the battery to the positive input of your device.
Connect the negative terminal of the battery to the negative input of your device.
Warning: Do not reverse polarity. This can damage the battery and/or your device.

5.3 Series and Parallel Connections

This MOSEWORTH LiFePO4 battery supports both series and parallel connections for increased voltage or capacity. Always consult a qualified technician if you are unsure about complex wiring configurations.

Connexió paral·lela (per a una major capacitat): Connect positive terminals together and negative terminals together. Ensure all batteries are of the same voltage i capacitat i es troben en un estat de càrrega similar abans de connectar-se.
Connexió en sèrie (per a un volum augmentat)tage): Connect the positive terminal of one battery to the negative terminal of the next battery. For example, to create a 24V system, connect two 12V batteries in series. Ensure all batteries are of the same voltage i capacitat.
Caution: Exceeding the recommended series/parallel configurations or improper connections can damage the battery and pose safety risks.

6. Instruccions de funcionament

6.1 Càrrega de la bateria

Use only a dedicated LiFePO4 battery charger with a charging voltage between 14.6V and 15V. Using an incompatible charger can damage the battery or reduce its lifespan.

Connect the charger to the battery terminals, observing correct polarity.
Connecteu el carregador a una presa de corrent.
Monitor the charging process. The BMS will protect against overcharging.
Desconnecteu el carregador un cop la bateria estigui completament carregada.

6.2 Discharging the Battery

The built-in BMS will protect the battery from over-discharge. When the battery voltage drops below a safe threshold, the BMS will cut off power to prevent damage.

Connect your application to the battery, ensuring proper polarity.
The battery will provide power until its charge level is low, at which point the BMS will activate protection.
Recharge the battery promptly after it has been discharged to prolong its lifespan.

6.3 Optimal Operating Conditions

For best performance and longevity, operate the battery within recommended temperature ranges. While LiFePO4 batteries perform well in cold, extreme temperatures can still affect efficiency and lifespan.

MOSEWORTH LiFePO4 Battery Applications — Figure 5: Versatile Applications. This image showcases various applications for the MOSEWORTH LiFePO4 battery, including ride-on cars, camping LED lights, UPS backup systems, mechanical flashers, and FIOS boxes, demonstrating its adaptability for diverse power needs.

7. Manteniment i emmagatzematge

7.1 Manteniment general

Mantingueu els terminals de la bateria nets i lliures de corrosió.
Regularly inspect the battery casing for any signs of damage or swelling.
Assegureu-vos que totes les connexions estiguin estretes i segures.

7.2 Emmagatzematge a llarg termini

If storing the battery for an extended period, follow these guidelines to preserve its health:

Charge the battery to approximately 50-70% of its capacity before storage.
Guardeu la bateria en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
Recharge the battery to 50-70% every 3 months during long-term storage to prevent deep discharge.
Do not store the battery fully discharged or fully charged for prolonged periods.

8. Solució De Problemes

Problema	Causa possible	Solució
La bateria no es carrega	Incorrect charger type Connexions soltes Mal funcionament del carregador BMS protection activated (e.g., low temperature)	Ensure using a LiFePO4 compatible charger (14.6V-15V). Check all cable connections for tightness and correct polarity. Test the charger with another battery or use a different charger. Move the battery to a warmer environment if charging in cold conditions.
La bateria no proporciona energia	Battery fully discharged (BMS cut-off) Connexions soltes Overcurrent or short circuit (BMS cut-off) Error de bateria interna	Recarregueu la bateria. Comproveu totes les connexions de cable. Disconnect the load, check for short circuits in the application, then reconnect. Si els problemes persisteixen, poseu-vos en contacte amb el servei d'atenció al client.
Temps d'execució reduït	La bateria no està completament carregada High power draw from application Aging battery (less likely with LiFePO4) Funcionant a temperatures extremes	Assegureu-vos que la bateria estigui completament carregada abans d'utilitzar-la. Verify the power consumption of your application. Ensure operating within recommended temperature ranges. If significantly reduced and battery is new, contact support.

9. Garantia i Suport

MOSEWORTH provides a warranty for this LiFePO4 battery against defects in materials and workmanship under normal use. The specific warranty period and terms may vary. Please refer to your purchase documentation or contact MOSEWORTH customer service for detailed warranty information.

Atenció al client:

For technical assistance, warranty claims, or any questions regarding your MOSEWORTH LiFePO4 battery, please contact our customer support team. You can typically find contact information on the MOSEWORTH official weblloc web o a través de la vostra plataforma de compra.

When contacting support, please have your product model (LFB-1210) and purchase date available.
