uxcell Copper Brazing Rods Instruction Manual

1. Producte acabatview

The uxcell Copper Brazing Rods are specialized tools designed for copper brazing in various applications, particularly within the HVAC and refrigeration industries. These low-temperature welding rods are suitable for repairing motors, air conditioners, meters, and other refrigeration equipment. They can also be used for brazing several pipes, small copper brazing operations, and various art projects.

Their low melting point makes them versatile for welding copper pipes in refrigerators, air conditioner copper pipe welding, general copper product welding, and even for securing handles on DIY craft tools like drift punches and knives.

Figure 1: The uxcell Copper Brazing Rods are suitable for a wide range of applications, including repair of household appliances and HVAC systems.

2. Contingut del paquet

Each package of uxcell Copper Brazing Rods includes the following:

• Brazing Rods: 21 peces

Figure 2: The package contains 21 individual copper brazing rods.

3. Especificacions

Detailed specifications for the uxcell Copper Brazing Rods are provided below:

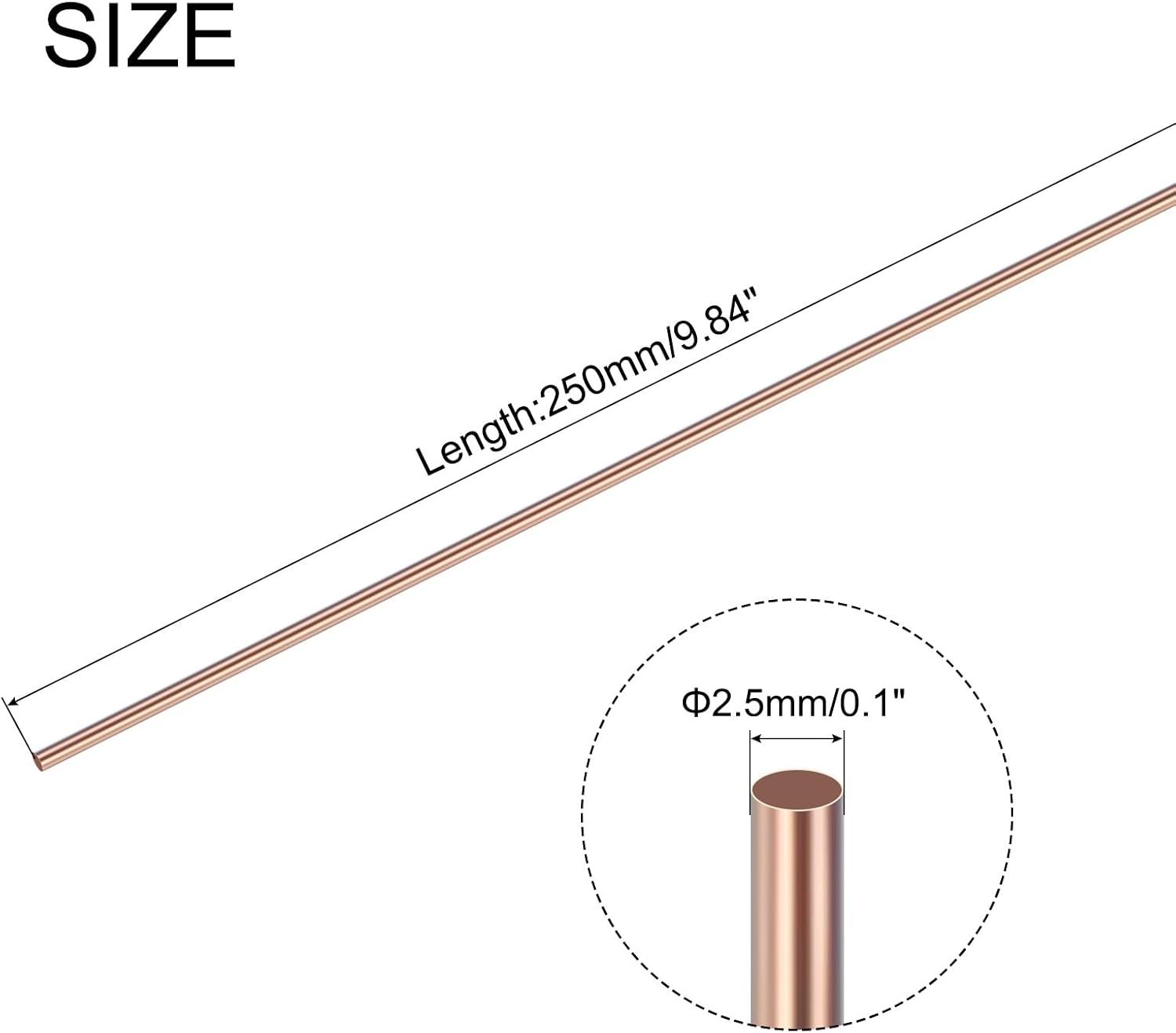

Figure 3: Detailed dimensions of the brazing rods.

4. Avanç de productetages

The uxcell Copper Brazing Rods offer several advantages for brazing applications:

1. The flux is evenly distributed, ensuring good continuity during the brazing process.
2. The welding rod is designed to prevent tangling during welding, which helps avoid blocking the conduit.
3. During welding, there is minimal spatter and smoke, resulting in firm and clean solder joints.
4. The rods exhibit good fluidity during welding, providing strong sealing properties and allowing the material to flow effectively into narrow spaces.

Figure 4: Key advantages of using uxcell Copper Brazing Rods.

5. Configuració i preparació

Proper preparation is crucial for successful brazing. Follow these steps before beginning the operation:

• Netegeu la superfície: Ensure the surface of the copper material to be brazed is thoroughly cleaned. Remove any dirt, grease, oxides, or other contaminants that could impede the brazing process.
• Ventilació: Work in a well-ventilated area to disperse fumes generated during brazing. If adequate natural ventilation is not available, use local exhaust ventilation.
• Equip de seguretat: Always wear appropriate personal protective equipment (PPE), including welding gloves, safety glasses or a welding helmet, and protective clothing, to prevent burns and eye injuries.
• Interval de temperatura: Adhere to the recommended temperature range for brazing to ensure optimal results and safety.

6. Instruccions de funcionament

Follow these steps for effective use of the uxcell Copper Brazing Rods:

1. Insert the Rod: Insert the brazing rod into your welding gun or pen.
2. Ajustar la configuració: Adjust the welding current and power settings on your equipment as needed for the specific brazing task.
3. Melt the Contact Area: Bring the tip of the welding rod into contact with the copper material at the joint to be brazed. Apply heat from your welding torch to the joint area until the brazing rod begins to melt and flow into the joint.
4. Cooling and Cleanup: After the brazing is complete, allow the joint to cool naturally. Once cooled, carefully remove any welding slag or remaining rod material from the brazed area.

Figure 5: Brazing in progress, showing the application of heat and the melting of the rod.

7. Manteniment i emmagatzematge

As consumable items, the brazing rods themselves require minimal maintenance. However, proper storage is important to maintain their quality:

• Emmagatzematge: Store unused brazing rods in a dry environment to prevent oxidation and contamination. Keep them in their original packaging or a sealed container.
• Manipulació: Handle rods carefully to avoid bending or damaging them before use.

8. Solució De Problemes

While brazing rods are straightforward to use, issues can arise. Consider the following if you encounter problems:

• Poor Flow/Adhesion: Ensure the surface of the material is perfectly clean. Contaminants are the most common cause of poor flow. Also, verify that the correct temperature is being applied; too low a temperature will prevent proper melting and flow.
• Excessive Spatter/Smoke: This can indicate incorrect heat settings or impurities on the surface. Re-check your equipment settings and ensure the work area is clean.
• Rod Tangling: While designed to resist tangling, ensure the rod is fed smoothly and not forced. Check for any obstructions in the welding gun/pen.

9. Notes importants de seguretat

Always prioritize safety when working with brazing equipment and materials:

• Ventilació: Ensure adequate ventilation to avoid inhaling fumes and gases produced during brazing.
• Equips de protecció individual (EPI): Always wear appropriate safety gear, including eye protection (welding glasses or helmet), gloves, and protective clothing.
• Perills d'incendi: Keep flammable materials away from the brazing area. Have a fire extinguisher readily available.
• Superfícies calentes: Brazed materials and equipment will be extremely hot. Allow them to cool completely before handling.
• Manual Measurement Variation: Please note that due to manual measurement, there may be slight errors in the stated size of the rods.
