1. Introducció
Thank you for choosing the COMFIER Cordless Knee Massager. This device is designed to provide targeted heat and vibration massage therapy to your knee, shoulder, or elbow, aiming to alleviate discomfort and promote relaxation. Please read this instruction manual thoroughly before use to ensure safe and effective operation.
The COMFIER Cordless Knee Massager is designed to provide targeted heat and vibration therapy to the knee area.
2. Instruccions de seguretat importants
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, this product must be used in accordance with the following instructions:
- Always unplug the device from the power outlet immediately after charging and before cleaning.
- No utilitzar-lo mentre es banya o es dutxa.
- No col·loqueu ni emmagatzemeu el dispositiu on pugui caure o tirar-lo a la banyera o al lavabo.
- No submergiu en aigua o altres líquids.
- No utilitzeu mai agulles ni altres elements de fixació metàl·lics amb aquest aparell.
- És necessària una supervisió estreta quan aquest aparell és utilitzat per, sobre o a prop de nens, invàlids o persones amb discapacitat.
- Utilitzeu aquest aparell només per a l'ús previst tal com es descriu en aquest manual. No utilitzeu accessoris no recomanats pel fabricant.
- No feu servir mai aquest aparell si té un cable o un endoll danyats, si no funciona correctament, si s'ha caigut o s'ha fet malbé, o si ha caigut a l'aigua.
- Mantingueu el cable allunyat de superfícies escalfades.
- No l'utilitzeu mai mentre dorms o tens somnolència.
- No deixeu caure ni introduïu cap objecte a cap obertura.
- No opereu on s'utilitzen productes en aerosol (esprai) o on s'administra oxigen.
- No utilitzar en nadons, persones invàlides o persones que dormin o estiguin inconscients.
- No l’utilitzeu sobre pells insensibles ni sobre persones amb poca circulació sanguínia.
- Reviseu sovint la pell en contacte amb la zona escalfada de l’aparell per reduir el risc de butllofes.
- No aixafeu. Eviteu els plecs afilats.
3. Contingut del paquet
Please check the package contents. If any items are missing or damaged, contact customer support.
- 1 x COMFIER Cordless Knee Massager Unit
- 1 x cable de càrrega USB
- 1 x Extension Strap (14.8 inches)
- 1 x Manual d'usuari
4. Característiques del producte
- Disseny sense fil: Enjoy therapy without being tethered to an outlet, powered by a 2500mAh rechargeable battery.
- Graphene Heating: Provides soothing heat therapy with adjustable temperature settings (95°F - 122°F).
- Massatge amb vibracions: Features 5 distinct massage modes (Quick Pulse, Wave, Pulse, Continuous, Rhythmic) and 3 intensity levels.
- Detachable Magnetic Touch Controller: Easy-to-use control panel that can be detached for convenience.
- Versatilitat 3 en 1: Can be used on knees, shoulders, and elbows.
- Temporitzador ajustable: Select from 15, 30, or 45-minute automatic shut-off timers.
- Ajust còmode: Designed to fit thighs up to 23 inches and calves up to 20 inches, with an included extension strap.

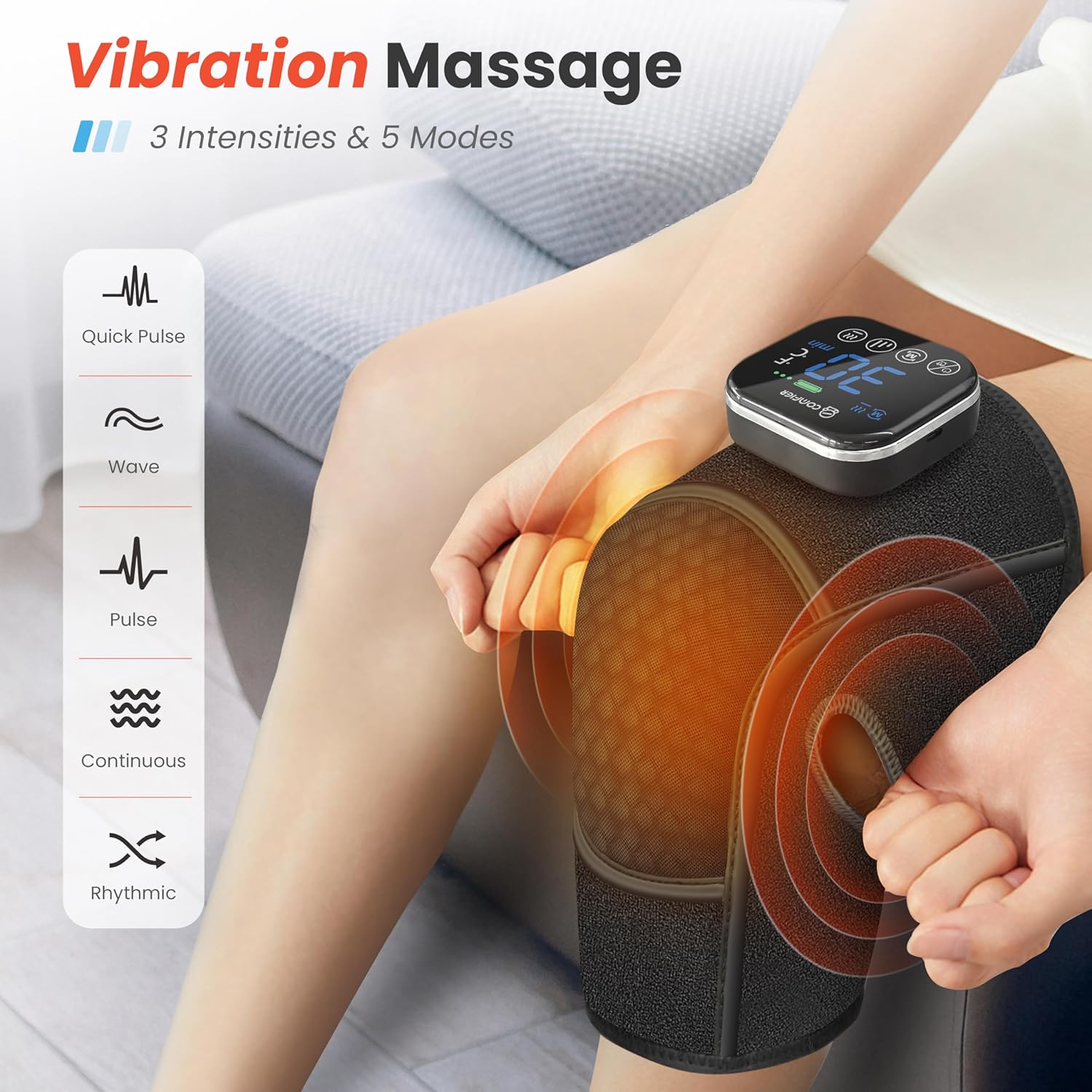

The device offers five distinct vibration massage modes and three intensity levels for customizable relief.
Beyond the knee, the versatile design allows for use on the shoulder and elbow for broader application.
The device features a detachable magnetic touch controller for easy operation and a built-in 2500mAh battery for cordless use.
5. Configuració
5.1 Càrrega del dispositiu
- Connect the USB charging cable to the charging port on the massager unit.
- Connecteu l'altre extrem del cable USB a un adaptador de corrent USB compatible (no inclòs) o a un port USB de l'ordinador.
- The battery indicator on the controller will show charging status. A full charge typically takes 2-3 hours.
- Desconnecteu el carregador un cop estigui completament carregat.
5.2 Com portar el massatjador
- Unfold the massager and place it around your knee, shoulder, or elbow.
- Secure the straps firmly but comfortably using the hook-and-loop fasteners. Ensure the heating and vibration elements are positioned directly over the desired area.
- If needed, use the included extension strap to achieve a comfortable fit for larger limbs.

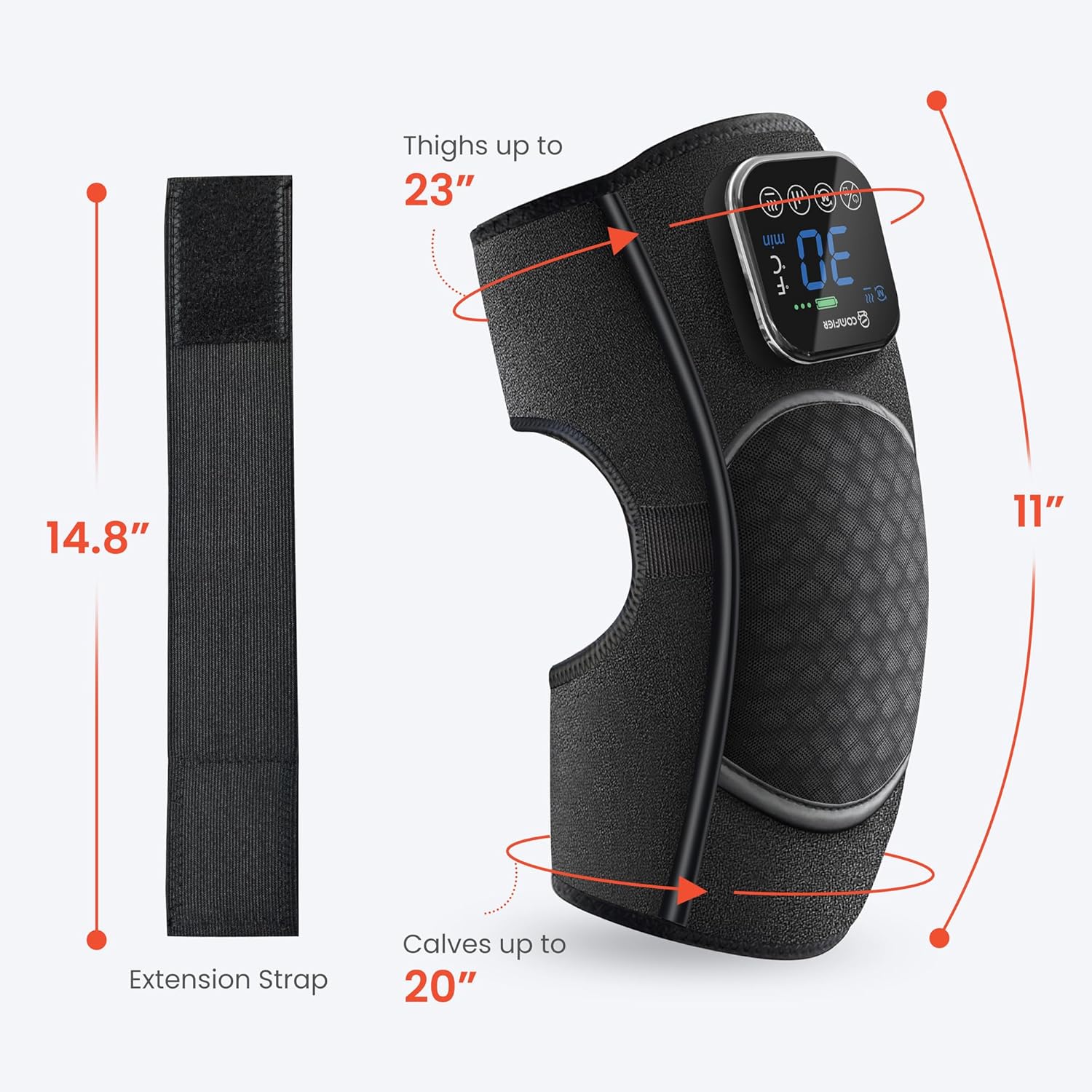

The massager is designed to fit thighs up to 23 inches and calves up to 20 inches, and includes a 14.8-inch extension strap for a secure and comfortable fit.
6. Instruccions de funcionament
The device is controlled via the detachable magnetic touch controller.
- Encès/apagat: Manteniu premut el botó d'encesa (O/I) for 2 seconds to turn the device on or off. The display will illuminate.
- Seleccioneu el mode de massatge: Premeu el botó «Mode» (M) to cycle through the 5 vibration massage modes: Quick Pulse, Wave, Pulse, Continuous, Rhythmic.
- Ajustar la intensitat: Press the 'Intensity' button (III) to adjust the vibration intensity (3 levels).
- Activate/Adjust Heat: Press the 'Heat' button (~) to turn on the heating function and cycle through the temperature levels (95°F, 104°F, 113°F, 122°F).
- Estableix el temporitzador: Premeu el botó «Temporitzador» (T) to select a session duration: 15, 30, or 45 minutes. The device will automatically shut off after the selected time.
For optimal results, it is recommended to use the massager for 15-30 minutes per session, up to twice a day.
The portable design allows for use in diverse situations, including post-exercise recovery, during daily chores, while working, or relaxing.
7. Manteniment
7.1 Neteja
- Assegureu-vos que el dispositiu estigui apagat i desconnectat abans de netejar-lo.
- Netegeu la superfície del massatjador amb un drap suau iamp tela. No utilitzeu netejadors abrasius ni productes químics durs.
- No submergiu el dispositiu en aigua o cap altre líquid.
- Deixeu que el dispositiu s'assequi completament a l'aire abans de guardar-lo o utilitzar-lo de nou.
7.2 Emmagatzematge
- Guardeu el massatjador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Eviteu col·locar objectes pesats a sobre del dispositiu.
- Mantenir fora de l'abast dels nens i mascotes.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no s’encén. | La bateria està baixa o esgotada. | Carregueu el dispositiu completament. |
| Sense calor o calor feble. | Heat function not activated or set to lowest level. | Press the 'Heat' button to activate and increase the temperature setting. Ensure the device is properly positioned. |
| Sense vibracions o vibracions febles. | Vibration function not activated or set to lowest intensity. | Press the 'Mode' button to select a mode and the 'Intensity' button to increase intensity. |
| El controlador no respon. | Controller not properly attached or battery low. | Ensure the magnetic controller is securely attached. Charge the device. |
| El dispositiu s'apaga inesperadament. | Timer expired or battery depleted. | Check the timer setting. Recharge the device. |
9. Especificacions
| Característica | Detall |
|---|---|
| Número de model | CF-5318C1-UK |
| Marca | COMFIER |
| Material | Polièster |
| Color | Negre fosc |
| Capacitat de la bateria | 2500 mAh |
| Rang de temperatura de calefacció | 35 °C - 50 °C |
| Modes de vibració | 5 (Quick Pulse, Wave, Pulse, Continuous, Rhythmic) |
| Vibration Intensities | 3 nivells |
| Configuració del temporitzador | 15, 30, 45 minuts |
| Circumferència màxima de la cuixa | 23 inches (with extension strap) |
| Circumferència màxima del panxell | 20 inches (with extension strap) |
Key features include FSA or HSA eligibility, Graphene heating for even warmth, three adjustable timer settings (15/30/45 minutes), and a design accommodating various leg sizes.
10. Garantia i Suport
COMFIER products are designed to provide reliable performance. In the unlikely event that you experience any issues, please refer to the warranty information provided with your purchase or contact COMFIER customer support for assistance.
For support, please visit the official COMFIER website or contact their customer service department directly. Please have your model number (CF-5318C1-UK) and purchase details ready.
