MELISSA 16220008 Electric Potato Peeler and Salad Spinner User Manual

1. Introducció

Thank you for choosing the MELISSA 16220008 Electric Potato Peeler and Salad Spinner. This versatile kitchen appliance is designed to simplify your food preparation by efficiently peeling potatoes and drying salad. With its powerful 85W motor, it can peel up to 1 kg of potatoes in just 2 to 4 minutes. The integrated salad spinner function adds further convenience, making it a valuable addition to any kitchen.

Please read this instruction manual carefully before using the appliance for the first time to ensure safe and optimal operation. Keep this manual for future reference.

2. Instruccions de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions personals.

• Llegiu totes les instruccions abans d'utilitzar.
• Assegureu-vos que el voltage indicat a l'electrodomèstic correspon a la vostra xarxa local voltage abans de connectar.
• No submergiu la base del motor, el cable ni l'endoll en aigua ni en altres líquids.
• Mantingueu les mans i els estris allunyats de les parts mòbils durant el funcionament per evitar lesions.
• Desendolleu sempre l'aparell de la presa de corrent quan no l'utilitzeu, abans de muntar o desmuntar peces i abans de netejar-lo.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
• Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
• Utilitzeu l'aparell només per a l'ús domèstic previst.
• No utilitzar a l'aire lliure.
• The appliance features a safety switch; ensure all parts are correctly assembled before operation.

3. Components del producte

Familiarize yourself with the parts of your MELISSA 16220008 appliance:

• Base with Electrical Connection: Contains the motor and power cord storage.
• Peeling Bowl: The main container for potatoes during peeling.
• Peeling Blade (Grater): Located at the bottom of the peeling bowl, responsible for peeling.
• Tapa transparent: Allows observation of the peeling process and ensures safety.
• Salad Spinner Basket: Insert for drying salad.

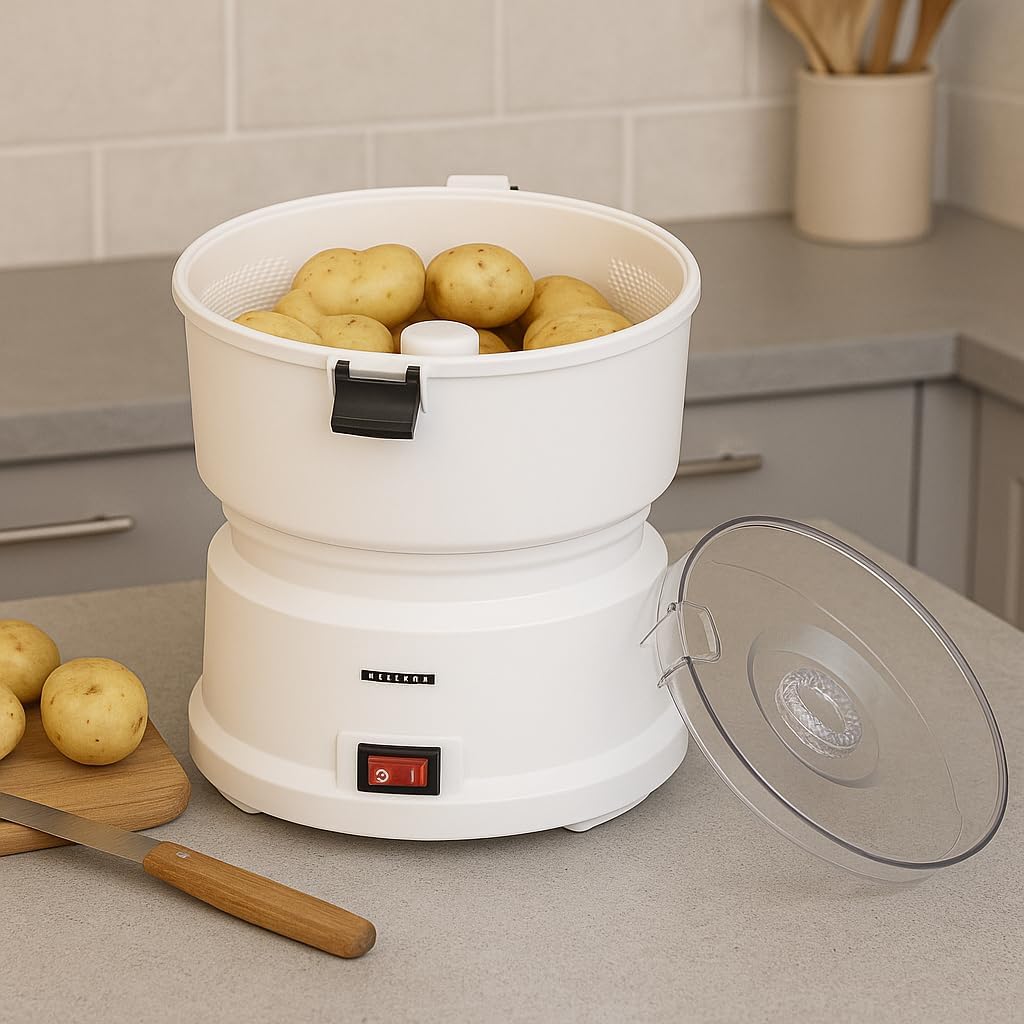

Image 3.1: The MELISSA 16220008 Electric Potato Peeler with the transparent lid open, revealing potatoes inside the peeling bowl, ready for operation.

Image 3.2: The MELISSA 16220008 with the salad spinner basket in place, filled with fresh salad, demonstrating its dual functionality.

4. Configuració

1. Desembalar: Traieu amb cura tots els components de l'embalatge. Conserveu l'embalatge per emmagatzemar-lo o eliminar-lo.
2. Neteja: Before first use, wash the peeling bowl, transparent lid, and salad spinner basket in warm, soapy water. Rinse thoroughly and dry. The motor base should only be wiped with a damp tela.
3. Col·locació: Place the motor base on a stable, flat, and dry surface. The robust silicone feet will ensure stability.
4. Assemble for Peeling: Place the peeling bowl onto the motor base, ensuring it is securely seated. The peeling blade is integrated into the bowl.
5. Assemble for Salad Spinning: If using the salad spinner, place the salad spinner basket inside the peeling bowl, then place the peeling bowl onto the motor base.
6. Connexió d'alimentació: Unwind the power cord from the convenient cable storage in the base and plug the appliance into a suitable 220-240V power outlet.

5. Instruccions de funcionament

5.1. Potato Peeling

1. Ensure the appliance is correctly assembled for peeling (peeling bowl on base, no salad spinner basket).
2. Wash the potatoes thoroughly to remove any dirt. Do not peel more than 1 kg of potatoes at a time.
3. Place the washed potatoes into the peeling bowl.
4. Securely place the transparent lid on top of the peeling bowl. The appliance will not operate if the lid is not properly closed due to the safety switch.
5. Switch the appliance ON using the power switch located on the front of the base.
6. The potatoes will be peeled in approximately 2 to 4 minutes, depending on their size and freshness. You can observe the process through the transparent lid.
7. Once peeling is complete, switch the appliance OFF and unplug it from the power outlet.
8. Carefully remove the lid and then the peeled potatoes. Be cautious of any remaining water and potato skins.

Image 5.1: The potato peeler in action, showing potatoes ready for peeling in a kitchen environment.

5.2. Salad Spinning

1. Ensure the appliance is correctly assembled for salad spinning (salad spinner basket inside peeling bowl, peeling bowl on base).
2. Wash your salad leaves thoroughly.
3. Place the washed salad into the salad spinner basket. Do not overfill.
4. Securely place the transparent lid on top of the peeling bowl. The appliance will not operate if the lid is not properly closed.
5. Switch the appliance ON using the power switch.
6. Allow the appliance to run for a short period (e.g., 30-60 seconds) to effectively dry the salad.
7. Once the salad is dry, switch the appliance OFF and unplug it from the power outlet.
8. Carefully remove the lid and then the salad spinner basket with the dried salad.

Image 5.2: The appliance configured for salad spinning, showing fresh salad leaves within the basket.

6. Neteja i Manteniment

Una neteja regular garanteix la longevitat i el funcionament higiènic del vostre electrodomèstic.

1. Desconnecta sempre l'aparell abans de netejar-lo.
2. Desmuntar: Remove the transparent lid, salad spinner basket (if used), and peeling bowl from the motor base.
3. Rentar les peces desmuntables: The peeling bowl, transparent lid, and salad spinner basket can be washed in warm, soapy water. Rinse thoroughly and dry completely before reassembly or storage.
4. Base del motor neta: Netegeu l'exterior de la base del motor amb anunciamp drap. No submergiu la base del motor en aigua ni en cap altre líquid.
5. Taques obstinades: For stubborn stains, use a mild non-abrasive cleaner. Avoid abrasive pads or harsh chemicals that could damage the surfaces.
6. Emmagatzematge: Store the appliance in a dry place, away from direct sunlight and out of reach of children. Use the integrated cable storage for neat organization.

7. Solució De Problemes

If you encounter issues with your MELISSA 16220008, please refer to the following common problems and solutions:

Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

8. Especificacions

Imatge 8.1: Superposició dimensionalview de l'aparell.

9. Garantia i Suport

This MELISSA appliance is designed and manufactured to the highest quality standards. In the unlikely event of a defect due to faulty materials or workmanship, the product is covered by a standard warranty as per local consumer protection laws.

For warranty claims, technical support, or spare parts, please contact your retailer or the MELISSA customer service department. Please have your model number (16220008) and proof of purchase ready when contacting support.

For more information, please visit the official MELISSA weblloc web o consulteu les dades de contacte que us proporcionen amb la documentació de compra.
