YYK-Q63 Wireless Bluetooth 5.3 TWS Earbuds User Manual

Introducció

The YYK-Q63 Wireless Bluetooth 5.3 TWS Earbuds offer an advanced audio experience with robust features designed for active lifestyles. These earbuds provide 60 hours of total playback time, come with a wireless charging case, and feature an LED power display. With IPX7 waterproofing and active noise cancellation, they are suitable for various activities, from daily commutes to intense workouts. The ergonomic design with ear hooks ensures a secure and comfortable fit.

Image: The YYK-Q63 Wireless Bluetooth Earbuds, black, shown in their open charging case, displaying LED battery indicators on the earbuds.

Què hi ha a la caixa

Upon opening your YYK-Q63 package, please verify that all the following items are included:

• YYK-Q63 Wireless Bluetooth Earbuds (Left and Right)
• Estoig de càrrega sense fil
• Cable de càrrega USB tipus C
• Manual d'usuari
• Coixins per a les orelles (diverses mides)

Especificacions

Configuració i aparellament

1. Càrrec inicial: Before first use, place both earbuds into the charging case and connect the Type-C cable to a power source. The LED display on the case will indicate charging status. Charge for 1-2 hours until fully charged.
2. Encès: Open the charging case. The earbuds will automatically power on and enter pairing mode. You will see the LED indicators on the earbuds flashing.
3. Emparellament Bluetooth:
   • Go to the Bluetooth settings on your device (smartphone, tablet, laptop).
   • Cerca dispositius disponibles.
   • Select "YYK-Q63" from the list.
   • Once connected, the earbud LEDs will stop flashing, and you may hear a confirmation tone.
4. Reconnexió automàtica: After initial pairing, the earbuds will automatically connect to the last paired device when removed from the charging case, provided Bluetooth is enabled on the device.

Image: The YYK-Q63 Earbuds shown alongside a smartphone, tablet, and charging case, illustrating their broad compatibility with various devices.

Instruccions de funcionament

Controls:

• Reproduir/pausa: Un sol toc a qualsevol dels auriculars.
• Pista següent: Toqueu dues vegades l'auricular dret.
• Pista anterior: Toqueu dues vegades l'auricular esquerre.
• Pujar el volum: Toqueu tres vegades l'auricular dret.
• Baixar el volum: Toqueu tres vegades l'auricular esquerre.
• Respondre/Finalitzar la trucada: Un sol toc a qualsevol dels auriculars.
• Rebutja la trucada: Manteniu premut qualsevol dels auriculars durant 2 segons.
• Activa l'Assistent de veu: Manteniu premut qualsevol dels auriculars durant 3 segons.
• Cancel·lació activa del soroll (ANC): Long press the touch area on either earbud to toggle ANC on/off.

Portar els auriculars:

The YYK-Q63 earbuds feature an ergonomic in-ear design with over-ear hooks for a secure and comfortable fit, especially during physical activities. Gently place the earbud into your ear canal and adjust the ear hook over your ear until it feels stable and comfortable.

Image: A person wearing the YYK-Q63 earbud, demonstrating the secure and comfortable fit provided by the over-ear hook design.

Carregant

The YYK-Q63 earbuds and charging case are designed for convenient power management.

• Càrrega dels auriculars: Place the earbuds into the charging case. They will automatically begin charging. The LED display on the case shows the battery level of the case and individual earbuds.
• Càrrega de la caixa: Connect the provided Type-C USB cable to the charging port on the case and plug the other end into a USB power adapter (not included). The LED display will show the charging progress. A full charge takes approximately 1-2 hours.
• Durada de la bateria: Enjoy up to 60 hours of total playback time with multiple charges from the case. The standby time is up to 120 hours.

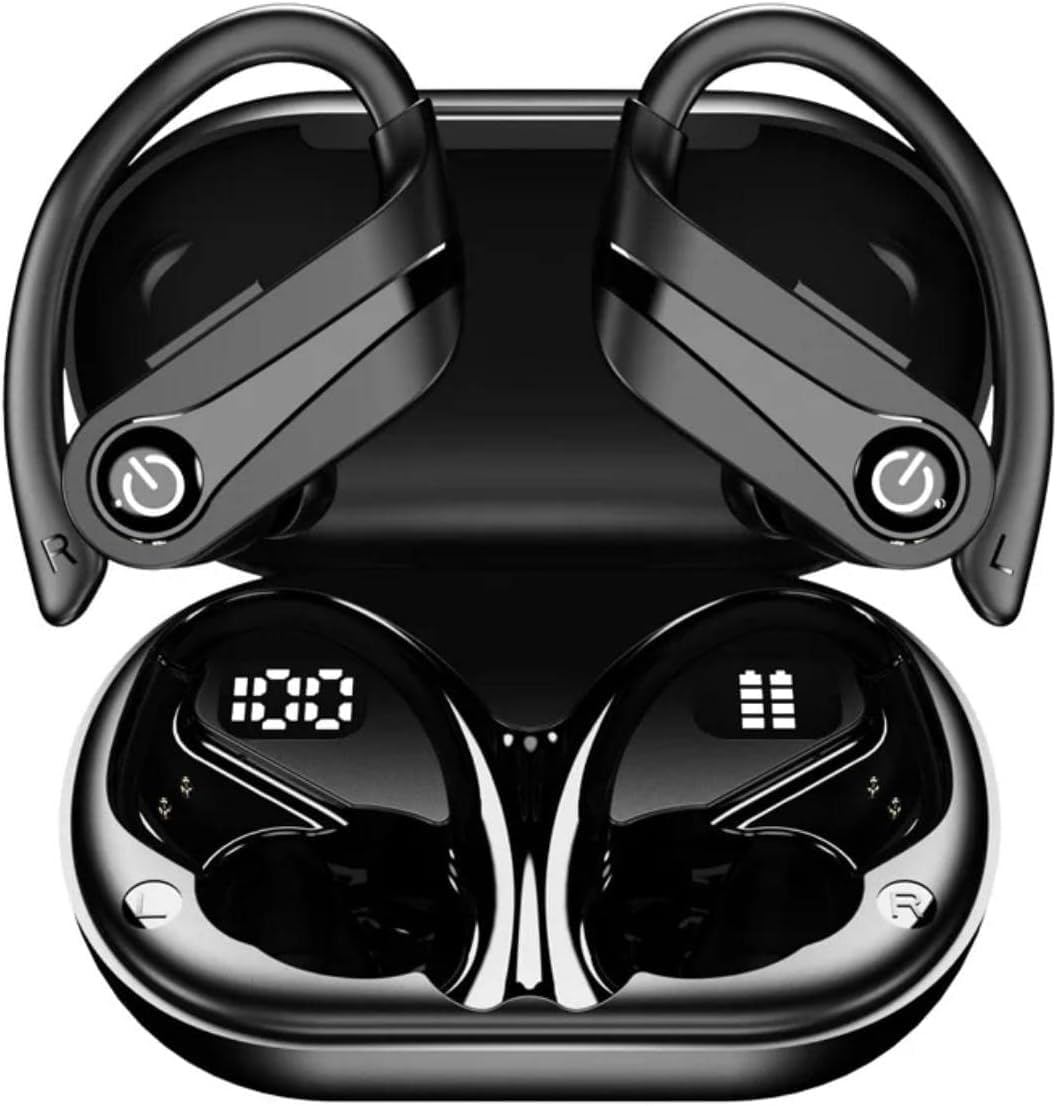

Image: The YYK-Q63 Earbuds resting in their charging case, highlighting the digital LED display that shows the battery percentage of the case and the charging status of each earbud.

Manteniment i cura

• Neteja: Regularly clean the earbuds and charging case with a soft, dry, lint-free cloth. For ear tips, remove them and clean with mild soap and water, then dry thoroughly before reattaching.
• Resistència a l'aigua (IPX7): The earbuds are IPX7 waterproof, meaning they can withstand submersion in up to 1 meter of water for 30 minutes. However, the charging case is not waterproof. Do not expose the charging case to water. Always ensure earbuds are dry before placing them back in the charging case.
• Emmagatzematge: Quan no els utilitzeu, guardeu els auriculars a la seva funda de càrrega per protegir-los i mantenir-los carregats. Guardeu-los en un lloc fresc i sec, allunyat de temperatures extremes.
• Evitar l'impacte: Do not drop or subject the earbuds or case to strong impacts, as this may damage internal components.

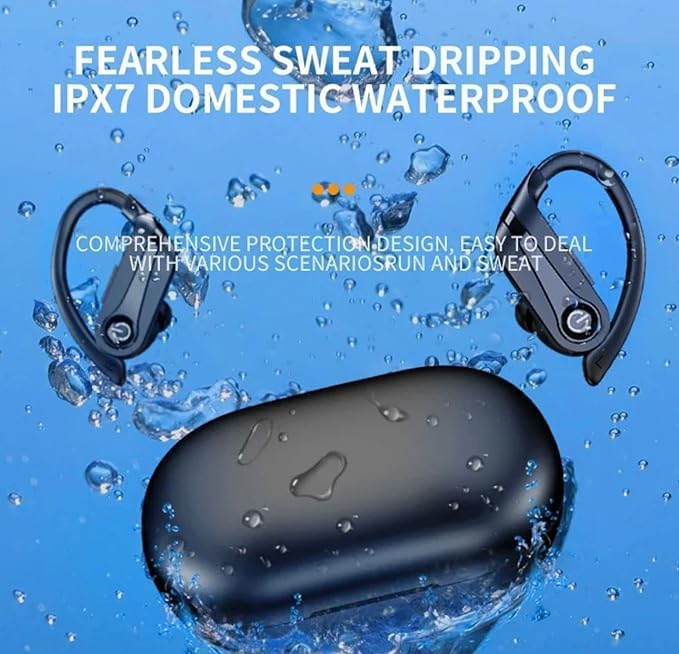

Image: The YYK-Q63 Earbuds and their charging case submerged in water, visually representing their IPX7 waterproof rating, suitable for sweat and rain.

Resolució de problemes

Vídeo oficial del producte

Watch the official product video for a visual guide on the YYK-Q63 Wireless Bluetooth Earbuds, highlighting key features and usage.

Garantia i Suport

For warranty information and customer support regarding your YYK-Q63 Wireless Bluetooth Earbuds, please refer to the documentation included in your product packaging or visit the official Generic product support weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
