48V/1000W E-Bike Conversion Kit User Manual

Introducció

This user manual provides comprehensive instructions for the installation, operation, and maintenance of your 48V/1000W E-Bike Conversion Kit. This kit is designed to transform a standard pedal bicycle into a motorized electric bicycle, enhancing your riding experience with added power and efficiency.

The kit features a powerful brushless hub motor, an LCD display for monitoring ride data, and all necessary components for a complete conversion. Please read this manual thoroughly before beginning installation to ensure proper setup and safe operation.

Diagram showing a standard bicycle transforming into an electric bicycle with the conversion kit.

Figure 1: Visual representation of a bicycle conversion to an e-bike.

Llista d'embalatge

Please verify that all components listed below are present in your package before proceeding with installation.

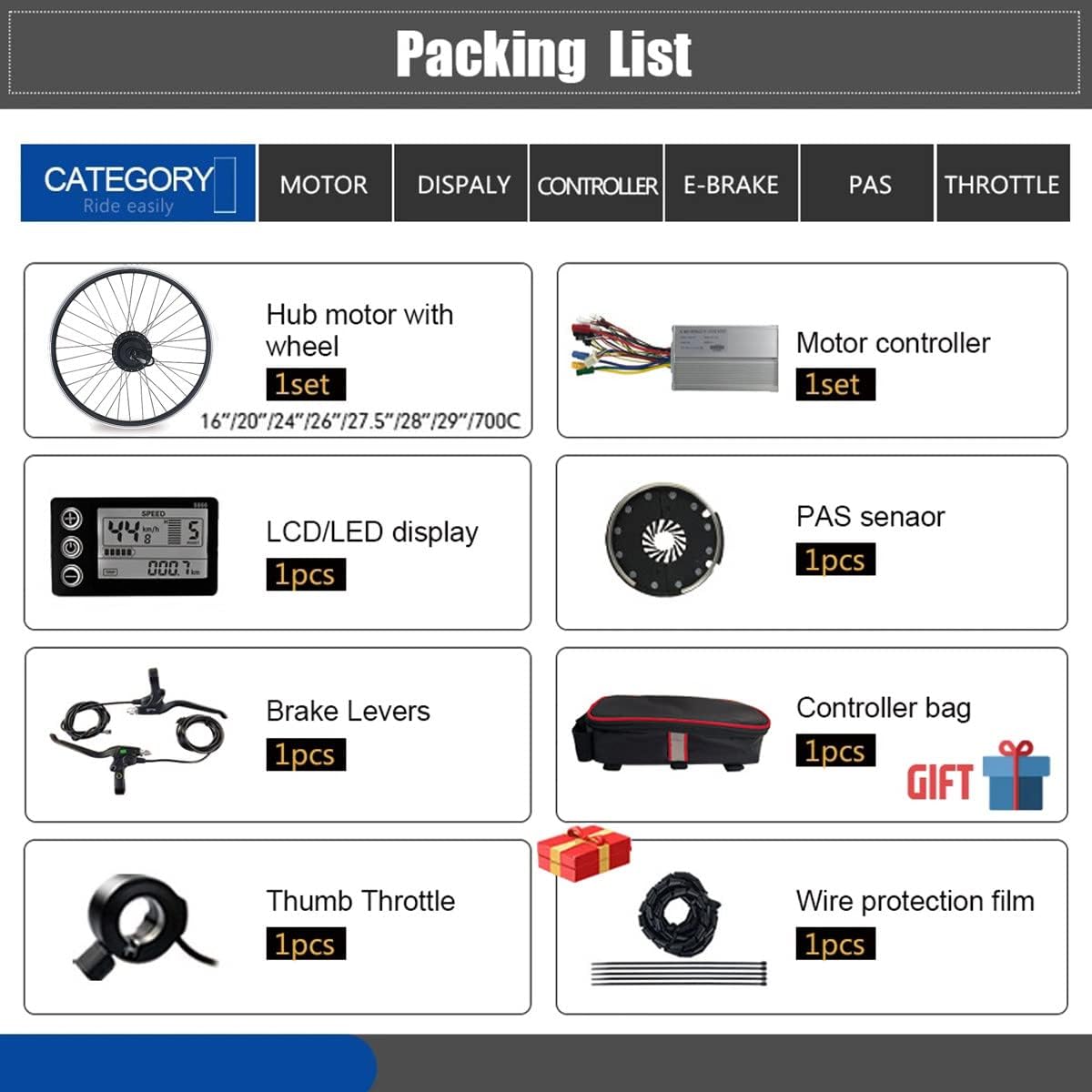

Image showing all components included in the e-bike conversion kit: motor rim, controller, display, throttle, brake levers, PAS sensor, motor adapter cable, cable ties, plastic coil, and controller box.

Figure 2: Contents of the 48V/1000W E-Bike Conversion Kit.

Motor rim × 1 (Pre-assembled with hub motor)
Controlador × 1
Display × 1 (LCD Display)
Throttle × 1
Brake levers × 1 Pair (Power cut-off brake handles)
PAS sensor × 1 (Pedal Assist System sensor)
Motor adapter cable × 1
Cable Ties & Plastic Coil × 1
Controller box × 1

Note: Battery is not included in this kit and must be purchased separately.

Especificacions

Key technical specifications for the 48V/1000W E-Bike Conversion Kit.

Table showing motor details including rated voltage, power, speed, torque, front fork size, brake type, weight, shaft diameter, magnet height, number of poles, wheel size, disc brake disc, noise level, waterproof level, and match controller.

Figure 3: Detailed motor specifications.

Motor and Kit Specifications
Característica	Valor	Característica	Valor
Voltage	48 V	Diàmetre de l'eix	M14
Potència nominal	1000W	Magnet Height	30H
Velocitat nominal	About 35-45 km/h	Nombre de pols	46
Torque	57.5-59 NM	Compatibilitat de la mida de les rodes	20", 24", 26", 27.5", 28", 29", 700C
Front Fork Open Size	100 mm	Disc de fre de disc	160 mm
Tipus de fre	V/Disc Brake	Nivell de soroll	≤55 dB
Weight (Motor)	Uns 6.45 kg	Nivell impermeable	IP65
Match Controller	30A	Rear Fork Open Size	135-142mm (for rear wheel kits, though this is a front wheel kit)

Nota de compatibilitat: The open size of the front fork must be 100mm for this kit to fit your bicycle.

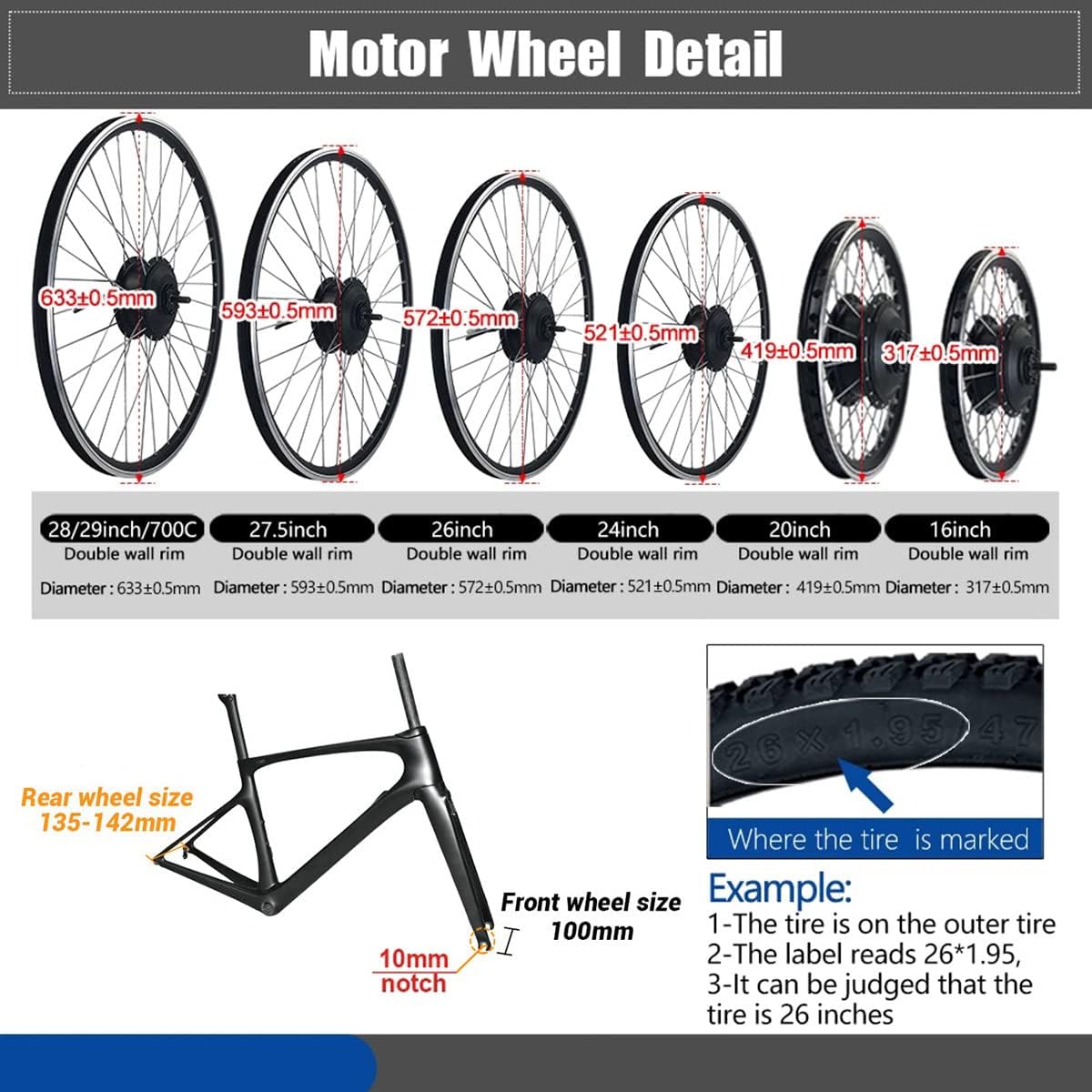

Diagram showing various wheel sizes (20, 24, 26, 27.5, 28, 29, 700C) with their respective diameters, and illustrations of front fork (100mm) and rear fork (135-142mm) measurements.

Figure 4: Wheel size and fork compatibility details.

Configuració i instal·lació

This section guides you through the process of installing the e-bike conversion kit onto your bicycle. It is recommended to have basic bicycle maintenance knowledge or seek professional assistance if unsure.

1. Prepare Your Bicycle

Ensure your bicycle's front fork has an open size of 100mm.
Traieu la roda davantera existent de la bicicleta.
If your bicycle uses disc brakes, transfer the disc rotor from your old wheel to the new motor rim.

2. Install the Motor Rim

Carefully insert the new motor rim into the front fork dropouts.
Secure the wheel using the provided axle nuts. Ensure it is centered and tightened properly.

3. Mount the Controller and Display

Find a suitable location on your bicycle frame for the controller box, typically near the battery or on the downtube. Use the provided cable ties to secure it.
Mount the LCD display on your handlebars in a position that is easily visible and accessible.

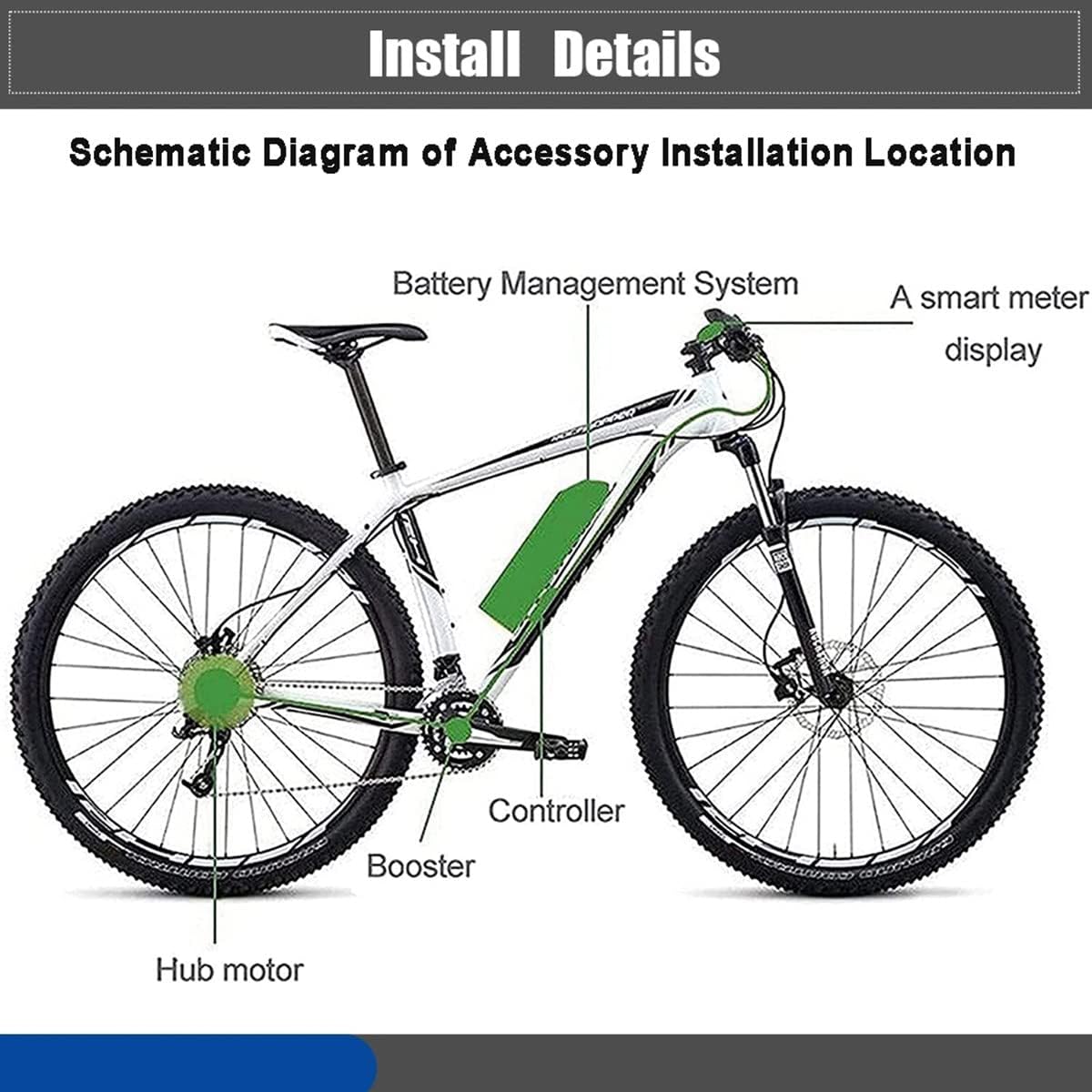

Schematic diagram showing the installation locations of the hub motor, controller, booster (PAS sensor), battery management system, and smart meter display on a bicycle frame.

Figure 5: Schematic diagram of accessory installation locations.

4. Connect Electrical Components

Refer to the wiring diagram below for proper connections. Ensure all connections are firm and secure.

Wiring diagram for the e-bike controller, showing connections for motor phase, motor hall, display, throttle, PAS, brake levers, battery, and lights.

Figure 6: Controller wiring diagram.

Connect the motor adapter cable from the hub motor to the controller.
Connect the display cable to the controller.
Install the throttle on the handlebars and connect its cable to the controller.
Replace your existing brake levers with the provided power cut-off brake levers and connect their cables to the controller. These levers cut power to the motor when brakes are applied, enhancing safety.
Install the PAS (Pedal Assist System) sensor on your bicycle's bottom bracket area, ensuring it aligns with the crank. Connect its cable to the controller.
Connect your 48V battery (not included) to the controller's battery input.
Use the provided cable ties and plastic coil to neatly manage and protect all cables.

5. Comprovacions finals

Double-check all connections to ensure they are firmly seated.
Ensure all cables are routed safely and do not interfere with moving parts (wheels, pedals, steering).
Test the brakes and throttle before riding.

Instruccions de funcionament

Once installed, your e-bike conversion kit offers two primary riding modes: pure electric and pedal assist.

1. Encès / apagat

Per engegar el sistema, premeu i manteniu premut el botó d'engegada de la pantalla LCD.
Per apagar, premeu i manteniu premut el botó d'engegada de nou.

2. Funcions de la pantalla LCD

The LCD display provides essential ride information:

Bateria Percentage: Mostra la càrrega restant de la bateria.
Velocitat: Mostra la velocitat de conducció actual.
Distància: Shows total and individual trip distances.
Potència: Indicates the motor's current power output.
PAS Values: Displays the current Pedal Assist System level (typically 0-5 or 0-9).
Codis d'error: In case of a system malfunction, an error code will be displayed for troubleshooting.

Use the buttons on the display to navigate through different information screens and adjust PAS levels.

3. Modes de conducció

Mode elèctric pur: Engage the throttle to propel the bicycle without pedaling. The speed will be controlled solely by the throttle input.
Mode d'assistència al pedaleig (PAS): As you pedal, the PAS sensor detects your pedaling motion and activates the motor to provide assistance. You can adjust the level of assistance via the display, offering different levels of power for various road conditions and desired effort.
You can switch between pure electric mode and assist mode at will.

4. Característiques de seguretat

Power Cut-off Brake Levers: When either brake lever is squeezed, power to the motor is immediately cut off, ensuring safe stopping.

Manteniment

Regular maintenance ensures the longevity and optimal performance of your e-bike conversion kit.

Neteja: Keep the motor, controller, and display clean. Use a damp cloth to wipe down surfaces. Avoid using high-pressure water jets directly on electrical components.
Inspecció del cable: Periodically check all electrical cables for any signs of wear, fraying, or damage. Ensure connections remain secure.
Pressió dels pneumàtics: Maintain correct tire pressure for the motor rim as specified on the tire sidewall.
Sistema de fre: Regularly inspect your brake pads and rotors for wear. Ensure the power cut-off function of the brake levers is working correctly.
Cura de la bateria: Seguiu les instruccions del fabricant per a la vostra bateria específica pel que fa a la càrrega, l'emmagatzematge i la temperatura.
General Bicycle Maintenance: Continue to perform regular maintenance on your bicycle's mechanical components (chain, gears, bearings, etc.) as you would with a standard bicycle.

Resolució de problemes

This section addresses common issues you might encounter with your e-bike conversion kit.

Problema	Causa possible	Solució
Motor not engaging/no power	Connexió de bateria solta Battery low/dead Connexió del cable del motor solta Brake levers engaged (power cut-off) Display not powered on	Check battery connection to controller. Carregueu la bateria. Ensure motor adapter cable is firmly connected. Release brake levers. Press power button on display.
PAS not working	PAS sensor misaligned or loose PAS sensor cable loose/damaged PAS level set to 0 on display	Check PAS sensor alignment and security. Inspect PAS sensor cable and connection. Increase PAS level on display.
La pantalla mostra el codi d'error	Specific system malfunction	Refer to the display's specific error code manual (if provided) or the general troubleshooting steps: Make sure that the connecting machine between the motor and the controller is firmly connected. After completion, you can check whether the display interface displays an error code through the display. Si el problema persisteix, poseu-vos en contacte amb el servei d'atenció al client.

Problema

Causa possible

Solució

Motor not engaging/no power

Connexió de bateria solta
Battery low/dead
Connexió del cable del motor solta
Brake levers engaged (power cut-off)
Display not powered on

Check battery connection to controller.
Carregueu la bateria.
Ensure motor adapter cable is firmly connected.
Release brake levers.
Press power button on display.

PAS not working

PAS sensor misaligned or loose
PAS sensor cable loose/damaged
PAS level set to 0 on display

Check PAS sensor alignment and security.
Inspect PAS sensor cable and connection.
Increase PAS level on display.

La pantalla mostra el codi d'error

Specific system malfunction

Refer to the display's specific error code manual (if provided) or the general troubleshooting steps:

Make sure that the connecting machine between the motor and the controller is firmly connected.
After completion, you can check whether the display interface displays an error code through the display.
Si el problema persisteix, poseu-vos en contacte amb el servei d'atenció al client.

Suport

For further assistance, technical support, or warranty inquiries, please contact the seller or manufacturer through the platform where you purchased the product.

When contacting support, please provide your product model (48V/1000W E-Bike Conversion Kit, 700c Front Wheel) and a detailed description of the issue you are experiencing.
