Cello C5024WSF 50-inch Smart DVD TV User Manual

Introducció

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Cello C5024WSF 50-inch Smart DVD TV. This television combines a fast LG WebOS Smart TV system with an integrated DVD player, a triple tuner, and versatile connectivity options including Bluetooth, HDMI, and USB. Please read this manual thoroughly before using your TV to ensure proper function and safety.

The Cello Smart TV displaying the LG WebOS Hub interface with various streaming application icons, indicating its smart capabilities.

Producte acabatview

The Cello C5024WSF is designed for ease of use and integrated entertainment. Key features include:

• Smart TV with Integrated DVD: Enjoy the speed of LG WebOS for streaming and the convenience of a built-in DVD player for disc media.
• Disseny elegant: A slim frame and lightweight design make it suitable for any room, whether wall-mounted or placed on a stand.
• Sintonitzador triple: Access digital channels with exceptional HD clarity via integrated DVB-C/S2/T2 tuners.
• Connectivitat universal: Equipped with 2 HDMI ports, 2 USB ports, 1 optical port, and 2 RF ports for connecting various devices. Integrated Bluetooth allows for wireless audio connections.

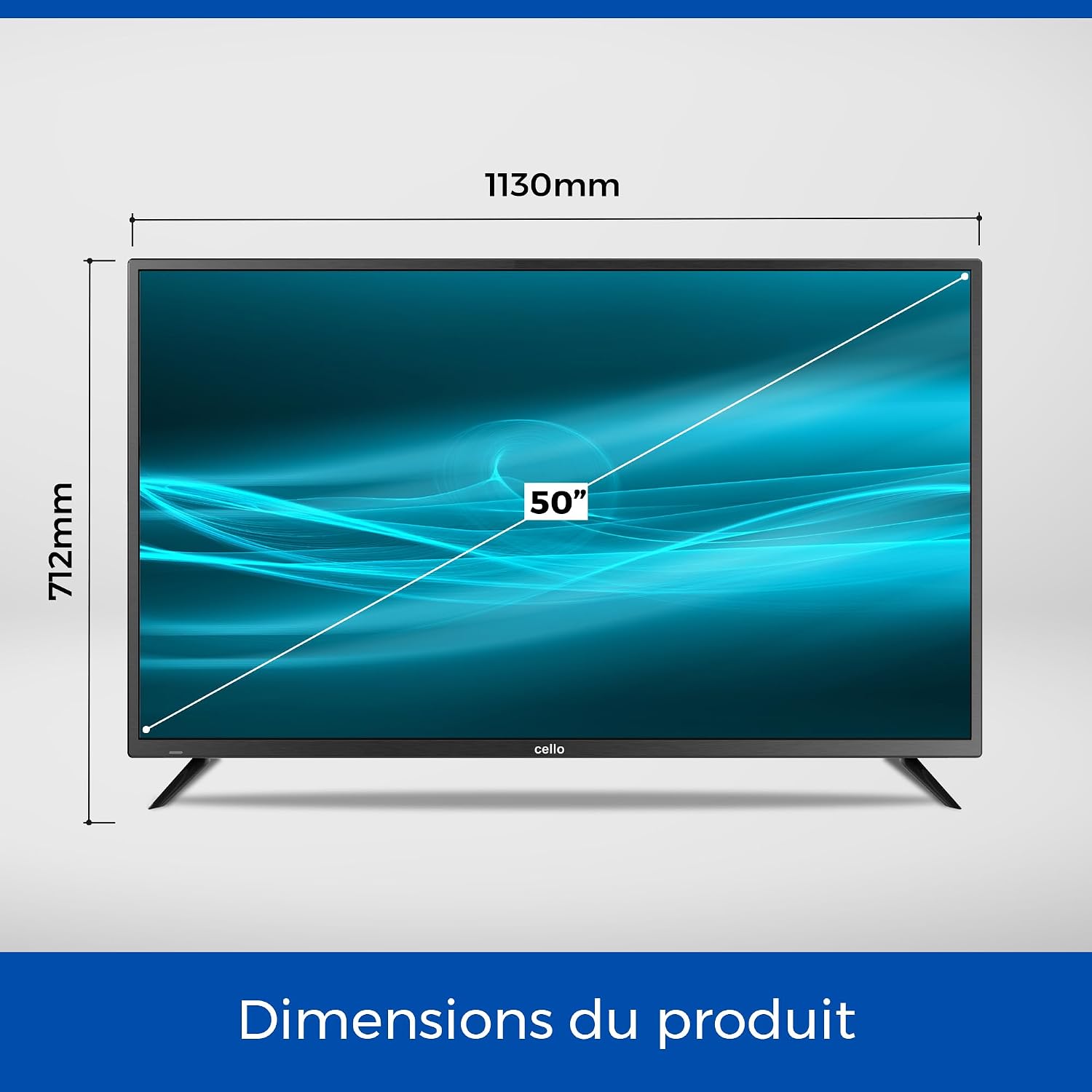

Diagram illustrating the physical dimensions of the Cello 50-inch TV: 1130mm width and 712mm height.

The integrated DVD player allows for direct playback of movies and TV series from discs.

Connect various devices using the available HDMI and USB ports.

Bluetooth connectivity enables wireless pairing with compatible audio devices like soundbars.

Instruccions de configuració

1. Desembalatge i col·locació inicial

Carefully remove the TV from its packaging. Choose a stable, flat surface for placement or prepare for wall mounting. Ensure adequate ventilation around the TV.

The Cello TV can be wall-mounted using a VESA compatible bracket (400 x 200 mm).

2. Potència de connexió

Connect the provided power cable to the TV's power input and then to a wall outlet. The TV operates on 100-240V AC, 50-60Hz.

3. Connexió de dispositius externs

Use the HDMI ports (2 available) to connect devices such as gaming consoles, set-top boxes, or streaming devices. USB ports (2 available) can be used for media playback or recording.

4. Antenna/Cable Connection

Connect your antenna or cable to the RF input on the TV to receive digital terrestrial (DVB-T2), satellite (DVB-S2), or cable (DVB-C) broadcasts.

5. Connexió de xarxa (Wi-Fi)

Upon first power-on, the TV will guide you through connecting to your home Wi-Fi network. This is essential for accessing Smart TV features and applications.

6. Assistent de configuració inicial

Follow the on-screen instructions to complete the initial setup, including language selection, channel scanning, and time zone settings.

Funcionament del televisor

1. Funcions de control remot

The TV comes with an infrared remote control. Insert 2 AAA batteries (not included) into the remote. Familiarize yourself with the buttons for power, volume, channel, input selection, and Smart TV navigation.

2. Funcions de Smart TV (WebSO)

Press the 'Home' button on your remote to access the WebOS interface. From here, you can launch pre-installed applications like Netflix, Prime Video, Disney Plus, and YouTube. You can also download additional apps from the LG Content Store.

• Screen Sharing (Miracast): Use the Miracast feature to wirelessly mirror content from compatible mobile devices to your TV.

3. Using the Integrated DVD Player

Insert a DVD disc into the slot on the side or back of the TV. The TV should automatically switch to DVD mode. Use the remote control for playback functions (play, pause, stop, skip).

4. Media Playback via USB

Inseriu una unitat USB que contingui suports compatibles files (photos, music, videos) into one of the USB ports. The TV's media player will detect the drive, allowing you to browse and play content.

5. Bluetooth Audio Pairing

To pair a Bluetooth soundbar or headphones, navigate to the TV's settings menu, select 'Sound', then 'Bluetooth'. Enable Bluetooth and select your device from the list to pair.

Manteniment

1. Cleaning the Screen and Casing

Always unplug the TV before cleaning. Use a soft, dry, lint-free cloth to gently wipe the screen and casing. Per a marques difícils, lleugerament dampen the cloth with water or a specialized screen cleaner. Avoid harsh chemicals, abrasives, or direct spraying of liquids onto the TV.

2. Actualitzacions de programari

Ensure your TV is connected to the internet to receive automatic software updates. You can also manually check for updates in the TV's settings menu under 'General' > 'About This TV' > 'Check for Updates'. Keeping your software updated ensures optimal performance and access to the latest features.

Resolució de problemes

Si teniu problemes amb el televisor, consulteu les solucions habituals següents:

Especificacions

Below are the detailed technical specifications for the Cello C5024WSF 50-inch Smart DVD TV:

EU Energy Label for the Cello C5024WSF TV, showing energy efficiency class G.

Detailed product information sheet from EPREL. For more details, visit: eprel.ec.europa.eu/qr/1883478

Informació de la garantia

The Cello C5024WSF 50-inch Smart DVD TV comes with a Garantia limitada d'1 any from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. For full terms and conditions, refer to the warranty card included with your product or contact customer support.

Atenció al client

For technical assistance, troubleshooting, or warranty inquiries, please contact Cello customer support:

• Correu electrònic: consumersupport@celloelectronics.com
• Weblloc: www.celloelectronics.de
• Telèfon: 03334330312 (Please check for local rates and operating hours)

When contacting support, please have your TV model number (C5024WSF) and purchase details ready.
