Introducció
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your STIGA Mountfield MTF 98H Thermal Mowing Tractor. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.
The Mountfield MTF 98H is a powerful garden tractor designed for lawn mowing, featuring a 432cc Stiga ST 450 engine, 98 cm cutting width, and hydrostatic transmission. It offers 7 adjustable cutting heights from 25 to 80 mm and includes a 240-litre collection bin. A mulching cap is available separately for mulching functionality.
Figura 1: Part frontal view of the Mountfield MTF 98H Thermal Mowing Tractor.
1. Informació de seguretat
Always prioritize safety when operating the Mountfield MTF 98H. Failure to follow safety instructions can result in serious injury or death. Keep children and pets away from the operating area. Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and sturdy footwear.
- Read and understand all instructions in this manual before use.
- Never allow children or untrained persons to operate the tractor.
- Inspeccioneu la zona que s'ha de tallar i retireu qualsevol objecte que puguin ser llançat per les fulles.
- Funcioneu només a la llum del dia o amb bona llum artificial.
- No opereu en pendents excessivament pronunciats.
- Turn off the engine, remove the key, and ensure all moving parts have stopped before performing any maintenance or clearing blockages.
2. Muntatge i muntatge
The Mountfield MTF 98H requires some assembly prior to first use. Refer to the separate assembly guide for detailed instructions. Key assembly steps typically include attaching the steering wheel, seat, and grass collector.
2.1 Comprovacions inicials
- Nivell d'oli del motor: Comproveu el nivell d'oli del motor amb la vareta de nivell. Afegiu oli recomanat si cal.
- Nivell de combustible: Ompliu el dipòsit de combustible amb gasolina fresca sense plom. No l'ompliu massa.
- Pressió dels pneumàtics: Ensure tires are inflated to the recommended pressure.
- Condició de la fulla: Inspeccioneu les fulles de tall per detectar l'esmoladura i els danys.
- Interruptors de seguretat: Verify all safety switches (e.g., seat switch, PTO switch) are functioning correctly.
2.2 Fueling the Tractor
Use only fresh, clean, unleaded gasoline with an octane rating of 87 or higher. Do not mix oil with gasoline. Always refuel in a well-ventilated area with the engine off and cool. Avoid spilling fuel.
2.3 Connexió de la bateria
Ensure the battery is securely connected. If the battery is new or has been stored, it may require charging with a compatible battery charger (sold separately) before first use.
3. Instruccions de funcionament
3.1 Arrencada del motor
- Assegureu-vos que el fre d'estacionament estigui activat.
- Place the hydrostatic transmission lever in the neutral position.
- Accioneu l'estrangulador (si el motor està fred).
- Insert the ignition key and turn it to the "START" position. Release the key once the engine starts.
- Desconnecteu l'estrangulador gradualment a mesura que el motor s'escalfa.

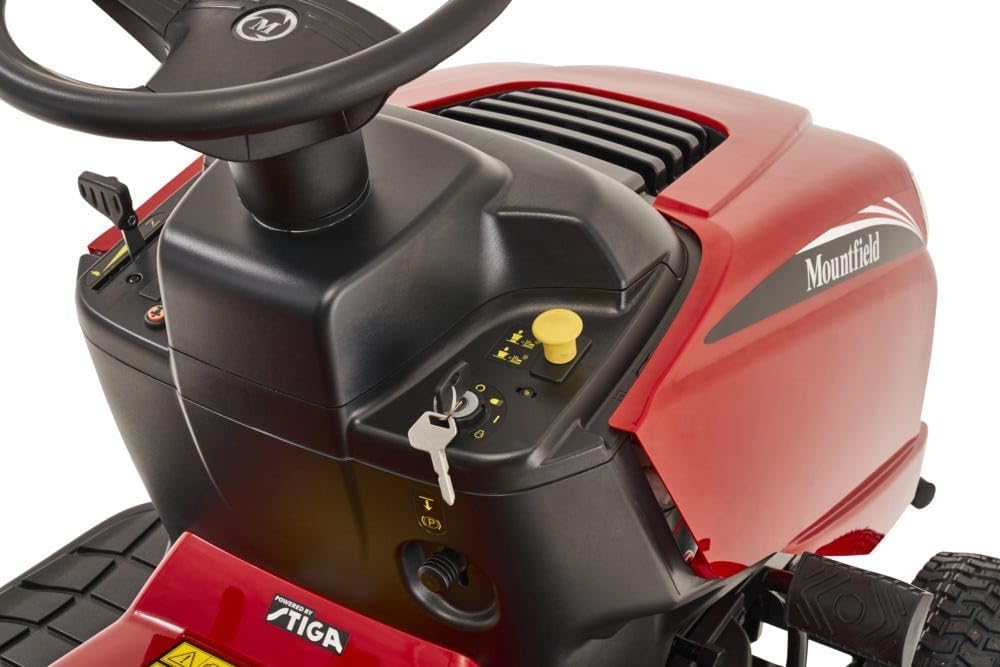

Figure 2: Driver's console showing ignition key and control layout.
Figura 3: Detallada view of the ignition switch and choke lever.
3.2 Transmissió hidrostàtica
The hydrostatic transmission allows for smooth, variable speed control. Use the foot pedal to control forward and reverse motion. Pressing the pedal forward increases forward speed; pressing it backward engages reverse. Release the pedal to stop.

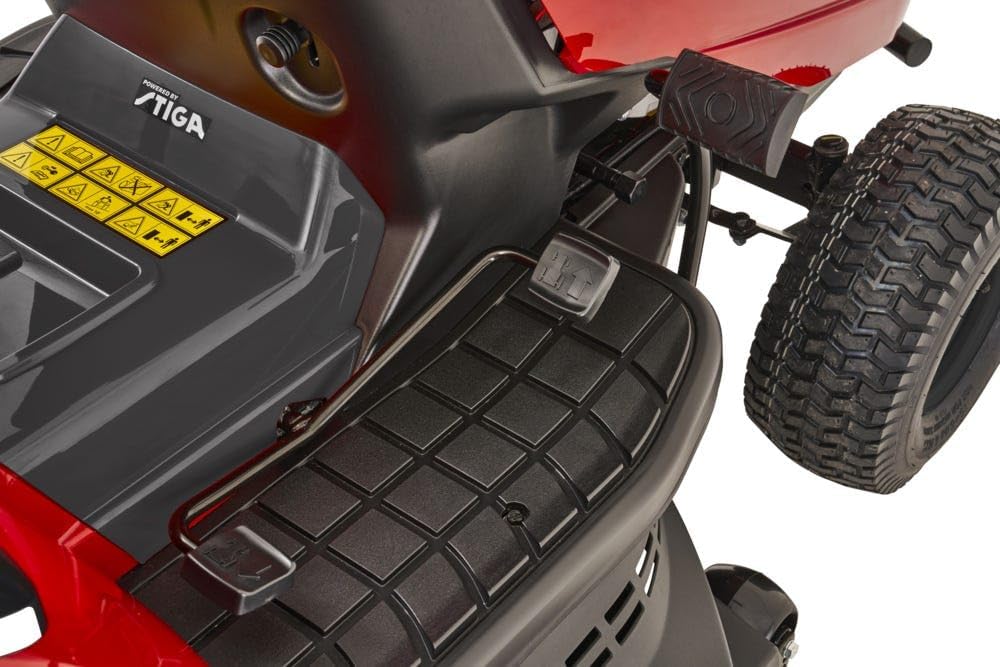

Figure 4: Foot pedal area for controlling the hydrostatic transmission.
3.3 Ajust de l'alçada de tall
The Mountfield MTF 98H offers 7 cutting height positions, ranging from 25 mm to 80 mm. Adjust the cutting height using the lever located on the side of the tractor. Select a higher setting for rough terrain or taller grass, and a lower setting for a finer finish.

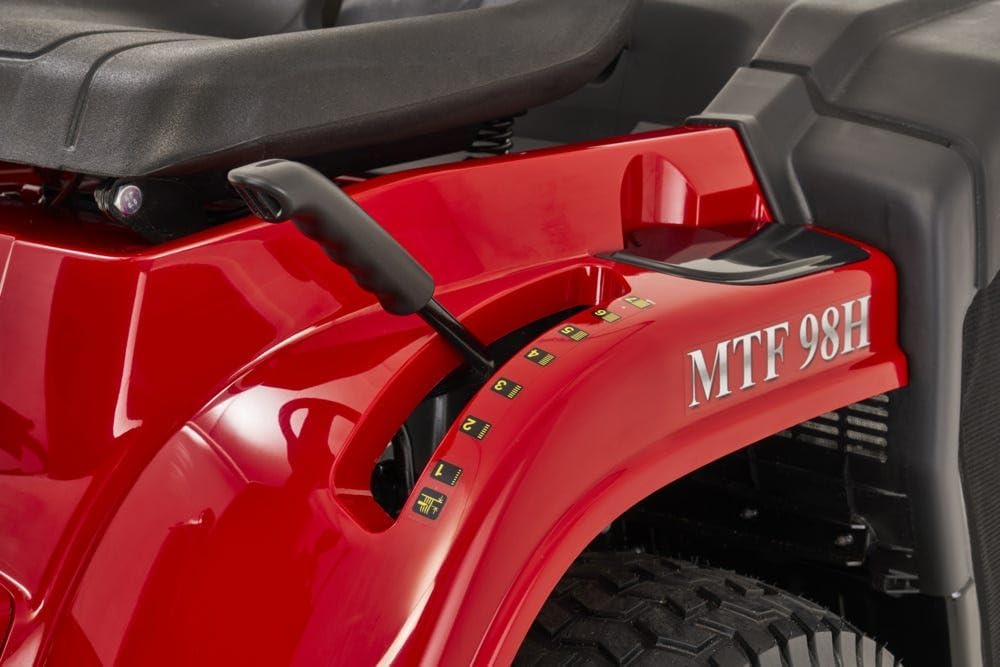

Figure 5: Cutting height adjustment lever with 7 positions (25-80 mm).
3.4 Mowing Operation
- Engage the cutting blades using the PTO (Power Take-Off) switch.
- Begin mowing at a moderate speed. Overloading the engine can lead to poor cutting performance and damage.
- Overlap each pass slightly to ensure even cutting.
- For optimal results, avoid mowing wet grass.
- The 240-litre collection bin efficiently gathers grass clippings. Empty the bin when full to maintain cutting performance.
- For mulching, install the mulching cap (sold separately) and remove the collection bin.
Figura 6: lateral view of the tractor demonstrating the grass collection system.
4. Manteniment
Regular maintenance is crucial for the longevity and performance of your Mountfield MTF 98H. Always turn off the engine, remove the ignition key, and disconnect the spark plug wire before performing any maintenance.
4.1 Manteniment del motor
- Canvi d'oli: Change engine oil after the first 5 hours of operation, then every 50 hours or annually, whichever comes first. Refer to the engine manual for specific oil type and capacity.
- Filtre d'aire: Netegeu o substituïu el filtre d'aire regularment, especialment quan utilitzeu el vehicle en condicions de pols.
- Bujía: Inspeccioneu i netegeu la bugia anualment. Substituïu-la si està desgastada o bruta.
- Filtre de combustible: Replace the fuel filter as recommended by the engine manufacturer.
4.2 Cutting Deck and Blades
- Neteja: Netegeu la part inferior de la plataforma de tall després de cada ús per evitar l'acumulació d'herba, que pot afectar el rendiment de tall.
- Esmolat/Substitució de fulles: Inspect blades for sharpness and balance. Sharpen or replace dull or damaged blades. Always replace blades in pairs to maintain balance.
4.3 Neteja i emmagatzematge generals
- Clean the exterior of the tractor with a damp drap. Eviteu utilitzar rentadores d'alta pressió directament sobre els components elèctrics.
- Store the tractor in a dry, protected area when not in use.
- For long-term storage, prepare the engine according to the engine manufacturer's instructions (e.g., fuel stabilizer, fogging oil).
5. Solució De Problemes
This section addresses common issues you might encounter with your Mountfield MTF 98H. For problems not listed here, contact authorized service personnel.
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrencarà | No fuel; Choke not engaged; Spark plug faulty; Battery low; Safety switch engaged. | Check fuel level; Engage choke; Inspect/replace spark plug; Charge battery; Ensure parking brake is on and PTO is disengaged. |
| Mala qualitat de tall | Dull blades; Cutting deck clogged; Engine speed too low; Mowing wet grass. | Sharpen/replace blades; Clean cutting deck; Increase engine RPM; Mow when grass is dry. |
| Tractor loses power | Low fuel; Clogged air filter; Engine overheating. | Refuel; Clean/replace air filter; Check for obstructions around engine cooling fins. |
| Vibració excessiva | Bent or unbalanced blades; Loose components. | Inspect and replace damaged blades; Tighten all fasteners. |
6. Especificacions
| Característica | Detall |
|---|---|
| Marca | ESTIGA |
| Número de model | 2T2610403/CAS |
| Font d'alimentació | Thermal (Gasoline) |
| Motor | Stiga ST 450, 432cc |
| Amplada de tall | 98 cm (38.6 polzades) |
| Altures de tall | 7 positions, 25-80 mm |
| Transmissió | Hidrostàtica |
| Collection Bin Capacity | 240 litres |
| Pes de l'article | 160 quilos |
| Material | Plàstic, metall |
| Muntatge obligatori | Sí |
7. Garantia i Suport
For warranty information, please refer to the separate warranty document included with your purchase or visit the official STIGA website. For technical support, spare parts, or service inquiries, please contact your authorized STIGA dealer or STIGA customer service. Ensure you have your model number (MTF 98H) and serial number ready when contacting support.
STIGA Official Weblloc: www.stiga.com
