JACKAL Doorway Pull-Up Bar and Dip Station

1. Introducció

Thank you for choosing the JACKAL Doorway Pull-Up Bar and Dip Station. This versatile, all-in-one bodyweight workout station is designed for convenient home use, offering a range of exercises without damaging your doorframe. Please read this manual thoroughly before assembly and use to ensure safe and effective operation.

2. Informació de seguretat

AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions greus o danys materials.

• Capacitat de pes màxim: Do not exceed 350 pounds (158 kg) on this equipment.
• Doorway Compatibility: Ensure your doorway meets the following specifications:
  • Inside Doorway Width: 26.7 inches (67.8 cm) or more.
  • Doorway Width WITH TRIM: 32-41 inches (81-104 cm).
  • Trim Height: Less than 4 inches (10 cm).
• Door Frame Integrity: Only install on sturdy, structurally sound doorframes. Do not use on weak, damaged, or decorative doorframes.
• Inspecció prèvia a l'ús: Before each use, inspect the equipment for any signs of wear, damage, loose parts, or instability. Do not use if any issues are found.
• Instal·lació segura: Always ensure the unit is securely and correctly installed on the doorframe before applying any weight.
• Tècnica adequada: Use proper exercise form to prevent injury. If you are unsure, consult a fitness professional.
• Nens i animals de companyia: Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
• Condicions mèdiques: Consulta un metge abans de començar qualsevol nou programa d'exercicis.

Imatge: Correct Doorway Measurement Guide. Ensure your doorway meets the specified dimensions for safe installation.

3. Contingut del paquet

Marqueu la casella per assegurar-vos que hi ha tots els components:

• 1 x Doorway Pull-Up Bar Assembly
• 1 x Detachable Doorway Dip Bar Assembly

4. Muntatge i muntatge

The JACKAL Doorway Pull-Up Bar and Dip Station is designed for quick and tool-free assembly.

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge.
2. Assemble Dip Bars (if detached): The dip bar assembly typically involves connecting a few pre-fabricated sections. Align the parts and secure them as indicated by the design, usually with quick-release pins or pre-attached fasteners. No tools are generally required.
3. Install Pull-Up Bar on Doorway:
   • Position the main pull-up bar assembly so that the padded top bar rests on the top of your doorframe.
   • The extended arms of the pull-up bar should hook over the doorframe, with the white protective pads resting against the wall on the opposite side of the doorframe.
   • Ensure the unit is centered and firmly seated on the doorframe. The wider hook design provides enhanced stability and door protection.
4. Attach Dip Bars: Once the pull-up bar is securely in place, attach the dip bar assembly to the designated connection points on the pull-up bar frame. Ensure they click or lock into place securely.
5. Verifica l'estabilitat: Before use, gently pull down on the bar to confirm it is stable and properly seated on the doorframe.

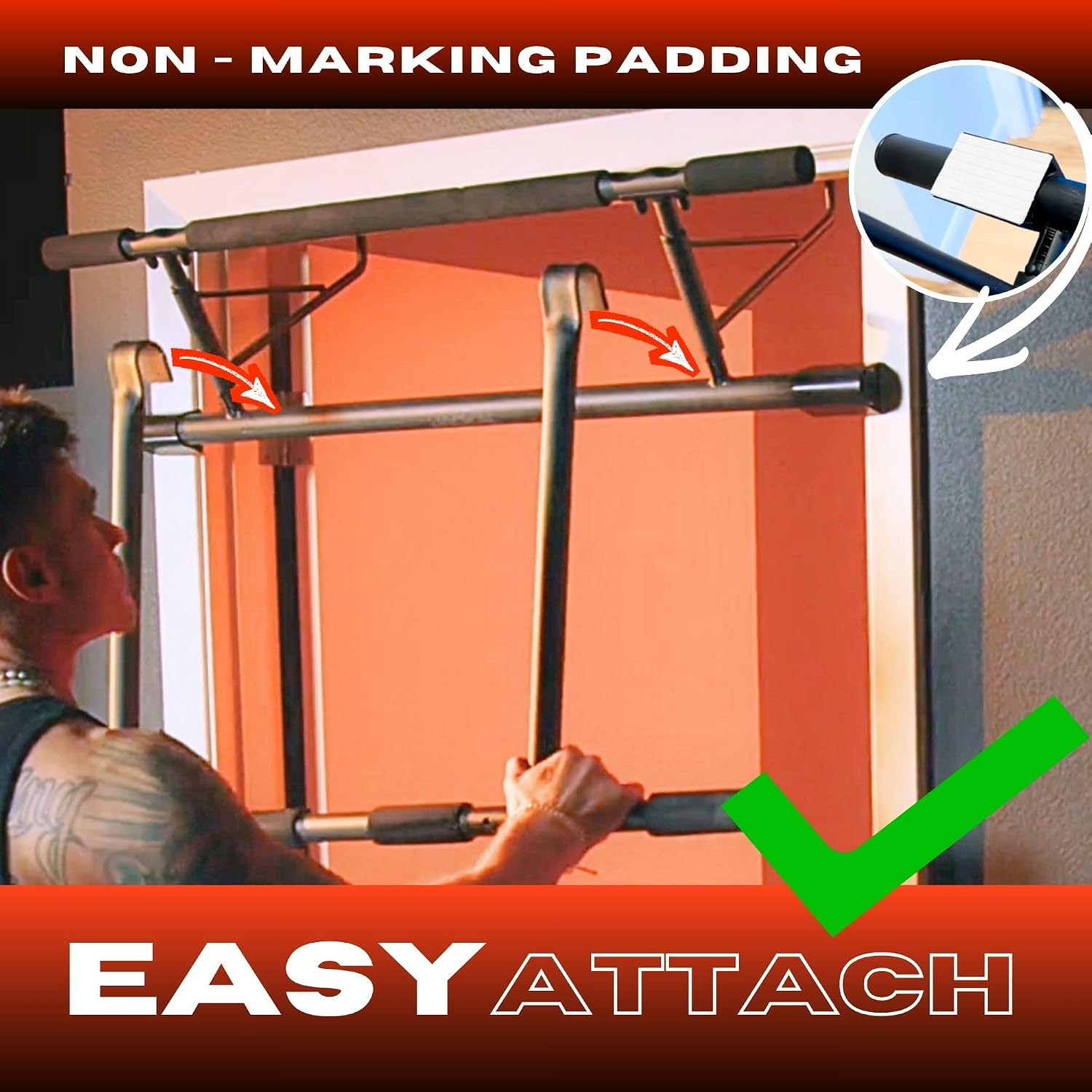

Imatge: Non-Marking Padding and Easy Attachment. The white pads protect your doorframe from damage.

5. Instruccions de funcionament

The JACKAL station offers multiple exercise options:

5.1. Pull-Up Bar Usage

• Instal·lació: Ensure the unit is securely mounted on the doorframe as described in Section 4.
• Grip Options: The bar provides multiple grip positions (wide, narrow, neutral/hammer grips) to target different muscle groups.
• Exercici: Perform pull-ups, chin-ups, and other hanging exercises. Always maintain control during movements.

Imatge: Pull-Up Bar in Use. Demonstrates ample clearance for effective pull-ups.

5.2. Dip Station Usage

• Instal·lació: Ensure the unit is securely mounted on the doorframe and the dip bars are firmly attached.
• Dip Position: The dip bars can be adjusted to narrow, medium, or wide positions to emphasize triceps or chest muscles.
• Exercici: Perform dips for triceps and chest development. Ensure your body is stable throughout the exercise.

Imatge: Dip Station in Use. Provides a stable platform for dips.

Imatge: 3-Width Dip Position. Adjust the dip bars to target different muscle groups.

5.3. Plegable i emmagatzematge

The JACKAL station features a patented folding design for easy storage.

• Destacament: Remove the unit from the doorframe.
• Plegable: The pull-up bar and dip bars collapse flat. Follow the intuitive folding mechanism to reduce the unit's footprint.
• Emmagatzematge: The folded unit can be easily stored under a bed, couch, or in a closet, making it ideal for small spaces.

Imatge: Fold Flat System. The unit collapses for convenient storage.

6. Manteniment

• Neteja: Netegeu l'equipament amb anuncisamp cloth after use to remove sweat and dust. Do not use abrasive cleaners.
• Inspecció: Regularly inspect all parts for wear, tear, or damage. Pay close attention to the padding, grips, and structural integrity of the carbon steel frame.
• Emmagatzematge: Store the unit in a dry place away from extreme temperatures and direct sunlight when not in use.

7. Solució De Problemes

• La unitat sembla inestable: Ensure the unit is correctly seated on the doorframe and your doorway meets the specified dimensions. Re-check all connections for the dip bars.
• Doorframe damage: The JACKAL is designed with wide hooks and protective padding to prevent door damage. Ensure the white pads are correctly positioned against the wall. If damage occurs, discontinue use and inspect your doorframe.
• Dificultat de plegar: Ensure no parts are obstructed. Gently manipulate the folding joints. Do not force the mechanism.

8. Especificacions

9. Garantia i Suport

For warranty information or customer support, please refer to the documentation provided at the time of purchase or contact JACKAL customer service through their official website or the retailer where the product was purchased. You can also visit the JACKAL Store on Amazon.
