1. Introducció
Thank you for choosing the DATOUBOSS 12V 100Ah LiFePO4 Deep Cycle Battery. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your battery. Please read this manual thoroughly before use and retain it for future reference.
2. Instruccions de seguretat
Always prioritize safety when handling batteries. Failure to follow these instructions can result in serious injury or damage to the battery and connected equipment.
- Utilitzeu equip de protecció: Always wear safety glasses and insulated gloves when working with batteries.
- Eviteu curtcircuits: Do not allow tools or conductive materials to touch both battery terminals simultaneously.
- Ventilació adequada: Ensure adequate ventilation during charging and discharging to prevent heat buildup.
- Polaritat correcta: Connect the positive (+) terminal to positive and the negative (-) terminal to negative. Incorrect polarity can damage the battery and equipment.
- Càrrega: Use only chargers specifically designed for LiFePO4 batteries. Do not overcharge or over-discharge.
- Temperatura: Operate and store the battery within the recommended temperature ranges. The integrated BMS provides high and low-temperature protection.
- Eliminació: Elimineu les piles d'acord amb la normativa local. No les incinereu.
3. Producte acabatview
The DATOUBOSS 12V 100Ah LiFePO4 battery is a high-performance, deep-cycle lithium iron phosphate battery designed for various applications including solar energy systems, RVs, marine use, and off-grid power solutions. It features an advanced 100A Battery Management System (BMS) for enhanced safety and longevity.
Característiques principals:
- BMS integrat de 100A: Protects against overcharge, over-discharge, overcurrent, short circuit, and temperature extremes.
- Cicle de vida llarg: Offers 8000-15000 cycles, significantly longer than traditional lead-acid batteries.
- Lleuger i compacte: Weighs only 11 kg, making it easy to handle and install.
- Alta densitat d'energia: Provides stable and powerful performance.
- 100% Depth of Discharge (DoD): Allows full utilization of battery capacity.
- Ecològic: Contains no heavy metals or rare earth metals.
Components del producte:

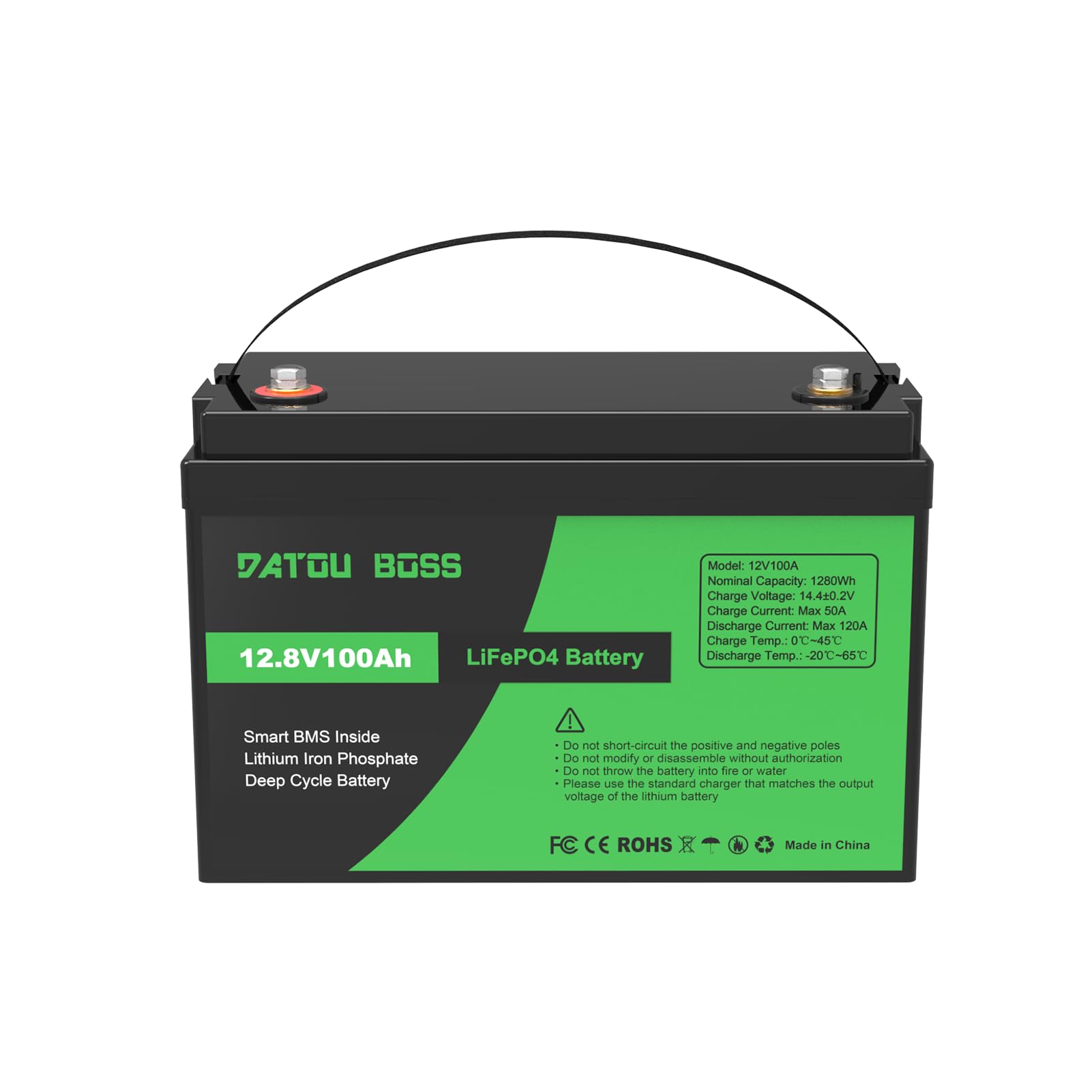

Figura 1: Frontal view of the DATOUBOSS 12V 100Ah LiFePO4 Deep Cycle Battery, showcasing its compact design and robust terminals.
Figure 2: An illustration detailing the integrated 100A Battery Management System (BMS) within the DATOUBOSS LiFePO4 battery, highlighting its protection features against overcharge, over-discharge, overcurrent, and short circuit, along with temperature protection.
Figure 3: Image displaying the physical dimensions (33cm x 17cm x 21cm) and weight (11 kg) of the DATOUBOSS 12V 100Ah LiFePO4 battery, emphasizing its lightweight and compact nature compared to lead-acid batteries.

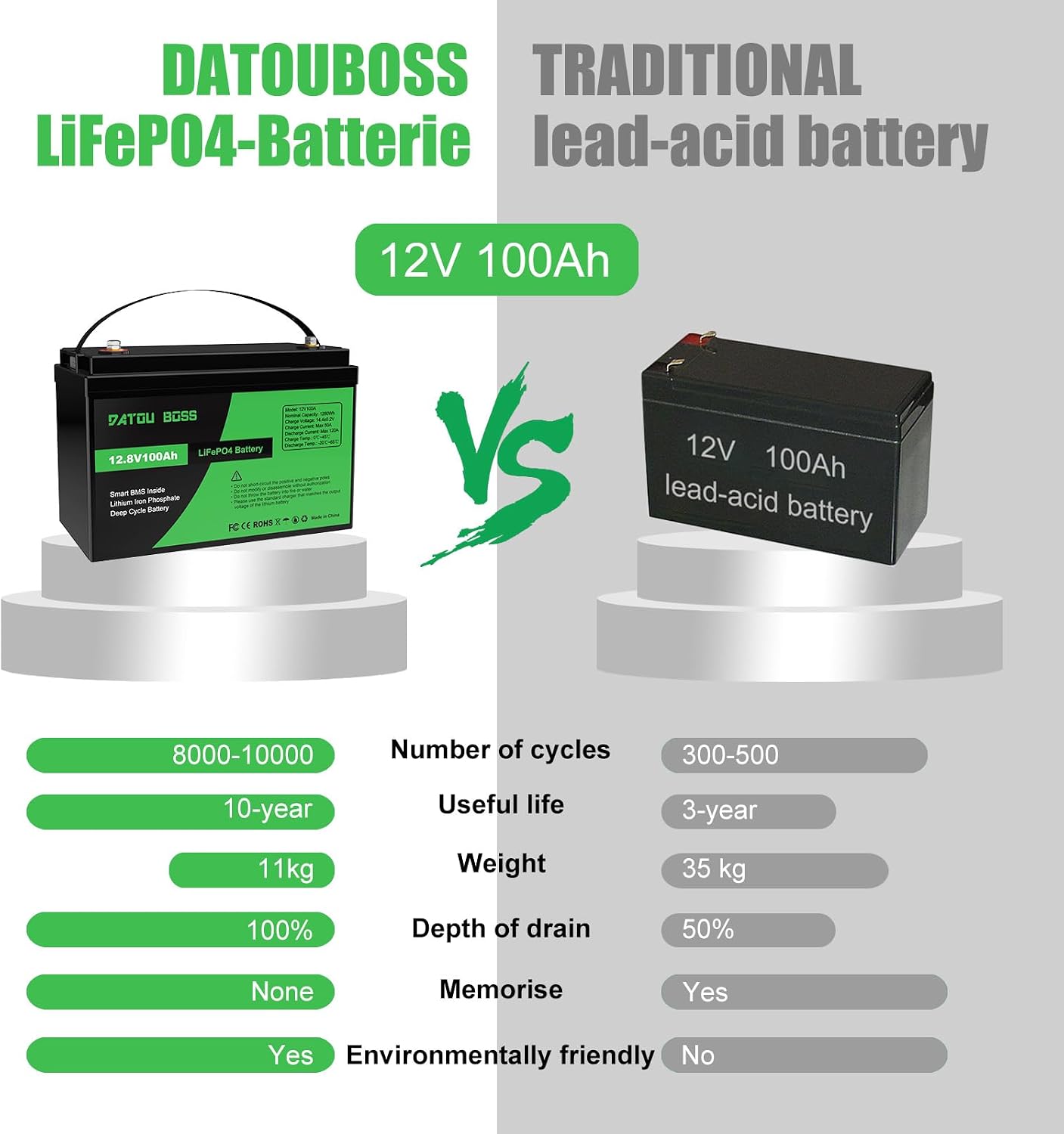

Figure 4: A visual comparison chart illustrating the advantages of the DATOUBOSS LiFePO4 battery over traditional lead-acid batteries, including longer cycle life (8000-10000 vs 300-500), longer useful life (10 years vs 3 years), lighter weight (11kg vs 35kg), and 100% depth of discharge.
4. Configuració
Inspecció inicial:
Upon receiving your DATOUBOSS LiFePO4 battery, inspect it for any signs of damage during shipping. Verify that all components, including terminals and caps, are present and intact.
Connecting Batteries (Series/Parallel):
The DATOUBOSS 12V 100Ah LiFePO4 battery supports connections in series or parallel to meet specific voltage and capacity requirements. Always ensure all batteries are at a similar state of charge before connecting them.
- Connexió paral·lel: Connect positive terminals together and negative terminals together to increase total capacity while maintaining the same voltage (e.g., two 12V 100Ah batteries in parallel result in 12V 200Ah).
- Connexió de sèrie: Connect the positive terminal of one battery to the negative terminal of the next to increase total voltage (e.g., two 12V 100Ah batteries in series result in 24V 100Ah). The battery supports up to 4S (48V) and 4P (400Ah) configurations.
Figure 5: Diagram showing how DATOUBOSS LiFePO4 batteries can be connected in series to increase voltage (up to 48V 100Ah) or in parallel to increase capacity (up to 12V 400Ah), demonstrating system scalability.
Integració del sistema:
For solar or off-grid systems, connect the battery to an appropriate MPPT charge controller and inverter. Ensure all components are compatible with LiFePO4 battery specifications.
Figure 6: An illustration of the DATOUBOSS LiFePO4 battery integrated into a solar power system, showing connections to solar panels, an MPPT controller, an inverter, and various loads, highlighting its suitability for off-grid applications.
5. Instruccions de funcionament
Càrrega:
Use a dedicated LiFePO4 battery charger. The recommended charging voltage is 14.4V to 14.6V. The integrated BMS will protect the battery from overcharging. Avoid charging below 0°C (32°F) unless the battery has a low-temperature charging function, which the BMS will manage.
Descàrrega:
The battery can be discharged up to 100% Depth of Discharge (DoD). The BMS will automatically cut off power if the voltage drops too low to prevent damage. The maximum continuous discharge current is 100A, and the maximum power output is 1280W.
Consideracions sobre la temperatura:
The optimal operating temperature range is -20°C to 60°C (-4°F to 140°F). The BMS includes protection for both high and low temperatures, automatically shutting down the battery if temperatures exceed safe limits and restarting once conditions normalize.
6. Manteniment
LiFePO4 batteries require minimal maintenance compared to lead-acid batteries. However, following these guidelines will ensure optimal performance and longevity:
- Inspecció periòdica: Periodically check battery terminals for corrosion or loose connections. Clean terminals as needed.
- Nivell de càrrega: For long-term storage, it is recommended to store the battery at approximately 50% state of charge.
- Emmagatzematge: Guardeu la bateria en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Eviteu danys físics: Protect the battery from impacts or punctures.
7. Solució De Problemes
If you encounter issues with your DATOUBOSS LiFePO4 battery, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La bateria no es carrega | Charger malfunction, BMS protection activated (over-discharge, low temp), loose connections. | Check charger functionality. Verify all connections are secure. Allow battery to warm up if ambient temperature is too low. |
| Sense potència de sortida | BMS protection activated (over-discharge, overcurrent, short circuit), loose connections. | Check connections. Reduce load if overcurrent is suspected. If over-discharged, connect to a compatible charger. |
| Sobreescalfament de la bateria | Excessive load, poor ventilation, high ambient temperature. | Reduce load. Ensure adequate ventilation around the battery. Move to a cooler environment if possible. The BMS will shut down if temperature limits are exceeded. |
If the problem persists after attempting these solutions, please contact DATOUBOSS customer support.
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | DATOUBOSS |
| Model | Bateria LiFePO12 de 100 V 4 Ah |
| Volum nominaltage | 12.8 Volts |
| Capacitat nominal | 100 Ah |
| Energia | 1280 Wh |
| Corrent de càrrega contínua màxima | 100 A |
| Corrent de descàrrega contínua màx | 100 A |
| Cicle de Vida | 8000-15000 cycles (at 100% DoD) |
| BMS | Integrated 100A BMS |
| Pes | 11 kg (24.25 lliures) |
| Dimensions (L x A x A) | 33 cm x 17 cm x 21 cm (13 polzades x 7 polzades x 8 polzades) |
| Temperatura de funcionament | -20 °C a 60 °C (-4 °F a 140 °F) |
| Cell Composition | Fosfat de ferro de liti (LiFePO4) |
Figure 7: Collage of images depicting diverse applications for the DATOUBOSS LiFePO4 battery, including RVs, boats, solar cells, caravans, camping, and emergency power setups.
9. Garantia i Suport
DATOUBOSS is committed to product quality and customer satisfaction. We provide professional 24-hour customer service.
Informació de la garantia:
Please refer to your purchase documentation for specific warranty terms and conditions. Generally, DATOUBOSS LiFePO4 batteries are designed for a long service life, typically exceeding 10 years under normal operating conditions.
Atenció al client:
If you have any questions about the product, installation, operation, or require technical assistance, please do not hesitate to contact us. Our friendly and patient after-sales service team is available to assist you.
La informació de contacte normalment es pot trobar a la nostra pàgina oficial weblloc web o a través de la vostra plataforma de compra.
