INGCO Cordless Angle Grinder User Manual

1. Introducció

This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your INGCO Cordless Angle Grinder, model CAGLI211541. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

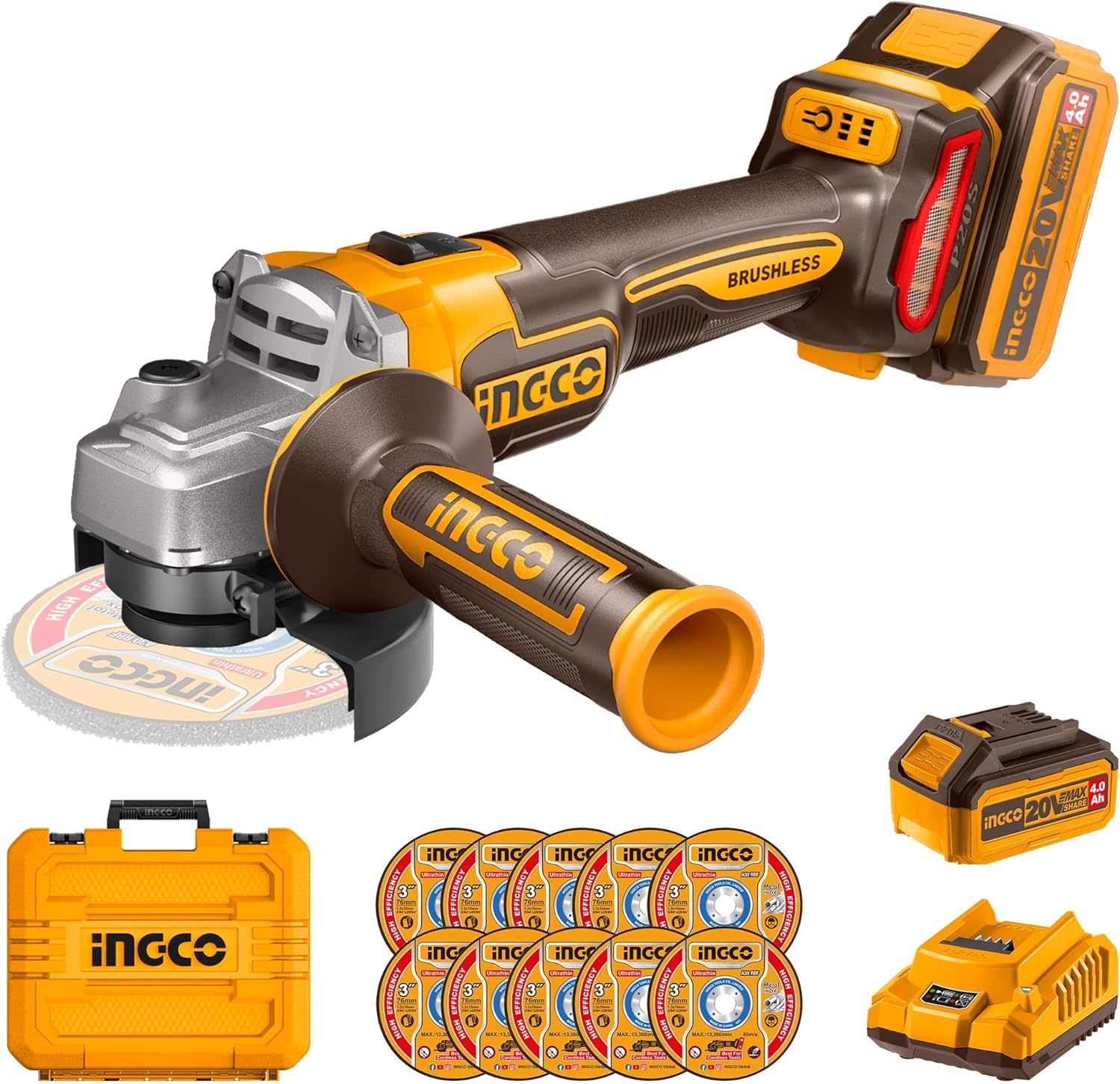

Figure 1: INGCO Cordless Angle Grinder CAGLI211541 and included accessories.

2. Instruccions de seguretat

Always adhere to general power tool safety warnings and local regulations. Failure to follow all instructions may result in electric shock, fire, and/or serious injury.

2.1 Advertències generals de seguretat

• Seguretat de l'àrea de treball: Mantingueu la zona de treball neta i ben il·luminada. Les zones desordenades o fosques poden provocar accidents. No utilitzeu eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Seguretat elèctrica: Els endolls de les eines elèctriques han de coincidir amb la presa de corrent. No modifiqueu mai l'endoll de cap manera. No exposeu les eines elèctriques a la pluja ni a condicions humides.
• Seguretat personal: Always wear eye protection, hearing protection, and appropriate work gloves. Dress properly. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
• Ús i cura de l'eina: No forceu l'eina elèctrica. Feu servir l'eina elèctrica adequada per a la vostra aplicació. Desconnecteu la bateria de l'eina elèctrica abans de fer qualsevol ajust, canviar accessoris o guardar eines elèctriques.
• Ús i cura de l'eina de la bateria: Recarrega només amb el carregador especificat pel fabricant. Utilitza eines elèctriques només amb bateries específicament designades.

2.2 Specific Angle Grinder Safety

• This angle grinder is designed for grinding, sanding, wire brushing, and cutting-off operations. Do not use accessories not specifically designed and recommended by the tool manufacturer.
• Always ensure the wheel guard is properly installed and adjusted for maximum safety.
• Assegureu la peça de treball. Una peça clamped by a clamp or in a vise is more secure than by hand.
• Mantingueu una presa ferma de l'eina amb les dues mans.
• Be aware of sparks and flying debris during operation.

3. Producte acabatview

3.1 Components

Figure 2: Key components of the INGCO Cordless Angle Grinder.

1. Cos ergonòmic
2. Interruptor de bloqueig
3. Aluminum Alloy Gearbox
4. Metal Wheel Guard
5. Mànec auxiliar
6. Motor sense escombretes
7. Three-speed Regulation Button
8. Dust-proof Screen

3.2 Característiques

• Motor sense escombretes: Provides increased efficiency, longer runtime, and extended tool life.
• Three-Speed Regulation: Adjustable speeds of 3000, 6000, and 9000 RPM for versatile applications.
• Disseny sense fil: Offers portability and ease of use without the restriction of power cords.
• Doble aïllament: Enhances user safety by preventing contact with electrified parts.
• Anti-Rotation Protective Cover: Provides a high level of user protection during operation.
• Compatibilitat: Powered by INGCO Li-ion 20V batteries, compatible with other INGCO 20V tools.

4. Configuració

4.1 Càrrega de la bateria

Insert the 4.0Ah Lithium-ion battery into the provided charger. Connect the charger to a suitable power outlet. The indicator light on the charger will show the charging status. Ensure the charger is compatible with your local power supply (note: some users reported UK plugs, an adapter may be required for EU outlets).

4.2 Fixació de la nansa auxiliar

The auxiliary handle can be screwed into either side of the grinder's gearbox, depending on user preference and application. Ensure it is tightened securely before use.

4.3 Installing the Wheel Guard

Position the metal wheel guard over the spindle and secure it firmly. Adjust its position to provide maximum protection for the specific cutting or grinding task, ensuring it deflects sparks and debris away from the user.

4.4 Mounting the Disc

1. Assegureu-vos que la bateria estigui treta de l'eina.
2. Premeu el botó de bloqueig del fus per evitar que el fus giri.
3. Col·loqueu la brida interior al cargol.
4. Place the desired 115mm cutting or grinding disc onto the inner flange, ensuring it is centered.
5. Cargoleu la brida exterior al cargol.
6. Use the provided combination wrench to firmly tighten the outer flange, securing the disc in place.

Figure 3: Product components and parameter information.

5. Instruccions de funcionament

5.1 Engegada/apagada

• To turn on the tool, slide the lock switch forward.
• To turn off the tool, slide the lock switch backward to the OFF position.

5.2 Ajust de la velocitat

The angle grinder features three-speed settings: 3000 RPM, 6000 RPM, and 9000 RPM. Use the speed regulation button (typically located near the battery) to cycle through the available speeds. Select the appropriate speed for the material and task at hand.

5.3 Aplicació Examples

This versatile tool can be used for various tasks:

• Tall: Ideal for cutting metal pipes, steel bars, ceramic tiles, and marble.
• Mòlta: Effective for metal rust removal, deburring, and grinding stone.
• Polit: Suitable for polishing stainless steel security windows and other metal surfaces.

Figure 4: Various applications of the INGCO Cordless Angle Grinder.

Figure 5: Cutting a metal pipe with the angle grinder.

6. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim de la vostra esmoladora angular.

• Neteja: After each use, clean the tool with a soft, dry cloth. Use compressed air to clear dust and debris from ventilation openings. Do not use water or chemical cleaners.
• Inspecció de disc: Regularly inspect cutting and grinding discs for wear, cracks, or damage. Replace worn or damaged discs immediately.
• Cura de la bateria: Guardeu les piles en un lloc fresc i sec, allunyat de la llum solar directa. No emmagatzemeu les piles completament descarregades durant períodes prolongats.
• Emmagatzematge: Store the angle grinder and its accessories in the provided carrying case in a dry, secure location, out of reach of children.

7. Solució De Problemes

8. Especificacions

Figure 6: Comparison of INGCO Angle Grinder models.

9. Garantia i Suport

Specific warranty details are not provided in this manual. For warranty information, technical support, or spare parts, please contact INGCO customer service or refer to the official INGCO weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.

You can visit the official INGCO store for more products and information: INGCO Official Store
