1. Producte acabatview
The IMILAB SC730-D is a wired outdoor security camera featuring dual 3K+3K lenses for comprehensive surveillance. It offers 360° rotation, color night vision, advanced motion detection, a built-in spotlight and siren for deterrence, and two-way audio communication. The camera supports 24/7 continuous recording and can be controlled via the Imilab Life app, with compatibility for Google Assistant and Amazon Alexa.

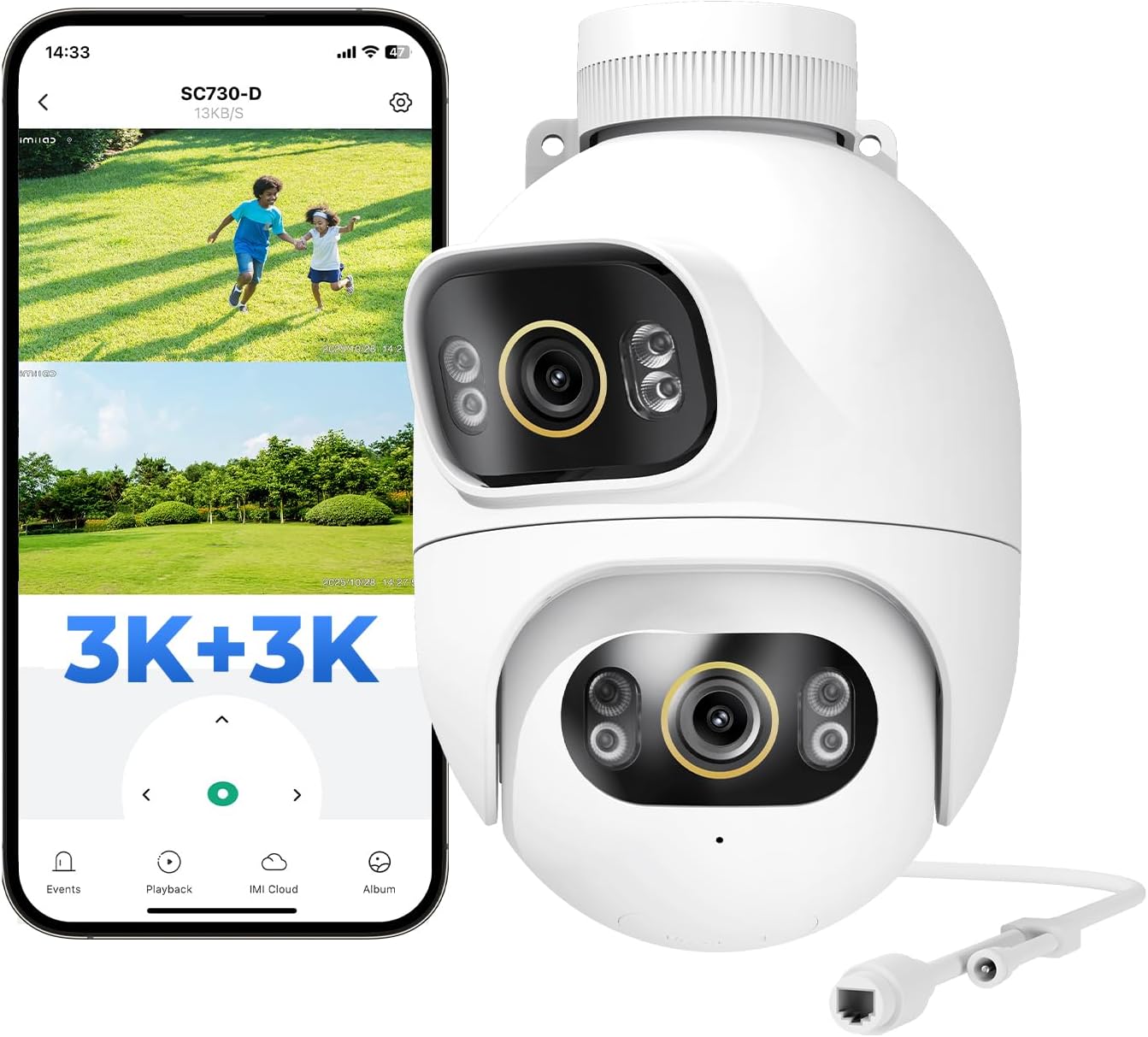

The IMILAB SC730-D 3K+3K Outdoor Security Camera, a white dual-lens device designed for comprehensive outdoor surveillance.
2. Contingut del paquet
Verifiqueu que tots els elements següents estiguin inclosos al vostre paquet:
- IMILAB SC730-D 3K+3K Camera
- Adaptador d'alimentació
- Joc de cargols
- Kit impermeable
- Adhesiu d'advertència
- Adhesiu de muntatge
- Manual d'usuari
This image displays all items included in the IMILAB SC730-D package: the camera unit, power adapter, screw set, waterproof kit, warning sticker, mounting sticker, and the user manual.
3. Configuració
3.1 Connexió inicial
- Descarrega l'aplicació: Cerca and download the 'IMILAB LIFE' application from your smartphone's app store.
- Encès: Connecteu la càmera a una font d'alimentació mitjançant l'adaptador proporcionat.
- Connexió de xarxa: Open the IMILAB LIFE app and follow the on-screen instructions to connect the camera to your network. The camera supports both 2.4 GHz Wi-Fi and LAN connections.
A visual guide outlining the three simple steps to connect the SC730-D camera: download the IMILAB LIFE app, power on and connect to your network, and complete the setup via the app.
3.2 Instal·lació física
The IMILAB SC730-D camera is designed for flexible outdoor installation on walls, ceilings, or poles. Use the provided screw set and mounting sticker for secure attachment. Ensure the installation location provides a clear field of view and stable power supply.
The IMILAB SC730-D camera can be mounted on various outdoor surfaces like walls, ceilings, or poles for optimal surveillance coverage.
4. Funcionament de la càmera
4.1 Viu View and Dual Coverage
Access the live feed through the IMILAB LIFE app. The dual lenses provide simultaneous views, allowing you to monitor two different angles at once for comprehensive 360° coverage.

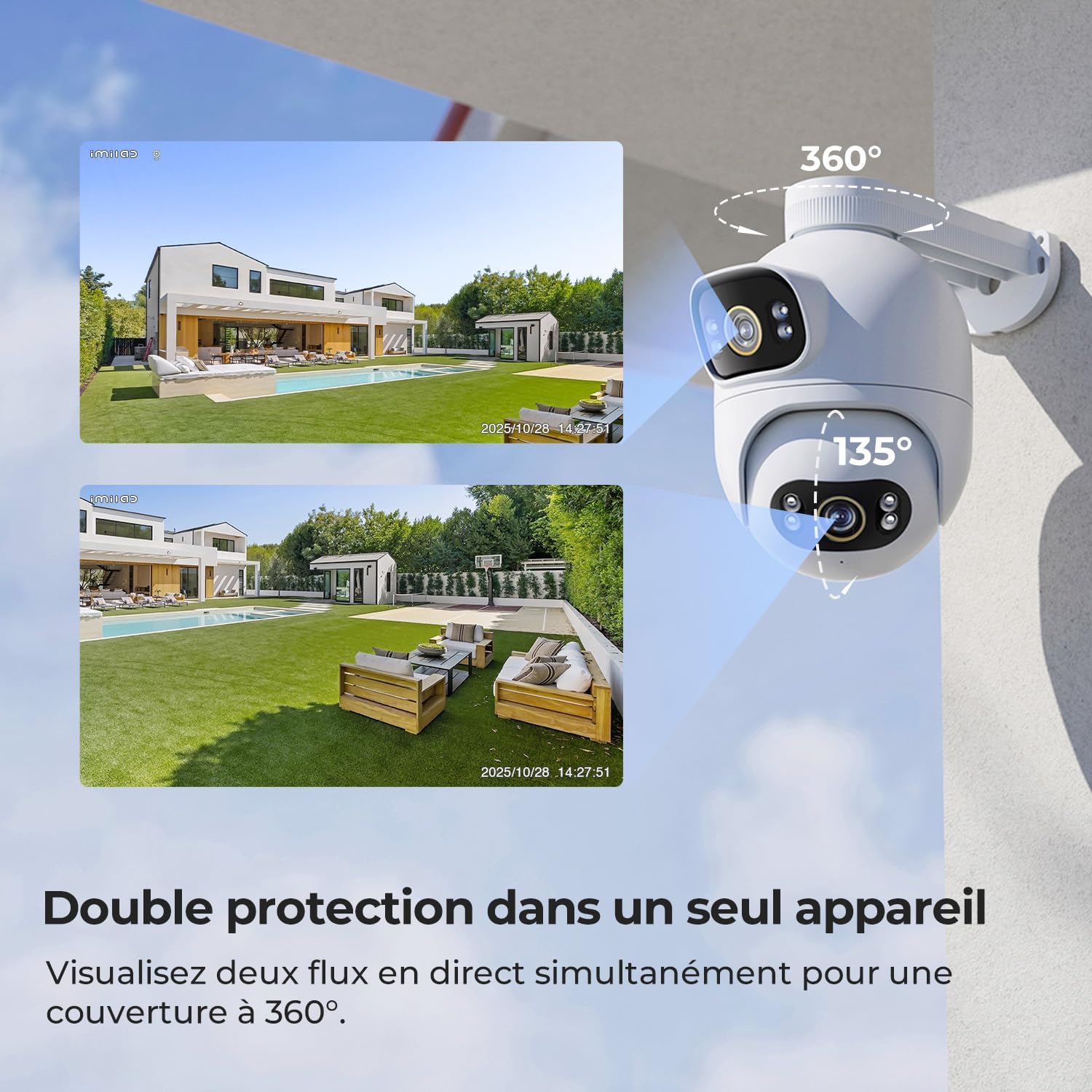

The camera's dual-lens system provides two simultaneous live views, offering comprehensive 360-degree coverage of an outdoor area, as shown on a split screen.
4.2 Modes de visió nocturna
The camera features advanced night vision capabilities, including:
- Visió nocturna en blanc i negre: Visió nocturna infraroja estàndard.
- Visió nocturna en color: Utilizes ambient light to provide color images in low-light conditions.
- Visió nocturna intel·ligent en color: Automatically switches to color night vision upon detection of a person, enhancing detail and clarity.
This visual comparison illustrates the camera's advanced night vision capabilities, transitioning from standard black and white to full-color and smart color night vision for enhanced clarity and detail after dark.
4.3 Motion Detection and Deterrence
The camera uses AI to detect motion, distinguishing between people, vehicles, and other movements. Upon detection, it can trigger a siren, activate the 800 lm spotlight, or play a pre-recorded voice message to deter intruders. You will receive instant notifications on your smartphone.
The image highlights the camera's AI security, featuring free AI detection for various objects, point-to-PTZ tracking, and smart deterrence with a spotlight and siren to ward off potential threats.
4.4 Àudio bidireccional
Utilize the built-in microphone and speaker for two-way audio communication. This allows you to speak to visitors or deter unwanted individuals directly through the camera.
This image demonstrates the camera's ultra-clear 3K/5MP resolution, showing a person at a door with the live feed on a smartphone, highlighting the two-way audio feature for real-time communication.
4.5 App Features and Smart Home Integration
The IMILAB LIFE app provides comprehensive control over your camera, including:
- Viu viewing and video playback.
- Configuration of detection zones and privacy zones.
- Instant notifications for detected events.
- PTZ (Pan-Tilt-Zoom) control for adjusting camera angles (120° manual pivot, 10° upper lens tilt).
The camera is compatible with Amazon Alexa and Google Assistant, allowing for voice control and integration into your smart home ecosystem.
A smartphone screen displays the intuitive IMILAB Life app, offering features like virtual fencing, privacy protection, automatic detection, and instant notifications for comprehensive home security management.
A smart display shows the camera's live feed, demonstrating seamless integration with Google Assistant and Amazon Alexa for convenient voice-controlled monitoring.
5. Opcions d'emmagatzematge
The IMILAB SC730-D offers flexible storage solutions for your video recordings:
- Emmagatzematge local: Supports MicroSD cards up to 256GB (not included) for 24/7 continuous recording.
- Emmagatzematge al núvol: Optional cloud storage based on motion detection is available via subscription. New users may receive a free trial period.
This image illustrates the camera's flexible storage solutions, including optional cloud storage and support for MicroSD cards up to 256GB, enabling 24/7 continuous recording, with a timeline view a l'aplicació.
The camera features a MicroSD card slot, supporting up to 256GB for local storage of video recordings.
6. Manteniment
6.1 Neteja de la càmera
To ensure optimal performance, regularly clean the camera lenses and housing. Use a soft, damp cloth to wipe away dust and dirt. Avoid using harsh chemicals or abrasive materials that could damage the lenses or finish.
6.2 actualitzacions de microprogramari
Periodically check the IMILAB LIFE app for available firmware updates. Keeping your camera's firmware up-to-date ensures you have the latest features, security enhancements, and bug fixes.
6.3 Gestió de targetes MicroSD
If using a MicroSD card for local storage, ensure it is properly inserted and formatted through the app. Regularly review i gestionar els foo emmagatzematstage to prevent the card from becoming full, which could interrupt recording.
7. Solució De Problemes
7.1 Problemes de connectivitat
- Càmera fora de línia: Check power connection and Wi-Fi signal strength. Ensure the camera is within range of your 2.4 GHz Wi-Fi network.
- Failed to Connect to App: Restart the camera and your router. Re-attempt the connection process in the IMILAB LIFE app.
7.2 Image Quality Problems
- Imatge borrosa: Clean the camera lenses. Ensure there are no obstructions in front of the camera.
- Mala visió nocturna: Check if the infrared lights or spotlight are obstructed. Ensure the camera is not pointing directly at a strong light source.
7.3 La detecció de moviment no funciona
- Sense notificacions: Verify that motion detection and notification settings are enabled in the IMILAB LIFE app. Check your phone's notification settings.
- Falses alarmes: Adjust the detection sensitivity and configure specific detection zones within the app to minimize unwanted alerts.
8. Especificacions
| Característica | Especificació |
|---|---|
| Nom del model | SC730-D |
| Tecnologia de connectivitat | 10m cable with AC adapter, 2.4 GHz WiFi connection |
| Característiques especials | Dual lens (3K+3K), Plug-in, 24/7 local recording, 800 lm adjustable lights, WiFi/LAN, 360° PTZ, 6X zoom |
| Ús interior/exterior | A l'aire lliure |
| Dispositius compatibles | Smartphones, laptops, desktops, tablets |
| Font d'alimentació | Electric cable (12V, 12W) |
| Protocol de connectivitat | Wi-Fi |
| Tipus de controlador | Amazon Alexa, Application |
| Tipus de muntatge | Ceiling mount, pole mount, wall mount |
| Color | Blanc |
| Factor de forma | Cúpula |
| Nivell de resistència a l'aigua | Impermeable (IP66) |
| Tipus d'alerta | Audio and motion |
| Tipus de font de llum | 4 LED lights + 4 infrared lights |
| Effective Capture Resolution | 5 Megapixels (3K+3K) |
| Codificació de vídeo | H.265 |
| Format de captura de vídeo | MP4 |
| Velocitat de fotogrames | 20 fotogrames per segon |
| Gamma de visió nocturna | 3 metres |
| Tipus de visió nocturna | Visió nocturna de color intel·ligent |
| Max. Supported Flash Memory | 256 GB (Micro SD) |
| View Angle | 360 graus |
| Zoom òptic | 3x |
| Dimensions de l'article | 12 x 20 x 27 centímetres |
9. Vídeos de productes
Video demonstrating the IMILAB SC730-D outdoor security camera's features, including its waterproof design, easy installation, dual lenses, 2K resolution, color night vision, motion detection, two-way audio, smart home integration, and local storage.
Vídeo footage from the IMILAB SC730-D camera showing a car driving through a snowy residential street, demonstrating the camera's wide field of view and recording quality in outdoor conditions.
This video highlights the key functionalities of the IMILAB EC6 Dual camera, which shares many features with the SC730-D. It demonstrates dual-angle surveillance, color night vision, intelligent deterrence mechanisms, instant push notifications, flexible video storage options, and seamless integration with smart home assistants.
10. Garantia i Suport
IMILAB products come with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your package or visit the official IMILAB website. For technical support, troubleshooting assistance, or any product-related inquiries, please contact IMILAB customer service through their official channels.
