FOXLUX 10 Inch LED RGBW Inground Pool and Spa Light

1. Introducció

Thank you for choosing the FOXLUX 10 Inch LED RGBW Color Changing Inground Pool and Spa Light. This product is designed to enhance your pool or spa with vibrant, customizable lighting. Featuring a durable stainless steel casing and IP68 waterproof rating, this light offers energy-efficient illumination and easy control via a remote. This manual provides essential information for safe installation, operation, and maintenance.

Image 1.1: The FOXLUX 10 Inch LED RGBW Pool Light with its remote control, showcasing its color-changing capabilities and waterproof design.

2. Informació de seguretat

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or property damage.

• Volum baixtage Operació: This light operates on a 12V AC input. A transformer is required to convert standard AC120V household current to AC12V. The transformer is no inclòs i s'han de comprar per separat.
• Instal·lació professional recomanada: Due to the electrical nature and underwater application, professional installation by a qualified electrician is highly recommended.
• Classificació impermeable: The light is IP68 rated, meaning it is fully sealed and protected against continuous immersion in water. Ensure all connections are properly sealed and waterproofed according to local electrical codes.
• Desconnexió d'alimentació: Always disconnect power to the pool lighting circuit at the breaker before attempting any installation, maintenance, or troubleshooting.
• Gestió de cables: Ensure the 50-foot cord is routed safely and securely, away from sharp edges or potential damage.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• 1 x FOXLUX 10 Inch LED RGBW Inground Pool Light (with 50-foot cord)
• 1 x Remote Control (requires 1x 23A 12V battery, not included)
• 1 x Manual d'usuari (aquest document)

4. Especificacions

5. Configuració i instal·lació

This light is designed for direct installation into standard 10-inch wet niches, eliminating the need for additional rings, housing, or gaskets. Ensure you have a compatible 10-inch niche before proceeding.

Requisits d'energia de 5.1

The FOXLUX pool light requires a 12V AC power supply. If your existing wiring is 120V AC, a step-down transformer (AC120V to AC12V) is essential. This transformer is no inclòs and must be purchased separately. Ensure the transformer's wattage capacity is sufficient for the number of lights connected (e.g., a 160-watt transformer can power up to six 24-watt lights).

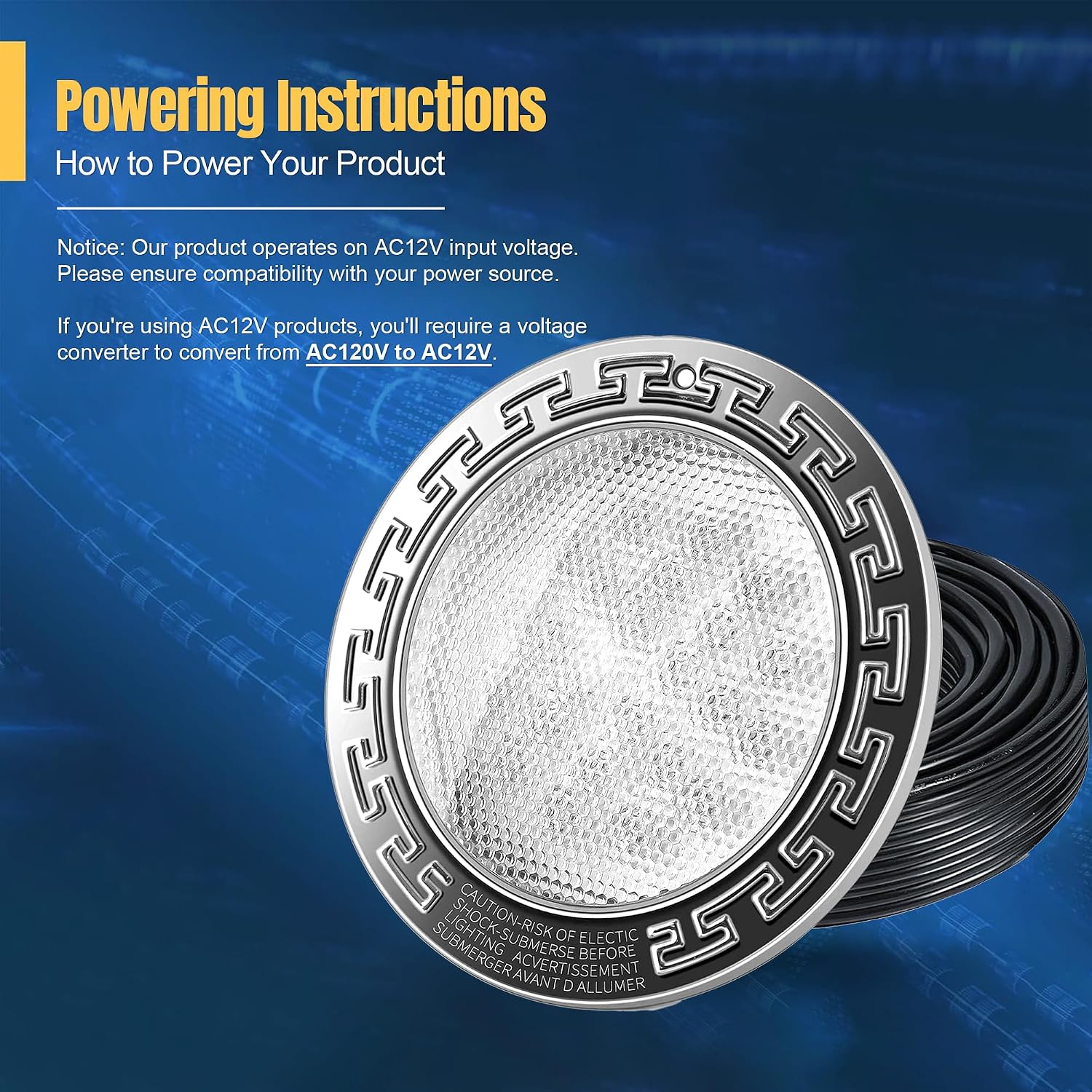

Image 5.1: Powering instructions highlighting the need for an AC12V input and a voltage converter if using AC120V.

5.2 Passos d'instal·lació

1. Desconnecteu l'alimentació: Turn off the main power to your pool lighting circuit at the breaker. Verify power is off using a voltage provador.
2. Prepara el nínxol: Ensure your existing 10-inch wet niche is clean and free of debris.
3. Encaminament de cables: Route the 50-foot power cord through the conduit to the control box. Leave approximately 4 feet of cable coiled around the fixture within the niche for future servicing.
4. Connecteu el cablejat: Connect the light's 12V AC wires to your transformer's 12V AC output, following all local electrical codes and manufacturer instructions for the transformer. Ensure all connections are waterproof.
5. Llum de la Muntanya: Align the light with the 10-inch niche. The light features a 12 o'clock pilot screw and a 6 o'clock tang for secure fitting. Fasten the light securely into the niche.
6. Segell: Ensure the light is properly seated and sealed within the niche to maintain its IP68 waterproof integrity.
7. Restaura l'alimentació: Once installation is complete and all connections are secure and waterproof, restore power to the circuit.

Image 5.2: An installation diagram illustrating the placement of the light, conduit, and control box relative to the pool and water level.

Image 5.3: The FOXLUX 10-inch pool light is compatible with most standard 10-inch wet niches, including those for concrete, vinyl, and fiberglass pools.

Imatge 5.4: posterior view of the light, highlighting its integrated stainless steel design and key mounting points like the 12 o'clock pilot screw and 6 o'clock tang.

6. Instruccions de funcionament

The FOXLUX pool light is controlled using the included remote control. Ensure the remote has a 23A 12V battery installed (not included).

6.1 Funcions de control remot

The remote allows you to turn the light on/off, change colors, and select dynamic modes from up to 180 feet away.

Image 6.1: Remote control layout and button functions for controlling the pool light.

• ON/OFF: Encén o apaga la llum.
• SPEED + / SPEED-: Adjusts the speed of dynamic color-changing modes.
• Color Buttons (R, G, B, YE, CY, PU, WHT): Selects static colors: Red, Green, Blue, Yellow, Cyan, Purple, White.
• Modes dinàmics:
  • 7color Flashing: Cicla entre 7 colors amb un efecte intermitent.
  • 7color JUMP: Cycles through 7 colors with a jumping transition.
  • AUTOMÀTIC: Automatic cycling through various modes.
  • RGB JUMP: Cycles through Red, Green, Blue with a jumping transition.
  • BGR JUMP: Cycles through Blue, Green, Red with a jumping transition.
  • 7color Gradual: Smooth transition through 7 colors.
  • 6color Gradual: Smooth transition through 6 colors.

Imatge 6.2: Ex.amples of adjustable RGBW color options available with the light, including static colors like Red, Green, Blue, White, Yellow, Purple, and Cyan.

7. Manteniment

The FOXLUX LED pool light is designed for durability and minimal maintenance. The seamless stainless steel casing and IP68 rating ensure long-term performance without the need for annual bulb changes.

• Neteja: Periodically clean the light's lens to ensure maximum light output. Use a soft cloth and mild pool-safe cleaning solution. Do not use abrasive cleaners or tools that could scratch the lens or casing.
• Inspecció: Regularly inspect the power cord for any signs of wear, cuts, or damage. If damage is found, disconnect power immediately and contact a qualified professional for repair or replacement.
• Bateria remota: Replace the 23A 12V battery in the remote control when its range or responsiveness decreases.

8. Solució De Problemes

If you encounter issues with your FOXLUX pool light, refer to the following common troubleshooting steps:

• El llum no s'encén:
  • Check if the power supply to the light is active at the circuit breaker.
  • Ensure the transformer (if used) is functioning correctly and providing 12V AC output.
  • Verify the remote control battery is installed correctly and has sufficient charge. Replace if necessary.
  • Ensure the remote control is within the operating range (up to 180 feet) and has a clear line of sight to the light (or its receiver).
• Light Flickers or Changes Colors Incorrectly:
  • Check for stable 12V AC power supply. Fluctuations can affect performance.
  • Ensure the remote control battery is not low.
  • Interference from other electronic devices might affect remote signal. Try operating closer to the light.
• El control remot no respon:
  • Substituïu la bateria de 23 A 12 V.
  • Assegureu-vos que no hi hagi obstacles entre el comandament a distància i la llum.

If these steps do not resolve the issue, please contact FOXLUX customer service for further assistance.

9. Garantia i Suport

The FOXLUX 10 Inch LED RGBW Inground Pool and Spa Light comes with a 3 any de garantia des de la data de compra. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.

For warranty claims, technical support, or any questions regarding your product, please contact FOXLUX customer service. Our friendly customer service team is available 24/7 to assist you.

Informació de contacte: Please refer to the FOXLUX official weblloc web o la documentació de la compra per obtenir les dades de contacte del servei d'atenció al client més actualitzades.
