User Manual: Cordless Automatic Robotic Pool Cleaner

1. Introducció

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your new Cordless Automatic Robotic Pool Cleaner. Please read this manual thoroughly before initial use and retain it for future reference.

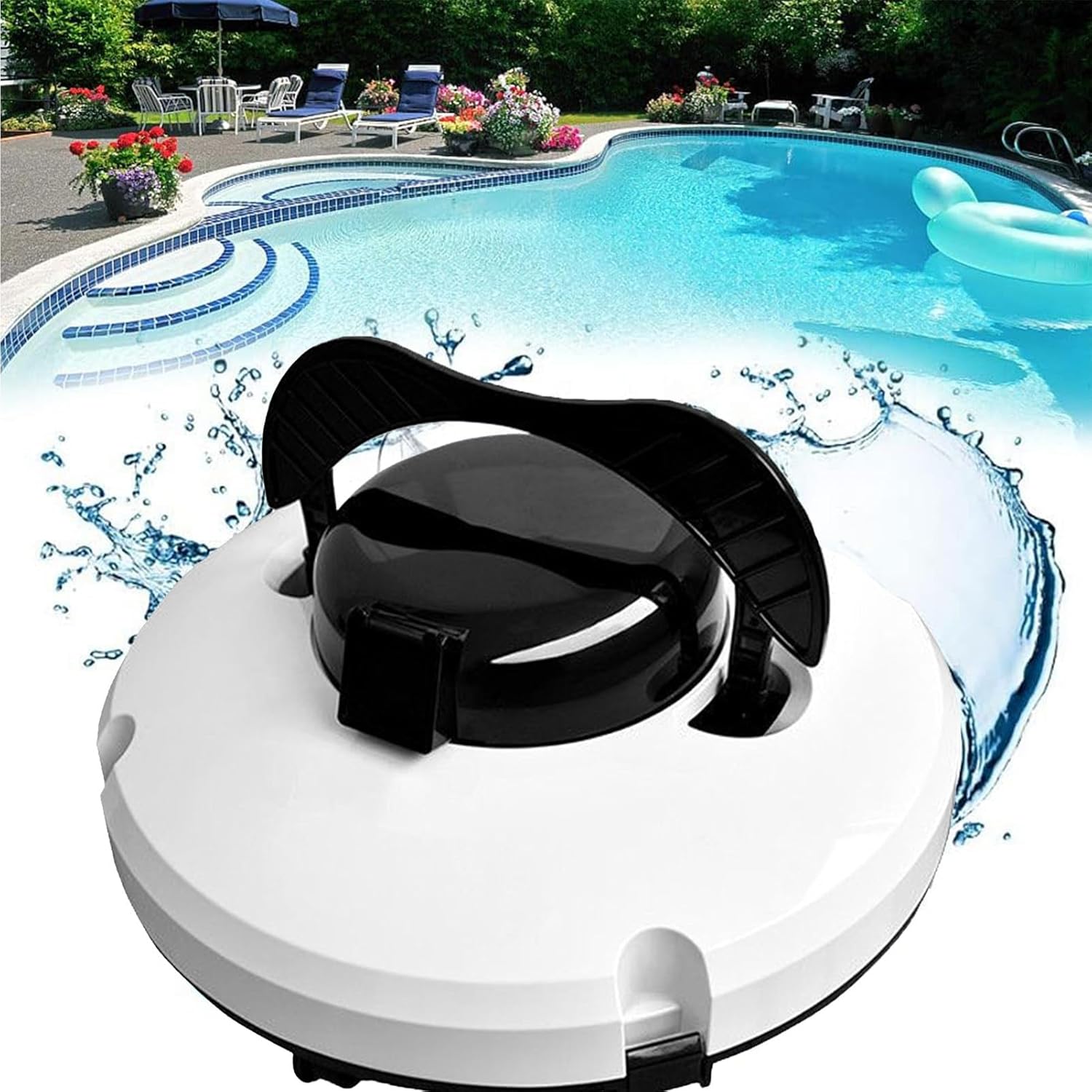

Figure 1: The Cordless Automatic Robotic Pool Cleaner in a pool environment.

2. Precaucions de seguretat

Adhering to these safety guidelines is crucial for preventing damage to the unit and ensuring user safety:

• Charging Pin Care: After each use, ensure the charging pin is completely dry using a paper towel or cotton swab. Allow the unit to air dry for several minutes before connecting to the charger.
• Immediate Submersion: Place the pool cleaner into the water immediately after switching it on. Delaying submersion will cause the unit to beep.
• Power Off When Out of Water: Always turn off the power switch when the cleaner is not in the water. This protects the internal battery and motor from damage.
• Entorn de càrrega: Charge the pool cleaner in a cool, well-ventilated area. Do not cover the unit during charging, as this can lead to overheating and damage to electrical components.
• Avoid Stairs: Do not use the pool cleaner to clean pool stairs. The unit is designed for flat pool surfaces and may be damaged by uneven surfaces or steps.

Figure 2: The cleaner automatically stops and signals low battery for easy retrieval.

3. Característiques del producte

Your Cordless Automatic Robotic Pool Cleaner is engineered with advanced features for superior pool cleaning:

• Funcionament sense fil: Provides unrestricted movement and eliminates tangled cords.
• Advanced Debris Cleaning System: Equipped with double powerful motors and two debris suction holes for thorough cleaning.
• Ultra-Fine Filter: Features an upgraded 180 micron filter density for capturing fine particles.
• Temps de treball ampliat: Offers approximately 120 minutes of continuous cleaning on a single charge.
• Efficient Mobility: Utilizes 4 travelling wheels suitable for various swimming pool surfaces.
• Large Filter Canister: An extra-large, easy-to-clean filter canister simplifies maintenance.
• Automatic Retrieval: Automatically pulls over to the edge when the battery is low, making retrieval and recharging convenient.

Figure 3: Key features of the robotic pool cleaner.

Figure 4: The advanced debris cleaning system with dual motors and suction holes.

4. Components and Structure

Familiarize yourself with the main components of your pool cleaner:

• Cos de la unitat principal: Houses the motors, battery, and control system.
• Filter Canister: Collects debris and is easily removable for cleaning.
• Port de càrrega: Located on the unit for connecting the charger.
• Interruptor d'alimentació: Controls the unit's power.
• Travelling Wheels: Four wheels for movement across pool surfaces.
• Blade Brushes: Two brushes for scrubbing pool surfaces.
• Retrieval Hook Handle: A handle designed for easy lifting of the unit from the pool.

Figure 5: Details of the larger debris inlet and the 4 travelling wheels.

5. Configuració i càrrega

1. Càrrec inicial: Before first use, fully charge the pool cleaner. Connect the charger to the unit's charging port and plug it into a power outlet. The charging time is approximately 4-5 hours.
2. Entorn de càrrega: Ensure the unit is in a cool, dry place during charging. Do not cover the unit.
3. Post-Use Drying: After each cleaning cycle, dry the charging pin thoroughly before recharging to prevent corrosion.

6. Instruccions de funcionament

1. Encès: Locate the power switch on the unit and turn it to the "ON" position.
2. Immersió: Immediately after powering on, gently place the pool cleaner into the water. Ensure it is fully submerged.
3. Cicle de neteja: The cleaner will begin its automatic cleaning cycle, navigating the pool floor. The work cycle is approximately 120 minutes.
4. Parada automàtica: When the battery is low, the cleaner will automatically move to the edge of the pool and stop, indicating it's ready for retrieval and recharging.
5. Recuperació: Use the retrieval hook handle to carefully lift the cleaner out of the pool.
6. Apagar: Once retrieved, turn the power switch to the "OFF" position before performing any maintenance or charging.

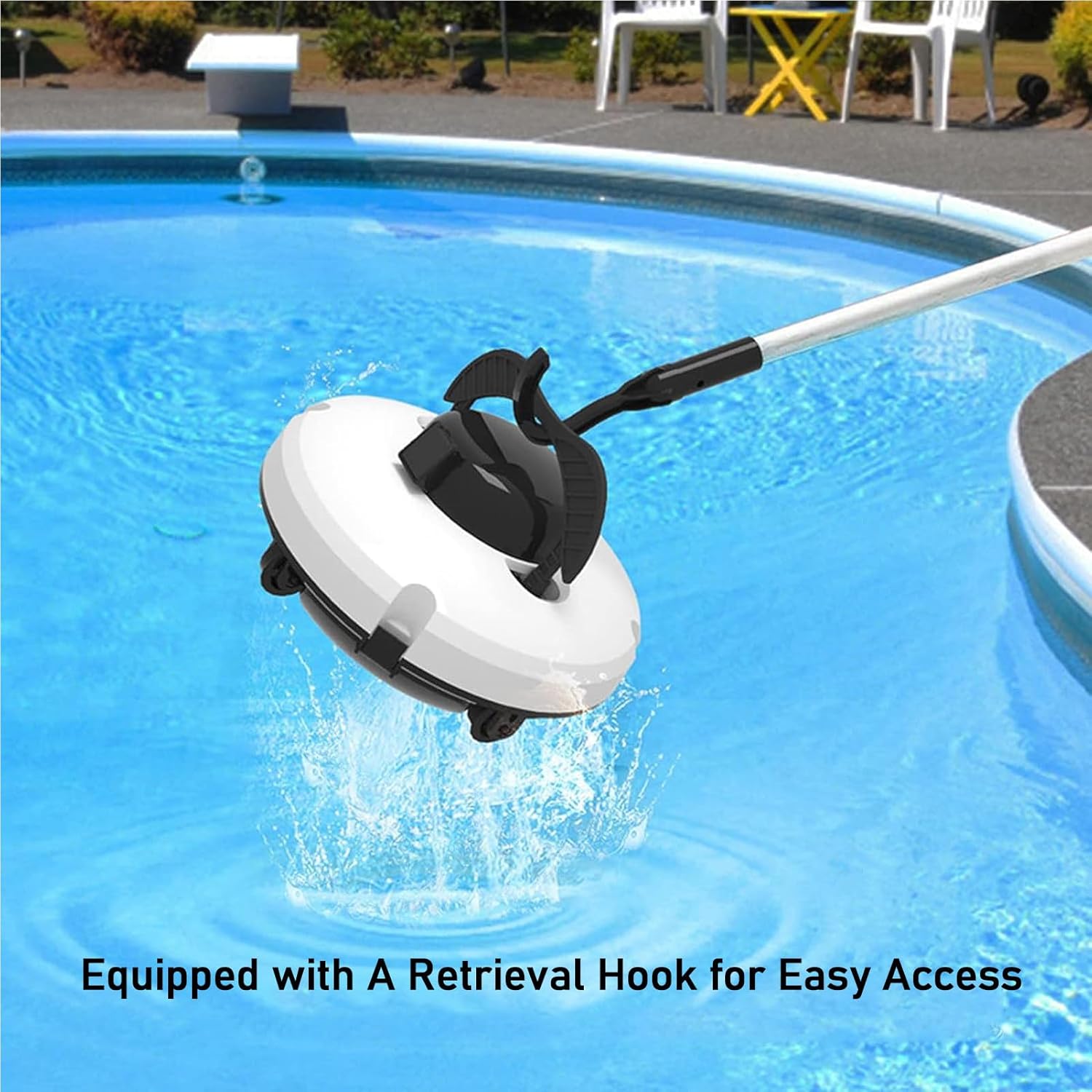

Figure 6: The cleaner is equipped with a retrieval hook for easy access from the pool.

7. Manteniment

Regular maintenance ensures optimal performance and longevity of your pool cleaner:

• Neteja de filtres: After each use, remove the filter canister and empty collected debris. Rinse the filter thoroughly with clean water. The filter is designed for easy cleaning.
• Neteja de la unitat: Netegeu l'exterior del netejador amb un drap suau iamp tela. No utilitzeu productes químics o materials abrasius.
• Charging Port Drying: Always dry the charging pin and port completely before charging.
• Emmagatzematge: When not in use for extended periods, store the cleaner in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the battery is partially charged (around 50%) before long-term storage.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

For any questions, concerns, or technical support regarding your Cordless Automatic Robotic Pool Cleaner, please contact our customer service team. We are committed to providing the best service and will reply to your inquiries as soon as possible.

Consulteu la documentació de compra per conèixer els termes específics de la garantia i la informació de contacte.
