Introducció
This AZZUNO Portable MIG Welder is engineered for both professional welders and DIY enthusiasts, offering unparalleled flexibility and ease of use. Its compact and portable design ensures convenience for various projects.
The welder supports gasless MIG welding, which simplifies the setup process and makes it an ideal choice for outdoor applications. It is compatible with both 0.030 inch (0.76mm) and 0.035 inch (0.889mm) flux-cored welding wires, providing versatility for different project requirements.
Operating on a standard 110V outlet, this welder delivers a maximum output current of 100A, providing sufficient power to handle a variety of welding tasks with ease. For enhanced safety, it is equipped with an overheat warning system that alerts the user and pauses operation if the machine exceeds safe temperatures. An efficient integrated cooling fan system further improves safety by rapidly dissipating heat to maintain optimal performance.
Guia de configuració
The AZZUNO Portable MIG Welder is designed for straightforward setup, especially with its gasless MIG welding capability.
- Desembalatge: Carefully remove all components from the packaging. Verify that all items listed in the 'Package Contents' section (refer to product packaging) are present.
- Instal·lació de la bobina de filferro: Open the wire compartment. Install the provided 0.030 inch (0.76mm) flux-cored wire spool onto the spindle. Ensure the wire feeds smoothly into the drive roller.
- Drive Roller Adjustment: The machine comes with a 0.030 inch K-groove drive roller installed. If you plan to use a different wire size (e.g., 0.035 inch), ensure the appropriate drive roller is installed.
- Contact Tip and Nozzle: Ensure the correct contact tip (0.030 inch or 0.035 inch, matching your wire) and nozzle are securely attached to the welding torch.
- Terra Clamp Connexió: Connecteu la terra clamp securely to the workpiece. Ensure good electrical contact for optimal welding performance.
- Connexió d'alimentació: Plug the welder into a standard 110V power outlet.
This image displays the AZZUNO Portable Flux Core MIG Welder along with its essential accessories, including the welding torch, ground clamp, flux-cored wire spool, contact tips, and a cleaning brush.
Instruccions de funcionament
This section outlines the basic steps for operating your AZZUNO Portable MIG Welder.
- Encès: Engegueu la soldadora amb l'interruptor principal.
- Ajust de velocitat d'alimentació de filferro: Adjust the wire feed speed using the control knob. Start with a moderate setting and adjust as needed based on the material thickness and desired weld. The current output is typically regulated by the wire feed speed in flux-cored welding.
- Tècnica de soldadura: Position the welding torch at the correct angle to the workpiece. Press the trigger to initiate the arc and begin welding. Maintain a consistent travel speed and arc length for uniform welds.
- Protecció contra el sobreescalfament: The welder is equipped with an overheat warning system. If the machine exceeds safe operating temperatures, a light indicator will activate, and the machine will pause operation. Allow the unit to cool down before resuming work.

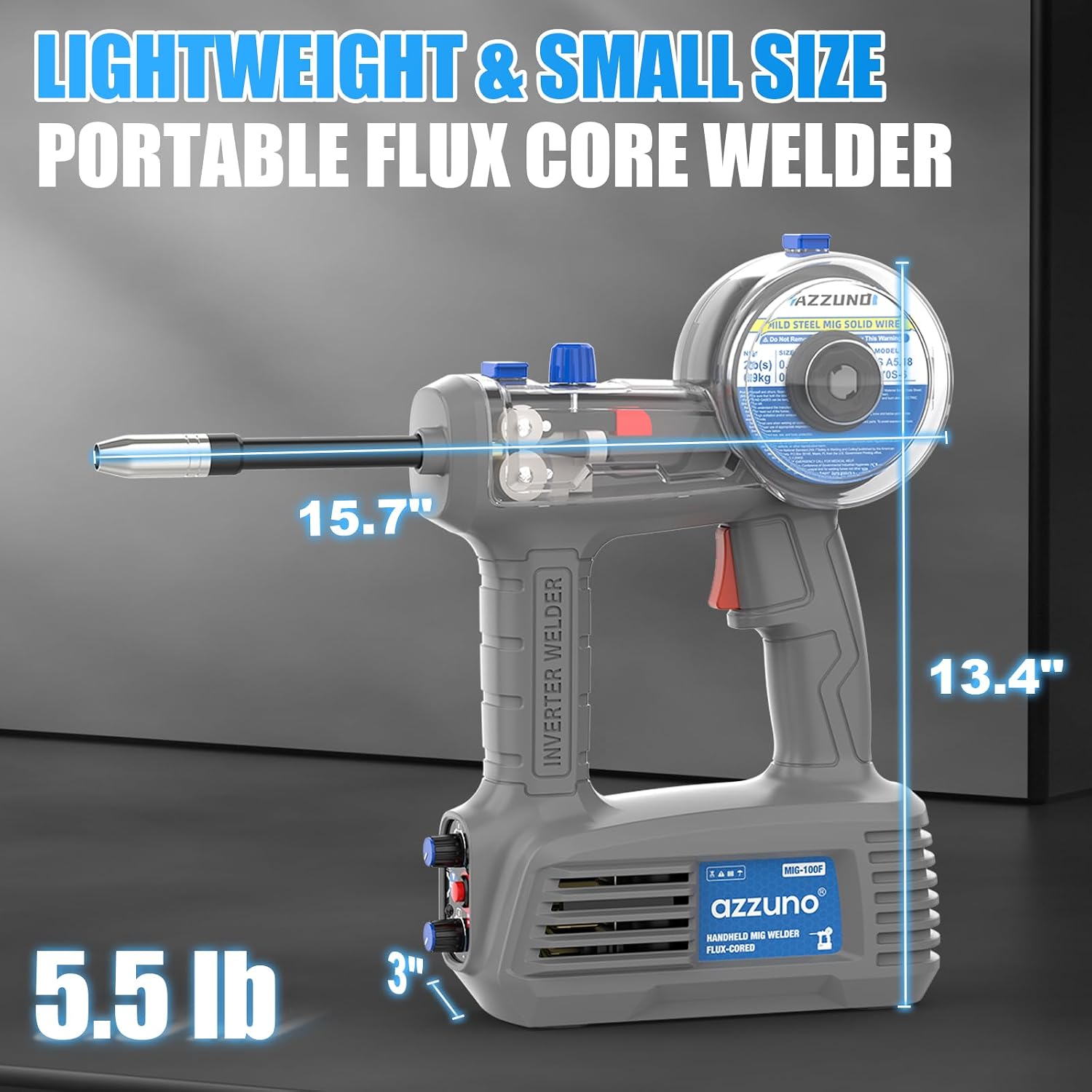

This image illustrates the compact dimensions of the AZZUNO Portable Flux Core MIG Welder, highlighting its length (15.7 inches), height (13.4 inches), and width (3 inches), along with its lightweight design at 5.5 lbs.
Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim del vostre soldador.
- Contact Tip Replacement: Periodically inspect and replace the contact tip as it wears out. Worn tips can lead to poor arc stability and wire feeding issues.
- Neteja de broquets: Clean the welding nozzle regularly to remove spatter buildup, which can obstruct the torch's function and visibility.
- Drive Roller Cleaning: Keep the drive rollers clean and free of debris to ensure smooth and consistent wire feeding.
- Cooling Fan Maintenance: Ensure the cooling fan vents are clear of obstructions to allow for efficient heat dissipation. The integrated cooling fan system is crucial for maintaining optimal performance and preventing overheating.
- Neteja general: Wipe down the exterior of the welder with a clean, dry cloth after each use to remove dust and debris.
Resolució de problemes
This section provides solutions to common issues you might encounter during the operation of your welder.
| Problema | Causa possible | Solució |
|---|---|---|
| Sense poder | Cable d'alimentació desconnectat, interruptor automàtic saltat, interruptor d'alimentació avariat. | Check power connection, reset circuit breaker, contact customer support if switch is faulty. |
| Wire Feeding Issues | Worn contact tip, clogged nozzle, incorrect drive roller tension, tangled wire spool. | Replace contact tip, clean nozzle, adjust drive roller tension, untangle wire or re-spool. |
| Overheat Warning Light On | Extended use, blocked cooling vents, high ambient temperature. | Allow welder to cool down, ensure vents are clear, operate in a well-ventilated area. |
| Mala qualitat de soldadura | Incorrect wire feed speed, improper technique, dirty workpiece. | Adjust wire feed speed, refine welding technique, clean workpiece thoroughly. |
Especificacions
- Model: MIG-100F
- Entrada Voltage: 110 V
- Corrent de sortida màxima: 100A
- Welding Type: Gasless Flux Core MIG
- Compatible Wire Sizes: 0.030 polzada (0.76 mm), 0.035 polzades (0.889 mm)
- Dimensions: Aproximadament 15.7 x 13.4 x 3 polzades (39.9 x 34 x 7.6 cm)
- Pes: Aproximadament 5.5 lliures (2.5 kg)
- Característiques de seguretat: Overheat warning system, efficient cooling fan
Garantia i Suport
AZZUNO is committed to providing reliable customer service. For any questions regarding our products, assistance with your purchase, or after-sales support, please contact our 24-hour customer service team.
Informació de la garantia: Specific warranty terms are not detailed in this manual. Please refer to the product packaging or contact AZZUNO customer support for detailed warranty information.
Contacte amb l'assistència: Please visit the official AZZUNO website or refer to the contact information provided with your product for direct support.
