TCL W08P-CF14D Window Air Conditioner User Manual

1. Introducció

Thank you for choosing the TCL W08P-CF14D Window Air Conditioner. This manual provides essential information for the safe installation, operation, and maintenance of your new air conditioning unit. Please read these instructions thoroughly before using the appliance and retain them for future reference.

The TCL W08P-CF14D is an 8,000 BTU (British Thermal Units) window-mounted air conditioner designed to provide efficient cooling for rooms between 11 and 16 square meters. It operates on a 110V power supply and uses R32 refrigerant. Key features include 4-way air direction, a filter light reminder, a sleep mode, and convenient control via a wireless remote or the unit's push buttons.

2. Informació de seguretat

Per evitar lesions a l'usuari o altres persones i danys a la propietat, s'han de seguir les instruccions següents. Un funcionament incorrecte a causa d'ignorar les instruccions pot causar danys o danys.

• Always connect the unit to a properly grounded 110V, 60Hz power outlet. Do not use extension cords or adapter plugs.
• Do not operate the air conditioner with wet hands or when standing on a wet surface.
• Ensure the unit is securely installed in a window opening according to the installation instructions to prevent it from falling.
• Keep children away from the unit. Do not allow them to play with the air conditioner.
• No introduïu els dits ni objectes estranys a les reixetes d'entrada o sortida d'aire.
• Turn off the air conditioner and unplug it from the power outlet before cleaning or performing any maintenance.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• TCL W08P-CF14D Window Air Conditioner Unit
• Comandament a distància sense fil
• Installation Hardware (e.g., mounting brackets, foam seals)
• Manual d'usuari (aquest document)

4. Instal·lació i configuració

The TCL W08P-CF14D is designed for window installation. Proper installation is crucial for optimal performance and safety.

4.1 Triar una ubicació d'instal·lació

• Select a sturdy window frame that can support the unit's weight (approximately 23 kg).
• Ensure the window opening is compatible with the unit's dimensions: 45 cm (depth) x 37.8 cm (width) x 54 cm (height).
• The unit is suitable for cooling rooms between 11 and 16 square meters.
• Ensure there is a grounded 110V power outlet within reach of the power cord.

Image: The TCL W08P-CF14D Window Air Conditioner shown installed in a typical window opening, demonstrating its integration into a room environment.

4.2 Dimensions de la unitat

Refer to the diagram below for the physical dimensions of the air conditioner unit.

Image: A diagram illustrating the dimensions of the TCL W08P-CF14D Window Air Conditioner, showing its depth (45 cm), width (37.8 cm), and height (54 cm).

4.3 Passos d'instal·lació

Detailed installation instructions are typically provided in a separate installation guide or within the full manual. Generally, the process involves:

1. Preparing the window opening.
2. Securing the mounting brackets to the window sill.
3. Carefully lifting and placing the unit into the window opening.
4. Extending the side panels to seal the opening.
5. Securing the unit to the window frame.
6. Sealing any gaps with foam strips to prevent air leakage.

5. Instruccions de funcionament

Your TCL W08P-CF14D air conditioner can be operated using the control panel on the unit or the wireless remote control.

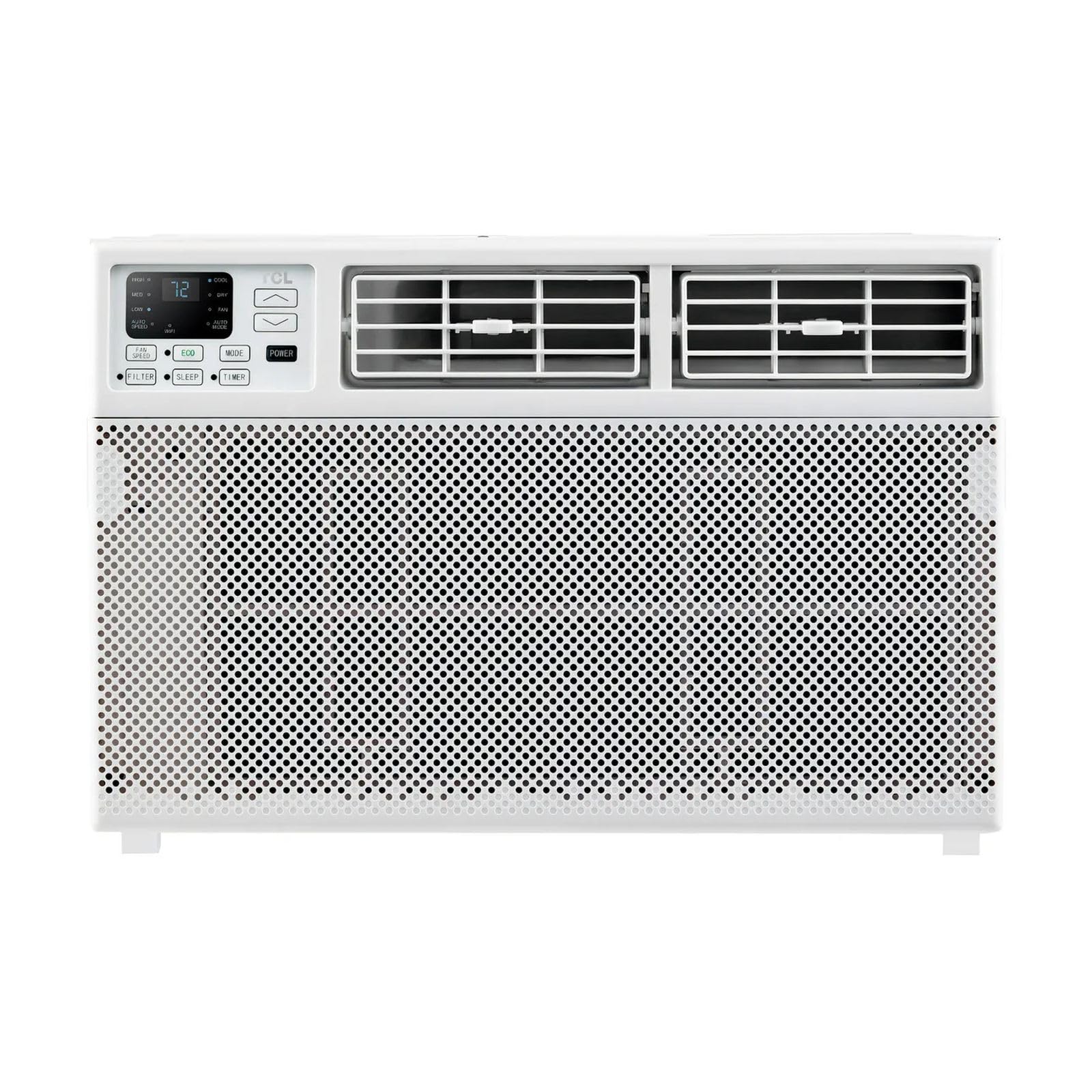

Imatge: Un primer pla view of the TCL W08P-CF14D Window Air Conditioner, highlighting its digital display and control buttons on the front panel.

5.1 Tauler de control

The unit features an intuitive control panel with push buttons for various functions.

• Botó d'encesa: Encén o apaga la unitat.
• Botó de mode: Cycles through available operating modes (e.g., Cool, Fan, Dry). This model primarily features a cooling mode.
• Botons per pujar/baixar la temperatura: Ajusteu la temperatura desitjada.
• Botó de velocitat del ventilador: Selects fan speed (Low, Medium, High). There are 3 power levels available.
• Botó de mode de repòs: Activates or deactivates sleep mode for quieter operation and energy saving during sleep.
• Filter Light Reset: Resets the filter reminder light after cleaning the air filter.

5.2 Control remot sense fils

The included wireless remote control provides convenient access to all functions from a distance. Ensure the remote has fresh batteries and is pointed towards the unit's receiver.

5.3 Direcció del flux d'aire

The unit features 4-way air direction. Manually adjust the horizontal and vertical louvers on the front of the unit to direct the airflow as desired for optimal cooling distribution.

5.4 Noise Levels

The operating noise level of the unit is approximately 35 decibels. During high fan operation, noise levels can reach up to 58 dBA, medium at 56 dBA, and low at 53 dBA.

6. Manteniment

Un manteniment regular garanteix un funcionament eficient i allarga la vida útil del vostre aire condicionat.

6.1 Neteja del filtre d'aire

The unit is equipped with a filter light reminder. When this light illuminates, it indicates that the air filter needs cleaning. A dirty filter can reduce cooling efficiency and airflow.

• Apagueu la unitat i desendolleu-la de la presa de corrent.
• Obriu el panell frontal i retireu amb cura el filtre d'aire.
• Renteu el filtre amb aigua tèbia i sabó. Esbandiu-lo bé i deixeu-lo assecar completament a l'aire abans de tornar-lo a inserir.
• Once the filter is reinstalled, press the Filter Light Reset button on the control panel (if available) or refer to the full manual for specific reset instructions.

6.2 Neteja exterior

Netegeu l'exterior de la unitat amb un damp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.

7. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes i solucions habituals:

• La unitat no s'encén: Check if the unit is properly plugged into a working 110V outlet. Ensure the circuit breaker has not tripped.
• La unitat no refreda eficaçment: Verify that the air filter is clean. Ensure windows and doors are closed to prevent warm air from entering the room. Check if the temperature setting is lower than the ambient room temperature.
• Sorolls inusuals: Minor operational noises are normal. If you hear loud or unusual noises, turn off the unit and inspect for any obstructions.
• Fuga d'aigua: Ensure the unit is tilted slightly outwards during installation to allow proper drainage of condensation.

For issues not resolved by these steps, please contact TCL customer support.

8. Especificacions

9. Garantia i Suport

Your TCL W08P-CF14D Window Air Conditioner comes with a 1-year limited warranty directly from the manufacturer.

For warranty claims, technical support, or further assistance, please contact TCL customer service. You can also visit the official TCL store for more information:

Visit the TCL Store
