Manual d'instruccions de la cadira d'oficina ampla COLAMY Model 7261+7261W

1. Introducció

Thank you for choosing the COLAMY Wide Office Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read these instructions thoroughly before use and retain them for future reference.

Informació de seguretat

Capacitat de pes màxim: Aquesta cadira està dissenyada per suportar un pes màxim de 275 lliures (125 kg). Exceeding this limit may cause damage to the chair and potential injury.
Muntatge requerit: Follow all assembly instructions carefully to ensure the stability and safety of the chair. Do not use power tools for assembly unless specifically instructed, as this may overtighten screws and damage components.
Inspecció periòdica: Reviseu periòdicament tots els cargols i perns per assegurar-vos que estiguin ben ajustats. Torneu a apretar-los si cal.
Ús adequat: Feu servir la cadira només per a la seva finalitat prevista, com a cadira d'oficina o d'escriptori. Eviteu estar dret a la cadira o utilitzar-la com a tamboret.
Protecció del sòl: While the casters are designed for various floor types, consider using a chair mat to protect delicate flooring.

2. Contingut del paquet

Abans de començar el muntatge, assegureu-vos que tots els components siguin presents i no estiguin danyats. Si hi ha alguna peça que falti o que estigui danyada, poseu-vos en contacte amb el servei d'atenció al client.

Explotat view of COLAMY Wide Office Chair components including seat, backrest, gas lift, base, and casters.

Imatge: Explotat view of the COLAMY Wide Office Chair showing all individual components required for assembly. This includes the seat cushion, backrest, gas lift cylinder, five-star cross base, five casters, and various screws and tools.

Coixí de seient (1)
Respatller (1)
Gas Lift Cylinder (1)
Cross Base (1)
Rodes (5)
Hardware Pack (Screws, Washers, Allen Wrench) (1)

3. Instruccions de muntatge i instal·lació

Follow these steps carefully to assemble your COLAMY Wide Office Chair. It is recommended to assemble the chair on a soft, clean surface to prevent damage.

Fixeu les rodes a la base: Insert each of the five casters into the holes at the end of each leg of the cross base. Push firmly until they click into place.
Inseriu l'elevador de gas a la base: Place the gas lift cylinder into the center hole of the assembled cross base. Ensure it sits securely.
Fixar el respatller al seient: Align the backrest with the mounting plate on the underside of the seat cushion. Secure with the provided screws and Allen wrench. Do not overtighten.
Connecteu el conjunt del seient a l'elevador de gas: Carefully place the assembled seat and backrest onto the top of the gas lift cylinder. Apply gentle downward pressure to secure it.
Comprovació final: Assegureu-vos que totes les connexions estiguin ben fixades i que la cadira estigui estable abans d'utilitzar-la.

Assembled COLAMY Wide Office Chair from a side angle, showing the seat, backrest, gas lift, and cross base with casters.

Imatge: A fully assembled COLAMY Wide Office Chair, viewed from the side, highlighting its compact and armless design. The chair features a blue fabric upholstery, a black gas lift, and a black cross base with casters.

4. Instruccions de funcionament

Your COLAMY Wide Office Chair offers several adjustable features for personalized comfort.

Diagram showing the adjustable features of the COLAMY Wide Office Chair, including height adjustment and 100-115 degree reclining angle.

Imatge: An illustration detailing the adjustable features of the chair. It shows a 9.5 cm height adjustment range via a lever and a 100-115 degree reclining angle, indicating the chair's rocker function.

Ajust d'alçada: To adjust the seat height, lift the lever located under the right side of the seat.
- To raise the seat: Lift the lever while taking your weight off the seat.
- To lower the seat: Lift the lever while remaining seated.
Release the lever to lock the seat at the desired height. The chair offers approximately 9.5 cm (3.54 inches) of height adjustment.
Rocker Function (Tilt): The chair features a 115° rocker function for comfortable reclining.
- To activate the rocking motion: Pull the same lever (used for height adjustment) outwards.
- To lock the chair in an upright position: Push the lever inwards.
A tilt tension knob, usually located under the front of the seat, can be rotated to adjust the resistance of the rocking motion. Turn clockwise to increase tension (harder to rock) and counter-clockwise to decrease tension (easier to rock).
Rotació: The chair seat can rotate 360 degrees for easy movement and access to your workspace.
Armless Design: The armless design provides greater flexibility and allows the chair to be easily tucked under desks, saving space.

5. Manteniment

Regular maintenance helps prolong the life and appearance of your chair.

Neteja de teixits: Per a la neteja general, utilitzeu un drap suauampened with mild soap and water. Blot spills immediately. Avoid harsh chemicals or abrasive cleaners.
Cleaning Base and Casters: Wipe the metal base and casters with a damp cloth. For stubborn dirt on casters, you may need to remove them and clean any accumulated debris (hair, lint) from the axles.
Comprovació de maquinari: Every 3-6 months, inspect all screws and bolts. Retighten any that have become loose to maintain stability and prevent squeaking.
Eviteu la llum solar directa: L'exposició prolongada a la llum solar directa pot causar la decoloració del teixit.

6. Solució De Problemes

Consulteu aquesta secció per conèixer els problemes comuns i les seves solucions.

Problema	Causa possible	Solució
La cadira no s'ajusta en alçada.	Gas lift lever not engaged or gas lift cylinder faulty.	Ensure the lever is fully pulled/pushed. If the issue persists, the gas lift may need replacement. Contact customer support.
La cadira està trontollant o inestable.	Cargols solts o muntatge incorrecte.	Check all assembly screws and tighten them securely. Ensure the gas lift is fully seated in the base.
La cadira grinyola quan es mou.	Connexions fluixes o fricció entre les peces.	Tighten all screws. A small amount of silicone lubricant can be applied to moving parts (e.g., where the gas lift meets the mechanism) if tightening doesn't resolve it.
Les rodes no giren suaument.	Restes atrapades a les rodes o rodes danyades.	Remove casters and clean any hair or debris from the wheels and axles. If damaged, casters may need replacement.

7. Especificacions

Detailed specifications for the COLAMY Wide Office Chair Model 7261+7261W.

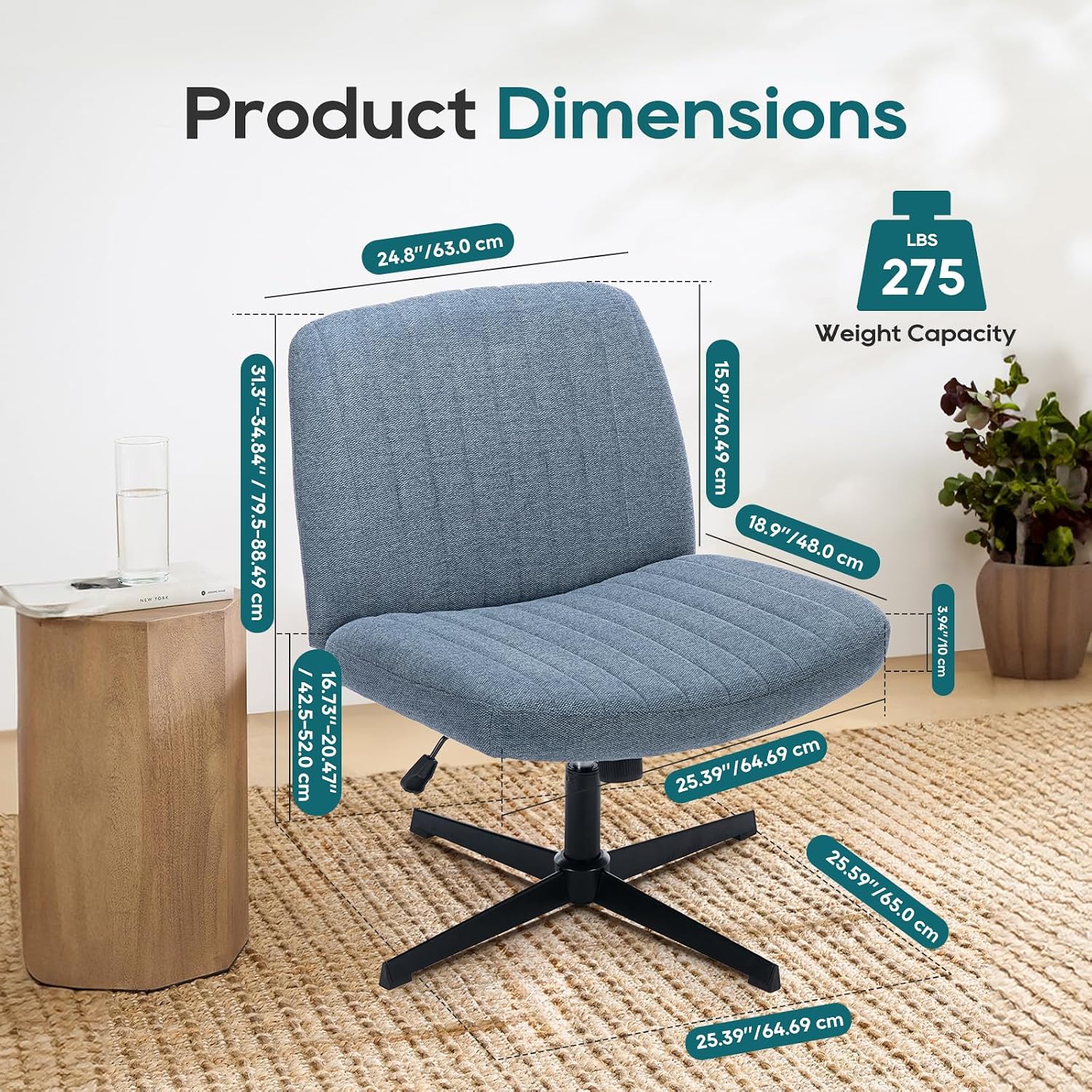

Diagram showing detailed product dimensions of the COLAMY Wide Office Chair in both inches and centimeters, along with a 275 lbs weight capacity.

Imatge: A comprehensive diagram illustrating the dimensions of the COLAMY Wide Office Chair. Measurements are provided for seat width, seat depth, backrest height, and overall height range, in both inches and centimeters. The image also highlights the 275 lbs weight capacity.

Marca: COLÀMIA
Número de model: 7261 + 7261W
Color: Blau
Dimensions del producte (totals): 25.87" de profunditat x 25.39" d'amplada x 31.5" d'alçada (65.7 cm de profunditat x 64.5 cm d'amplada x 80 cm d'alçada)
Dimensions del seient: Approximately 25.39"W x 18.9"D (64.5 cm W x 48 cm D)
Adjustable Seat Height Range: Approximately 16.73" - 20.47" (42.5 cm - 52.0 cm)
Estil d'esquena: Cross Back, Shell-shaped
Estil de braç: Sense braç
Funció de balancín: 100-115° Reclining Angle
Base Style: Cross Base (Metal)
Components inclosos: Rodes
Pes de l'article: 28.8 lliures (13.1 kg)
Capacitat de pes màxim: 275 lliures (125 kg)
Tipus de teixit: Breathable, Skin-friendly

8. Garantia i Suport

For warranty information, technical support, or to order replacement parts, please contact COLAMY customer service. Refer to your purchase documentation for specific warranty terms and contact details.

You can also visit the official COLAMY store for more information: COLAMY Store on Amazon

COLAMY 7261+7261W
