Manual d'usuari del robot aspirador ZACO V5 Max

1. Introducció

Thank you for choosing the ZACO V5 Max Robot Vacuum Cleaner. This device is designed to provide efficient and convenient cleaning for your home, offering both vacuuming and mopping functionalities. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your robot vacuum cleaner to ensure optimal performance and longevity.

The ZACO V5 Max features a 2-in-1 design with a combined dustbin and water tank, intelligent gyro navigation for systematic cleaning paths, and powerful 3000 Pa suction with carpet boost technology. It can be controlled via the ZACO Smart app, voice commands (Alexa/Google Home), or the included remote control.

2. Instruccions de seguretat importants

Before using your ZACO V5 Max, please read and understand all safety instructions. Keep this manual for future reference.

• Aquest aparell el poden utilitzar nens a partir de 8 anys i persones amb capacitats físiques, sensorials o mentals reduïdes o amb manca d'experiència i coneixements si han rebut supervisió o instruccions sobre l'ús de l'aparell d'una manera segura i entenen els perills que comporta. .
• Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
• La neteja i el manteniment dels usuaris no els han de fer els nens sense supervisió.
• Només feu servir l'adaptador de corrent original proporcionat pel fabricant.
• No utilitzeu el robot en ambients humits ni a prop de l'aigua.
• Remove any loose cables, small objects, or fragile items from the cleaning area before operation.
• Do not operate the robot if it is damaged. Contact customer support for assistance.
• Do not use the robot to pick up large debris, liquids, burning or smoking objects.

3. Contingut del paquet

Si us plau, comproveu que tots els elements estiguin inclosos al paquet:

• Robot aspirador ZACO V5 Max
• Estació de càrrega
• Cable d'adaptador d'alimentació
• Raspall de neteja
• Comandament a distància (incloses les piles)
• 2x Extra Side Brushes
• 1x Extra Filter
• 2-in-1 Suction and Mopping Tank (300ml dustbin + 250ml water tank)
• 1x HEPA Filter (pre-installed)
• Mopping Module + 2 Microfiber Cloths
• Manual d'usuari
• Guia d'inici ràpid

4. Producte acabatview

Familiarize yourself with the components of your ZACO V5 Max robot vacuum cleaner.

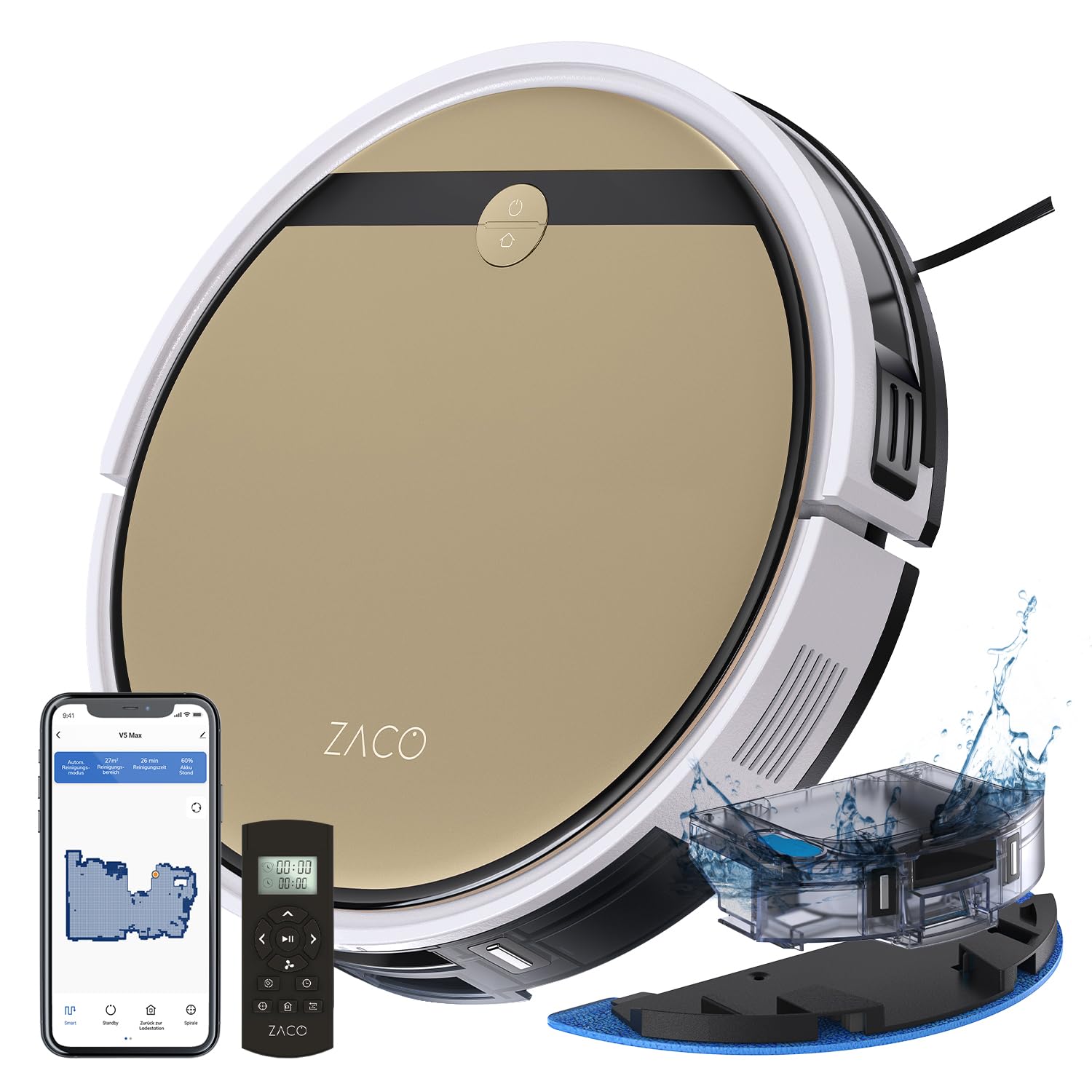

Figura 4.1: A dalt view of the ZACO V5 Max robot vacuum cleaner, showing the main body and control button.

Figura 4.2: The ZACO V5 Max demonstrating simultaneous vacuuming and mopping, highlighting its 3000 Pa suction and 2-in-1 tank for dust and water.

Components del robot:

• Cos principal: Contains the motor, battery, and control systems.
• 2-in-1 Tank: Integrated dustbin (300ml) and water tank (250ml) for combined cleaning.
• Raspalls laterals: Two rotating brushes that sweep debris into the suction path.
• Pinzell principal: Central brushroll for deep cleaning carpets and hard floors.
• Drap de fregar: Attaches to the mopping module for wet cleaning.
• Sensors: Anti-drop, anti-collision, and carpet detection sensors.
• Contactes de càrrega: Located on the bottom of the robot, for connecting to the charging station.

5. Configuració

5.1 Col·locació de l'estació de càrrega

Place the charging station against a wall in an open, uncluttered area. Ensure there is at least 1 meter (3 feet) of clear space on both sides and 2 meters (6 feet) in front of the station. Plug the power adapter into the charging station and then into a wall outlet.

5.2 Càrrega inicial

Place the ZACO V5 Max onto the charging station, ensuring the charging contacts align. The robot will begin charging automatically. For first-time use, fully charge the robot for at least 5-6 hours.

5.3 Instal·lació dels raspalls laterals

Press the side brushes onto the square posts at the bottom of the robot until they click into place. Ensure the L and R markings on the brushes match the corresponding markings on the robot.

5.4 Preparació per fregar

To use the mopping function, fill the water tank portion of the 2-in-1 tank with clean water. Attach a clean microfiber cloth to the mopping module and then install the module onto the robot. Ensure the tank is securely inserted into the robot.

6. Instruccions de funcionament

6.1 modes de neteja

The ZACO V5 Max offers several cleaning modes to suit different needs:

• Neteja automàtica: The robot cleans systematically using intelligent gyro navigation, covering the entire area in efficient paths. This is the default and most common cleaning mode.
• Neteja de vores: El robot neteja les parets i les vores dels mobles.
• Neteja de punts: El robot neteja una zona específica en espiral, ideal per a brutícia concentrada.

Figura 6.1: Illustration of the ZACO V5 Max utilizing systematic cleaning paths via gyro-navigation, compared to random paths of other models.

6.2 Intelligent Carpet Boost Technology

The V5 Max is equipped with unique carpet sensors. When a carpet is detected, the robot automatically increases its suction power to 3000 Pa to thoroughly clean deep-seated dirt from the carpet fibers. This feature ensures effective cleaning on both hard floors and carpets.

Figura 6.2: Diagram illustrating the Intelligent Carpet Boost Technology, where the robot automatically increases suction on carpets for deeper cleaning.

6.3 Control per aplicació i veu

For advanced control and customization, download the "ZACO Smart" app on your smartphone. The app allows you to:

• Programar horaris de neteja.
• Adjust suction power and water volume.
• Monitor the cleaning path in real-time.
• Check the wear status of brushes and filters.

The V5 Max also supports voice control via Amazon Alexa or Google Home for convenient hands-free operation.

Figura 6.3: The ZACO V5 Max being controlled via the ZACO Smart App and compatible with Alexa/Google Home, showing options for scheduled cleaning, water volume, suction power, and maintenance.

6.4 Remote Control and On-Device Operation

For basic operation, you can use the included remote control or the button on the robot itself. These methods allow you to start, pause, and send the robot back to its charging station.

6.5 Automatic Cleaning Resumption

The ZACO V5 Max has a battery life of up to 120 minutes, capable of cleaning up to 120 m² on a single charge. If the battery runs low during a cleaning cycle, the robot will automatically return to its charging station. Once sufficiently charged, it will resume cleaning from where it left off, ensuring complete coverage for larger areas.

Figura 6.4: The ZACO V5 Max returning to its charging station for recharging and then resuming its cleaning path, illustrating the automatic cleaning resumption feature for large areas.

Figura 6.5: The ZACO V5 Max with a 2900 mAh battery capacity, providing a long battery life for cleaning up to 120 m².

7. Manteniment

Regular maintenance is crucial for the optimal performance and longevity of your ZACO V5 Max.

7.1 Buidar el contenidor d'escombraries

Empty the dustbin after each cleaning cycle or when the 'full' indicator appears. Remove the 2-in-1 tank, open the dustbin compartment, and discard the collected debris. Rinse the dustbin with water if necessary, ensuring it is completely dry before reinserting.

7.2 Neteja de filtres

The HEPA filter and primary filter should be cleaned regularly. Tap the filters to remove dust. Replace the HEPA filter every 3-6 months, depending on usage.

7.3 Neteja dels raspalls laterals i del raspall principal

Periodically remove and clean the side brushes and main brush. Use the provided cleaning tool to cut and remove any tangled hair or debris. Replace worn-out brushes as needed.

7.4 Neteja dels sensors

Wipe the anti-drop and anti-collision sensors with a clean, dry cloth to ensure they function correctly. Dirty sensors can affect navigation.

7.5 Cleaning the Mopping Cloth and Water Tank

After mopping, remove the microfiber cloth and wash it. Empty any remaining water from the water tank and rinse it. Allow all components to air dry completely before reassembly.

8. Solució De Problemes

If you encounter issues with your ZACO V5 Max, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact ZACO customer support.

9. Especificacions

10. Garantia i Suport

The ZACO V5 Max comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact ZACO customer service. Contact information can typically be found on the ZACO official weblloc web o a l'embalatge del producte.
