Transformers TF-T18

Transformers TF-T18 Megatron Open Ear Earbuds User Manual

Model: TF-T18

1. Introducció

Thank you for choosing the Transformers TF-T18 Megatron Open Ear Earbuds. These wireless Bluetooth 5.4 headphones are designed to provide a comfortable and immersive audio experience while allowing you to remain aware of your surroundings. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your device.

2. Contingut del paquet

Si us plau, verifiqueu que tots els elements siguin presents al vostre paquet:

  • TF-T18 Wireless Earbuds x 1 pair
  • Portable Charging Box x 1
  • Cable de càrrega USB-C x 1
  • Manual d'usuari x 1

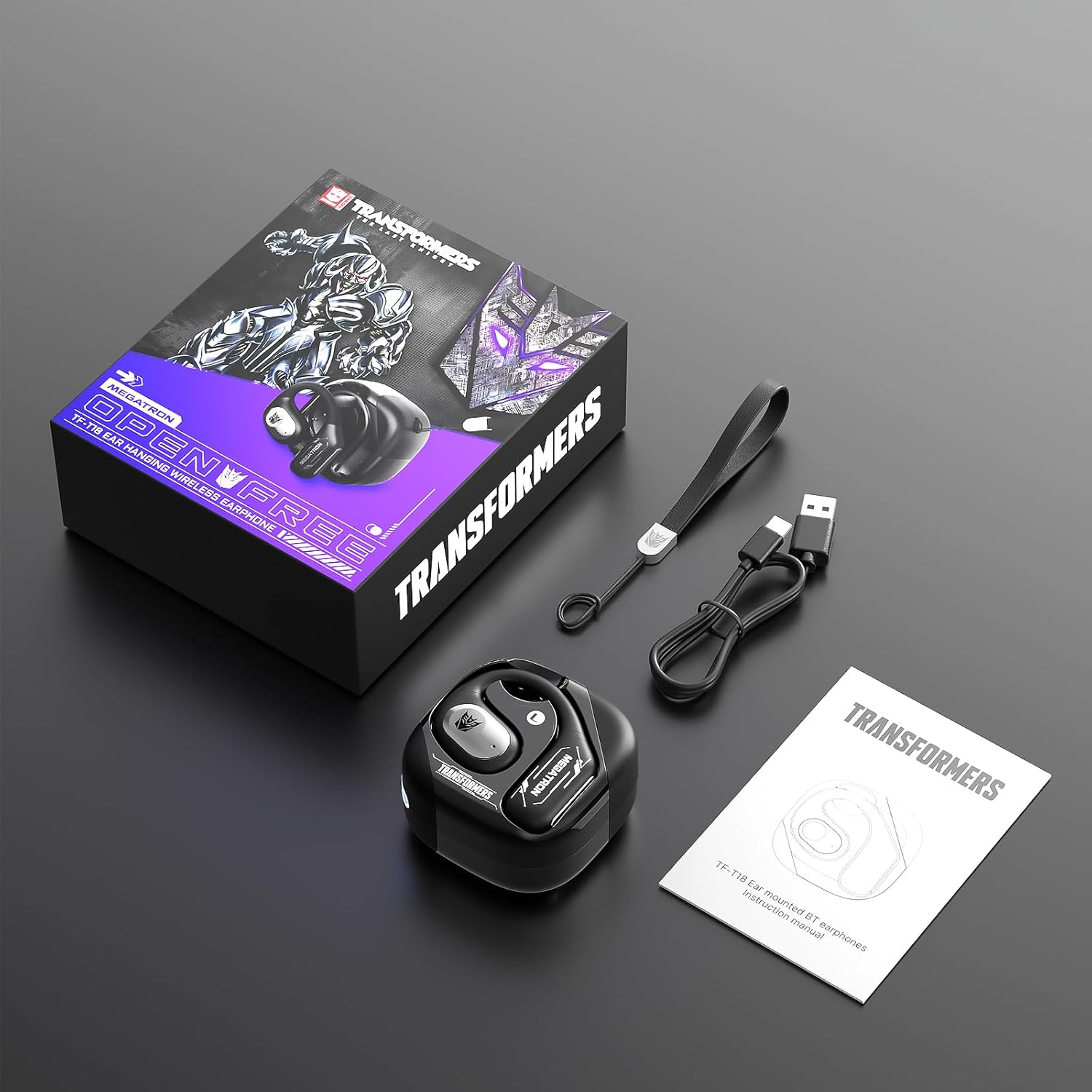

Transformers TF-T18 Megatron Open Ear Earbuds package contents including earbuds, charging case, USB-C cable, and user manual.

Image: Contents of the Transformers TF-T18 Megatron Open Ear Earbuds package.

3. Producte acabatview

The TF-T18 Megatron earbuds feature an open-ear design for comfort and situational awareness. Each earbud is equipped with touch controls for easy management of audio and calls.

Components dels auriculars

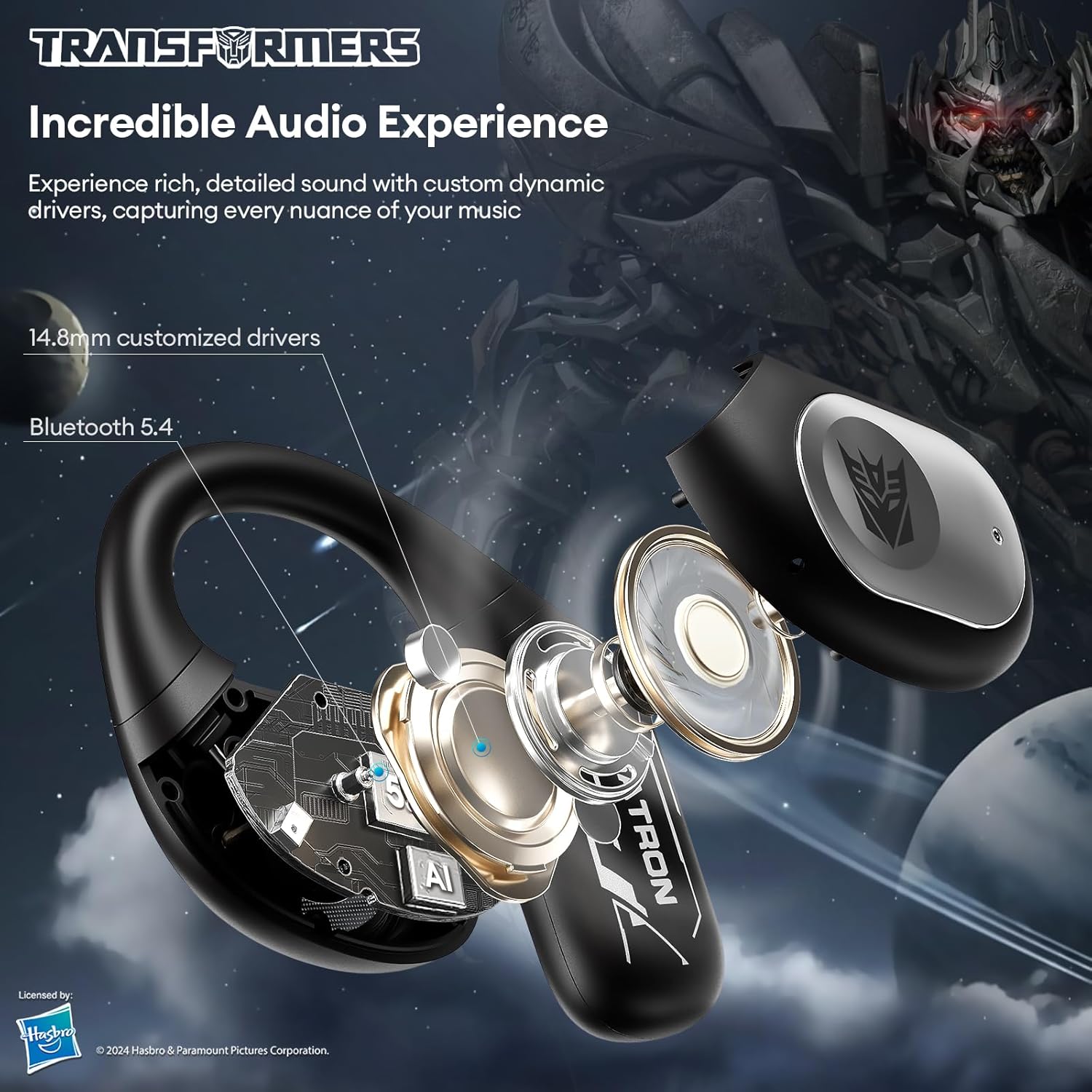

Explotat view of Transformers TF-T18 Megatron earbud showing internal components like 14.8mm drivers and Bluetooth 5.4 chip.

Imatge: Explosió view illustrating the internal components of the TF-T18 earbud, highlighting the 14.8mm customized drivers and Bluetooth 5.4 technology.

  • Disseny d'orella oberta: Allows ambient sound awareness.
  • Àrea de control tàctil: Per gestionar la reproducció, les trucades i l'assistent de veu.
  • Micròfon: Per a trucades i ordres de veu.
  • Contactes de càrrega: Per carregar dins de la caixa.

Estoig de càrrega

The portable charging case protects your earbuds and recharges them on the go. It features a USB-C charging port and LED indicators for battery status.

Transformers TF-T18 Megatron Open Ear Earbuds in their charging case.

Image: The TF-T18 Megatron Open Ear Earbuds securely placed within their charging case.

4. Configuració

4.1 Càrrega dels auriculars i l'estoig

Abans del primer ús, carregueu completament els auriculars i l'estoig de càrrega.

  1. Col·loca els auriculars a l'estoig de càrrega, assegurant-te que estiguin correctament col·locats.
  2. Connect the USB-C charging cable to the charging port on the case and to a power source (e.g., computer USB port, wall adapter).
  3. The LED indicator on the case will show charging status. A full charge takes approximately 1.5 hours.
  4. The earbuds provide up to 6 hours of playback on a single charge, with the charging case extending total playtime to approximately 60 hours.
Transformers TF-T18 Megatron earbuds and charging case illustrating 60 hours of extended battery life.

Image: The TF-T18 Megatron earbuds and charging case, highlighting the impressive 60-hour total battery life.

4.2 Vinculació Bluetooth

Segueix aquests passos per emparellar els auriculars amb un dispositiu amb Bluetooth:

  1. Open the charging case. The earbuds will automatically enter pairing mode, indicated by a flashing LED light on the earbuds.
  2. Al dispositiu (telèfon intel·ligent, tauleta, etc.), activeu el Bluetooth.
  3. Cerca available Bluetooth devices and select "TF-T18" from the list.
  4. Once connected, the LED indicator on the earbuds will stop flashing. You will hear an audio prompt confirming the connection.
  5. Els auriculars es tornaran a connectar automàticament a l'últim dispositiu emparellat quan es treguin de l'estoig, si el Bluetooth està activat al dispositiu.
Smartphone screen showing Bluetooth settings with 'TF-T18' available for pairing, next to the Transformers TF-T18 Megatron earbuds and charging case.

Image: A smartphone displaying the Bluetooth pairing menu, with the TF-T18 earbuds ready for connection.

5. Instruccions d'ús

For optimal comfort and sound quality, ensure the earbuds are worn correctly:

  1. Traieu els auriculars de la caixa de càrrega.
  2. Place the earbud above your ear, with the main body resting gently against your ear.
  3. Rotate the earbud backward along the auricle to achieve a secure and comfortable fit. The ear hook should rest over the top of your ear.
  4. Adjust the earbud slightly to ensure the sound outlet is positioned correctly for clear audio.
Four-step diagram showing how to properly wear the Transformers TF-T18 Megatron open-ear earbuds: 1. Take out, 2. Place above ear, 3. Rotate backward, 4. Complete insertion.

Image: Step-by-step guide on how to correctly wear the TF-T18 open-ear earbuds.

Woman wearing Transformers TF-T18 Megatron open-ear earbuds, demonstrating the ergonomic fit.

Image: A user demonstrating the comfortable and secure fit of the TF-T18 open-ear earbuds.

6. Instruccions de funcionament

6.1 Controls tàctils

The TF-T18 earbuds feature intuitive touch controls on each earbud. Refer to the diagram below for specific functions:

Diagram illustrating touch control functions for Transformers TF-T18 Megatron earbuds, including play/pause, volume, track skipping, call management, and voice assistant activation.

Image: Visual guide to the smart touch controls on the TF-T18 earbuds.

  • Toc senzill: Reproduir/Pausar música, Respondre/Finalitzar trucada.
  • Doble toc (auricular esquerre): Baixa el volum.
  • Doble toc (auricular dret): Puja el volum.
  • Triple toc (auricular esquerre): Pista anterior.
  • Triple toc (auricular dret): Pista següent.
  • Premda llarga (2 segons): Reject call, Activate Voice Assistant.
  • Long Press (5 seconds, when off): Encès.
  • Long Press (5 seconds, when on): Apagar.

6.2 Emparellament multipunt

The TF-T18 earbuds support multipoint pairing, allowing connection to two devices simultaneously. This enables seamless switching between devices without manual re-pairing.

  1. Pair the earbuds with the first device as described in Section 4.2.
  2. Desactiva el Bluetooth al primer dispositiu. Els auriculars tornaran a entrar en mode d'emparellament.
  3. Emparella els auriculars amb el segon dispositiu.
  4. Torneu a activar el Bluetooth al primer dispositiu. Els auriculars ara haurien d'estar connectats a tots dos dispositius.

When a call comes in on one device, the earbuds will automatically switch to that device. When the call ends, they will revert to the audio from the other device.

Image showing a smartphone and a laptop both connected to the Transformers TF-T18 Megatron earbuds, demonstrating multipoint pairing.

Image: The TF-T18 earbuds connected to both a smartphone and a laptop simultaneously, illustrating multipoint pairing functionality.

6.3 Audio Modes (Music/Game)

The earbuds may offer different audio modes optimized for specific uses:

  • Mode de música: Provides high-fidelity, balanced audio for a rich listening experience.
  • Mode de joc: Offers low-latency, immersive stereo sound for precise gameplay responses and heightened environmental awareness.

Refer to the specific touch control instructions for switching between modes, if available (typically a long press or specific tap sequence not detailed in the general product info).

Image depicting two scenarios: one person enjoying music and another playing a game, illustrating the Music Mode and Game Mode of the Transformers TF-T18 Megatron earbuds.

Image: Comparison of Music Mode for detailed audio and Game Mode for low-latency, immersive sound.

7. Manteniment

Proper maintenance ensures the longevity and performance of your earbuds:

  • Neteja: Feu servir un drap suau, sec i sense borrissol per netejar els auriculars i l'estoig de càrrega. No utilitzeu productes químics agressius ni materials abrasius.
  • Resistència a l'aigua: The earbuds are water-resistant. Avoid submerging them in water or exposing them to high-pressure water jets. Dry them thoroughly if they get wet.
  • Emmagatzematge: Guarda els auriculars a l'estoig de càrrega quan no els facis servir per protegir-los i mantenir-los carregats. Evita temperatures extremes.
  • Port de càrrega: Mantingueu el port de càrrega USB-C net de pols i deixalles.

8. Solució De Problemes

If you encounter issues with your TF-T18 Megatron earbuds, refer to the following common solutions:

ProblemaSolució
Els auriculars no s'aparellen
  • Assegureu-vos que els auriculars estiguin carregats.
  • Desactiva el Bluetooth en altres dispositius propers.
  • Torna a posar els auriculars a la funda, tanca'ls i torna'ls a obrir per tornar a entrar al mode d'emparellament.
  • Forget "TF-T18" from your device's Bluetooth list and try pairing again.
No hi ha so d'un auricular
  • Assegureu-vos que els dos auriculars estiguin carregats.
  • Torneu a col·locar els dos auriculars a l'estoig de càrrega, tanqueu la tapa, espereu uns segons i torneu-los a treure.
  • Reinicieu els auriculars (consulteu les instruccions del fabricant) weblloc web per obtenir instruccions específiques de restabliment si cal).
Els auriculars no es carreguen
  • Revisa el cable USB-C i l'adaptador de corrent.
  • Assegureu-vos que els contactes de càrrega dels auriculars i la funda estiguin nets i lliures de residus.
  • Verifica que la funda de càrrega tingui carregador.
Poca qualitat de trucada
  • Assegureu-vos que els auriculars estiguin completament carregats.
  • Apropa't més al dispositiu connectat.
  • Eviteu entorns amb fortes interferències electromagnètiques.
  • Clean the microphone ports.

9. Especificacions

Key technical specifications for the Transformers TF-T18 Megatron Open Ear Earbuds:

  • Model: TF-T18
  • Versió Bluetooth: 5.4
  • Tecnologia de comunicació sense fils: Bluetooth
  • Tipus de controlador d'àudio: Conductor dinàmic
  • Mida del controlador d'àudio: 16 mil·límetres
  • Interval de freqüència: 20 Hz - 20,000 Hz
  • Impedància: 32 ohms
  • Durada de la bateria (auriculars): Fins a 6 hores (una sola càrrega)
  • Total Playtime (with Charging Case): Fins a 60 hores
  • Temps de càrrega: Aproximadament 1.5 hores
  • Capacitat de la bateria de la funda de càrrega: 300 milionsamp Hores
  • Tipus de control: Control tàctil
  • Característiques especials: Noise Cancellation (Environmental Noise Cancellation for calls), Open-Ear Design, Multipoint Pairing
  • Nivell de resistència a l'aigua: Resistent a l'aigua
  • Material: Plàstic
  • Pes de l'article: 0.17 Kilograms (earbuds + case)
  • Product Dimensions (Charging Case): 2.27 x 2.26 x 1.39 polzades
  • Dispositius compatibles: Wide range of Bluetooth-enabled smartphones, tablets, and other audio devices (e.g., iPhone, Samsung Galaxy, Moto, Sony Xperia, Xiaomi, Huawei, OnePlus, LG).

10. Garantia i Suport

For warranty information and customer support, please refer to the warranty card included in your package or visit the official Transformers product support weblloc. Si teniu algun problema que no es tracta en aquest manual, poseu-vos en contacte amb el servei d'atenció al client per obtenir ajuda.

Fabricant: TRANSFORMADORS
