Introducció
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your ESR Multi-Mode Magnetic Stand Keyboard Case for iPad Air 13 Inch. Please read this manual thoroughly to ensure proper use and to maximize the functionality of your device.
Compatibilitat
This keyboard case is designed for specific iPad Air 13 Inch models. Verify your iPad model number to ensure compatibility.
- iPad Air 13" (M4) 2026: Models A3461, A3462, A3464
- iPad Air 13" (M3) 2025: Models A3268, A3269, A3271
- iPad Air 13" (M2) 2024: Models A2898, A2899, A2900
Image: Compatibility chart for ESR iPad Air 13 Inch Keyboard Case.
Com identificar el vostre model d'iPad
To find your iPad's model number:
- Vés a Configuració > General > Sobre.
- Comproveu el Nom del model.
- Toqueu Número de model to display the AXXXX format.
Image: Steps to identify your iPad model.
Configuració
1. Attaching the iPad to the Case
Align your iPad Air 13 Inch with the magnetic back case. The strong magnets will securely attach the iPad to the case, ensuring full-body protection.
Image: iPad magnetically attaching to the case.
2. Pairing the Keyboard via Bluetooth
- Ensure the keyboard is charged (refer to the Charging section).
- Turn on the keyboard using the power switch, usually located on the side or top edge of the keyboard.
- Al teu iPad, vés a Configuració > Bluetooth.
- Activa el Bluetooth.
- The iPad will search for nearby devices. Select the ESR keyboard from the list of available devices.
- Follow any on-screen prompts to complete the pairing process. A successful connection will be indicated on your iPad.
Video: Demonstration of unboxing, setup, and initial use of the ESR Magnetic Keyboard Case.
Instruccions de funcionament
Multi-Mode Magnetic Stand
The case features a quick-set magnetic stand that allows for various viewing angles and modes, enhancing productivity and comfort.
- Mode d'escriptura: Position the iPad at an optimal angle for comfortable typing.
- ViewMode d'acció: Adjust the stand for media consumption or presentations.
- Mode de navegació: Utilize a more upright angle for web browsing or reading.
- Raised Screen View: The stand can be adjusted to raise the screen, promoting better posture during extended use.
- Mode de retrat: The back case detaches to allow for portrait orientation, ideal for video calls or specific applications.
Image: Various usage modes (Typing, Viewing, Browsing).
Image: Quick-set magnetic stand in raised screen view.
Image: Secure magnetic lock for stable positioning.
Detachable Back Case
The back case can be easily detached from the keyboard, allowing you to use your iPad with full-body protection independently of the keyboard. This provides flexibility for hands-on use.
Image: Detachable back case functionality.
Video: Demonstration of detaching the iPad from the keyboard for standalone use.
Multifunctional Trackpad
The extended multi-touch trackpad allows for precise navigation of your iPad. Utilize gestures such as tapping, pinching, and swiping to control your device efficiently.
- Feu clic a: Single tap or press for selection.
- Desplaçament: Two-finger swipe up or down.
- Zoom: Pessiga amb dos dits cap a dins o cap a fora.
- Go Home: Llisca cap amunt amb tres dits.

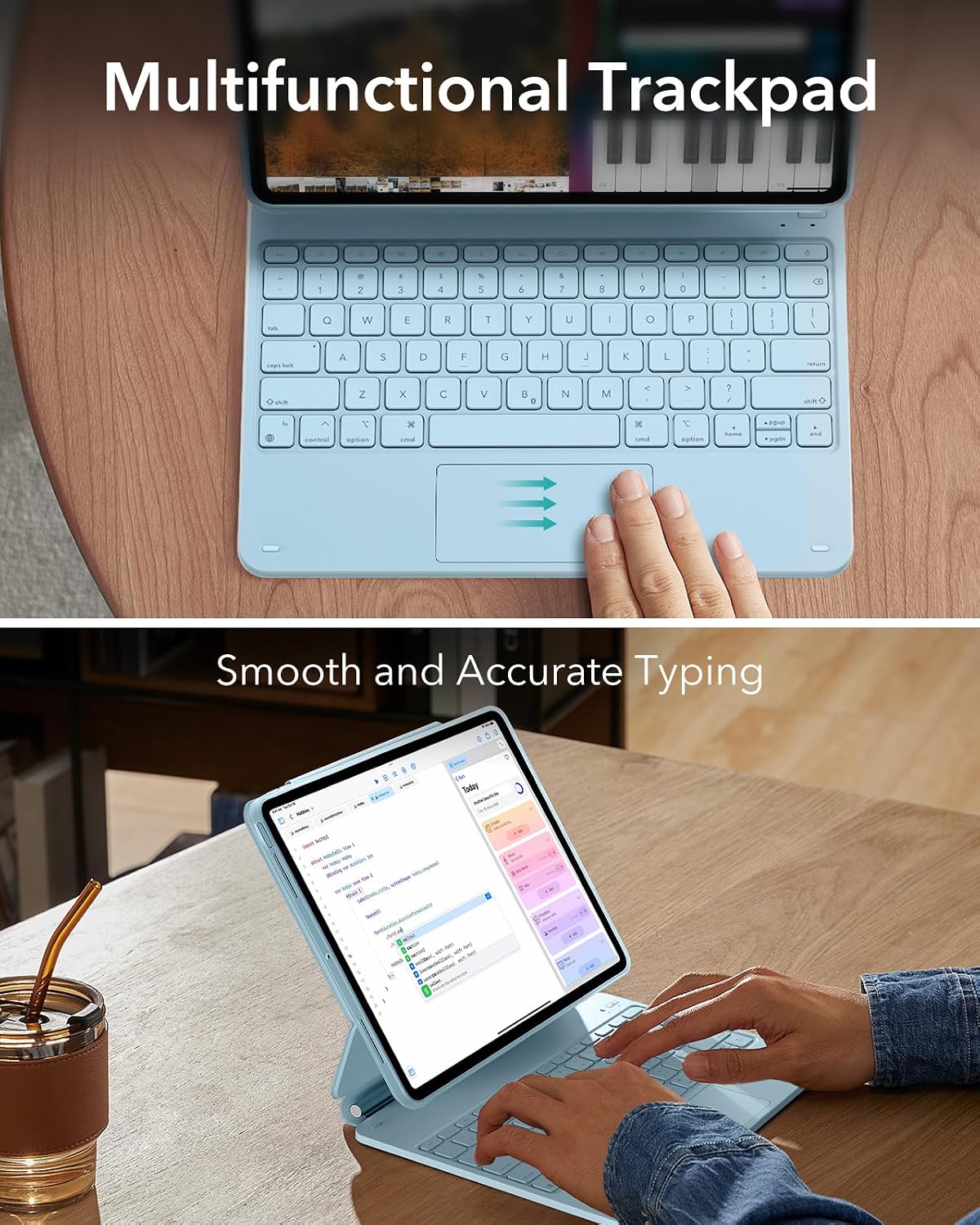

Image: Multifunctional trackpad with gesture indicators.
Il·luminació del teclat
The keyboard features single-color backlighting for improved visibility in low-light conditions. Adjust brightness levels as needed.
Video: Demonstration of keyboard usage and backlighting.
Emmagatzematge de llapis
The case includes a secure magnetic clasp designed to protect and store your Apple Pencil or compatible stylus.
Image: Magnetic clasp for pencil protection.
Càrrega i durada de la bateria
The keyboard is powered by a rechargeable battery. Use the provided USB-C cable to charge the keyboard.
- Temps d'espera: Fins a 1 any
- Day Use (2 hours/day, backlight off): Fins a 3 mesos
- Night Use (2 hours/day, backlight on): Up to 1 week
Image: Battery life indicators for standby, day use, and night use.
Resolució de problemes
If you encounter issues with your ESR keyboard case, refer to the following common solutions:
El teclat no es connecta
- Recharge Keyboard: Ensure the keyboard battery is not depleted. Connect it to a power source using the USB-C cable.
- Reinicieu el Bluetooth: On your iPad, turn Bluetooth off and then on again in Settings.
- Reemparella el dispositiu: Go to iPad Settings > Bluetooth, tap the 'i' icon next to the ESR keyboard, and select 'Forget This Device'. Then, repeat the pairing steps from the Setup section.
- Reinicia l'iPad: A simple restart of your iPad can resolve connectivity glitches.
Keys Not Responding or Incorrect Input
- Comprova la connexió: Ensure the keyboard is properly paired and connected via Bluetooth.
- Teclat net: Dust or debris under the keys can affect performance. Gently clean the keyboard surface.
- Actualització de programari: Assegura't que el teu iPadOS estigui actualitzat a la darrera versió.
- Restableix el teclat: If available, perform a factory reset on the keyboard (refer to specific instructions if provided with the product packaging).
iPad Wobbles When Typing
- Assegureu-vos d'una ubicació segura: Confirm the iPad is firmly seated against the magnetic stand.
- Superfície estable: Use the keyboard case on a flat, stable surface to minimize movement.
Especificacions
| Característica | Detall |
|---|---|
| Marca | ESR |
| Número de model | 6B024 |
| Dispositius compatibles | iPad Air 13" M4/M3/M2 (2026/2025/2024) |
| Tecnologia de connectivitat | USB-C (for charging) |
| Descripció del teclat | Multi Funcional |
| Característiques especials | Backlit, Ergonomic, Foldable, Horizontal and vertical screen use, Protective case |
| Color | Blau |
| Il·luminació del teclat | Color únic |
| Material | Aluminum, Polycarbonate, Polyurethane (PU), Thermoplastic Polyurethane (TPU) |
| Font d'alimentació | Bateria (recarregable) |
| Tipus de canvi | Interruptor de tisores |
| Disposició del teclat | QWERTY |
| Nombre de claus | 78 |
| Compatible OS Family | iPadOS |
Garantia i Suport
Informació de la garantia
This ESR Keyboard Case comes with a 1 any de garantia des de la data de compra. Aquesta garantia cobreix els defectes de fabricació i els problemes derivats de l'ús normal. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
Atenció al client
For further assistance, technical support, or warranty inquiries, please contact ESR customer service through their official website or the retailer where the product was purchased. You may also find additional resources and FAQs on the ESR support page.
Nota: Les especificacions del producte i els termes de la garantia estan subjectes a canvis sense previ avís.
