Maxpro Fagor Connect+ FG2804 Multifunction Food Processor User Manual

1. Introducció i finalview

The Maxpro Fagor Connect+ FG2804 is a versatile multifunction food processor designed to simplify your cooking experience. It features a 5-liter stainless steel bowl, an intuitive 10-inch LED touchscreen, and integrated Wi-Fi connectivity for guided recipes and automatic updates. With its powerful 1500W motor, it can perform various tasks including cooking, simmering, steaming, browning, mixing, kneading, and chopping.

Les característiques clau inclouen:

• 5-liter stainless steel bowl with handle for easy handling.
• Integrated Wi-Fi for step-by-step guided recipes and automatic updates.
• Intuitive 10-inch (25.4cm) LED touchscreen display.
• Reverse function for delicate tasks like kneading dough for bread and pastries, or preparing risottos, soups, and stews.
• Integrated scale for precise ingredient measurements.
• Pre-loaded with 400 recipes, with monthly updates.
• "Do It Yourself" page for manual program settings and saving custom recipes.
• Google Assistant Voice Control activation.

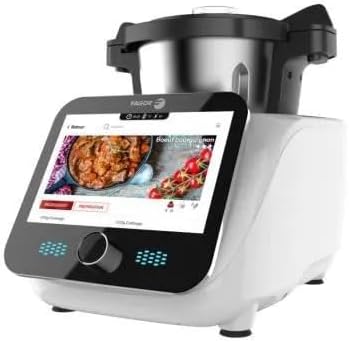

Image 1: The Maxpro Fagor Connect+ FG2804 food processor, showcasing its large touchscreen display with a recipe.

2. Configuració

Before first use, ensure all packaging materials are removed. Place the food processor on a stable, flat, and dry surface. Ensure adequate ventilation around the appliance.

1. Desempaquetar components: Carefully remove the main unit, stainless steel bowl, lid, and all accessories from the packaging.
2. Components nets: Wash the stainless steel bowl, lid, and all accessories (spatula, chopping blade, blade protection, measuring cap, steam bowl, butterfly whisk, steam basket) with warm soapy water. Rinse thoroughly and dry completely before assembly. The main unit should be wiped with a damp tela.
3. Assemble the Bowl: Place the clean stainless steel bowl onto the main unit. Ensure it is securely seated.
4. Accessoris d'inserció: Depending on your recipe, insert the appropriate accessory (e.g., chopping blade, butterfly whisk) into the bowl. The system allows for easy accessory changes without removing the bowl.
5. Assegureu la tapa: Place the lid onto the bowl and turn it clockwise until it locks securely into place. The appliance will not operate if the lid is not properly secured.
6. Connecteu-vos a l'alimentació: Connecteu el cable d'alimentació a una presa de corrent adequada.

Image 2: The Fagor Connect+ food processor with its various accessories, including the stainless steel bowl, lid, and different blades/attachments.

3. Instruccions de funcionament

The Fagor Connect+ offers both automated guided recipes and manual control for maximum flexibility.

3.1. Using Guided Recipes (Wi-Fi Connected)

1. Encès: Turn on the appliance. The 10-inch LED touchscreen will display the main menu.
2. Connecta't a Wi-Fi: Ensure your appliance is connected to your home Wi-Fi network to access the full recipe library and receive automatic updates. Follow the on-screen prompts for initial Wi-Fi setup.
3. Navega per les receptes: Use the touchscreen to browse recipes by theme (e.g., Cocktails, Baby Food, Italian, Exotic) or use the search bar to find recipes by ingredients.
4. Select a Recipe: Tap on your desired recipe. The screen will display step-by-step instructions, including ingredient lists and preparation steps.
5. Seguiu les instruccions: The appliance will guide you through each step, indicating when to add ingredients, which accessory to use, and automatically setting the correct time, temperature, and speed.
6. Intelligent Suggestions: The new interface may offer intelligent suggestions for complementary recipes (e.g., an appetizer, sauce, or dessert) based on your preferences or previously prepared dishes.
7. Control de veu: Activate Google Assistant Voice Control in the settings to operate the appliance hands-free.

3.2. Manual Operation ("Do It Yourself" Page)

1. Access Manual Mode: Navigate to the "Do It Yourself" page on the touchscreen.
2. Establir paràmetres: Manually adjust the speed (11 speeds available), temperature, and time according to your recipe.
3. Use Integrated Scale: The integrated scale allows for precise weighing of ingredients directly in the bowl.
4. Seleccioneu la funció: Choose from various functions such as chopping, mixing, kneading (using the reverse function for delicate doughs), cooking, simmering, steaming, browning, liquefying, or emulsifying.
5. Save Custom Recipes: You can save your customized manual settings as new recipes for future use.

4. Manteniment

Proper maintenance ensures the longevity and optimal performance of your Fagor Connect+ food processor.

• Neteja de la unitat principal: Always unplug the appliance before cleaning. Wipe the main unit with a soft, damp drap. No submergiu la unitat principal en aigua ni en cap altre líquid.
• Neteja del bol i els accessoris: The stainless steel bowl and most accessories (spatula, chopping blade, blade protection, measuring cap, steam bowl, butterfly whisk, steam basket) are dishwasher safe. For best results, rinse immediately after use to prevent food from drying on.
• Rentat de mans: If hand washing, use warm soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely.
• Emmagatzematge: Guardeu l'aparell i els seus accessoris en un lloc net i sec.

Important: The main appliance unit is NOT dishwasher safe and should only be cleaned by hand wiping.

5. Solució De Problemes

If you encounter issues with your Fagor Connect+ food processor, refer to the following common troubleshooting steps:

• L'aparell no s'encén:
  • Assegureu-vos que el cable d'alimentació estigui ben connectat a una presa de corrent que funcioni.
  • Check if the lid is properly closed and locked. The appliance has a safety mechanism that prevents operation if the lid is not secured.
• Motor no funciona:
  • Verify that the bowl and accessories are correctly assembled.
  • Check for any error messages on the touchscreen display and consult the digital manual for specific codes.
• Problemes de connectivitat Wi-Fi:
  • Assegureu-vos que el vostre encaminador Wi-Fi estigui activat i funcioni correctament.
  • Check the Wi-Fi settings on the appliance's touchscreen and re-enter network credentials if necessary.
  • Move the appliance closer to your Wi-Fi router if signal strength is weak.
• Inaccurate Scale Readings:
  • Ensure the appliance is on a flat, stable surface and not vibrating during weighing.
  • Remove any items from the main unit's base before using the scale.
  • Tare the scale before adding ingredients.

Si el problema persisteix després d'intentar aquests passos, poseu-vos en contacte amb l'atenció al client per obtenir més ajuda.

6. Especificacions

7. Garantia i Suport

Your Maxpro Fagor Connect+ FG2804 food processor comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.

For technical support, service, or warranty claims, please contact Maxpro customer service. Contact information can typically be found on the product packaging, the official Maxpro weblloc web o la targeta de garantia.

When contacting support, please have your model number (FG2804) and proof of purchase readily available.
