Minetom RGB LED String Lights User Manual

1. Introducció

Thank you for choosing the Minetom RGB LED String Lights. This manual provides essential information for the safe and efficient use of your new string lights. Please read it thoroughly before installation and operation, and retain it for future reference.

Image 1: Minetom RGB LED String Lights, showing the string of globe lights, the battery box, and the remote control.

2. Instruccions de seguretat importants

• No munteu ni col·loqueu a prop d'escalfadors de gas o elèctrics, xemeneies, espelmes o altres fonts de calor similars.
• No fixeu el cablejat del producte amb grapes o claus, ni col·loqueu-los sobre ganxos o claus afilats.
• Do not let the product rest on the power supply cord or on any electric cord.
• No utilitzeu aquest producte per a un altre ús que el previst.
• Do not hang other decoration or objects on cord, wire, or light string.
• Do not close doors or windows if clamping or damaging the product or cord.
• No cobriu el producte amb tela, paper o cap material que no forma part del producte quan estigui en ús.
• Read and follow all instructions on this product.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents:

• 1 x Minetom RGB LED String Lights (21FT, 60 LED Globe Bulbs)
• 1 x comandament a distància
• 1 x Battery Box (requires 3x AA batteries, not included)
• 1 x Manual d'usuari

4. Configuració

4.1 Instal·lació de la bateria

1. Open the battery compartment on the battery box.
2. Insert 3 AA batteries (not included) according to the polarity markings (+/-).
3. Tanqueu el compartiment de la bateria de manera segura.

Image 2: Close-up of the battery box, showing where to insert AA batteries.

4.2 Col·locació

These string lights are suitable for both indoor and outdoor use. The IP44 waterproof rating ensures protection against splashes, making them suitable for various environments. They can be easily installed using cable ties, cup hooks, or grippers.

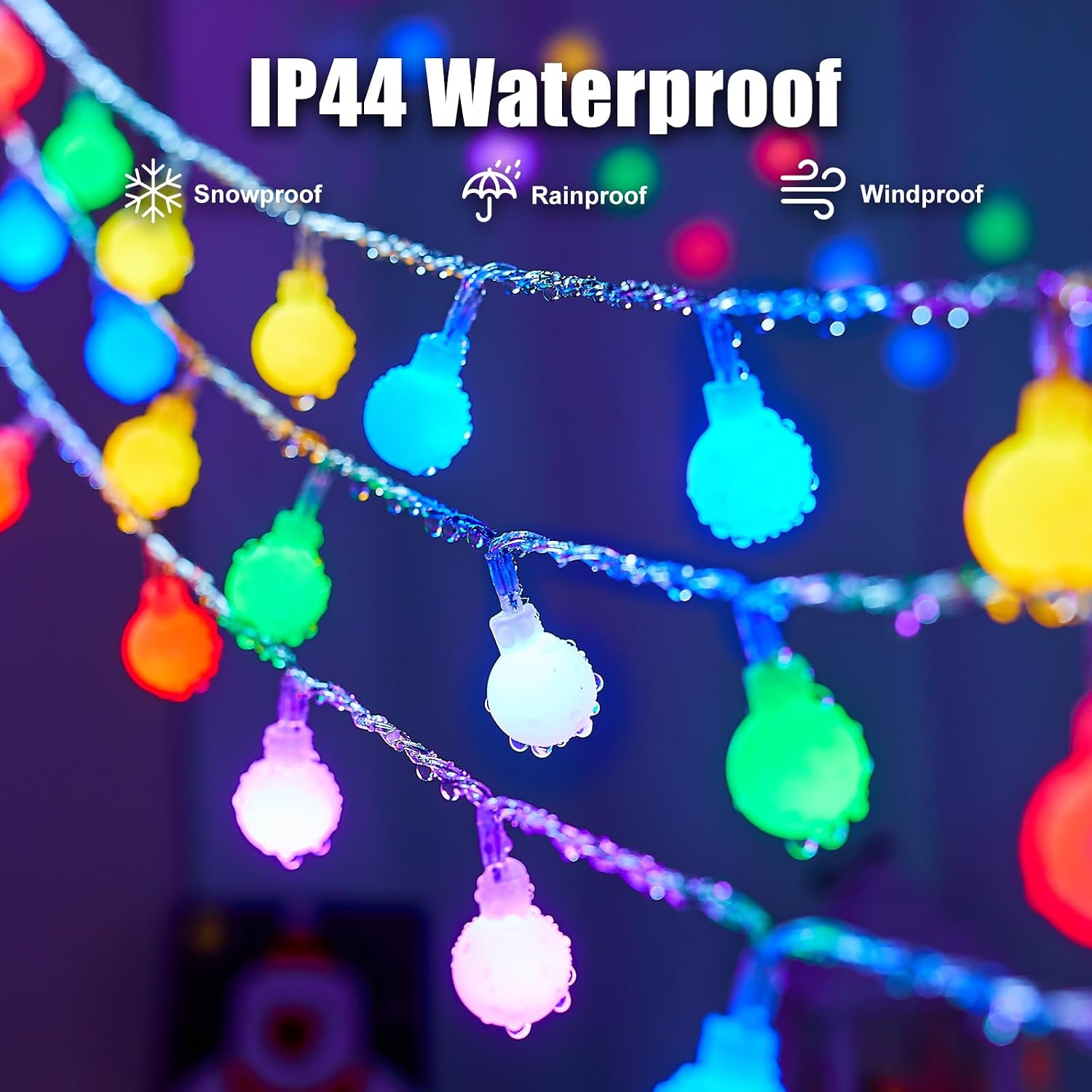

Image 3: Illustration of IP44 waterproof rating, indicating snowproof, rainproof, and windproof features.

Ensure the chosen location is free from obstructions and allows for the full length of the 21-foot string to be displayed as desired. The globe bulbs are shatterproof plastic, offering durability.

Image 4: Diagram showing the dimensions of the LED globe string lights: 21 ft string length, 0.73 inch bulb diameter, and 3.9 inches spacing between globes.

5. Instruccions de funcionament

5.1 Funcions de control remot

The included remote control allows for comprehensive management of your string lights:

Image 5: Diagram of the IR remote control for Minetom RGB string lights, detailing buttons for power, 16 color selections, 7 dynamic modes (Fade, Jump, Asyn Fade, Asyn Jump, In Waves, Strobe, Twinkle), and timer settings (4H, 6H, 8H, Timer Off).

• ON/OFF: Encendre o apagar els llums.
• Selecció de color RGB: Choose from 16 single colors and mixed hues.
• Modes dinàmics: Select from 7 lighting modes including Fade, Jump, Asyn Fade, Asyn Jump, In Waves, Strobe, and Twinkle.
• Temporitzador: Set the lights to operate for 4, 6, or 8 hours daily. Press "Timer Off" to cancel.
• Brightness Adjustment (DIM +/-): Augmentar o disminuir la intensitat de la llum.

Image 6: Grid display of 16 different monochromatic colors achievable with the Minetom RGB LED string lights.

5.2 Funcionament manual

In case the remote control is unavailable, you can cycle through the lighting modes using the button located on the battery case.

6. Manteniment

• Neteja: Gently wipe the globe bulbs with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Emmagatzematge: When not in use, store the string lights in a cool, dry place, away from direct sunlight and extreme temperatures. Carefully coil the string to prevent tangling.
• Substitució de la bateria: Replace all 3 AA batteries simultaneously when the lights dim or stop functioning. Ensure correct polarity.

7. Solució De Problemes

8. Especificacions

• Marca: Minetom
• Model: B0D8KFWTQ1
• Tipus de font de llum: LED
• Color clar: RGB (Xarxa, Green, Blue)
• Nombre de fonts de llum: 60
• Longitud de la corda: 21 peus
• Diàmetre del bulb: 0.73 polzades
• Spacing Between Globes: 3.9 polzades
• Font d'alimentació: Battery Powered (3x AA batteries, not included)
• Tipus de controlador: Remote Control, Touch (on battery box)
• Característiques especials: Color Changing, Cordless, Remote Controlled
• Ús interior/exterior: Indoor, Outdoor (IP44 Waterproof)
• Material: Plàstic
• Pes de l'article: 12 unces

9. Garantia i Suport

For customer service and warranty inquiries, please contact Minetom support:

• Correu electrònic: support@brighttown.com
• Telèfon: +1 (888) 550 1310
• Horari de funcionament: Mon-Fri, 8 AM - 10 PM (EST)

Please have your product model number (B0D8KFWTQ1) and purchase date available when contacting support.
