1. Introducció
The Retekess TT128B is an automated tour guide system designed to provide self-guided audio experiences for visitors in various settings such as museums, scenic areas, and exhibitions. This system allows users to select content based on their personal interests, offering flexibility and an enhanced understanding of their surroundings. It supports 41 languages, features 16GB of internal storage, and includes Bluetooth connectivity for personal headphones.
Image: The Retekess TT128B Automated Tour Guide System, a compact black device with a screen and numerical keypad.
Image: The Retekess TT128B device held in a hand, illustrating its portable size and lightweight design.
2. Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:
- 5x Transmitter (TT128B device)
- 5x In-Ear binaural headphones
- 5x cordó
- 30x Sponge cover
- 5x USB recharging cable
- 5x User's manual
- Cable d'alimentació
Image: A visual representation of the Retekess TT128B package contents, detailing each included accessory.
3. Configuració
3.1 Càrrega del dispositiu
Before first use, fully charge the TT128B device. Connect the provided USB recharging cable to the device's USB port and a compatible USB power adapter (not included) or computer USB port. The device features a 1500mAh battery, providing up to 40 hours of continuous operation on a full charge.
Image: The TT128B device highlighting its 1500mAh battery capacity and 40-hour endurance.
3.2 Loading Audio Content
The TT128B comes with 16GB of internal memory, capable of storing a large amount of audio content (approximately 3000-5000 MP3 files with a bitrate less than 128kbps). To load audio files:
- Connect the TT128B to your computer using the USB cable.
- El dispositiu apareixerà com una unitat d'emmagatzematge extraïble.
- Arrossega i deixa anar l'àudio MP3 files into the device's storage. Organize files into folders as needed for easier navigation.
- Expulseu el dispositiu de l'ordinador de manera segura abans de desconnectar el cable USB.
Image: The TT128B device with a visual representation of its 16GB memory, capable of storing thousands of audio files.
3.3 Encès inicial
Slide the power switch to the 'ON' position. The device display will light up, indicating it is ready for use.
4. Funcionament
4.1 Encès/Apagat
- To power on: Slide the side switch to the ON posició.
- To power off: Slide the side switch to the OFF posició.
4.2 Selecció de la llengua
The TT128B supports 41 diverse languages. To change the language:
- Premeu el botó SET botó per entrar al menú de configuració.
- Navigate to the language option using the navigation buttons.
- Seleccioneu l'idioma desitjat de la llista.

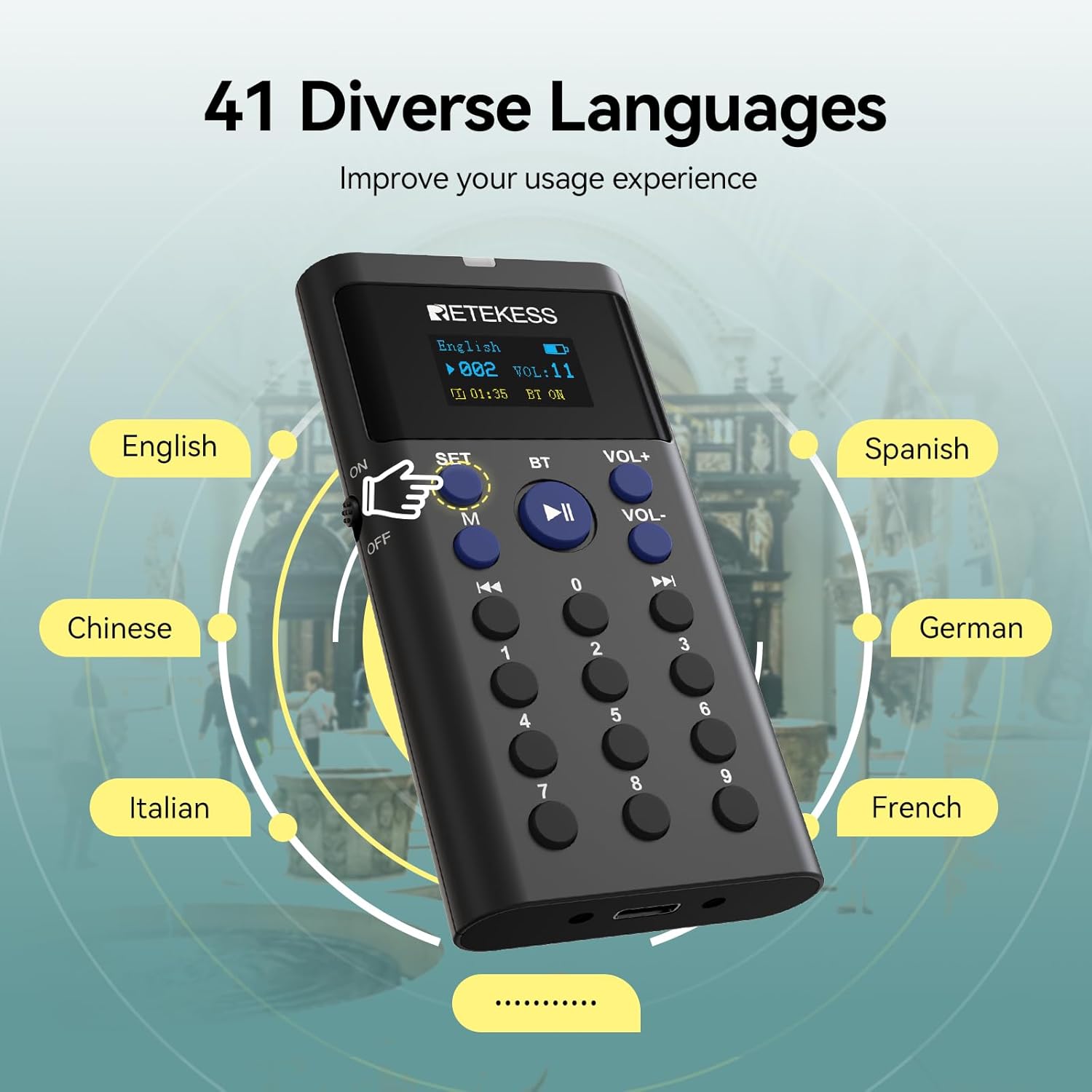

Image: The TT128B device illustrating its multi-language support, showing English as the current language and other options.
4.3 Reproducció de contingut
The system offers self-guided audio playback with several options:
- Self-Service On-Demand: Visitors can choose specific audio content based on their interests. Use the numerical keypad to input the desired track number.
- Manual Sequence Number Input: Directly enter the serial number of a scenic spot to listen to its corresponding audio content.
- Modes de bucle: The device supports both single loop (repeating the current track) and repeat all (playing all content in a loop) modes.
Image: Demonstrates the self-service on-demand feature, allowing users to select content by entering a number.
Image: Illustrates the manual sequence number input feature for selecting specific audio explanations.
Image: Visual representation of the device's loop playback modes, including single track and repeat all options.
4.4 Ajust de volum
The device offers 16 levels of volume adjustment to suit individual preferences and environmental noise levels.
- Premeu VOL+ per augmentar el volum.
- Premeu VOL- per disminuir el volum.
Image: The TT128B device demonstrating the 16-level adjustable volume control.
4.5 Connexió Bluetooth
The TT128B supports Bluetooth connectivity, allowing you to connect personal Bluetooth headphones for a more private listening experience.
- Assegureu-vos que els vostres auriculars Bluetooth estiguin en mode d'emparellament.
- On the TT128B, press the BT button to activate Bluetooth.
- The device will search for available Bluetooth devices. Select your headphones from the list to pair.
Image: Illustrates the use of the TT128B with wireless headphones, enabling two people to listen simultaneously.
5. Manteniment
- Neteja: Feu servir un drap suau i sec per netejar el dispositiu. Eviteu utilitzar netejadors líquids o dissolvents.
- Emmagatzematge: Guardeu el dispositiu en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu el dispositiu regularment, fins i tot si no l'utilitzeu durant períodes prolongats.
- Sponge Covers: Replace the headphone sponge covers regularly for hygiene and comfort.
6. Solució De Problemes
6.1 El dispositiu no s'encén
- Assegureu-vos que la bateria estigui carregada. Connecteu el dispositiu a una font d'alimentació i deixeu-lo carregar durant almenys 30 minuts abans d'intentar tornar-lo a encendre.
- Verify the power switch is fully in the 'ON' position.
6.2 No Sound from Headphones
- Check the volume level. Increase the volume using the VOL+ botó.
- Ensure headphones are properly connected to the audio jack or correctly paired via Bluetooth.
- Test with different headphones to rule out a headphone issue.
6.3 Problemes d'emparellament Bluetooth
- Ensure both the TT128B and your Bluetooth headphones are in pairing mode and within close proximity.
- Turn off and on the Bluetooth function on both devices and try pairing again.
- Clear previous Bluetooth connections on both devices if possible.
6.4 Alerta de bateria baixa
The device will display a low battery alert when power is critically low. Recharge the device immediately to avoid interruption of service.
Image: The TT128B device showing a low battery warning on its screen.
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | TT128B |
| Número de peça del fabricant | EUF9661FX5 |
| Marca | Retekess |
| Tecnologia de connectivitat | AUX, USB |
| Tipus de connector | USB |
| Nombre de canals | 5 |
| Nombre de productes | 1 (per unitat) |
| Bateria | Necessites 5 piles AAA (incloses) |
| Capacitat de la bateria | 1500mAh (up to 40 hours continuous operation) |
| Emmagatzematge intern | 16 GB |
| Dimensions del producte | 52 x 102 x 14.5 mm |
| Pes del producte | 60 g |
| País d'origen | Xina |
8. Garantia i Suport
8.1 Garantia del producte
Retekess offers a 2-year warranty for this product. Additionally, a 30-day no-reason return policy is provided. Beyond the warranty period, maintenance services are still available, though buyers will be responsible for the associated costs.
8.2 Atenció al client
For any inquiries or support needs, please contact us through Amazon. We aim to respond to all queries within 12 hours.
