Smad Countertop Ice Maker User Manual

Introducció

Thank you for choosing the Smad Countertop Ice Maker. This appliance is designed to provide a convenient and efficient way to produce ice cubes for various uses, including beverages, food preservation, and entertaining. With its compact design and rapid ice production capabilities, it is ideal for home kitchens, offices, bars, and outdoor gatherings. Please read this manual thoroughly before operation to ensure safe and optimal performance.

The Smad Countertop Ice Maker is versatile for various environments, including outdoor events, parties, kitchens, and offices.

Informació de seguretat

Per reduir el risc d'incendi, descàrrega elèctrica o lesions quan utilitzeu la màquina de gel, seguiu aquestes precaucions bàsiques:

• Llegiu totes les instruccions abans d'utilitzar.
• Do not touch the evaporator surface when the unit is operating.
• No submergiu l'aparell, el cable d'alimentació ni l'endoll en aigua ni en altres líquids.
• Unplug the ice maker from the outlet when not in use and before cleaning.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• Ensure proper ventilation around the unit. Maintain at least 5 inches of space from walls and other objects.
• Utilitzeu només aigua potable a la màquina de gel.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
• Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.

Producte acabatview

Familiarize yourself with the components and control panel of your Smad Ice Maker.

The Smad Countertop Ice Maker, shown with an ice scoop and a glass of iced beverage.

Detallada view of the control panel, indicating Water Level Indicator, Ice Full Indicator, On-off Switch, Power Switch, Ice Size Selection (Small/Large).

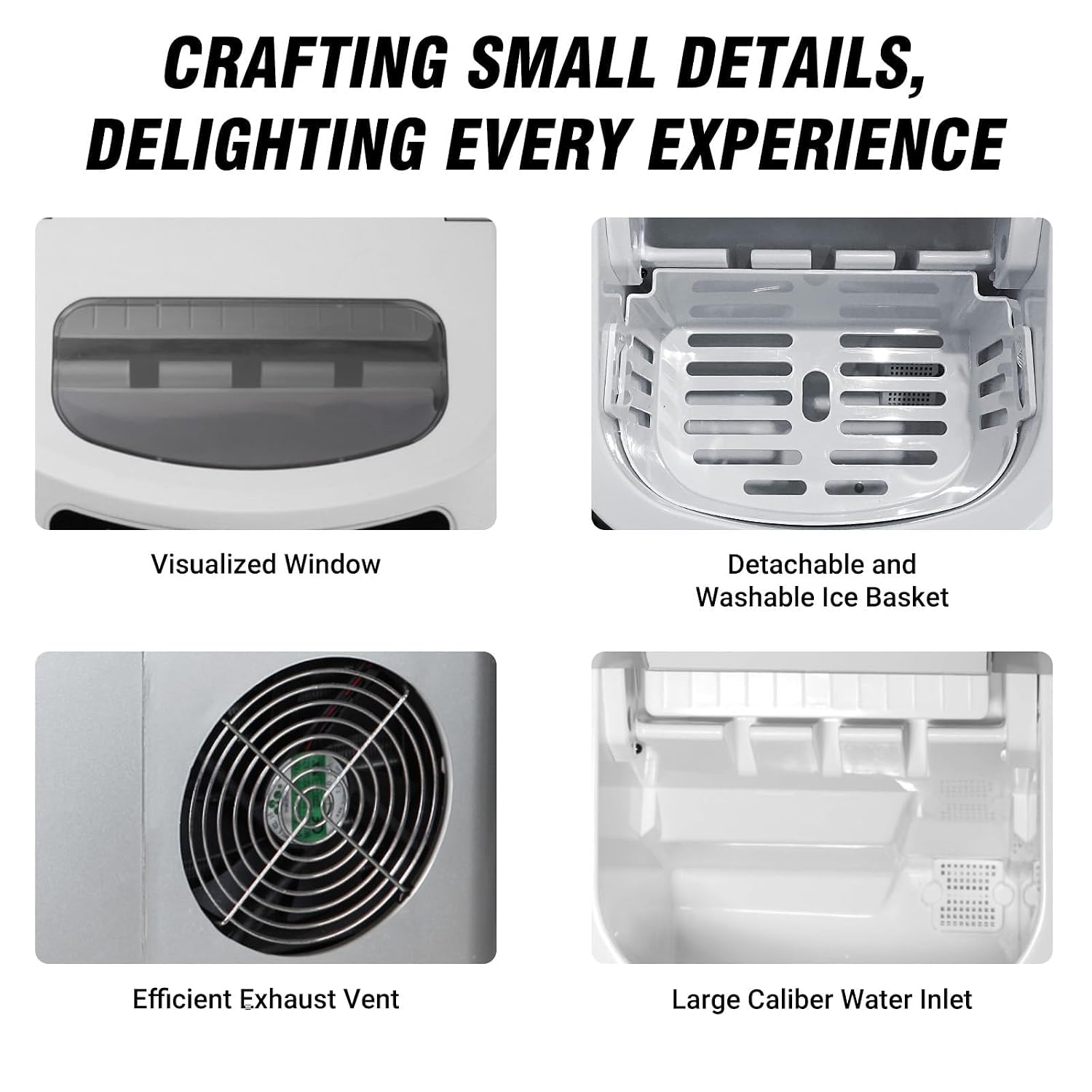

Key features include a visualized window, detachable and washable ice basket, efficient exhaust vent, and a large caliber water inlet.

Funcions del tauler de control:

• Indicador AFEGEIX AIGUA: S'il·lumina quan cal omplir el dipòsit d'aigua.
• ICEFULL Indicator: Illuminates when the ice basket is full, and the unit will pause ice production.
• Botó ON/OFF: Encén o apaga la unitat.
• Botó SELECCIÓ: Toggles between small (S) and large (L) ice cube sizes.
• S Indicator: Illuminates when small ice cube size is selected.
• L Indicator: Illuminates when large ice cube size is selected.

Configuració

1. Desembalatge: Carefully remove the ice maker from its packaging. Remove all packing materials, including tape and foam.
2. Col·locació: Place the ice maker on a flat, stable surface away from direct sunlight and heat sources (like stoves or ovens). Ensure there is at least 5 inches of clear space around the unit for proper ventilation, especially around the exhaust vent.
3. Neteja inicial: Abans del primer ús, netegeu l'interior de la màquina de gel, incloent-hi el dipòsit d'aigua, la cistella de gel i la cullera de gel, amb un drap suau i un detergent suau. Esbandiu-la bé amb aigua neta.
4. Settling Period: After transport, allow the ice maker to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle.
5. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Assegureu-vos que el volumtagcoincideix amb l'etiqueta de classificació de l'aparell.

Instruccions de funcionament

Follow these steps to begin making ice:

Simple 3-step process: 1. Remove ice basket and add potable water. 2. Press "ON/OFF". 3. Enjoy bullet ice in 6-8 minutes.

1. Afegeix aigua: Open the lid and remove the ice basket. Fill the water reservoir with potable water up to the MAX fill line. Do not overfill.
2. Encès: Tanqueu la tapa i premeu el botó ON/OFF button to turn on the ice maker. The POWER indicator will illuminate.
3. Selecciona la mida del gel: Premeu el botó SELECCIONA button to choose your desired ice cube size. The 'S' indicator is for small ice cubes, and the 'L' indicator is for large ice cubes.


   The ice maker produces two sizes of bullet-shaped ice cubes: Small (S) and Large (L).

4. Producció de gel: The ice maker will begin the ice-making cycle. The first batch of ice will be ready in approximately 6-13 minutes, depending on the selected size and ambient temperature.
5. Col·lecció de gel: When the ice basket is full, the ICEFULL indicator will illuminate, and the unit will automatically stop production. Remove ice from the basket using the provided scoop. If not used immediately, transfer ice to a freezer for storage.
6. Funcionament continu: The unit will resume ice production once ice is removed from the basket and the ICEFULL indicator turns off. If the water level is low, the ADD WATER indicator will illuminate. Refill the reservoir to continue.

Notes importants:

• The ice maker does not have a refrigeration function for storing ice. Ice will melt if left in the basket for extended periods.
• For best results, use cold water.
• The unit operates quietly, typically below 43 dB.


  The ice maker operates at a low noise level of approximately 38 dB, comparable to a whisper.

Manteniment

Regular cleaning and maintenance will prolong the life of your ice maker and ensure hygienic ice production.

Neteja diària:

• After each use, drain any remaining water from the reservoir.
• Wipe the interior with a soft cloth.

Weekly/Bi-Weekly Cleaning:

• Desconnecteu la unitat abans de netejar-la.
• Remove the ice basket and wash it with warm water and mild dish soap. Rinse thoroughly.
• Clean the water reservoir and the ice-making components (evaporator fingers) with a solution of water and white vinegar (1:1 ratio) or a mild, food-safe cleaning solution.
• Use a soft brush or cloth to gently scrub any mineral deposits.
• Drain the cleaning solution completely and rinse the interior several times with clean water to remove any residue.
• Netegeu l'exterior amb anunciamp tela. No utilitzeu netejadors abrasius ni dissolvents.

Emmagatzematge:

If the ice maker will not be used for an extended period, drain all water, clean the unit thoroughly, and allow it to air dry completely before storing. Store in a cool, dry place.

Resolució de problemes

Especificacions

• Model: FBA-DIM-26LN(A)
• Marca: Smad
• Dimensions del producte (L x P x A): 9.5 x 14.1 x 12.9 polzades (24.13 cm x 35.81 cm x 32.77 cm)
• Pes: Aproximadament 20.5 lliures (9.3 kg)
• Capacitat de producció de gel: Fins a 11.8 kg (26 lliures) per 24 hores
• Cicle de producció de gel: 6-13 minutes per batch (9 ice cubes)
• Capacitat del dipòsit d'aigua: 2.2 litres
• Capacitat d'emmagatzematge de gel: 1.54 lliures (0.7 kg)
• Wattage: 110 watts
• Nivell de soroll: < 43 dB
• Forma de cub de gel: Bullet-shaped
• Mides dels cubs de gel: Petit (S) i Gran (L)

The compact dimensions of the Smad Ice Maker are 9.5 inches wide, 14.1 inches deep, and 12.9 inches high.

Garantia i Suport

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Smad website. As distributors of Smad Electric Appliance, we are committed to providing excellent service.

Fabricant: Smad

Venedor: Qingdao smod Electric Co., Ltd.

For further assistance, please contact your retailer or the manufacturer directly.
