1. Introducció
Gràcies per la compraasing the Mienta CP10308B 40W Electric Citrus Juicer. This manual provides important information regarding the safe operation, maintenance, and care of your appliance. Please read these instructions thoroughly before first use and keep them for future reference.
2. Instruccions de seguretat
- Assegureu-vos sempre que el voltagEl volum indicat a l'aparell correspon al volum de la xarxa elèctricatage abans de connectar.
- No submergiu la unitat del motor, el cable ni l'endoll en aigua ni en cap altre líquid.
- Unplug the juicer from the power outlet when not in use, before assembling or disassembling parts, and before cleaning.
- Mantingueu les mans i els estris allunyats de les parts mòbils durant el funcionament per evitar lesions.
- Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat. .
- Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
- No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
- Utilitzeu només els accessoris recomanats o venuts pel fabricant.
- No utilitzeu l'aparell a l'exterior.
- Col·loqueu l'aparell sobre una superfície estable, plana i resistent a la calor.
3. Producte acabatview i Components
The Mienta CP10308B citrus juicer is designed for efficient extraction of juice from citrus fruits. It features a compact design and easy-to-use components.
Components:
- Unitat motora (base)
- Juice Collection Bowl with Lid and Level Indicator
- Adjustable Filter/Strainer
- Small Cone (for smaller citrus fruits like limes, lemons)
- Large Cone (for larger citrus fruits like oranges, grapefruits)

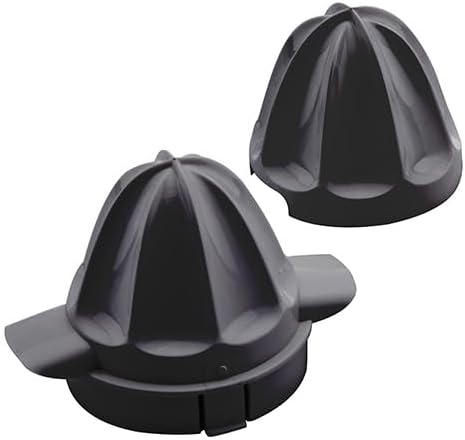

Image 1: The two interchangeable juicing cones, a smaller one for lemons and limes, and a larger one for oranges and grapefruits.
Image 2: The adjustable filter/strainer, designed to separate pulp from the juice. The adjustment allows control over the amount of pulp in the juice.
Image 3: The Mienta CP10308B Electric Citrus Juicer fully assembled, showing the motor base, juice collection bowl, filter, and cone.
4. Configuració
- Desembaleu tots els components i traieu qualsevol material d'embalatge.
- Wash all removable parts (cones, filter, bowl, lid) in warm, soapy water, then rinse and dry thoroughly.
- Place the motor unit on a clean, dry, and stable surface.
- Place the juice collection bowl onto the motor unit.
- Insert the adjustable filter into the juice collection bowl. Ensure it is seated correctly.
- Select the appropriate juicing cone (small for lemons/limes, large for oranges/grapefruits) and place it onto the filter.
- Place the lid on top of the assembled unit.
5. Instruccions de funcionament
- Ensure the juicer is correctly assembled and plugged into a suitable power outlet.
- Talleu els cítrics per la meitat.
- Traieu la tapa.
- Place a fruit half onto the juicing cone.
- Press down firmly on the fruit. The motor will start automatically. The juicer features a 2-way rotation for maximum juice extraction.
- Continue pressing and rotating the fruit until all juice is extracted.
- Allibera la pressió per aturar el motor.
- Repeat the process for additional fruit halves.
- The juice will collect in the bowl below the filter. The juice level indicator on the bowl helps monitor the volume.
- Once juicing is complete, unplug the appliance before disassembling and cleaning.
6. Neteja i Manteniment
Proper cleaning ensures the longevity and hygiene of your juicer.
Passos de neteja:
- Desendolleu sempre l'espremedora de la presa de corrent abans de netejar-la.
- Disassemble all removable parts: lid, cones, filter, and juice collection bowl.
- Wash these removable parts in warm, soapy water. A brush may be used to remove pulp residue from the filter.
- Esbandiu totes les parts bé amb aigua corrent.
- All removable parts are dishwasher safe for convenient cleaning.
- Wipe the motor unit (base) with a damp drap. No submergiu mai la unitat del motor en aigua ni en cap altre líquid.
- Assequeu totes les peces completament abans de tornar a muntar o emmagatzemar.
Emmagatzematge:
Store the assembled juicer in a dry place, away from direct sunlight and heat sources.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| L'espremedora no s'encén. | Not plugged in; power outlet not working; appliance not assembled correctly. | Check power cord connection; test outlet with another appliance; ensure all parts are correctly assembled and cone is pressed down. |
| Mala extracció de suc. | Fruit not pressed firmly enough; incorrect cone size used; filter clogged. | Apply firm, consistent pressure; use the appropriate cone for the fruit size; clean the filter. |
| El motor s'atura durant el funcionament. | Overheating due to prolonged use; excessive pressure. | Unplug and let cool for 15-20 minutes; reduce pressure on the cone. |
8. Especificacions
- Marca: Mienta
- Model: CP10308B
- Potència: 40 watts
- Color: Negre
- Material: Acer inoxidable
- Característiques especials: Portable, 2-way rotation, 2 cones with adjustable filter, bowl with lid and juice level indicator
- Dimensions del producte (P x A x A): 8 cm x 8 cm x 15 cm
- Tipus d'acabat: Polished or Plated
- Ús recomanat: Citrus fruits (e.g., oranges, lemons, limes, grapefruits)
- Instruccions de cura del producte: Apte per a rentavaixelles (peces extraïbles)
9. Garantia i Suport
For warranty information, please refer to the warranty card included with your purchase or contact your retailer. If you experience any issues with your Mienta CP10308B Electric Citrus Juicer that cannot be resolved using the troubleshooting guide, please contact Mienta customer support or your point of purchase for assistance.
Si us plau, conserveu el comprovant de compra per a qualsevol reclamació de garantia.
