PULUZ RGB Photography Light Stick 30cm User Manual

1. Introducció

Gràcies per la compraasing the PULUZ RGB Photography Light Stick. This versatile LED light stick is designed to provide flexible and creative lighting solutions for photography and videography. Featuring full RGB color, adjustable color temperature, brightness control, and 20 special lighting effects, it is suitable for various shooting scenarios. Please read this manual carefully before use to ensure proper operation and to maximize the product's potential.

2. Informació de seguretat

Per evitar danys al producte o lesions a vostè o a altres persones, observeu les següents precaucions de seguretat:

• No desmunteu ni modifiqueu el dispositiu. Les modificacions no autoritzades poden anul·lar la garantia i plantejar riscos per a la seguretat.
• Mantingueu el dispositiu allunyat de l'aigua, la humitat i els ambients amb molta humitat.
• Eviteu exposar el dispositiu a la llum solar directa o a temperatures elevades durant períodes prolongats.
• Feu servir només el cable de càrrega proporcionat o certificat.
• No utilitzeu el dispositiu amb les mans mullades.
• Mantenir fora de l'abast dels nens.
• If the device emits smoke, unusual odors, or makes strange noises, discontinue use immediately and contact customer support.

3. Contingut del paquet

Si us plau, reviseu el paquet per assegurar-vos que hi ha tots els elements:

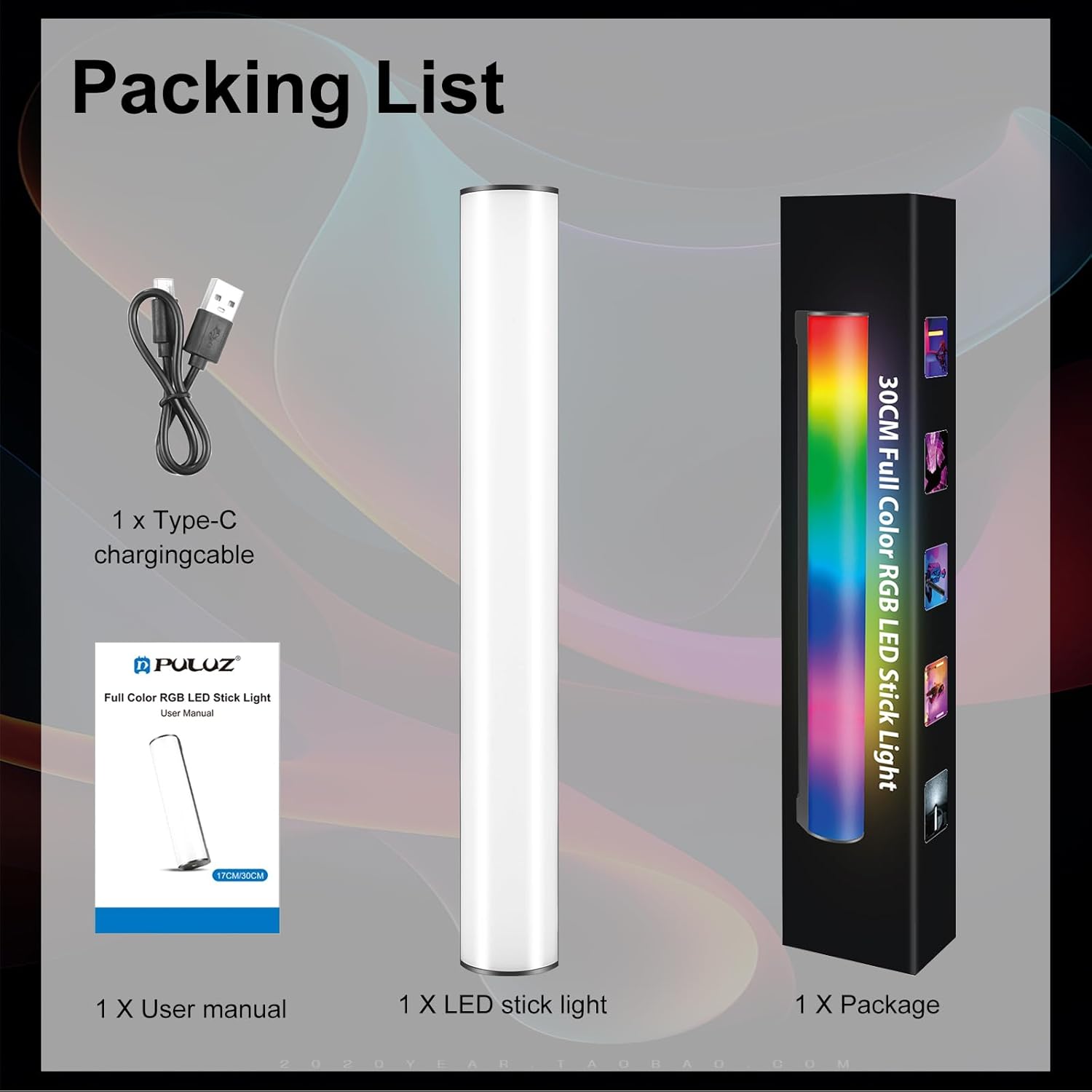

Image: Contents of the PULUZ RGB Light Stick package, showing the LED stick light, a Type-C charging cable, a user manual, and the product packaging box.

• 1 x PULUZ RGB LED Stick Light (30cm)
• 1 x cable de càrrega tipus C
• 1 x Manual d'usuari

4. Producte acabatview

Familiarize yourself with the components and controls of your PULUZ RGB Light Stick:

Image: Detailed diagram of the PULUZ RGB Light Stick, highlighting its dimensions (30cm/11.8inch length, 4cm/1.6inch width) and control panel. Key features include the Type-C charging port, Switch/Mode key, Switch key, Brightness+ and Brightness- buttons, Display, 1/4 inch screw hole, and Hanging rope hole position.

1. Tub de llum: Emits light.
2. Port de càrrega tipus C: Per carregar la bateria interna.
3. Switch/Mode Key: Press and hold to power on/off. Short press to cycle through lighting modes (CCT, HSI, Scene).
4. Tecla de canvi: Used for navigation or selection within modes.
5. Brillantor +: Augmenta la brillantor.
6. Brillantor -: Disminueix la brillantor.
7. Visualització: Shows current settings (brightness, color temperature, hue, battery status).
8. 1/4 inch Screw Hole: For mounting on tripods, light stands, or other photographic accessories.
9. Hanging Rope Hole Position: For attaching a lanyard or hanging the light.
10. Magnetic Ends: Built-in magnets for attaching to metal surfaces.

5. Configuració

5.1. Charging the Light Stick

Before first use, fully charge the light stick. Connect the provided Type-C charging cable to the charging port on the device and plug the other end into a USB power adapter (not included) or a computer's USB port. The display will indicate charging status. A full charge takes approximately 3 hours.

Image: Illustration showing the battery life of the PULUZ RGB Light Stick. It indicates up to 3 hours of battery life at 100% brightness and up to 12 hours at 1% brightness, powered by a built-in 3000mAh large-capacity battery.

5.2. Opcions de muntatge

The PULUZ RGB Light Stick offers multiple mounting options for versatile use:

• Portàtil: The light stick is lightweight and designed for comfortable handheld use.
• Enganxament magnètic: The ends of the light stick contain built-in magnets, allowing it to be adsorbed onto suitable metal surfaces for quick and easy positioning.
• 1/4 inch Screw Hole: Use the 1/4 inch screw hole to attach the light stick to tripods, light stands, magic arms, or other photographic accessories for stable and precise placement.

Image: Demonstrates the magnetic design of the PULUZ RGB Light Stick, showing it attached to a metal surface. Also pictured are the light stick being held by hand and mounted on a mini tripod via its 1/4-inch screw hole, illustrating its diversified use cases.

6. Instruccions de funcionament

6.1. Encendre/apagar

Manteniu premut el botó Switch/Mode Key for approximately 2 seconds to power the light stick on or off.

6.2. Selecció de mode

Després d'encendre, premeu breument el botó Switch/Mode Key to cycle through the main lighting modes:

1. CCT Mode (Color Temperature Mode): Adjusts white light from warm to cold.
2. HSI Mode (RGB Full Color Mode): Adjusts hue, saturation, and intensity for colored light.
3. Scene Mode (Special Effects Mode): Accesses 20 pre-programmed lighting effects.

Image: Displays the Color Temperature Mode with warm and cool white light, the RGB mode showing various colors (red, green, blue, yellow, cyan, magenta), and an array of 20 Scene modes including Police Vehicle, Ambulance, Fire Truck, Lightning, Fireworks, Television, Candles, Party, Bad Light Bulb, White Breathing Lights, Pulse Flash, RGB Flash, Reporter Group Flash, Emergency Twin Flash, High & Low Beam Bulbs, Red Flash, Green Flash, Blue Flash, HSI Demo (Slow), and HSI Demo (Fast).

6.3. Ajustar la configuració

Un cop seleccionat un mode, feu servir la Brillantor + i Brillantor - buttons to adjust the primary parameter. Use the Tecla de canvi to cycle through adjustable parameters within a mode (e.g., brightness, color temperature, hue, saturation).

Image: Illustrates the adjustment ranges for the PULUZ RGB Light Stick. It shows brightness adjustment from 0-100%, color temperature adjustment from 2500K (warm) to 9000K (cold), and RGB color adjustment from 0-360 degrees, with examples of how these changes affect lighting on a subject.

• Ajust de brillantor: In any mode, use Brillantor + i Brillantor - to adjust the light intensity from 0% to 100%.
• Color Temperature Adjustment (CCT Mode): In CCT mode, use Brillantor + i Brillantor - to adjust the color temperature from 2500K (warm) to 9000K (cold).
• Hue Adjustment (HSI Mode): In HSI mode, short press the Tecla de canvi to select the Hue parameter. Then use Brillantor + i Brillantor - to adjust the hue from 0° to 360°. You can also adjust saturation and intensity in this mode.
• Scene Mode Selection: In Scene mode, use Brillantor + i Brillantor - to cycle through the 20 available lighting effects.

7. Manteniment

• Neteja: Use a soft, dry cloth to clean the surface of the light stick. Do not use abrasive cleaners or solvents.
• Emmagatzematge: When not in use, store the light stick in a cool, dry place, away from direct sunlight and extreme temperatures.
• Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu el dispositiu regularment, fins i tot si no l'utilitzeu durant períodes prolongats.

8. Solució De Problemes

• La llum no s'encén: Ensure the battery is charged. Connect to a power source and try again. If still unresponsive, contact customer support.
• La llum no es carrega: Check the Type-C cable and power adapter. Try a different cable or adapter. Ensure the charging port is clean and free of debris.
• Els controls no responen: Try powering the device off and on again. If the issue persists, the device may require service.
• Abnormal light output: If the light flickers or displays incorrect colors, try resetting the device by powering it off and on.

9. Especificacions

Image: Highlights key features of the PULUZ RGB Light Stick, including 0.3m maximum illuminance of 800Lux, 10W high power, dual color temperature, RGB full color, hard light/anti-glare/soft light options, and a Color Rendering Index (CRI) greater than or equal to 95.

10. Garantia i assistència

PULUZ products are manufactured to the highest quality standards. This product is covered by a limited warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact your local dealer.

If you encounter any issues or have questions regarding your PULUZ RGB Photography Light Stick, please contact our customer service team. Our reliable customer service will reply to you within 24 hours and provide a satisfactory solution.
