1. Introducció
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MHW-3BOMBER Sniper Electric Conical Burr Coffee Grinder. Please read this manual thoroughly before first use and retain it for future reference.
The MHW-3BOMBER Sniper Electric Conical Burr Coffee Grinder features an upgraded titanium-coated 48mm CNC420 stainless steel seven-core conical burr, ensuring efficient grinding with a high degree of consistency and a very low fine powder rate. Its stepless adjustment allows for precise, point-by-point control, making it suitable for various coffee brewing methods including French press, cold brew, drip coffee, siphon, Moka pot, and espresso. Designed for easy cleaning, the grinder's output chute is angled to effectively reduce static flying powder, and its magnetic suction design allows for easy removal and cleaning of the output. Compact in design, this electric grinder can process 30g of coffee beans per use, offering both aesthetic appeal and high performance.
2. Instruccions de seguretat
- Llegiu totes les instruccions abans d'utilitzar l'aparell.
- No submergiu la base del motor, el cable ni l'endoll en aigua ni en altres líquids.
- És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
- Desendolleu la presa de corrent quan no estigui en ús, abans de muntar o desmuntar peces i abans de netejar.
- Eviteu el contacte amb les peces mòbils.
- No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
- L'ús d'accessoris no recomanats o venuts pel fabricant pot provocar incendis, descàrregues elèctriques o lesions.
- No utilitzar a l'aire lliure.
- No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
- No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
- Comproveu la tolva per si hi ha objectes estranys abans d'utilitzar-la.
- Utilitzeu aquest aparell només per a l'ús previst.
3. Producte acabatview

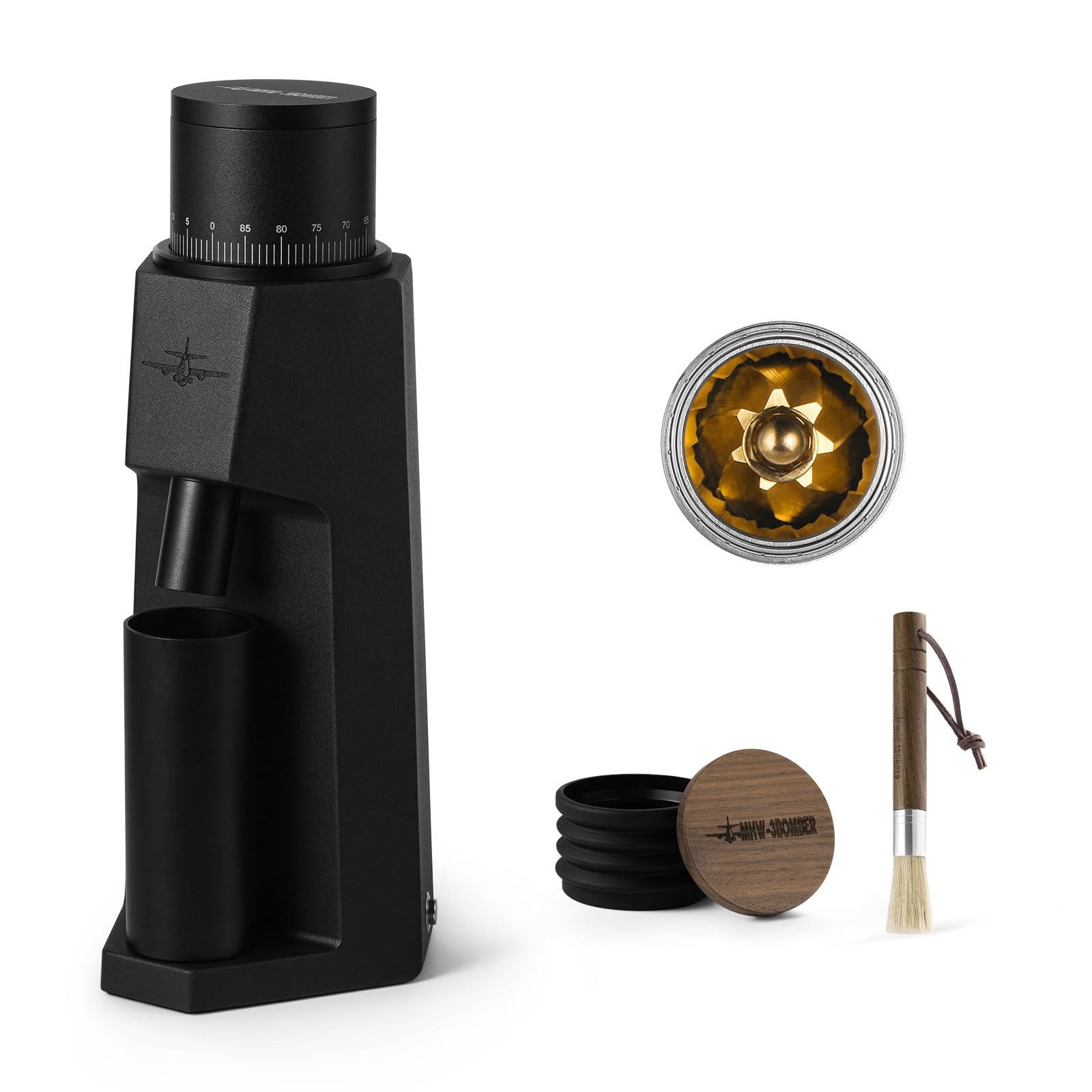

An image of the MHW-3BOMBER Sniper Electric Conical Burr Coffee Grinder, showcasing its sleek black design and compact form factor. The grinder features a top-mounted hopper, a central grinding mechanism, and a collection container at the bottom.
Components:
- Tremuja: For holding whole coffee beans.
- Dial d'ajust de la mòlta: Allows for precise, stepless adjustment of grind size.
- Rebaves còniques: Internal grinding mechanism (48mm CNC420 stainless steel, titanium-coated).
- Base del motor: Contains the motor and control electronics.
- Contenidor de recollida: For collecting ground coffee.
- Botó/interruptor d'engegada: To turn the grinder on and off.
- Cable d'alimentació: Per connectar a una presa de corrent.
4. Configuració
- Desembalar: Traieu amb cura tots els components de l'embalatge. Conserveu l'embalatge per a futurs emmagatzematges o transports.
- Inspeccionar: Check the grinder and all accessories for any signs of damage. Do not use if damaged.
- Neteja: Abans del primer ús, netegeu l'exterior del molinet amb un anunci.amp cloth. Wash the collection container and hopper (if removable) with warm, soapy water, rinse thoroughly, and dry completely. Ensure all parts are dry before assembly.
- Muntar: Place the collection container securely into its position. Attach the hopper to the top of the grinder.
- Col·locació: Place the grinder on a stable, flat, and dry surface. Ensure there is adequate ventilation around the unit.
- Connectar l'alimentació: Connecteu el cable d'alimentació a una presa de corrent adequada.
5. Instruccions de funcionament
5.1. Afegir grans de cafè
- Ensure the grinder is unplugged before adding beans.
- Open the hopper lid and pour up to 30g of whole roasted coffee beans into the hopper.
- Tanqueu bé la tapa de la tolva.
5.2. Ajust de la mida de la mòlta
- The grinder features a stepless grind adjustment. Rotate the grind adjustment dial to select your desired fineness.
- Turning the dial clockwise typically results in a finer grind, while turning it counter-clockwise results in a coarser grind.
- Grind Recommendations:
- Extra fi: Cafè turc
- Molt bé: Espresso, Moka Pot
- Medium-Fine: Aeropress, Siphon
- Mitjà: Drip Coffee, Pour Over
- Gruixuda: Premsa francesa, Cold Brew
- It is recommended to adjust the grind size while the grinder is running or with the hopper empty to prevent burr damage or jamming.
5.3. Moler el cafè
- Ensure the collection container is properly seated.
- Plug the grinder into a power outlet.
- Press the Power Button to start grinding. The grinder will operate until all beans are processed or the button is pressed again.
- Un cop s'hagi acabat de mòlta, desconnecteu el molinet.
- Carefully remove the collection container and use the freshly ground coffee.
6. Manteniment
6.1. Neteja diària
- After each use, unplug the grinder.
- Remove the collection container and empty any residual ground coffee. Wash with warm, soapy water, rinse, and dry.
- Wipe the exterior of the grinder with a clean, damp drap. No utilitzeu productes de neteja abrasius ni submergiu la base del motor en aigua.
6.2. Deep Cleaning (Burrs and Chute)
- Desendolleu el molinet de la presa de corrent.
- Remove the hopper and any remaining coffee beans.
- Carefully remove the upper burr. Use a brush (a dedicated coffee grinder brush is recommended) to clean the upper and lower burrs, removing any accumulated coffee grounds or oils.
- The output chute features a magnetic suction design, allowing it to be easily removed for thorough cleaning. Clean the chute to prevent blockages and reduce static.
- Reassemble all parts, ensuring they are securely in place.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El molinet no arrenca. | Not plugged in; Power switch off; Overload protection activated. | Ensure grinder is plugged in. Turn power switch on. Unplug, wait 30 minutes, then plug in and try again. |
| Trituració inconsistent. | Burrs are dirty or worn; Grind setting too coarse/fine for desired method. | Clean the burrs thoroughly. Adjust grind setting as needed. Consider burr replacement if heavily worn. |
| Excessive static/flying powder. | Dry beans; Dirty chute; Environmental humidity. | Clean the output chute. Lightly mist beans with water before grinding (Ross Droplet Technique). |
| Grinder jams or stops during operation. | Foreign object in burrs; Overfilling hopper; Grind setting too fine for beans. | Unplug. Remove beans and inspect burrs for foreign objects. Do not overfill. Adjust to a coarser setting. |
| Grinder is noisy. | Foreign object in burrs; Loose components. | Unplug and inspect burrs for foreign objects. Ensure all parts are securely assembled. |
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | MHW-3BOMBER |
| Model | G6154B-OS |
| Color | Negre |
| Material | Alumini, acer inoxidable |
| Pes de l'article | 2.9 quilos |
| Poder | 45 watts |
| Capacitat | 30 Grams (coffee beans) |
| Voltage | 24 Volts |
| Tipus de rebava | 48mm CNC420 Stainless Steel Conical Burr (Titanium Coated) |
| Ajust de mòlta | Continua |
9. Garantia i Suport
MHW-3BOMBER provides a brand warranty for this product. For specific warranty details and duration, please refer to the documentation included with your purchase or contact the retailer.
Should you encounter any issues or have questions regarding the operation or maintenance of your coffee grinder, please do not hesitate to contact MHW-3BOMBER customer support or your point of purchase. Our team is available to assist you with any concerns after your purchase.
