Wulken Snap-Off Utility Knife User Manual

Introducció

The Wulken Snap-Off Utility Knife is designed for precision cutting tasks, offering ease of use and reliable performance. It features a secure wheel locking mechanism for blade stability, a quick-release system for efficient blade changes, and an ergonomic rubber grip for comfort and control during extended use. This manual provides essential information for the safe and effective operation and maintenance of your utility knife.

Informació de seguretat

• Always exercise extreme caution: Les fulles són extremadament afilades. Manipular amb cura.
• Mantenir fora de l'abast dels nens: This tool is not a toy and poses a serious injury risk.
• Porteu equip de seguretat adequat: Always wear safety glasses to protect your eyes from debris. Gloves are recommended to prevent cuts.
• Talla't del cos: Always direct the blade away from yourself and others.
• Use on a stable surface: Ensure your workpiece is secure and stable before cutting.
• Retract blade when not in use: Fully retract the blade into the handle after each use to prevent accidental injury.
• Dispose of used blades properly: Snap-off blade segments are sharp. Use a blade disposal container or wrap them securely before discarding.
• Inspeccioneu abans d'usar: Ensure the blade is securely locked and the knife is in good working condition before each use.

Producte acabatview

The Wulken Snap-Off Utility Knife consists of a durable handle, a retractable blade mechanism, and a snap-off blade. The ergonomic design ensures a comfortable and secure grip.

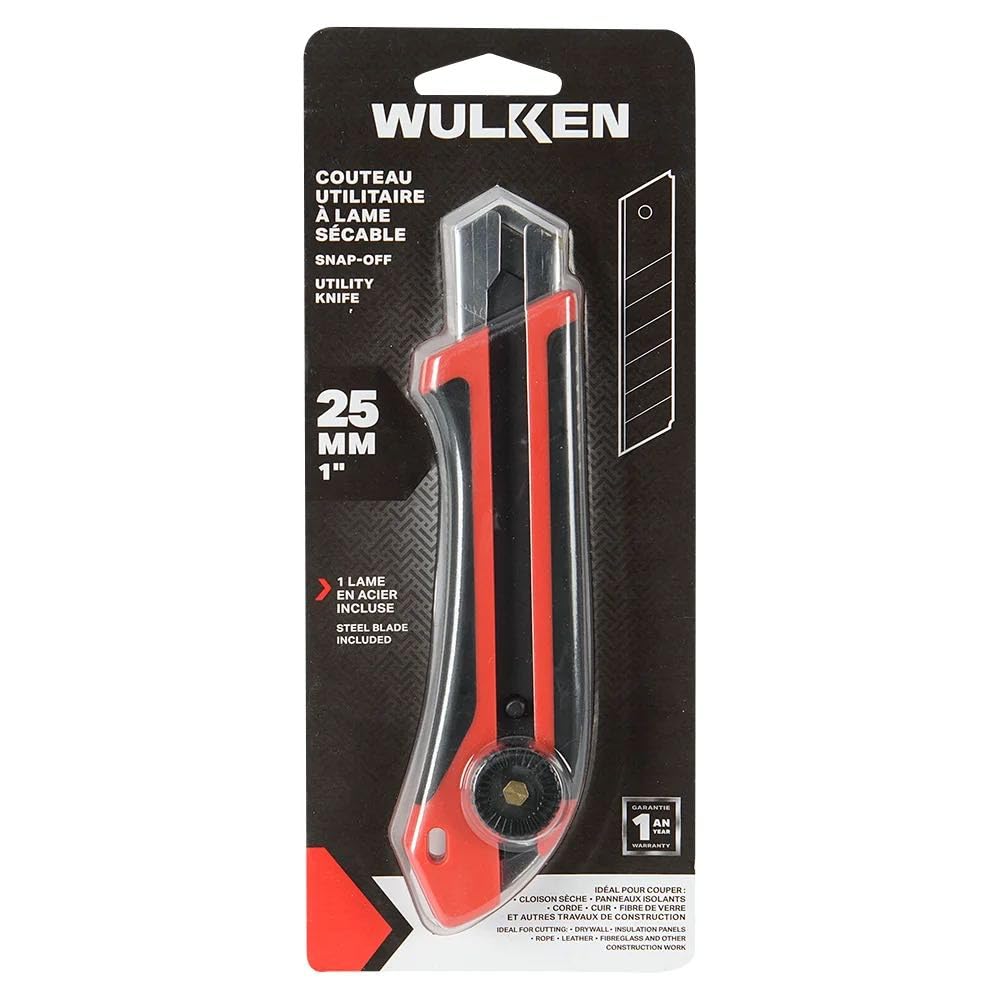

Figura 1: Frontal view of the Wulken Snap-Off Utility Knife, showing the blade extended and the wheel locking mechanism.

Figura 2: lateral view of the Wulken Snap-Off Utility Knife, highlighting the ergonomic rubber grip and the 'WULKEN' brand logo.

Configuració i substitució de la fulla

This section details how to safely replace or insert a new blade into your utility knife.

1. Retract the blade: Ensure the existing blade is fully retracted into the handle.
2. Unlock the blade mechanism: Locate the wheel locking mechanism (typically a rotating wheel or button near the blade guide). Rotate or press it to release the blade.
3. Traieu la fulla antiga: Carefully slide the old blade out from the front of the knife. Dispose of it safely in a designated blade disposal container.
4. Insert the new blade: Slide a new snap-off blade into the blade guide, ensuring the sharp edge faces forward.
5. Lock the blade mechanism: Once the blade is in place, engage the wheel locking mechanism to secure the blade firmly. Test its security by gently pulling on the blade.

Figura 3: Primer pla view showing the blade and the quick-release mechanism for blade changes.

Instruccions de funcionament

1. Extend the blade: Push the slider forward to extend the blade to the desired length.
2. Lock the blade: Rotate the wheel locking mechanism clockwise (or engage the locking button) to secure the blade in position. This prevents the blade from retracting during use.
3. Make the cut: Apply firm, even pressure and guide the knife along the cutting line. Always cut away from your body.
4. Retract the blade: After completing the cut, unlock the blade mechanism and slide the blade fully back into the handle.
5. Snapping off dull segments: When the blade tip becomes dull, retract the blade until only one segment is exposed. Use the integrated blade snapper (if available, often at the end of the knife) or pliers to carefully snap off the dull segment. Dispose of the segment safely. Extend the fresh segment and lock it before resuming work.

Manteniment

• Neteja: Periodically clean the knife handle and blade guide to remove dust, debris, or adhesive residue. Use a dry cloth or a soft brush. Do not use harsh chemicals.
• Canvi de fulla: Replace blades regularly as they become dull to ensure optimal cutting performance and safety. A dull blade requires more force, increasing the risk of slippage and injury.
• Emmagatzematge: Store the utility knife in a dry place, with the blade fully retracted, and out of reach of children.

Resolució de problemes

• Blade does not extend/retract smoothly: Check for debris in the blade guide. Clean the guide thoroughly. Ensure the blade is correctly inserted and not bent.
• Blade feels loose after locking: Ensure the wheel locking mechanism is fully engaged. If the blade still feels loose, the blade itself might be worn or damaged and should be replaced.
• Difficulty snapping off blade segments: Ensure only one segment is exposed. Use appropriate tools (like pliers or the integrated snapper) and apply firm, quick pressure.

Especificacions

Garantia i Suport

For warranty information or technical support, please refer to the product packaging or contact Wulken customer service through the official website or the retailer where the product was purchased. You may also find additional support at canac.ca.
