maXpeedingrods QV145GU
maXpeedingrods Limited Slip Differential Instruction Manual
Models: MF-TRS-05B16, MF-TRS-05B18
1. Producte acabatview
The maXpeedingrods Limited Slip Differential (LSD) is an automotive component designed to enhance traction and improve vehicle handling by distributing engine torque more effectively to the drive wheels. This unit is constructed from durable 45#Steel and 20CrMnTi materials, ensuring long-lasting reliability and performance. It is engineered to meet original equipment dimensions for a precise fit.
This differential is a direct replacement part, rigorously tested for durability and performance to provide an improved driving experience, especially in conditions where wheel slip might occur.
2. Aplicació i compatibilitat
This Limited Slip Differential is compatible with a range of Honda and Acura vehicles. Please verify your vehicle's specific requirements and existing components before installation.
- For Acura B16 Cable S1 Y1 (Without Factory LSD) 1988-1991
- For Acura Integra LS GS RS 1990-2001
- For Honda B16 DEL SOL DOHC VTEC 1994-1997
- For Honda B16 Civic SI 1999-2000
Applicable Engines: B16A, B17A, B18A, B18B
Nota: This unit is designed for use with a 109.8 mm Ring Gear Hole. Even if your car is listed in the compatibility, it is crucial to double-check fitment details and compare with product photos before ordering to ensure correct application.
3. Especificacions tècniques
| Especificació | Detall |
|---|---|
| Tipus | Diferencial |
| Differential Type | Limited-Slip |
| Tipus d'eix | Eix davanter |
| Col·locació al vehicle | Davant |
| Material | 45#Steel & 20CrMnTi |
| Ring Gear Hole Compatibility | 109.8 mm |
| Pes de l'article | 11.57 lliures (aprox. 5.2 kg) |
| Dimensions del producte | 7.87 x 7.48 x 8.66 polzades (aprox. 20 x 19 x 22 cm) |
| Número de peça del fabricant | QV145GU |
| OE/Part Numbers | 52716010, 2358132, MF-TRS-05B16, MFTRS05B16, MF-TRS-05B18, MFTRS05B18 |
4. Guia d'instal·lació
Installation of a Limited Slip Differential is a complex procedure that requires specialized tools, knowledge, and experience with automotive drivetrain components. Es recomana una instal·lació professional.
No detailed installation instructions are included with this product. Attempting installation without proper expertise may lead to damage to the product, vehicle, or personal injury. Consult a certified automotive technician for proper installation.
5. Manteniment
Proper maintenance of your vehicle's differential is crucial for its longevity and performance. While the maXpeedingrods LSD is built for durability, adherence to your vehicle manufacturer's recommended differential fluid change intervals is essential.
- Controls de fluids: Regularly check the differential fluid level and condition. Refer to your vehicle's service manual for the correct fluid type and capacity.
- Canvis de fluids: Adhere to the recommended service intervals for differential fluid changes. This helps to remove metallic particles and maintain optimal lubrication.
- Inspecció: Periodically inspect the differential housing for any signs of leaks, damage, or unusual wear.
- Escolta el soroll: Pay attention to any new or unusual noises coming from the differential area, which could indicate a problem.
6. Solució De Problemes
If you experience issues after installation or during the operation of your Limited Slip Differential, consider the following general troubleshooting steps. For complex issues, professional diagnosis is advised.
- Unusual Noises (Whining, Clunking): This could indicate improper installation, low fluid levels, incorrect fluid type, or internal wear. Immediately cease operation and have the differential inspected by a professional.
- Vibració: Vibrations can stem from various sources, including unbalanced wheels, driveshaft issues, or differential problems. Ensure all components are properly balanced and secured.
- Poor Traction Performance: If the LSD is not providing the expected traction benefits, verify that the correct unit was installed for your vehicle and that there are no underlying issues with the vehicle's suspension or tire setup.
- Fuites de fluids: Inspect seals and gaskets for damage. Leaks must be addressed promptly to prevent fluid loss and potential damage to the differential.
Always consult a qualified mechanic for diagnosis and repair of differential-related issues.
7. Garantia i Suport
maXpeedingrods stands behind the quality of its products. All items undergo rigorous testing for reliability, durability, and performance.
For any questions, concerns, or support needs regarding your Limited Slip Differential, please feel free to contact maXpeedingrods customer support. They are available 24/7 to assist you and will do their best to resolve any issues you may encounter.
8. Imatges del producte
Davant view of the maXpeedingrods Limited Slip Differential, showcasing its robust black and silver construction and bolt pattern.

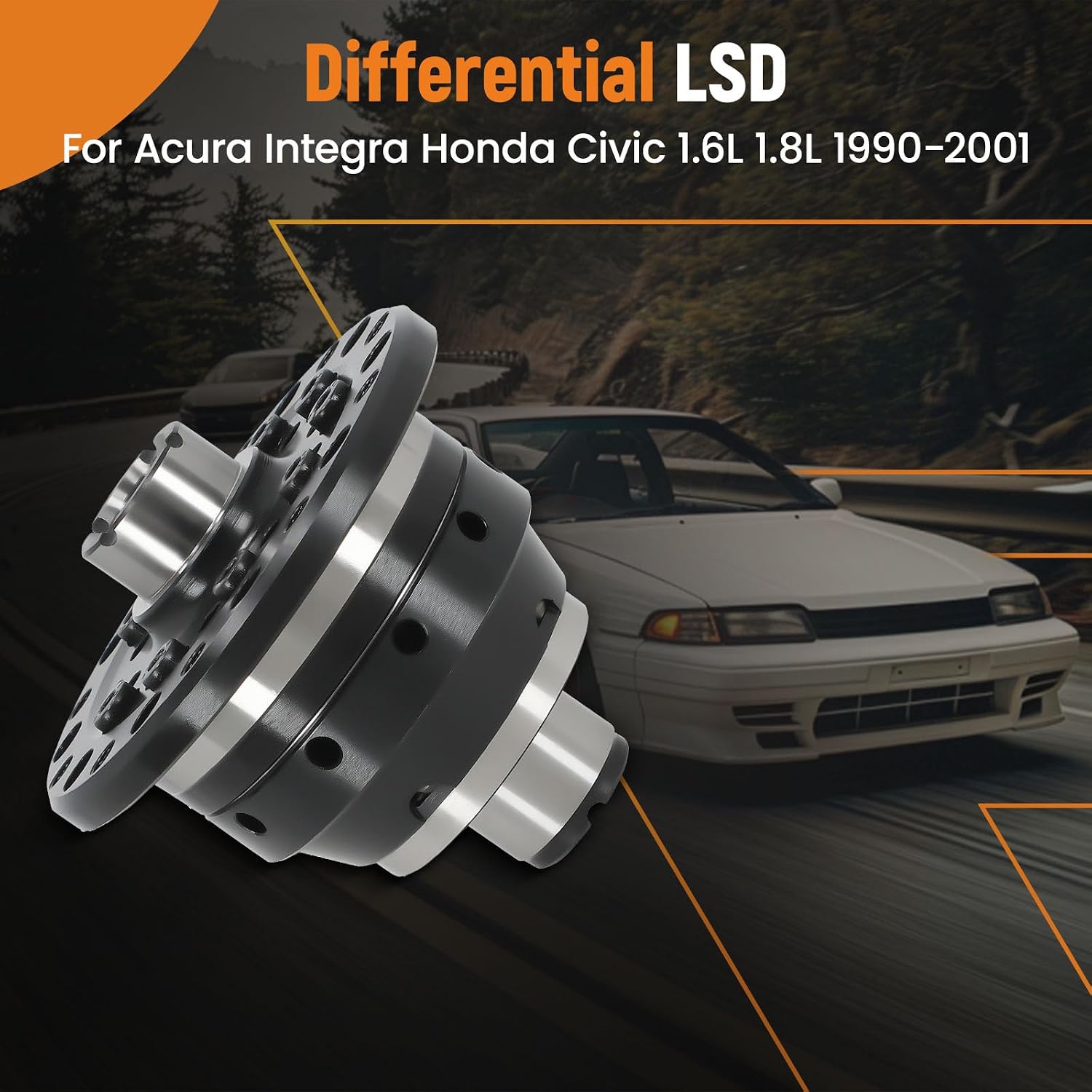

The Limited Slip Differential unit positioned against a blurred background of a car on a road, illustrating its automotive application.
A composite image showing the main LSD unit alongside close-up details of its internal components and bolt holes, highlighting precision engineering.
A dynamic side angle view of the Limited Slip Differential, emphasizing its compact design and the quality of its machined surfaces.
Una sobrecàrrega view of the Limited Slip Differential, clearly showing the central shaft and the surrounding bolt pattern for mounting.
A different side perspective of the differential unit, highlighting its cylindrical body and the transition to the mounting flange.
A direct top view of the Limited Slip Differential, providing a clear look at the numerous bolt holes on the flange, essential for installation.
