JRing AC to DC Converter 110-220V to 12V 20A 240W Instruction Manual

Introducció

This manual provides essential information for the safe and efficient operation of your JRing AC to DC Converter. Please read these instructions thoroughly before using the product and retain them for future reference.

The JRing AC to DC Converter converts standard household alternating current (AC) from 110-220V to direct current (DC) 12V, providing a 20A, 240W output through a car cigarette lighter socket. It is designed for use with various 12V car-powered devices.

Instruccions importants de seguretat

• Llegeix totes les instruccions: Before using the converter, read and understand all safety warnings and operating instructions.
• Ús només en interiors: This device is designed for indoor use. Avoid exposure to rain, moisture, or extreme temperatures.
• Ventilació: Ensure adequate ventilation around the converter. Do not cover the device or block its cooling fan.
• Compatibilitat d'alimentació: Only connect to 110-220V AC power sources. Ensure your 12V DC devices do not exceed 240W (20A) total power consumption.
• Protecció de sobrecàrrega: The converter features built-in protection against over-voltage, over-current, over-temperature, and short circuits. If protection activates, the device will shut off. Disconnect the load and power source, then allow it to cool before reconnecting.
• Eviteu modificacions: Do not attempt to open, modify, or repair the converter. Refer all servicing to qualified personnel.
• Nens i mascotes: Mantingueu el dispositiu fora de l'abast dels nens i les mascotes.
• Materials inflamables: No utilitzeu a prop de líquids o gasos inflamables.

Contingut del paquet

Verifiqueu que tots els articles siguin presents i en bon estat en desempaquetar-los.

• JRing AC to DC Converter (20A, 240W)
• AC Input Power Cord (4.6 ft / 140 cm)
• DC Output Cord with Cigarette Lighter Socket (1.5 ft / 46 cm)

Imatge: The JRing AC to DC Converter unit with its input and output cables. The input cable connects to a standard wall outlet, and the output cable terminates in a 12V cigarette lighter socket.

Imatge: Detailed dimensions of the JRing AC to DC Converter and its cables. The main unit measures approximately 17.5 cm (6.89 inches) in length, 9 cm (3.54 inches) in width, and 5.5 cm (2.17 inches) in height. The input cord is 140 cm (4.6 ft) and the output cord is 46 cm (1.5 ft).

Instruccions de configuració

1. Desembalar: Carefully remove the AC to DC converter and all cables from the packaging.
2. Connecteu l'entrada de CA: Insert the AC input power cord into the designated port on the converter unit. Ensure it is firmly seated.
3. Connect DC Output: The DC output cable is permanently attached to the converter and terminates in a 12V cigarette lighter socket.
4. Col·locació: Place the converter on a stable, flat surface with adequate ventilation. Avoid placing it on soft surfaces that could block airflow.

Instruccions de funcionament

1. Connectar el dispositiu: Plug your 12V car-powered device into the cigarette lighter socket of the converter. Ensure the device's power consumption does not exceed 240W (20A).
2. Connecteu-vos a la presa de corrent: Plug the AC input cord of the converter into a standard 110-220V AC wall outlet.
3. Encès: The converter will automatically provide 12V DC power. Some devices may have their own power switch; ensure it is turned on.
4. Monitor d'ús: For optimal performance and safety, it is recommended that the maximum continuous use should be ≤80% of the full load (i.e., ≤192W for this 240W model).
5. Desconnectar: To turn off, first unplug the 12V device from the converter, then unplug the converter from the wall outlet.

Imatge: The JRing AC to DC Converter connected to a mini car refrigerator, demonstrating its use in a home environment. This setup allows car appliances to be powered by a standard wall outlet.

Imatge: Examples of indoor and outdoor applications for the JRing AC to DC Converter. Indoor uses include powering a car cleaner or an electric mug cup. Outdoor uses include powering a tire inflator.

Dispositius compatibles

This converter is suitable for 12V car-powered devices with a total power consumption under 240 watts (20A). Examples inclouen:

• Infladors de pneumàtics
• Car Vacuum Cleaners
• Car Air Fans
• Càmeres de tauler de cotxes
• Car Massage Cushions
• Travel Coffee Makers
• Car Refrigerators
• Car Air Purifiers
• Compressors d'aire
• Car Aroma Humidifiers

Always check the power requirements of your device before connecting to ensure compatibility and prevent damage.

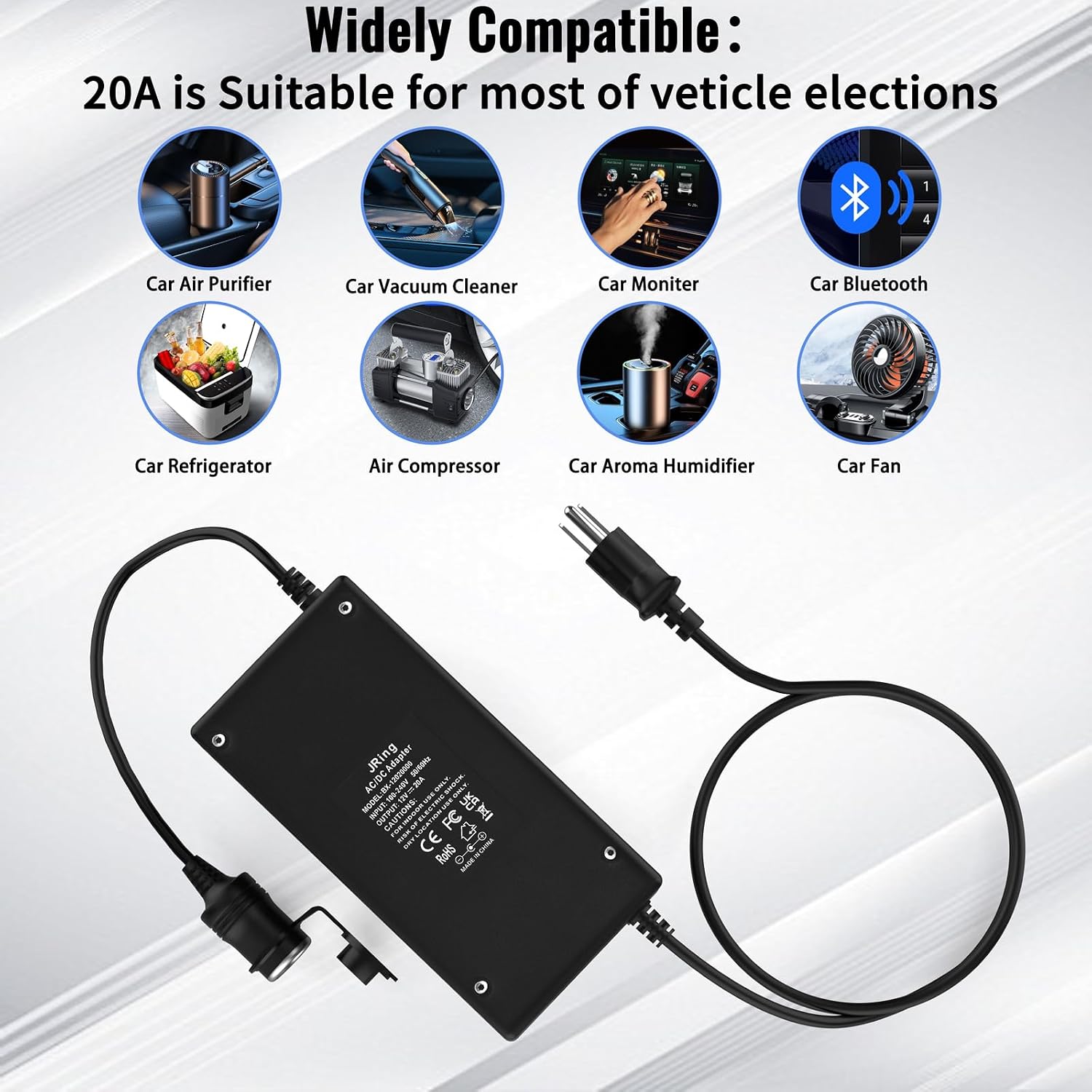

Imatge: An illustration showing the wide compatibility of the JRing AC to DC Converter with various 12V car electronics, including car air purifiers, vacuum cleaners, monitors, Bluetooth devices, refrigerators, air compressors, aroma humidifiers, and fans.

Manteniment

• Neteja: Disconnect the converter from the power source before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or sprays.
• Emmagatzematge: Guardeu el convertidor en un lloc fresc i sec, allunyat de la llum solar directa i de la humitat quan no l'utilitzeu.
• Inspecció: Periodically inspect the power cords and the converter unit for any signs of damage, such as frayed wires or cracks. Do not use if damaged.

Resolució de problemes

Especificacions

Imatge: The JRing AC to DC Power Adapter shown alongside a table of its key specifications, including product name, brand, input voltage, DC output, output current, output wattage, and output port type.

Garantia i Suport

The JRing AC to DC Converter comes with a warranty as specified by the manufacturer. For details regarding your specific warranty coverage, please refer to the product listing or contact JRing customer support.

Descripció de la garantia: Free returns within two years.

For technical support, troubleshooting assistance, or warranty claims, please contact JRing customer service through the retailer's platform or the contact information provided with your purchase.
