Atletica R8 Spectre Medium Power Rack Instruction Manual

Introducció

Welcome to your new Atletica R8 Spectre Medium Power Rack. This manual provides essential information for the safe assembly, operation, and maintenance of your fitness equipment. Please read this manual thoroughly before assembly or use to ensure proper function and safety.

Instruccions importants de seguretat

Failure to follow these safety instructions may result in serious injury or property damage. Keep this manual for future reference.

• Read and understand all instructions before assembling or using the equipment.
• Consulteu un metge abans de començar qualsevol programa d'exercici.
• Ensure all components are correctly assembled and all bolts and fasteners are securely tightened before each use.
• Inspect the equipment for wear or damage before each use. Do not use if damaged.
• Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
• Do not exceed the maximum weight capacities of the rack, Smith machine, or lat attachment.
• Use proper lifting techniques and always use safety spotter arms when performing free weight exercises.
• Ensure the equipment is placed on a stable, level surface.

Always ensure all bolts and fasteners are securely tightened before each use.

Producte acabatview

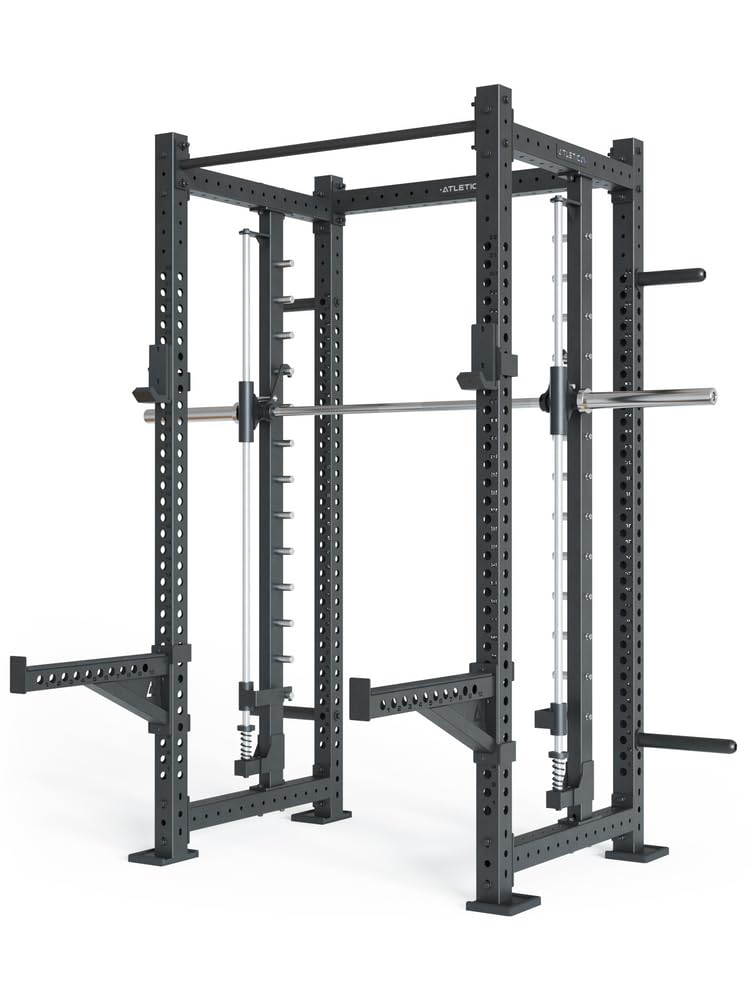

The Atletica R8 Spectre Medium is a versatile power rack system designed for comprehensive strength training. It features an integrated Smith machine, a plate-loaded lat pulldown/row attachment, J-hooks, and safety spotter arms, providing a complete workout solution.

• Integrated Smith Machine: Features a 19 kg solid metal barbell with linear ball bearings for smooth, guided movement.
• Safety Catches: Equipped with a 13-hook spindle for secure barbell placement and adjustable drop-down safety catches for emergency releases.
• Free Weight Support: Includes J-hooks and 61 cm safety spotter arms for various free weight exercises such as squats, bench press, and overhead press.
• Barra de dominades: A monkey bar is integrated for pull-ups and calisthenics exercises.
• Construcció robusta: Built with a durable 75x75 mm steel tubing profile and 3 mm thickness, ensuring stability and safety during heavy lifting.
• Lat Pulldown/Row Attachment: The optional plate-loaded attachment includes a rowing/curl handle, a wide lat pulldown handle, and a leg blocker for maximum stability. It operates with a 1:1 transmission ratio.

Instruccions de muntatge

This section provides general guidelines for assembling your Atletica R8 Spectre Medium Power Rack. Due to the complexity and weight of the equipment, it is recommended that two or more adults perform the assembly.

Eines necessàries

• Claus regulables
• Allen Keys (often included)
• Cinta mètrica
• Nivell d'esperit

Desembalatge i inspecció

Carefully unpack all components from the packaging. Verify that all parts are present according to the included parts list (refer to your product packaging for the specific list). Inspect all components for any signs of damage. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

Muntatge pas a pas

1. Muntar el marc principal: Begin by connecting the base frames, uprights, and crossmembers. Ensure all connections are finger-tightened initially.
2. Install Smith Machine Components: Carefully install the Smith machine guide rails and the barbell assembly. Ensure smooth movement along the rails.
3. Adjuntar accessoris: Mount the J-hooks, safety spotter arms, and the monkey bar to the main frame at desired heights.
4. Mount Lat Pulldown/Row Attachment: If applicable, attach the lat pulldown/row unit, ensuring all cables are correctly routed through the pulleys and the plate-loaded carriage moves freely.
5. Ajustament final: Once all components are in place, systematically tighten all bolts and fasteners using the appropriate tools. Double-check every connection for security.
6. Nivell: Use a spirit level to ensure the entire rack is level and stable on your floor. Adjust as necessary.

Instruccions de funcionament

This section details how to safely and effectively use the various features of your Atletica R8 Spectre Medium Power Rack.

Smith Machine Operation

The Smith machine barbell is designed for guided, vertical movement. To use:

• Load appropriate weight plates onto the barbell sleeves.
• To unrack the barbell, lift it slightly and rotate it to disengage the safety hooks from the uprights.
• Perform your exercise with controlled movements.
• To re-rack, lift the barbell to the desired height and rotate it to engage the safety hooks into the nearest slot on the uprights. Always ensure the barbell is securely locked before stepping away.

Free Weight Exercises (J-Hooks and Safety Spotter Arms)

For exercises with a free barbell, utilize the adjustable J-hooks and safety spotter arms:

• Adjusting J-Hooks: Insert the J-hooks into the desired height holes on the uprights. Ensure both J-hooks are at the same height and fully seated.
• Adjusting Safety Spotter Arms: Position the safety spotter arms below your lowest intended range of motion for exercises like squats or bench press. Ensure both arms are at the same height and securely locked.
• Always use safety spotter arms when lifting heavy or performing exercises where you might fail a lift.

Lat Pulldown i Low Row

The plate-loaded lat attachment allows for various cable exercises:

• Loading Weights: Load standard weight plates onto the plate carriage of the lat attachment.
• Acoblar nanses: Connect the desired handle (e.g., lat bar, rowing handle) to the cable carabiner.
• Pulldown lateral: Sit on the bench (if included) or floor, position your knees under the leg blocker for stability, and perform pulldowns.
• Low Row: Sit on the floor or a low bench facing the lower pulley, brace your feet, and perform rows.

Cura i Manteniment

Regular maintenance is crucial for the longevity, safety, and optimal performance of your Atletica R8 Spectre Medium Power Rack.

• Inspecció diària: Before each use, quickly inspect the entire rack for any loose bolts, nuts, or signs of wear on cables, pulleys, or moving parts.
• Neteja: Netegeu el marc i els components amb anuncisamp cloth and a mild, non-abrasive detergent after each use to remove sweat and dust. Avoid harsh chemicals.
• Lubricació: Periodically apply a silicone-based lubricant to the Smith machine guide rods and any moving parts of the cable system (pulleys, carriage) to ensure smooth operation.
• Inspecció del cable: Regularly check all cables for fraying, kinks, or any other damage. Damaged cables must be replaced immediately by a qualified technician to prevent injury.
• Apretar els elements de fixació: Every few weeks, or as needed, re-tighten all bolts and nuts to ensure the rack remains stable and secure.

Proper and consistent maintenance ensures the longevity and safe operation of your equipment.

Resolució de problemes

This section addresses common issues you might encounter with your power rack. For problems not listed here, please contact customer support.

• Problema: Smith machine barbell feels stiff or sticky.
  Solució: Clean the guide rods thoroughly and apply a silicone-based lubricant. Check for any obstructions in the guide rails.
• Problema: Lat pulldown cables are noisy or not moving smoothly.
  Solució: Inspect all pulleys for obstructions or debris. Lubricate the pulley axles and cable with a silicone-based lubricant. Check if the cable is properly seated in all pulley grooves.
• Problema: The entire rack feels unstable or wobbly.
  Solució: Ensure all assembly bolts and nuts are fully tightened. Verify that the rack is placed on a completely level and stable surface. Use shims if necessary to level the rack.
• Problema: Difficulty engaging/disengaging Smith machine safety hooks.
  Solució: Ensure the barbell is lifted sufficiently before rotating. Check for any bending or damage to the hooks or upright slots.

For issues not listed here, please contact Atletica customer support or your retailer for assistance.

Especificacions del producte

Below are the key specifications for the Atletica R8 Spectre Medium Power Rack:

• Model: R8 Spectre Medium
• Número de model: 555-1775
• Marca: Atletica
• Color: Negre
• Dimensions (profunditat): 93 cm (rack) + 61 cm (safety spotter arm extension)
• Steel Profile: 75 x 75 mm
• Gruix d'acer: 3 mm
• Smith Machine Barbell Weight: 19 kg
• Pes de l'article: 232.5 kg
• Lat Pulldown System: Plate Loaded, 1:1 ratio

Garantia i assistència al client

For detailed warranty information regarding your Atletica R8 Spectre Medium Power Rack, please refer to the warranty card or documentation included with your original purchase. Warranty terms and conditions may vary.

If you require assistance with assembly, operation, maintenance, or have any questions not covered in this manual, please contact your retailer or Atletica customer support directly. Provide your model number (555-1775) and purchase date when contacting support for faster service.
