Alpicool C12PT 12L Portable Car Refrigerator User Manual

Introducció

This user manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your Alpicool C12PT 12L Portable Car Refrigerator. Please read this manual thoroughly before using the appliance to ensure proper function and longevity. This portable refrigerator is designed for cooling and freezing items, suitable for various applications such as car travel, camping, picnics, and dormitory use.

Informació de seguretat

Per evitar lesions a vostè o a altres persones o danys al seu aparell, si us plau, observeu les següents precaucions de seguretat:

• Assegureu-vos que la font d'alimentació voltage matches the appliance's requirements (12/24V DC).
• No feu funcionar l'aparell si el cable d'alimentació està danyat o si l'aparell està visiblement danyat.
• Mantingueu l'aparell lluny de fonts de calor i de la llum solar directa.
• Assegureu-vos que hi hagi una ventilació adequada al voltant de l'aparell. No bloquegeu les obertures de ventilació.
• No submergiu l'aparell en aigua ni l'exposeu a pluja intensa.
• No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
• Desconnecteu sempre l'alimentació abans de netejar o realitzar tasques de manteniment.
• Aquest aparell el poden utilitzar nens a partir de 8 anys i persones amb capacitats físiques, sensorials o mentals reduïdes o amb manca d'experiència i coneixements si han rebut supervisió o instruccions sobre l'ús de l'aparell d'una manera segura i entenen els perills que comporta. .

Producte acabatview

The Alpicool C12PT is a compact and efficient portable car refrigerator/freezer. Below are key features and components.

Figure 1: Alpicool C12PT Portable Car Refrigerator, showing its compact design and control panel.

Figura 2: Detallada view of the Alpicool C12PT components, including the door hinge system, LED display, charging port, heat dissipation cover, inner compartment, and door latch.

Figure 3: Illustration of the 12-liter internal capacity, showing space for 12 standard 355ml cans or 9 standard 500ml bottles. Also highlights the control panel with temperature increase/decrease buttons, LED display, on/off switch, and display panel.

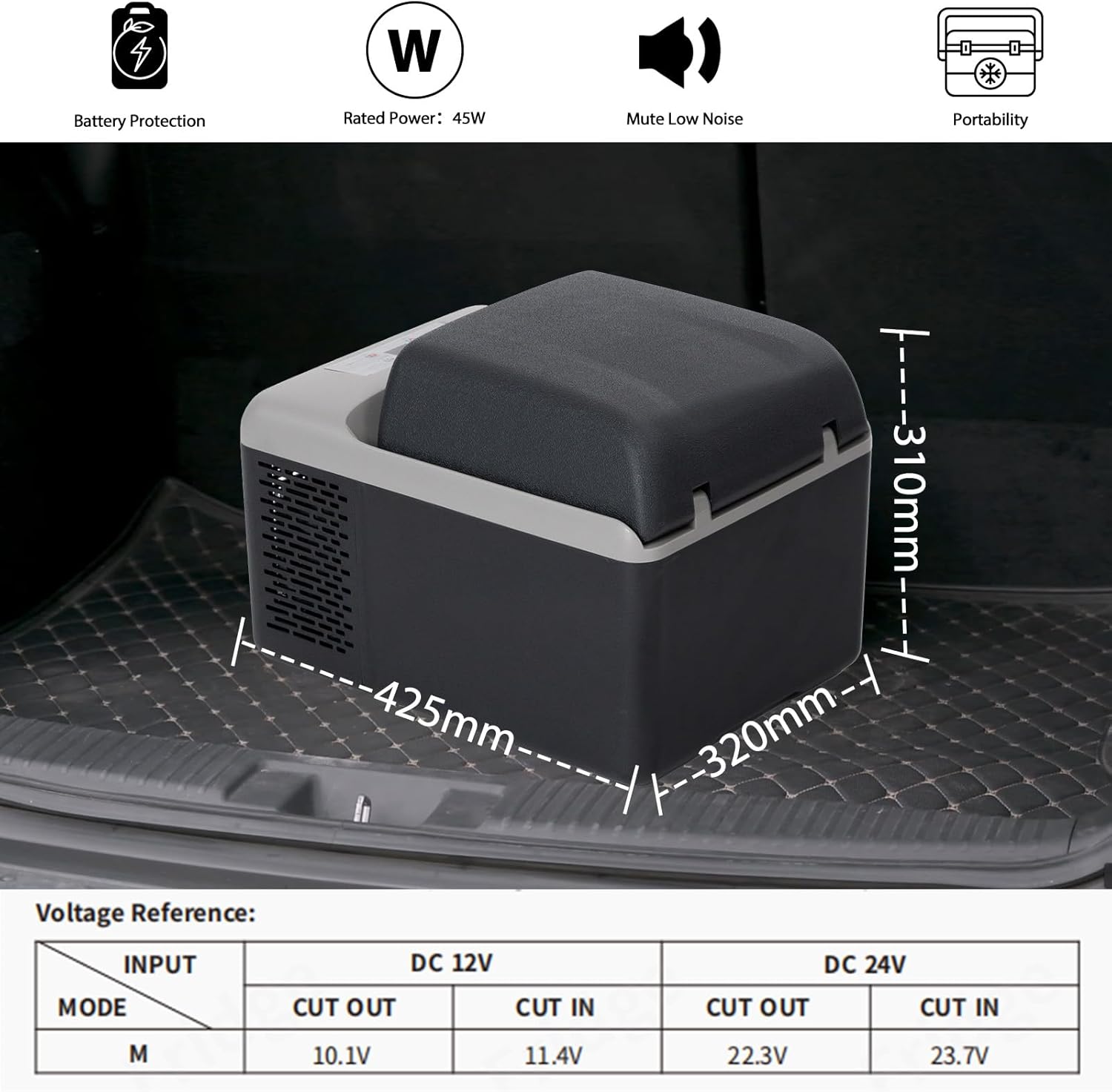

Figure 4: Product dimensions (425mm length, 320mm width, 310mm height) and a voltage reference table for DC 12V and DC 24V, indicating cut-out and cut-in voltages for battery protection modes.

Figure 5: Demonstrates the adjustable temperature range from -20°C to 20°C (-4°F to 68°F) and the rugged, shockproof design capable of operating at up to a 45° angle for short periods, suitable for rocky roads.

Figure 6: Shows the lightweight and durable design, featuring a notched bottom for easy lifting and portability.

Figure 7: Contents of the product packaging, including the C12PT Car Refrigerator unit, a DC cable for car use, an AC cable with adapter for home use, and the user manual.

Configuració

1. Desembalatge i col·locació inicial

Carefully remove the refrigerator from its packaging. It is recommended to let the appliance stand upright for at least 6 hours before first use, especially if it was transported horizontally. This allows the refrigerant to settle. Place the refrigerator on a flat, stable surface, ensuring adequate ventilation around all sides. Avoid placing it in direct sunlight or near heat sources.

2. Connexió d'alimentació

The Alpicool C12PT can be powered by both DC (12V/24V) and AC (100-240V) power sources.

• DC Power (Car/Vehicle): Connect the DC power cable to the refrigerator's DC input port and then to your vehicle's 12V or 24V cigarette lighter socket. Ensure the connection is secure.
• AC Power (Home/Wall Outlet): Use the provided AC adapter and cable. Connect the AC cable to the adapter, then plug the adapter into a standard wall outlet (100-240V). Connect the other end of the AC cable to the refrigerator's AC input port.

Ensure the power source is stable and provides sufficient current for the refrigerator's operation.

Instruccions de funcionament

1. Tauler de control acabatview

The control panel features an LED display and several buttons for operation.

• Pantalla LED: Shows the current internal temperature and settings.
• Botó d'encesa: Premeu i manteniu premut per encendre/apagar la unitat.
• Botó SET: Press to cycle through settings (e.g., battery protection mode, ECO/MAX mode).
• Temperature Up (▲) / Down (▼) Buttons: Ajusteu la temperatura desitjada.

2. Configuració de la temperatura

With the refrigerator powered on, press the ▲ or ▼ buttons to set your desired temperature. The display will flash the set temperature and then return to showing the current internal temperature. The unit will automatically adjust to reach and maintain the set temperature. The temperature range is from -20°C to 20°C (-4°F to 68°F).

Temperatures recomanades:

• Begudes: 5 °C (41 °F)
• Fruites: 5-8 °C (41-46 °F)
• Verdures: 3-10 °C (37-50 °F)
• Llet: 10 °C (50 °F)
• Gelat: -10 °C (14 °F)
• Meat (Frozen): -18 °C (0 °F)

3. Mode de protecció de la bateria

The unit features a 3-level battery protection system to prevent your vehicle's battery from draining.

• H1 (Alt): Highest protection, cuts off at higher voltage. Ideal for starting batteries.
• H2 (Mitjà): Protecció moderada.
• H3 (Baix): Lowest protection, cuts off at lower voltage. Ideal for deep cycle batteries or when connected to a separate power bank.

To change the battery protection mode, press the SET button repeatedly until the battery icon flashes on the display. Then use the ▲ or ▼ buttons to select H1, H2, or H3. The setting will be saved automatically after a few seconds.

Figure 8: Visual representation of the 3-stage battery protection modes (Low, Medium, High) and their corresponding cut-out and cut-in voltages for both 12V and 24V DC inputs.

4. ECO and MAX Modes

La nevera ofereix dos modes de funcionament:

• Mode ECO: Mode d'estalvi d'energia, adequat per mantenir la temperatura durant períodes més llargs amb un consum d'energia més baix.
• Mode MAX: Maximum cooling performance, ideal for rapid cooling of contents.

To switch between modes, press the SET button until the mode indicator flashes, then use the ▲ or ▼ buttons to select ECO or MAX.

Manteniment

1. Neteja

Regular cleaning helps maintain the efficiency and hygiene of your refrigerator.

• Desconnecteu sempre l'alimentació abans de netejar.
• Netegeu les superfícies interiors i exteriors amb un drap suauamprentat amb detergent suau i aigua tèbia.
• No utilitzeu productes de neteja abrasius, productes químics agressius ni objectes punxeguts, ja que poden danyar les superfícies.
• Assegureu-vos que la unitat estigui completament seca abans de tornar a connectar l'alimentació.
• Periodically clean the ventilation grilles to ensure proper airflow and prevent overheating. Use a soft brush or vacuum cleaner to remove dust and debris.

2. Descongelació

The Alpicool C12PT features automatic defrosting. However, if a significant layer of ice builds up, manually defrost the unit:

• Turn off the refrigerator and disconnect it from the power supply.
• Elimina tot el contingut.
• Leave the lid open to allow the ice to melt naturally.
• Netegeu l'aigua fosa amb un drap net. No utilitzeu objectes punxeguts per treure el gel.
• Assegureu-vos que l'interior estigui completament sec abans de tornar a engegar la unitat.

3. Emmagatzematge

Quan guardeu la nevera durant un període prolongat:

• Netegeu i assequeu bé la unitat.
• Deixeu la tapa lleugerament entreoberta per evitar males olors i floridura.
• Emmagatzemar en un lloc sec i ben ventilat, allunyat de temperatures extremes.

Resolució de problemes

If you encounter issues with your Alpicool C12PT, refer to the following common problems and solutions.

1. Refrigerator Not Turning On

• Comproveu la connexió d'alimentació: Ensure the power cable is securely plugged into both the refrigerator and the power source (vehicle socket or wall outlet).
• Comproveu la font d'alimentació: Verify that the vehicle's cigarette lighter socket or wall outlet is functioning correctly. Test with another appliance if possible.
• Bateria del vehicle Voltage: If using DC power, check your vehicle's battery voltage. If it's too low, the battery protection system might have shut off the unit. Try adjusting the battery protection mode (H1, H2, H3) to a lower setting (e.g., H3) or connect to a fully charged battery.
• Comprovació de fusibles: Check the fuse in the cigarette lighter plug. Replace if blown.

2. Refrigerator Not Cooling Effectively

• Configuració de la temperatura: Ensure the temperature is set correctly to your desired cooling level.
• Ventilació: Check that the ventilation openings are not blocked and there is sufficient airflow around the unit.
• Temperatura ambient: In very high ambient temperatures, it may take longer for the unit to reach the set temperature.
• Segell de la tapa: Ensure the lid is properly closed and the seal is intact to prevent cold air from escaping.
• Sobrecàrrega: Avoid overloading the refrigerator with too many warm items at once.
• ECO/MAX Mode: If in ECO mode, switch to MAX mode for faster cooling.

3. Displaying Error Codes (e.g., F2)

• F2 Error (Compressor Overload): This error typically indicates that the compressor is working too hard or is experiencing an issue.
  • Assegureu-vos una ventilació adequada al voltant de la unitat.
  • Check if the ambient temperature is excessively high.
  • Disconnect power, wait a few minutes, and reconnect.
  • If the error persists, contact customer support.
• Other Error Codes: Refer to the specific error code in the full user manual (if provided by manufacturer) or contact customer support with the error code displayed.

4. Unusual Noise

• Funcionament normal: A slight humming or gurgling sound from the compressor and refrigerant flow is normal. The fan also produces a low noise.
• Vibracions: Ensure the unit is on a stable, flat surface. If placed in a vehicle, ensure it is secured to minimize movement.
• Soroll excessiu: If the noise is unusually loud or grinding, disconnect power and contact customer support.

Especificacions

Garantia i Suport

Informació de la garantia

Your Alpicool C12PT Portable Car Refrigerator comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Keep your purchase receipt as proof of purchase for warranty claims.

Atenció al client

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Alpicool customer support.

• Assistència en línia: Visit the official Alpicool weblloc web per a preguntes freqüents i recursos de suport.
• Contacte del venedor: If purchased through an online marketplace, you may contact the seller directly for assistance.
