Braun CareStyle 9 IS9095BK Steam Generator Iron User Manual

Introducció

Welcome to the user manual for your Braun CareStyle 9 IS9095BK Steam Generator Iron. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and keep it for future reference.

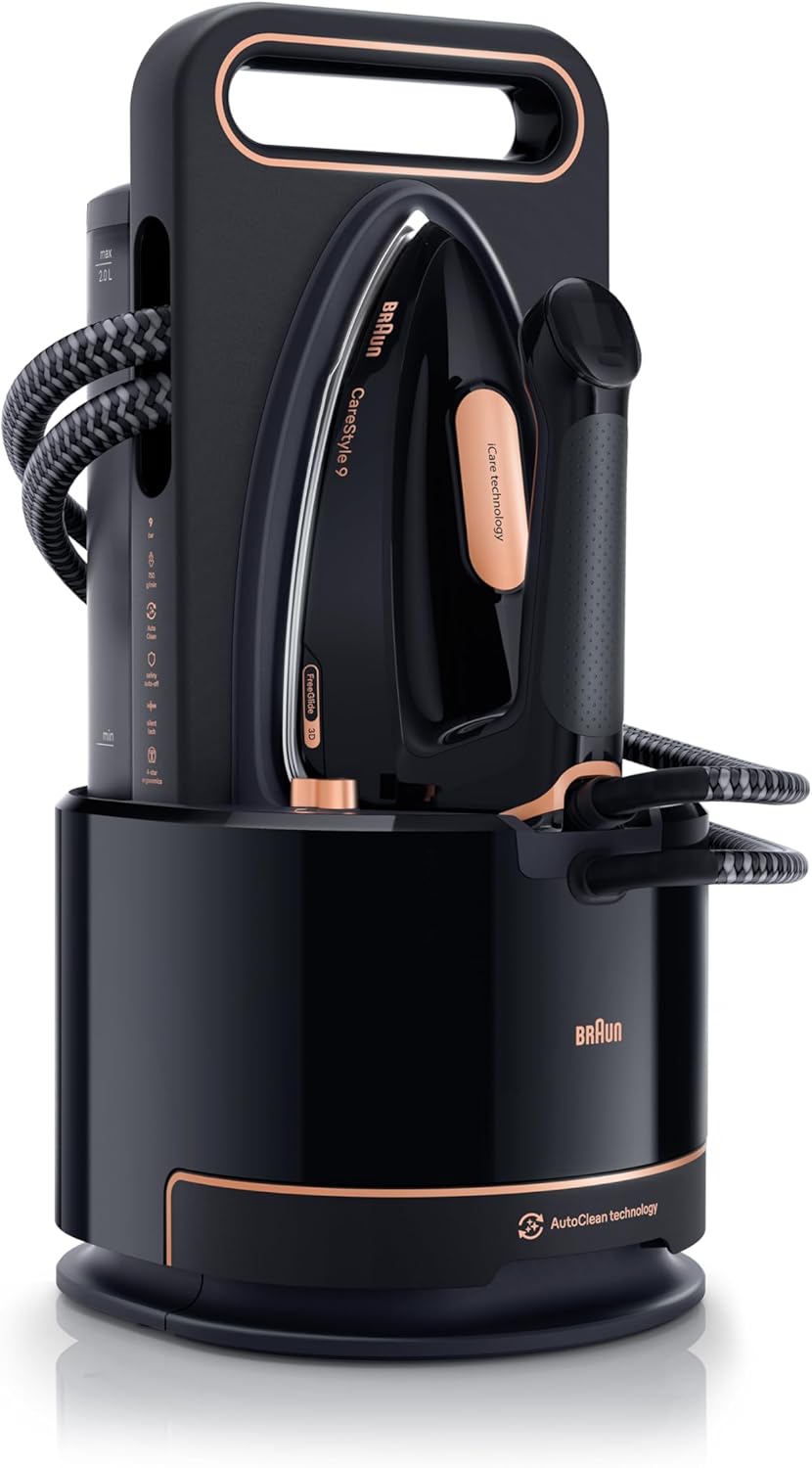

Image: The Braun CareStyle 9 IS9095BK Steam Generator Iron, showcasing its sleek black design with copper accents and compact base unit.

Instruccions de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions a les persones.

• No submergiu la planxa ni la unitat base en aigua ni en altres líquids.
• Assegureu-vos que el voltage indicat a l'electrodomèstic correspon a la vostra xarxa local voltage.
• No deixeu la planxa sense vigilància mentre estigui connectada a la xarxa elèctrica.
• Mantenir fora de l'abast dels nens.
• Unplug the iron from the power outlet when not in use and before cleaning.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi caigut o s'hagi danyat de cap manera.

Configuració

Unpacking and Initial Preparation

1. Traieu amb cura la planxa i tots els accessoris de l'embalatge.
2. Traieu qualsevol pel·lícula protectora o adhesiu de l'aparell.
3. Place the steam generator on a stable, heat-resistant, and level surface.

Omplint el dipòsit d'aigua

The CareStyle 9 features a detachable 2-liter water tank for easy refilling.

• Remove the detachable water tank from the base unit.
• Fill the tank with tap water up to the maximum fill line. For areas with very hard water, a mixture of 50% tap water and 50% distilled water is recommended. Do not use pure distilled water or additives.
• Reinsert the water tank firmly into the base unit until it clicks into place.

Image: A hand detaching the 2-liter water tank from the Braun CareStyle 9 base unit, illustrating its ease of removal for refilling.

Instruccions de funcionament

Powering On and Heating Up

1. Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.
2. Press the power button on the base unit. The iron will begin to heat up.
3. Wait for the indicator light to stop flashing, indicating the iron has reached the desired temperature.

iMode OLED Technology and Settings

The smart iMode OLED selector guides you through the ironing process, offering six settings for optimal results.

• iCare Mode: Provides a safe temperature for all ironable fabrics, protecting delicate garments.
• Mode turbo: Delivers maximum steam performance for tough creases and heavy fabrics.
• Mode Eco: Reduces energy consumption by up to 55% while still providing effective steam.
• Select the desired mode using the iMode OLED selector on the iron's handle.

Image: Close-up of the Braun CareStyle 9's iMode OLED display, showing the "hello" greeting and illustrating the different ironing modes available.

Auto Steam Technology and Ironing

The advanced Auto Steam technology detects the iron's movements, automatically releasing the optimal amount of steam without the need to press a trigger.

• Begin ironing by gliding the iron over your garments. The steam will activate automatically.
• For stubborn creases, you can manually activate additional steam by pressing the steam button if needed.
• The FreeGlide 3D Technology with its upward curving soleplate allows for 360° glideability, making it easy to glide over buttons and pockets without snagging.

Imatge: Un primer pla view of the Braun CareStyle 9's FreeGlide 3D soleplate gliding over a button, demonstrating its ability to navigate obstacles smoothly.

Ergonomia i confort

The Braun CareStyle 9 is designed with ergonomics in mind, featuring a unique open handle for reduced wrist stress, providing a more comfortable ironing experience. It is certified by ErgoCert (Ergonomics Certifying Institute).

Image: A person ironing with the Braun CareStyle 9, highlighting its ergonomic design and the ErgoCert certification logo.

Planxa vertical

The iron can also be used for vertical steaming of hanging garments, curtains, or drapes.

• Hold the iron in a vertical position, close to the fabric but not touching it.
• Activate steam as needed.

Manteniment

AutoClean Technology (Descaling)

The innovative AutoClean technology automatically recognizes when descaling is needed and performs the process for you, hassle-free, in just over 2 minutes.

1. When the AutoClean indicator illuminates, ensure the water tank is filled.
2. Place the iron on its base unit.
3. Follow the instructions on the iMode OLED display to initiate the AutoClean cycle.
4. The iron will automatically perform the descaling process. Once complete, the indicator will turn off.

Image: A person emptying the descaling tray of the Braun CareStyle 9, demonstrating the self-cleaning AutoClean technology.

Neteja de la sola

• Assegureu-vos que la planxa estigui desendollada i completament freda.
• Netegeu la sola amb l'anunciamp cloth and a non-abrasive liquid cleaner if necessary.
• Do not use abrasive scouring pads or harsh chemicals.

Emmagatzematge

• Deixeu que la planxa es refredi completament abans de guardar-la.
• Buidar l'aigua que quedi del dipòsit.
• Enrotlleu la mànega de vapor i el cable d'alimentació amb cura al voltant de les zones d'emmagatzematge designades a la unitat base.
• Store the iron in a dry, safe place.

Resolució de problemes

Especificacions

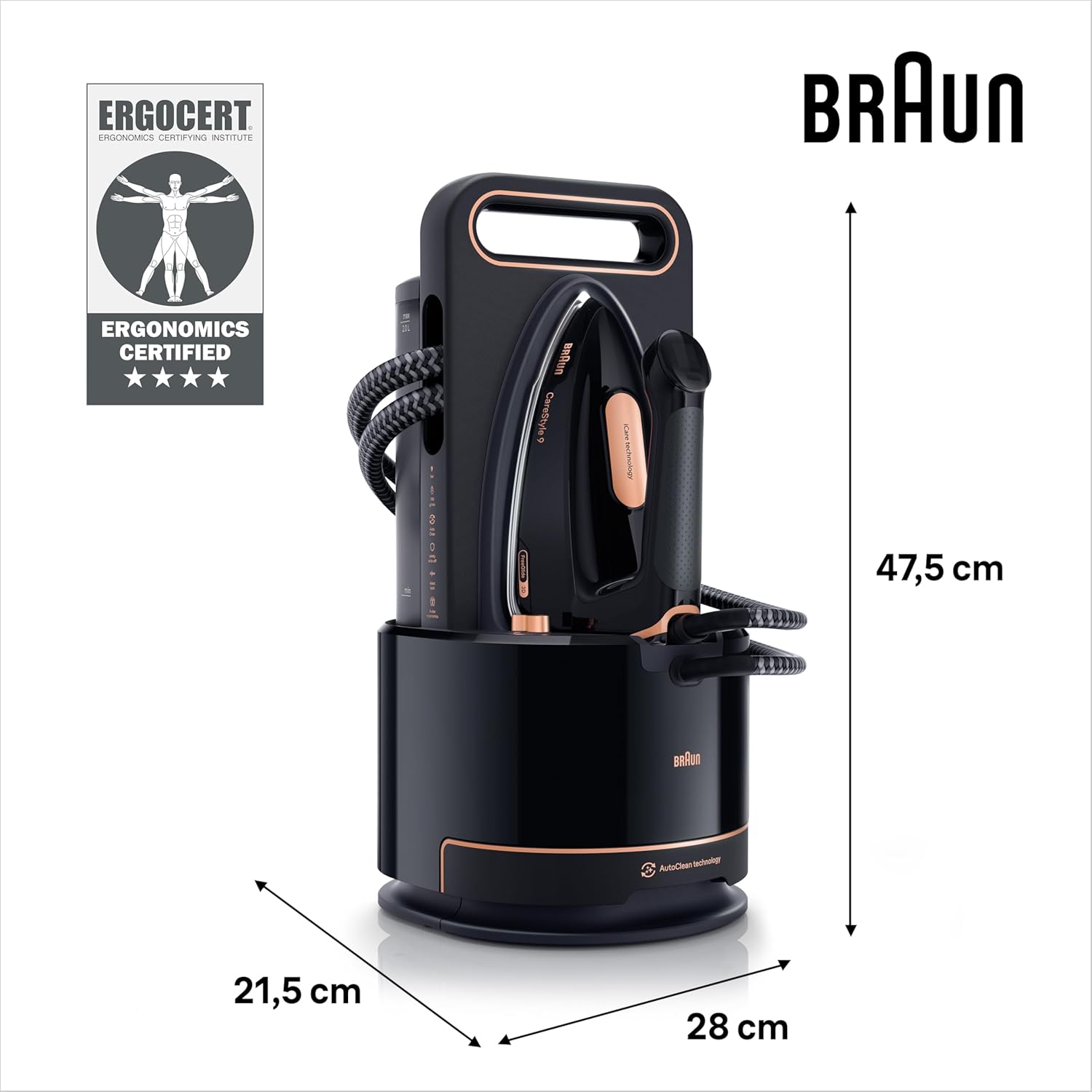

Image: Diagram showing the dimensions of the Braun CareStyle 9 steam generator iron, including height (47.5 cm) and base width (21.5 cm).

Image: Visual summary of key specifications for the Braun CareStyle 9, including 2400W power, 750 g/min steam shot, 170 g/min constant steam, and 1.96m cord length.

Garantia i Suport

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Braun weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.

Per a més ajuda, podeu contactar amb el servei d'atenció al client de Braun a través dels seus canals oficials.
