1. Introducció
This manual provides essential information for the safe and efficient operation of your THKFMSRC Tmall Genie Intelligent Driver Power Supply, specifically the 12-24W*2 model. This intelligent LED driver is designed for transforming and controlling LED ceiling lamps, offering features like dimming and color adjustment when integrated with Tmall Genie smart home systems. Please read this manual thoroughly before installation and use.
2. Informació de seguretat
ADVERTIMENT: Electrical shock hazard. Installation should only be performed by a qualified electrician or trained personnel. Disconnect power at the circuit breaker before installation or servicing.
- Assegureu-vos que l'entrada voltage (220V) matches your electrical supply.
- Do not exceed the specified output power (12-24W*2) or current (0.3A) for connected LED lamps.
- Mantingueu el dispositiu allunyat de l'aigua i de la humitat excessiva.
- No obriu la c.asing of the driver; there are no user-serviceable parts inside.
- Ensure proper ventilation around the driver to prevent overheating. Operating temperature range is -25°C to 145°C.
3. Configuració i instal·lació
This intelligent LED driver is designed for external installation. Follow these steps carefully:
- Desconnexió d'alimentació: Before beginning any installation, turn off the main power supply to the circuit at the circuit breaker. Verify that power is off using a voltage provador.
- Identificar els cables: The driver has input wires (typically brown/blue for AC input) and output wires (typically red/black for DC output to LEDs). Refer to the wiring diagram on the driver label.
- Entrada de connexió: Connect the AC input wires from your mains supply to the corresponding input terminals on the driver. Ensure a secure connection. The input voltage és 220 V AC.
- Connexió de sortida: Connect the DC output wires from the driver to your LED ceiling lamp. Pay close attention to polarity (positive to positive, negative to negative). This model supports two channels (12-24W per channel).
- Instal·lació segura: Mount the driver in a suitable, well-ventilated location, ensuring it is protected from physical damage and moisture. The overall dimensions are 90mm x 40mm x 17mm.
- Restauració d'energia: Un cop totes les connexions estiguin segures i verificades, restableu l'alimentació a l'interruptor.

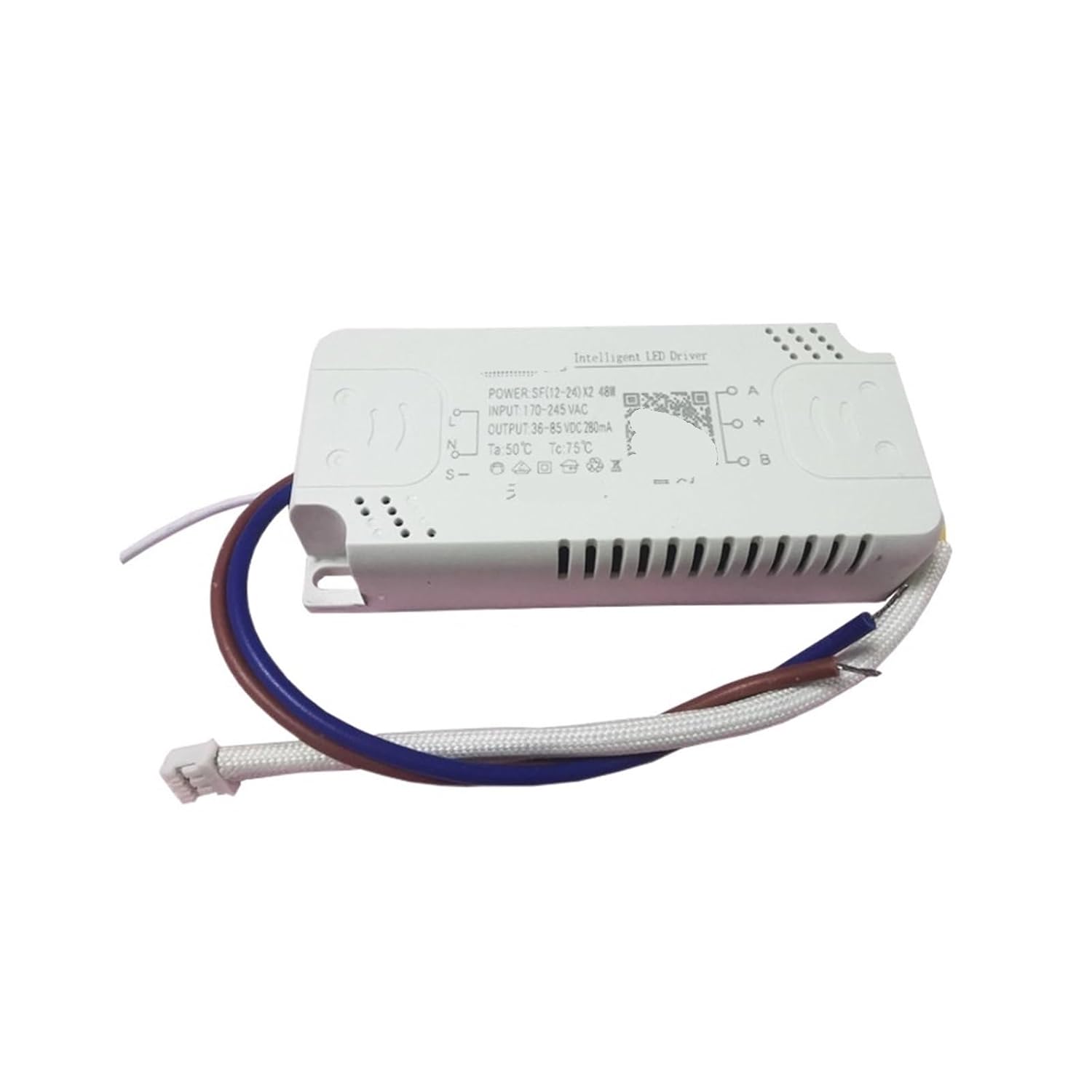

Figura 1: superior view of the THKFMSRC Tmall Genie Intelligent LED Driver. This image shows the main body of the driver with clearly labeled input (AC) and output (DC) terminals, along with a QR code for potential smart home integration. The wires for connection are visible.

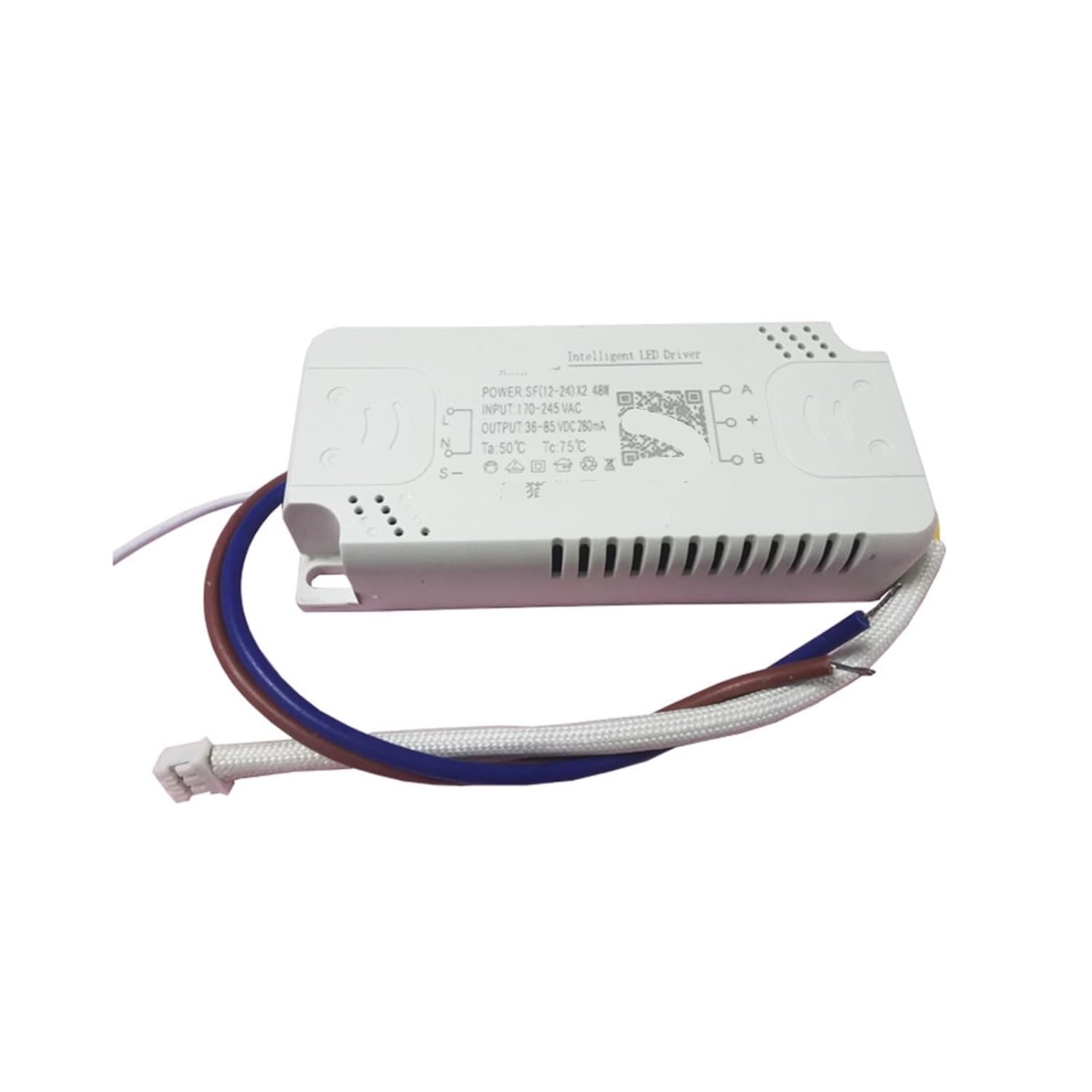

Figura 2: Angle view of the THKFMSRC Tmall Genie Intelligent LED Driver. This perspective emphasizes the compact design of the driver and the attached wiring for both power input and LED output.
4. Instruccions de funcionament
This intelligent driver is designed to work with Tmall Genie for smart control of your LED lighting. Once installed and powered, the driver will provide constant current to the connected LED lamps.
- Funcionament bàsic: The driver provides constant current output to power compatible LED lamp perles.
- Smart Control (Tmall Genie): For dimming and color adjustment features, integrate the driver with your Tmall Genie smart home system. Refer to your Tmall Genie device's instructions for pairing and control setup. The QR code on the driver may facilitate this process.
- Factor de potència: The driver operates with a power factor of 0.7, ensuring efficient energy conversion.
5. Manteniment
The THKFMSRC Tmall Genie Intelligent Driver is designed for long-term, maintenance-free operation. Follow these guidelines to ensure its longevity:
- Neteja: Ensure the driver remains free of dust and debris. If cleaning is necessary, disconnect power and gently wipe the exterior with a dry, soft cloth. Do not use liquid cleaners.
- Ventilació: Ensure the installation location allows for adequate airflow around the driver to dissipate heat.
- Inspecció: Periodically inspect the wiring connections to ensure they remain secure and free from corrosion or damage.
- No hi ha peces reparables per l'usuari: Do not attempt to open or repair the driver. Doing so will void any warranty and may pose a safety risk.
6. Solució De Problemes
If you encounter issues with your LED driver, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| LED lamp no s'il·lumina. | No power supply to the driver. Incorrect wiring (input/output). Faulty LED lamp. Protecció de sobrecàrrega activada. | Comproveu l'alimentació al disjuntor. Verifiqueu que totes les connexions de cablejat siguin correctes i segures. Test the LED lamp with a known working driver. Assegureu-vos de wat totaltage of connected LEDs does not exceed driver's capacity. |
| LED lamp parpelleja o s'atenua de manera inesperada. | Connexions fluixes. Incompatible LED lamp. Driver overheating. | Comproveu i fixeu totes les connexions del cablejat. Assegureu-vos que el LED lamp specifications match driver output. Verify adequate ventilation around the driver. |
| Tmall Genie control not working. | Driver not paired with Tmall Genie. Problemes de connectivitat de xarxa. Incorrect Tmall Genie settings. | Refer to Tmall Genie pairing instructions. Check Wi-Fi connection and Tmall Genie status. Verify settings within the Tmall Genie app. |
7. Especificacions
| Model: | Tmall Genie Voice Model (12-24W*2) |
| Tipus: | Constant Current Source |
| Entrada Voltage: | 220 V AC |
| Freqüència d'entrada: | 50/60 Hz |
| Potència de sortida: | 12-24W * 2 Channels |
| Vol. De sortidatage: | 3-220V DC (Adaptive to load) |
| Corrent de sortida: | 0.3 A (300 mA) |
| Eficiència: | 90% |
| Factor de potència: | 0.7 |
| Protecció: | Protecció de sobrecàrrega |
| Ubicació de la instal·lació: | Extern |
| Nivell de protecció: | IP20 |
| Temperatura de treball: | -25 °C a 145 °C |
| L aplicableamps: | LED Lamp Perles |
| Overall Dimensions (L*W*H): | 90 mm * 40 mm * 17 mm |
| Vida útil: | 50,000 hores |
| Pes: | 58g (Unit weight: 0.065kg) |
| Material: | Copper, Silver (for contacts) |
8. Garantia i Suport
This product is manufactured by THKFMSRC. For specific warranty information and technical support, please refer to the seller's policies or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
For further assistance, please visit the product page on Amazon or contact Amazon customer service.
