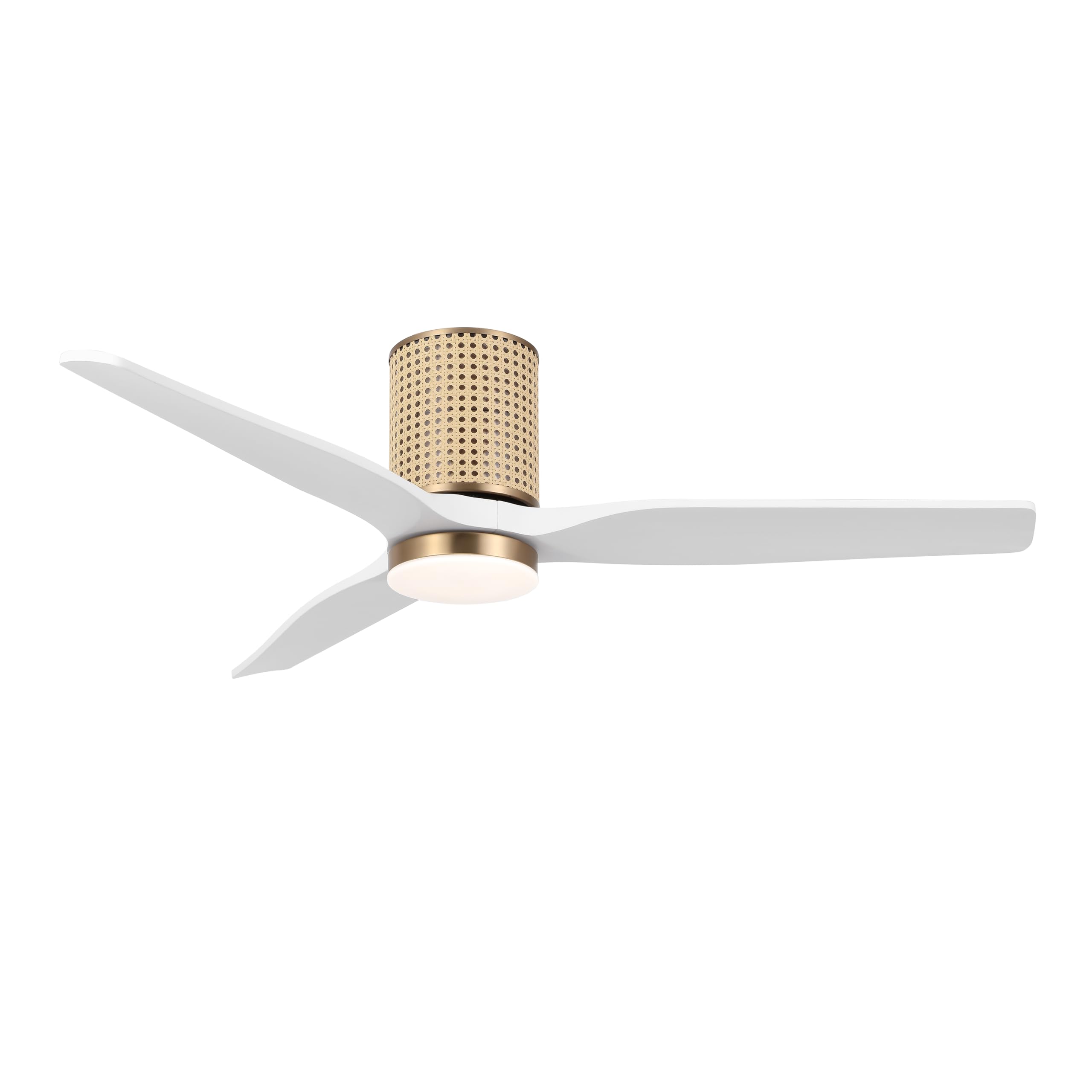

LEDLUX 52" Ceiling Fan with Light

Producte acabatview

The LEDLUX 52" Ceiling Fan with Light is a low-profile, flush-mount fan designed for various indoor spaces. It features solid wood blades, a rattan design element, and a quiet DC motor. The integrated LED light offers adjustable color temperatures, and the fan is controlled via a 6-speed remote.

Dimensions

Refer to the diagram below for detailed product dimensions.

Característiques clau

• Unique Rattan & Wood Design: Blends natural elegance with modern style, featuring a rattan design and solid wood blades.
• Flush-Mount Low-Profile Fit: Ideal for low ceilings in bedrooms, dining rooms, or apartments.
• Premium Solid Wood Blades: Crafted from high-quality solid wood for durability and natural aesthetics. Suitable for indoor and covered outdoor spaces.
• Tres temperatures de color: The integrated LED light offers 3000K (warm), 4000K (neutral), and 6000K (cool) light options.
• Quiet & Reversible DC Motor: Delivers strong airflow with whisper-quiet operation. The reversible function provides cooling in summer and improved air circulation in winter.

Funció de flux d'aire reversible

The fan's reversible DC motor allows for optimal air circulation throughout the year. In summer, the blades rotate counter-clockwise to create a downward airflow, producing a cooling effect. In winter, the blades rotate clockwise to create an upward airflow, recirculating warm air trapped near the ceiling.

Adjustable LED Light Temperature

The integrated LED light offers three distinct color temperature settings to suit your preference and room ambiance: 3000K (Warm Light), 4000K (Neutral Light), and 6000K (Cool Light). These settings can be adjusted via the remote control.

Funcionament silenciós

The LEDLUX ceiling fan is equipped with a DC motor designed for whisper-quiet operation, ensuring minimal disturbance. The sound level is less than 35dB during operation, making it suitable for bedrooms and other quiet environments. It also includes 1-hour and 4-hour timer settings for convenience.

Configuració i instal·lació

Aquesta secció ofereix una descripció generalview of the installation process. For detailed step-by-step instructions, please refer to the included installation manual and the official installation video.

1. Prepareu la ubicació de muntatge: Ensure the ceiling electrical box is securely mounted and capable of supporting the fan's weight. Turn off power at the circuit breaker.
2. Instal·leu el suport de muntatge: Secure the mounting bracket to the ceiling electrical box using appropriate screws.
3. Muntar les aspes del ventilador: Attach the solid wood blades to the motor housing.
4. Connecteu el ventilador: Connect the fan's electrical wires to the household wiring according to local electrical codes. Use the safety cable to secure the fan to the ceiling structure.
5. Connecteu el ventilador al suport de muntatge: Carefully lift the fan and attach it to the mounting bracket.
6. Instal·lació del kit de llums LED: Connect the LED light module and secure the diffuser.
7. Restaura l'alimentació: Turn on power at the circuit breaker and test the fan and light functions.

Instruccions de funcionament

The LEDLUX ceiling fan is operated using the included remote control. Ensure batteries are installed correctly in the remote.

• Encès/apagat: Press the 'ALL OFF' button to turn off both fan and light. Use 'LIGHT ON/OFF' for light only, and speed buttons for fan only.
• Control de velocitat del ventilador: Select from 6 speed settings using buttons 1 through 6.
• Temperatura de color de la llum: Press the 'LIGHT ON/OFF' button repeatedly to cycle through 3000K, 4000K, and 6000K.
• Direction Control (Reversible): Press 'F' for Forward (Summer Mode - counter-clockwise airflow) or 'R' for Reverse (Winter Mode - clockwise airflow).
• Funció de temporitzador: Set the fan to turn off automatically after 1 hour ('1H') or 4 hours ('4H').
• Mode de vent natural: Activates a varying fan speed to simulate natural breezes.
• Pairing Multiple Fans: After initial pairing, multiple LEDLUX ceiling fans can be controlled with a single remote.

Note: Batteries for the remote control are not included. A wall stand for the remote is included.

Manteniment

Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del ventilador de sostre.

• Neteja: Netegeu regularment les aspes del ventilador i la carcassa del motor amb un drap suau.amp tela. Eviteu utilitzar netejadors abrasius o dissolvents que puguin danyar l'acabat.
• Inspecció de la fulla: Comproveu periòdicament que tots els cargols de les fulles estiguin ben ajustats. Les fulles soltes poden causar oscil·lacions i soroll.
• Light Diffuser: Clean the light diffuser with a soft, dry cloth.
• Lubricació del motor: El motor de corrent continu està lubricat permanentment i no requereix lubricació addicional.
• Control estacional: Before changing fan direction for summer/winter, ensure the fan is completely stopped.

Resolució de problemes

If you encounter issues with your LEDLUX ceiling fan, refer to the following common troubleshooting steps:

• El ventilador no s'engega: Check if the power is on at the circuit breaker and wall switch. Ensure all wire connections are secure. Verify remote control batteries are functional and correctly inserted.
• La llum no funciona: Check the light switch on the remote. Ensure all light kit connections are secure.
• Oscil·lació del ventilador: Ensure all blade screws are tightened. Check that the mounting bracket is securely fastened to the ceiling. Verify blades are balanced; a balancing kit may be required.
• Funcionament sorollós: Confirm all screws are tight. Check for any obstructions in the fan's path. Ensure the fan is properly installed and not touching any part of the ceiling.
• El comandament a distància no respon: Replace remote batteries. Ensure the remote is within range of the fan. Re-pair the remote if necessary (refer to the full manual for pairing instructions).

Si els problemes persisteixen després d'intentar aquests passos, poseu-vos en contacte amb l'atenció al client.

Especificacions

Garantia i Suport

LEDLUX provides comprehensive support for your ceiling fan:

• Whole Fan Warranty: 3-year quality and service guarantee. Contact customer service for any questions.
• Garantia del motor: 10-year warranty. If the fan motor does not turn on or makes abnormal noises, contact support for resolution.
• Components substituïbles: The remote control and LED light are replaceable for a lifetime. Contact customer service if they are lost or damaged.

For further assistance or warranty claims, please refer to the contact information provided in your product packaging or visit the official LEDLUX weblloc.
